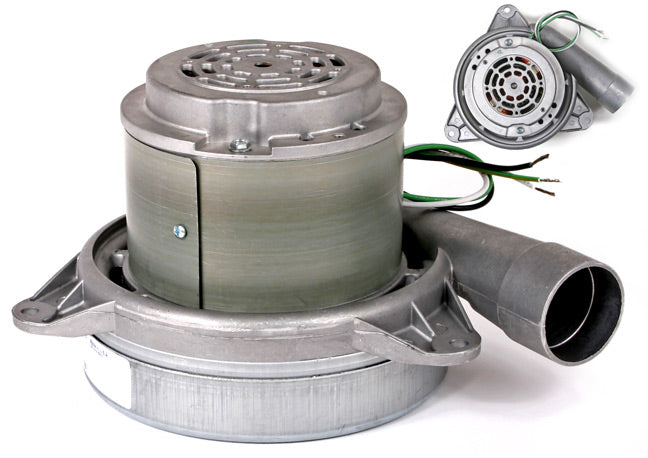

AMETEK Lamb 115334 Vacuum Motor for Beam Central Vacuum – Part# 201

AMETEK Lamb 115334 Vacuum Motor for Beam Central Vacuum – Part# 201

Available: In Stock
$390.60
  • Order within

Quick Summary

The 115334 Lamb vacuum motor is a brand-new AMETEK Lamb motor commonly used in central vacuum systems and blowers. It operates at 110–120 volts and replaces several listed Lamb motor numbers.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Brand-new, not rebuilt AMETEK Lamb motor
  • Two fan stages
  • 110–120V, 50–60Hz operation
  • 102.7 CFM and 384 AirWatts
  • Fits listed Beam models and other compatible systems
  • No core trade-in required

Product Overview

The 115334 Lamb motor is commonly used in Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Kenmore central vacuum systems. It is compatible with listed Beam models 153, 154, 183, 190, 253, 254, 259, and 284 in 120V versions.

This motor replaces several Lamb motor numbers, including 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, and 115937. Replacement involves three bolts and a couple of wires, and carbon motor brushes can be replaced before the motor reaches the end of its service life.


Key Features

  • Brand-new motor: This is a new, not rebuilt, AMETEK Lamb motor with no core trade-in required.
  • Two fan stages: The motor uses two fan stages and produces 110 inches of waterlift.
  • Broad system compatibility: It is listed for Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Kenmore systems.
  • Listed Beam fit: The motor fits Beam models 153, 154, 183, 190, 253, 254, 259, and 284 when configured for 120V.
  • Replaceable brushes: The motor has carbon brushes that can be replaced, and two brushes are needed.
  • Straightforward installation: Installation requires removing three bolts and reconnecting a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 153 (120V)
  • Beam 154 (120V)
  • Beam 183 (120V)
  • Beam 190 (120V)
  • Beam 253 (120V)
  • Beam 254 (120V)
  • Beam 259 (120V)
  • Beam 284 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor model 115334
Motor type Two fan stages
Voltage 110–120V
Frequency 50–60Hz
Bottom diameter 7.2 inches
Height 6 inches
Bolt height 1.5 inches
Waterlift 110 inches
Airflow 102.7 CFM
AirWatts 384
Amperage 12 amps
Compatible Beam models 153, 154, 183, 190, 253, 254, 259, and 284, all 120V
Replaces 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, and 115937
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 115334-compatible central vacuum motor
  • Listed 120V Beam models
  • Systems using one of the listed replacement motor numbers
  • Customers needing a new, not rebuilt motor
  • Motors with worn carbon brushes that need service before full replacement

Not Ideal For

  • 240V systems, which use the 115684 version instead
  • Systems whose model or motor fit has not been confirmed
  • Repairs where the mini breaker or relay is the only failed component

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 115334 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 115334 Lamb vacuum motor is a brand-new AMETEK Lamb motor commonly used in central vacuum systems and blowers. It operates at 110–120 volts and replaces several listed Lamb motor numbers.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Brand-new, not rebuilt AMETEK Lamb motor
  • Two fan stages
  • 110–120V, 50–60Hz operation
  • 102.7 CFM and 384 AirWatts
  • Fits listed Beam models and other compatible systems
  • No core trade-in required

Product Overview

The 115334 Lamb motor is commonly used in Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Kenmore central vacuum systems. It is compatible with listed Beam models 153, 154, 183, 190, 253, 254, 259, and 284 in 120V versions.

This motor replaces several Lamb motor numbers, including 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, and 115937. Replacement involves three bolts and a couple of wires, and carbon motor brushes can be replaced before the motor reaches the end of its service life.


Key Features

  • Brand-new motor: This is a new, not rebuilt, AMETEK Lamb motor with no core trade-in required.
  • Two fan stages: The motor uses two fan stages and produces 110 inches of waterlift.
  • Broad system compatibility: It is listed for Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Kenmore systems.
  • Listed Beam fit: The motor fits Beam models 153, 154, 183, 190, 253, 254, 259, and 284 when configured for 120V.
  • Replaceable brushes: The motor has carbon brushes that can be replaced, and two brushes are needed.
  • Straightforward installation: Installation requires removing three bolts and reconnecting a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 153 (120V)
  • Beam 154 (120V)
  • Beam 183 (120V)
  • Beam 190 (120V)
  • Beam 253 (120V)
  • Beam 254 (120V)
  • Beam 259 (120V)
  • Beam 284 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor model 115334
Motor type Two fan stages
Voltage 110–120V
Frequency 50–60Hz
Bottom diameter 7.2 inches
Height 6 inches
Bolt height 1.5 inches
Waterlift 110 inches
Airflow 102.7 CFM
AirWatts 384
Amperage 12 amps
Compatible Beam models 153, 154, 183, 190, 253, 254, 259, and 284, all 120V
Replaces 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, and 115937
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 115334-compatible central vacuum motor
  • Listed 120V Beam models
  • Systems using one of the listed replacement motor numbers
  • Customers needing a new, not rebuilt motor
  • Motors with worn carbon brushes that need service before full replacement

Not Ideal For

  • 240V systems, which use the 115684 version instead
  • Systems whose model or motor fit has not been confirmed
  • Repairs where the mini breaker or relay is the only failed component

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 115334 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

What is the 115334 Lamb vacuum motor?

It is a brand-new, not rebuilt, AMETEK Lamb motor commonly used in central vacuum brands and models.

Which Beam models does this motor fit?

The listed Beam models are 153, 154, 183, 190, 253, 254, 259, and 284, all in 120V versions. Confirm your system model or inlet type if fit is not certain.

What voltage does the 115334 motor use?

The motor is rated for 110–120 volts and 50–60Hz.

What motor numbers does the 115334 replace?

It replaces 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, and 115937 motors.

What are signs that this motor needs replacement?

Possible signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.

How difficult is this motor to install?

The record describes installation as straightforward, requiring three bolts and a couple of wires.

Does the motor require a core trade-in?

No. There is no core trade-in for this motor.

Can the motor brushes be replaced?

Yes. The 115334 has carbon motor brushes that can be replaced, and two brushes are needed.
