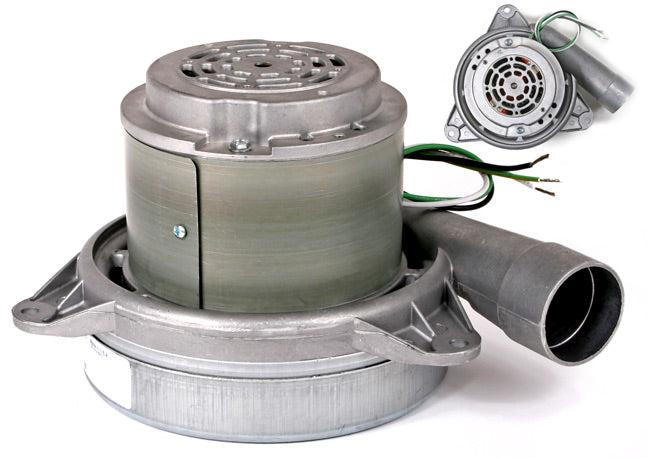

AMETEK Lamb 115334 Vacuum Motor for MD Central Vacuum – Part# 201

AMETEK Lamb 115334 Vacuum Motor for MD Central Vacuum – Part# 201

Available: In Stock
$390.60
  • Order within

Quick Summary

The 115334 vacuum motor is a new AMETEK Lamb replacement motor used in many central vacuum brands and models, including select MD central vacuum power units. It is a 2-stage, 110-120 volt motor that also fits Vacumaid P125 and P325.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • AMETEK Lamb original motor
  • 2-stage design
  • 110-120 volt, 50-60 hertz
  • Fits select MD central vacuum models
  • Replaces multiple Lamb motor numbers

Product Overview

The 115334 vacuum motor is a replacement motor for select MD central vacuum units and other central vacuum brands. This is a brand new motor, not a rebuilt unit, and it is an original AMETEK Lamb motor.

According to the product record, this motor is commonly used in many central vacuum systems and is compatible with MD B (120V), MD E (120V), and MD SV (120V) models. It is also listed as compatible with Vacumaid P125 and P325.

The record notes common signs of motor failure such as a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, a clicking sound, or shutdowns after running. It also states that motor brush replacement is possible on this model.


Key Features

  • Original Lamb motor: This is an AMETEK Lamb original 115334 motor supplied as a new motor, not a rebuilt one.
  • 2-stage configuration: The motor uses a 2-stage fan design as listed in the product specifications.
  • 120 volt application: This model is rated for 110-120 volts and 50-60 hertz.
  • MD model fit: The product record lists MD B (120V), MD E (120V), and MD SV (120V) as compatible MD central vacuum models.
  • Cross-brand compatibility: The record also notes use in Modern Day, Flo-Master, Beam, Nutone, Vacuflo, Kenmore, and Vacumaid P125 and P325 systems.
  • Replaces multiple part numbers: It replaces several Lamb motor numbers, which can help when matching an older motor.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD B (120V)
  • MD E (120V)
  • MD SV (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part Number 201
Motor Model 115334
Condition New, not rebuilt
Fan Stages 2
Voltage 110-120
Hertz 50-60
Bottom Diameter 7.2 in.
Height 6 in.
Bolt Height 1.5 in.
Waterlift 110 in.
CFM 102.7
AirWatts 384
Amps 12
240 Volt Version 115684
Replaces 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, 115937
MD Models This Part Fits MD B (120V), MD E (120V), MD SV (120V)
Also Compatible With Vacumaid P125, P325
Compatibility Note Modern Day, Flo-Master, Beam, Nutone, Vacuflo and Kenmore
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 115334 motor in an MD central vacuum
  • MD B (120V), MD E (120V), and MD SV (120V) power units
  • Matching one of the listed replacement motor numbers
  • 120 volt central vacuum motor replacement needs

Not Ideal For

  • Not for 240 volt applications; the record lists 115684 as the 240 volt version
  • Fit should be confirmed if your MD central vacuum model is not one of the listed 120V models
  • If there is no click from the unit, the relay may need replacement instead of the motor

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 115334 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 115334 vacuum motor is a new AMETEK Lamb replacement motor used in many central vacuum brands and models, including select MD central vacuum power units. It is a 2-stage, 110-120 volt motor that also fits Vacumaid P125 and P325.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • AMETEK Lamb original motor
  • 2-stage design
  • 110-120 volt, 50-60 hertz
  • Fits select MD central vacuum models
  • Replaces multiple Lamb motor numbers

Product Overview

The 115334 vacuum motor is a replacement motor for select MD central vacuum units and other central vacuum brands. This is a brand new motor, not a rebuilt unit, and it is an original AMETEK Lamb motor.

According to the product record, this motor is commonly used in many central vacuum systems and is compatible with MD B (120V), MD E (120V), and MD SV (120V) models. It is also listed as compatible with Vacumaid P125 and P325.

The record notes common signs of motor failure such as a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, a clicking sound, or shutdowns after running. It also states that motor brush replacement is possible on this model.


Key Features

  • Original Lamb motor: This is an AMETEK Lamb original 115334 motor supplied as a new motor, not a rebuilt one.
  • 2-stage configuration: The motor uses a 2-stage fan design as listed in the product specifications.
  • 120 volt application: This model is rated for 110-120 volts and 50-60 hertz.
  • MD model fit: The product record lists MD B (120V), MD E (120V), and MD SV (120V) as compatible MD central vacuum models.
  • Cross-brand compatibility: The record also notes use in Modern Day, Flo-Master, Beam, Nutone, Vacuflo, Kenmore, and Vacumaid P125 and P325 systems.
  • Replaces multiple part numbers: It replaces several Lamb motor numbers, which can help when matching an older motor.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD B (120V)
  • MD E (120V)
  • MD SV (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part Number 201
Motor Model 115334
Condition New, not rebuilt
Fan Stages 2
Voltage 110-120
Hertz 50-60
Bottom Diameter 7.2 in.
Height 6 in.
Bolt Height 1.5 in.
Waterlift 110 in.
CFM 102.7
AirWatts 384
Amps 12
240 Volt Version 115684
Replaces 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, 115937
MD Models This Part Fits MD B (120V), MD E (120V), MD SV (120V)
Also Compatible With Vacumaid P125, P325
Compatibility Note Modern Day, Flo-Master, Beam, Nutone, Vacuflo and Kenmore
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 115334 motor in an MD central vacuum
  • MD B (120V), MD E (120V), and MD SV (120V) power units
  • Matching one of the listed replacement motor numbers
  • 120 volt central vacuum motor replacement needs

Not Ideal For

  • Not for 240 volt applications; the record lists 115684 as the 240 volt version
  • Fit should be confirmed if your MD central vacuum model is not one of the listed 120V models
  • If there is no click from the unit, the relay may need replacement instead of the motor

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 115334 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Will this motor fit my MD central vacuum?

The product record lists this motor for MD B (120V), MD E (120V), and MD SV (120V). If your unit is different, confirm your model and motor details before ordering.

Is this motor new or rebuilt?

This is a brand new motor, not a rebuilt motor.

What voltage is this motor?

It is rated for 110-120 volts and 50-60 hertz.

What motor numbers does this replace?

The record says it replaces 115472, 115837, 115332, 115334-W, 115441, 115440, 115639, and 115937 motors.

Is there a 240 volt version of this motor?

Yes. The record states that 115684 is the 240 volt version of the 115334 motor.

What are common signs that this motor needs replacement?

The record lists mini breaker popping, an electrical smell, excessive blue sparks from the motor top, hearing only a click, the motor shutting down and working later, or the motor reaching its expected life.

Can the brushes be replaced on this motor?

Yes. The record states that the 115334 vacuum motor has carbon motor brushes that can be replaced, and you need to buy two brushes.

Is this difficult to install?

The record says replacing the 115334 motor is not difficult and involves three bolts and a couple of wires.
