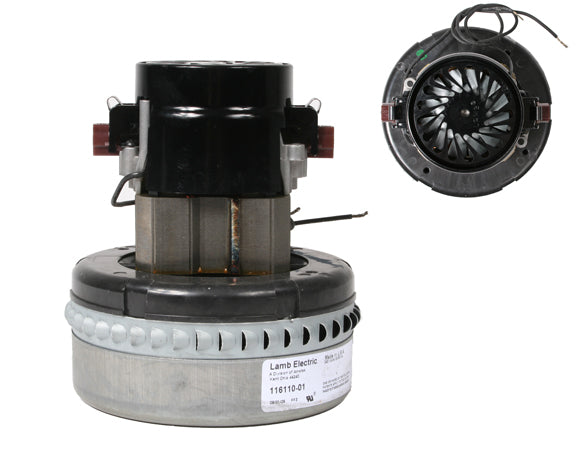

AMETEK Lamb 116110 Vacuum Motor for MD Central Vacuum – Part# 205F
- Product SKU: 205F
- Category: Central Vacuum Parts & Accessories, MD Central Vacuum Attachment Kit
- Order within
Quick Summary
This replacement vacuum motor is the Lamb 116110 model used in some central vacuum brands and models, including certain MD central vacuum units. It is a brand new AMETEK Lamb original motor, not a rebuilt motor.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand new, not rebuilt motor
- Original AMETEK Lamb 116110 motor
- 2-stage motor design
- 220-240 volt, 50-60 hertz
- Listed for MD QE2 and MD QE3 (240V)
- Part number 205F
Product Overview
The 116110 Lamb Vacuum Motor is a replacement motor for select central vacuum systems, including MD central vacuum models QE2 (240V) and QE3 (240V). It is an original AMETEK Lamb motor and replaces only the 116110 motor.
According to the product record, common signs that this motor may need replacement include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, hearing only a click, or the motor shutting down on its own and working again later. The listed motor life is 900 to 1,200 hours.
This motor has replaceable carbon motor brushes. Installation is described as involving three to four screw brackets and a couple of wires.
Key Features
- Direct 116110 replacement: This motor replaces only the Lamb 116110 motor.
- Original Lamb motor: It is a brand new AMETEK Lamb original motor, not a rebuilt unit.
- For select MD models: This part is listed for MD QE2 (240V) and MD QE3 (240V) central vacuum power units.
- 2-stage design: The motor is specified as a 2-stage unit.
- Brushes can be replaced: The 116110 motor uses carbon motor brushes that can be replaced.
- Straightforward installation: The record states installation uses three to four screw brackets and a couple of wires.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD QE2 (240V)
- MD QE3 (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Product name | 116110 Lamb Vacuum Motor |
| Part number | 205F |
| Motor number | 116110 |
| Alternate markings | 11-6110 or 6110 |
| Fan stages | 2 |
| Voltage | 220-240 |
| Hertz | 50-60 |
| Bottom diameter | 5.7 in |
| Height | 6.5 in |
| Bolt height | 2.75 in |
| Waterlift | 98 in |
| CFM | 103 |
| AirWatts | 355 |
| Amps | 5 |
| Fits MD models | MD QE2 (240V), MD QE3 (240V) |
| Compatibility note | Modern Day, Flo-Master and Nutone |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn or failed 116110 motor
- MD central vacuum models QE2 (240V) and QE3 (240V)
- 220-240V central vacuum applications that use motor 116110
- Restoring performance when the original 116110 motor is worn out
Not Ideal For
- Not for replacing motors other than 116110
- Not for buyers who have not confirmed 220-240V fit
- Mini breaker or relay issues may need separate diagnosis or parts
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116110 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
This replacement vacuum motor is the Lamb 116110 model used in some central vacuum brands and models, including certain MD central vacuum units. It is a brand new AMETEK Lamb original motor, not a rebuilt motor.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand new, not rebuilt motor
- Original AMETEK Lamb 116110 motor
- 2-stage motor design
- 220-240 volt, 50-60 hertz
- Listed for MD QE2 and MD QE3 (240V)
- Part number 205F
Product Overview
The 116110 Lamb Vacuum Motor is a replacement motor for select central vacuum systems, including MD central vacuum models QE2 (240V) and QE3 (240V). It is an original AMETEK Lamb motor and replaces only the 116110 motor.
According to the product record, common signs that this motor may need replacement include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, hearing only a click, or the motor shutting down on its own and working again later. The listed motor life is 900 to 1,200 hours.
This motor has replaceable carbon motor brushes. Installation is described as involving three to four screw brackets and a couple of wires.
Key Features
- Direct 116110 replacement: This motor replaces only the Lamb 116110 motor.
- Original Lamb motor: It is a brand new AMETEK Lamb original motor, not a rebuilt unit.
- For select MD models: This part is listed for MD QE2 (240V) and MD QE3 (240V) central vacuum power units.
- 2-stage design: The motor is specified as a 2-stage unit.
- Brushes can be replaced: The 116110 motor uses carbon motor brushes that can be replaced.
- Straightforward installation: The record states installation uses three to four screw brackets and a couple of wires.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD QE2 (240V)
- MD QE3 (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Product name | 116110 Lamb Vacuum Motor |
| Part number | 205F |
| Motor number | 116110 |
| Alternate markings | 11-6110 or 6110 |
| Fan stages | 2 |
| Voltage | 220-240 |
| Hertz | 50-60 |
| Bottom diameter | 5.7 in |
| Height | 6.5 in |
| Bolt height | 2.75 in |
| Waterlift | 98 in |
| CFM | 103 |
| AirWatts | 355 |
| Amps | 5 |
| Fits MD models | MD QE2 (240V), MD QE3 (240V) |
| Compatibility note | Modern Day, Flo-Master and Nutone |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn or failed 116110 motor
- MD central vacuum models QE2 (240V) and QE3 (240V)
- 220-240V central vacuum applications that use motor 116110
- Restoring performance when the original 116110 motor is worn out
Not Ideal For
- Not for replacing motors other than 116110
- Not for buyers who have not confirmed 220-240V fit
- Mini breaker or relay issues may need separate diagnosis or parts
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116110 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
Will this fit my MD central vacuum?
This motor is listed for MD QE2 (240V) and MD QE3 (240V). If your MD central vacuum model is different, confirm your model and motor number before ordering.
Is this a rebuilt motor?
No. The record states this is a brand new AMETEK Lamb original motor, not a rebuilt motor.
What motor does this replace?
It replaces only the 116110 motor.
Are there other numbers on this motor?
Yes. The 116110 motor may also say 11-6110 or 6110.
What are common signs that this motor needs replacement?
The record lists mini breaker popping, electrical smell, excessive blue sparks from the motor top, hearing only a click, the motor shutting down on its own but working later, or the motor life being used up.
If I only hear a click, is the motor always bad?
Not always. The record says that if you do not hear a click, the relay most likely needs to be replaced and the motor may be fine.
Can the brushes be replaced on this motor?
Yes. The 116110 Lamb vacuum motor has carbon motor brushes that can be replaced, and you need to buy two brushes.
Is this hard to install?
The record says it is not difficult to replace, with three to four screw brackets and a couple of wires involved.
