AMETEK Lamb 116119 Vacuum Motor for Beam Central Vacuum – Part# 204

AMETEK Lamb 116119 Vacuum Motor for Beam Central Vacuum – Part# 204

Available: In Stock
$474.80
  • Order within

Quick Summary

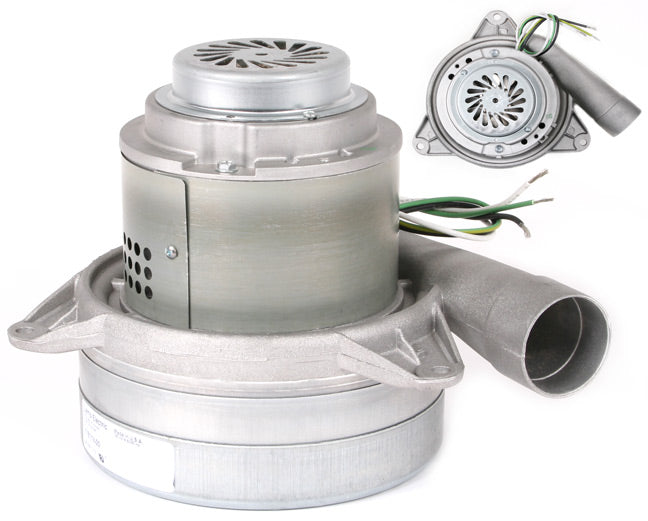

The 116119 vacuum motor is a brand-new Lamb Ametek motor for compatible central vacuum systems and blowers. It operates at 110–120 volts and replaces the 116103 motor.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Brand-new, not rebuilt
  • Three fan stages
  • 110–120V, 50–60 Hz
  • 135-inch waterlift and 94.3 CFM
  • Replaces the 116103 motor
  • Fits listed Beam 204 and 294 systems

Product Overview

The 116119 is a Lamb Ametek central vacuum motor designed for compatible Modern Day, Beam, Nutone, and Kenmore systems. It has three fan stages and operates at 110–120 volts.

Common signs of motor failure include a popping mini breaker, electrical smell, excessive blue sparks, a clicking sound without motor operation, or a motor that shuts down and later works again. The motor can be replaced with three bolts and a couple of wires.

Carbon brushes are replaceable and should be changed before the motor reaches the end of its service life. Two motor brushes are needed for a brush replacement.


Key Features

  • Brand-new motor: This 116119 motor is new and not rebuilt.
  • Three fan stages: The motor uses three fan stages for central vacuum operation.
  • 110–120V operation: This version is specified for 110–120-volt systems at 50–60 Hz.
  • Replaces 116103: The 116119 motor replaces the 116103 motor.
  • Replaceable brushes: The carbon motor brushes can be replaced, and two brushes are needed.
  • Straightforward installation: Replacement uses three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 204 (120V)
  • Beam 294 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part number 116119
Fan stages 3
Voltage 110–120V
Frequency 50–60 Hz
Bottom diameter 7.2 inches
Height 7.75 inches
Bolt height 2.5 inches
Waterlift 135 inches
CFM 94.3
Air watts 438
Amps 12.3
Replaces 116103 motor
Listed Beam models 204 (120V), 294 (120V)
Compatibility Modern Day, Beam, Nutone, and Kenmore
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 110–120V central vacuum motor
  • Listed Beam 204 and 294 systems
  • Systems showing motor failure symptoms
  • Customers replacing an 116103 motor
  • Motor brush replacement before end of motor life

Not Ideal For

  • 240V systems, which require the 116136 version
  • Systems with an uncertain model or motor fit
  • Customers looking for a rebuilt motor or core trade-in

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116119 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 116119 vacuum motor is a brand-new Lamb Ametek motor for compatible central vacuum systems and blowers. It operates at 110–120 volts and replaces the 116103 motor.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Brand-new, not rebuilt
  • Three fan stages
  • 110–120V, 50–60 Hz
  • 135-inch waterlift and 94.3 CFM
  • Replaces the 116103 motor
  • Fits listed Beam 204 and 294 systems

Product Overview

The 116119 is a Lamb Ametek central vacuum motor designed for compatible Modern Day, Beam, Nutone, and Kenmore systems. It has three fan stages and operates at 110–120 volts.

Common signs of motor failure include a popping mini breaker, electrical smell, excessive blue sparks, a clicking sound without motor operation, or a motor that shuts down and later works again. The motor can be replaced with three bolts and a couple of wires.

Carbon brushes are replaceable and should be changed before the motor reaches the end of its service life. Two motor brushes are needed for a brush replacement.


Key Features

  • Brand-new motor: This 116119 motor is new and not rebuilt.
  • Three fan stages: The motor uses three fan stages for central vacuum operation.
  • 110–120V operation: This version is specified for 110–120-volt systems at 50–60 Hz.
  • Replaces 116103: The 116119 motor replaces the 116103 motor.
  • Replaceable brushes: The carbon motor brushes can be replaced, and two brushes are needed.
  • Straightforward installation: Replacement uses three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 204 (120V)
  • Beam 294 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part number 116119
Fan stages 3
Voltage 110–120V
Frequency 50–60 Hz
Bottom diameter 7.2 inches
Height 7.75 inches
Bolt height 2.5 inches
Waterlift 135 inches
CFM 94.3
Air watts 438
Amps 12.3
Replaces 116103 motor
Listed Beam models 204 (120V), 294 (120V)
Compatibility Modern Day, Beam, Nutone, and Kenmore
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 110–120V central vacuum motor
  • Listed Beam 204 and 294 systems
  • Systems showing motor failure symptoms
  • Customers replacing an 116103 motor
  • Motor brush replacement before end of motor life

Not Ideal For

  • 240V systems, which require the 116136 version
  • Systems with an uncertain model or motor fit
  • Customers looking for a rebuilt motor or core trade-in

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116119 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

What motor does the 116119 replace?

The 116119 motor replaces the 116103 motor.

Which Beam systems does this motor fit?

The record lists Beam models 204 (120V) and 294 (120V). It also lists compatibility with Modern Day, Beam, Nutone, and Kenmore systems. Confirm your system model or inlet type when fit is not certain.

Is the 116119 motor 120 volts?

Yes. The motor is specified for 110–120 volts and 50–60 Hz.

What is the 240V version of this motor?

The Lamb Ametek 116136 motor is identified as the 240-volt version of the 116119.

How do I know when this motor needs replacement?

Possible signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.

How is the 116119 motor installed?

The replacement uses three bolts and a couple of wires. Follow the available step-by-step motor replacement instructions and address the ground wire according to whether the unit uses metal or plastic brackets.

Can I replace the motor brushes instead?

Yes. The 116119 has carbon motor brushes that can be replaced. You need to buy two brushes.

Is there a core trade-in for the old motor?

No. There is no core trade-in. Used motors can be discarded or taken to a metal recycling center.
