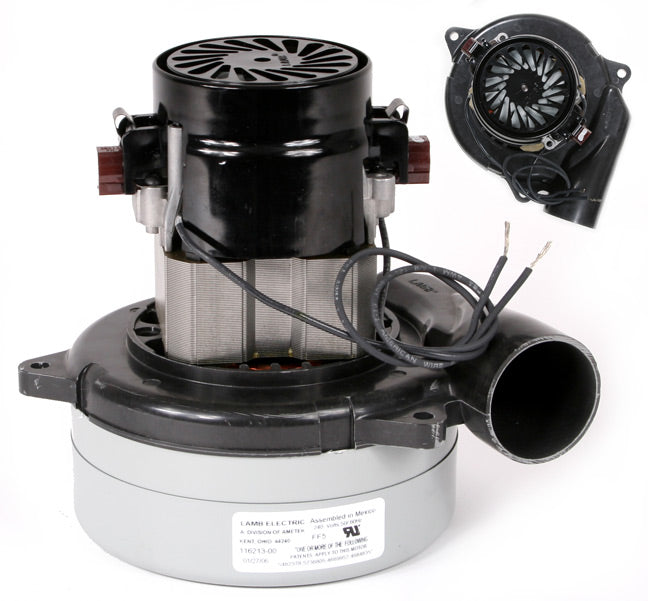

AMETEK Lamb 116213 Vacuum Motor for Beam Central Vacuum – Part# 206A
- Product SKU: 206A
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary
The 116213 vacuum motor is a brand-new replacement motor for select central vacuum systems and blowers. It operates at 220–240 volts and replaces only 116213 motors.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- 2 fan stages
- 220–240 volt operation
- 99.1 CFM airflow
- 304 AirWatts
- 97.4-inch waterlift
- Fits Beam 178 (240V) models
Product Overview
This replacement motor is used in some central vacuum brands and models, including select Beam and Nutone systems. It may also be marked 6213 or 11-6213.
The motor can be replaced with three bolts and a couple of wires. Carbon motor brushes are replaceable, and two brushes are needed when servicing the motor.
Key Features
- Replacement motor: Replaces only motors identified as 116213.
- 220–240 volt operation: Designed for systems using 220–240 volts at 50–60 Hz.
- Two fan stages: The motor uses a two-stage fan design.
- Replaceable brushes: Carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Straightforward installation: Replacement involves three bolts and a couple of wires.
- Motor identification: The motor may be marked 6213 or 11-6213 and has a 1-1/2-inch hole on the base.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 178 (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Part number | 116213 |
| Voltage | 220–240 V |
| Frequency | 50–60 Hz |
| Fan stages | 2 |
| Bottom diameter | 5.7 inches |
| Height | 6-3/4 inches |
| Bolt height | 2 inches |
| Waterlift | 97.4 inches |
| Airflow | 99.1 CFM |
| AirWatts | 304 |
| Amps | 4.7 |
| Beam compatibility | Beam 178, 240V |
| Other compatibility | Some Beam and Nutone systems |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing an identified 116213 motor
- Beam 178 central vacuum systems using 240 volts
- Systems showing excessive blue sparks, electrical smell, or motor shutdown
- Customers replacing motor brushes before motor failure
Not Ideal For
- Systems that do not use an 116213 motor
- Systems outside the 220–240 volt range
- Installations where model compatibility has not been confirmed
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116213 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The 116213 vacuum motor is a brand-new replacement motor for select central vacuum systems and blowers. It operates at 220–240 volts and replaces only 116213 motors.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- 2 fan stages
- 220–240 volt operation
- 99.1 CFM airflow
- 304 AirWatts
- 97.4-inch waterlift
- Fits Beam 178 (240V) models
Product Overview
This replacement motor is used in some central vacuum brands and models, including select Beam and Nutone systems. It may also be marked 6213 or 11-6213.
The motor can be replaced with three bolts and a couple of wires. Carbon motor brushes are replaceable, and two brushes are needed when servicing the motor.
Key Features
- Replacement motor: Replaces only motors identified as 116213.
- 220–240 volt operation: Designed for systems using 220–240 volts at 50–60 Hz.
- Two fan stages: The motor uses a two-stage fan design.
- Replaceable brushes: Carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Straightforward installation: Replacement involves three bolts and a couple of wires.
- Motor identification: The motor may be marked 6213 or 11-6213 and has a 1-1/2-inch hole on the base.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 178 (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Part number | 116213 |
| Voltage | 220–240 V |
| Frequency | 50–60 Hz |
| Fan stages | 2 |
| Bottom diameter | 5.7 inches |
| Height | 6-3/4 inches |
| Bolt height | 2 inches |
| Waterlift | 97.4 inches |
| Airflow | 99.1 CFM |
| AirWatts | 304 |
| Amps | 4.7 |
| Beam compatibility | Beam 178, 240V |
| Other compatibility | Some Beam and Nutone systems |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing an identified 116213 motor
- Beam 178 central vacuum systems using 240 volts
- Systems showing excessive blue sparks, electrical smell, or motor shutdown
- Customers replacing motor brushes before motor failure
Not Ideal For
- Systems that do not use an 116213 motor
- Systems outside the 220–240 volt range
- Installations where model compatibility has not been confirmed
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116213 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
Which motors does this replacement fit?
It replaces only 116213 motors. The motor may also be marked 6213 or 11-6213.
Is this motor compatible with Beam systems?
It fits the Beam 178 model at 240 volts and is used in some Beam systems. Confirm the model or inlet and motor specifications before ordering if fit is uncertain.
Does it fit Nutone systems?
The record identifies some Nutone systems as compatible, but the motor must match the 116213 specification.
What voltage does this motor use?
It operates at 220–240 volts and 50–60 Hz.
How do I know if the motor may need replacement?
Possible signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.
How is the motor installed?
Installation uses three bolts and a couple of wires. Ground-wire handling depends on whether the unit uses metal brackets or plastic.
Can the motor brushes be replaced?
Yes. The motor has replaceable carbon brushes, and two brushes are needed.
Is there a core trade-in?
No. There is no core trade-in for this motor.
