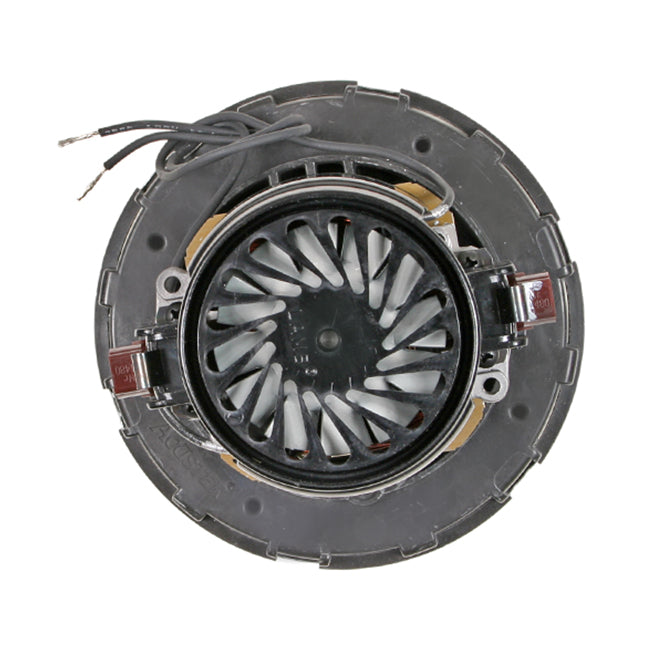

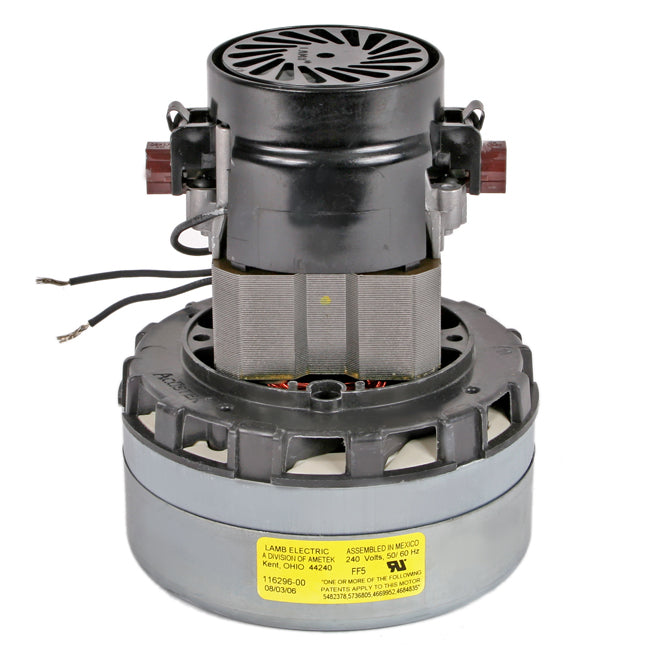

AMETEK Lamb 116296 Vacuum Motor for Beam Central Vacuum – Part# 202A
- Product SKU: 202A
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary
The 116296 vacuum motor is a brand-new AMETEK Lamb replacement motor for select central vacuum systems and blowers. It operates at 220–240 volts and is listed for select Modern Day, SilentMaster, and Beam systems.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new, not rebuilt motor
- 220–240 volt operation
- Two fan stages
- 110.5 CFM and 349 AirWatts
- Fits select Beam 677S systems
- Compatible with 116296-00
Product Overview
This 116296 motor is an original AMETEK Lamb motor used in some central vacuum brands and models. It may also be marked 6296 or 11-6296, and it is compatible with 116296-00.
The motor may need replacement if the mini breaker pops, an electrical smell is present, excessive blue sparks appear from the motor top, the unit only clicks, or the motor shuts down and later works again. The listed motor life is 900–1,200 hours.
Key Features
- Original Lamb motor: This is a brand-new AMETEK Lamb motor, not a rebuilt replacement.
- Two fan stages: The motor uses two fan stages and produces 110.5 CFM.
- 220–240 volt design: It is specified for 220–240 volt systems at 50–60 hertz.
- Replacement markings: The motor may be marked 6296 or 11-6296 and is compatible with 116296-00.
- Replaceable brushes: The carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Straightforward installation: Replacement involves three to four screw brackets and a couple of wires.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 677S (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 116296 |
| Voltage | 220–240 volts |
| Frequency | 50–60 hertz |
| Fan stages | 2 |
| Bottom diameter | 5.7 inches |
| Height | 7 inches |
| Bolt height | 2-3/4 inches |
| Waterlift | 94.2 inches |
| Airflow | 110.5 CFM |
| AirWatts | 349 |
| Amps | 4.4 |
| Listed motor life | 900–1,200 hours |
| Listed Beam fit | 677S, 240V |
| Other listed compatibility | Modern Day, SilentMaster, and Beam systems; compatible with 116296-00 |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 116296 motor
- Select Beam 677S 240V systems
- Modern Day and SilentMaster central vacuum systems
- Systems showing motor failure symptoms
Not Ideal For
- Systems that do not use the 116296 motor
- Orders made without confirming the central vacuum model
- Customers looking for a rebuilt motor or a core trade-in
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116296 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The 116296 vacuum motor is a brand-new AMETEK Lamb replacement motor for select central vacuum systems and blowers. It operates at 220–240 volts and is listed for select Modern Day, SilentMaster, and Beam systems.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new, not rebuilt motor
- 220–240 volt operation
- Two fan stages
- 110.5 CFM and 349 AirWatts
- Fits select Beam 677S systems
- Compatible with 116296-00
Product Overview
This 116296 motor is an original AMETEK Lamb motor used in some central vacuum brands and models. It may also be marked 6296 or 11-6296, and it is compatible with 116296-00.
The motor may need replacement if the mini breaker pops, an electrical smell is present, excessive blue sparks appear from the motor top, the unit only clicks, or the motor shuts down and later works again. The listed motor life is 900–1,200 hours.
Key Features
- Original Lamb motor: This is a brand-new AMETEK Lamb motor, not a rebuilt replacement.
- Two fan stages: The motor uses two fan stages and produces 110.5 CFM.
- 220–240 volt design: It is specified for 220–240 volt systems at 50–60 hertz.
- Replacement markings: The motor may be marked 6296 or 11-6296 and is compatible with 116296-00.
- Replaceable brushes: The carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Straightforward installation: Replacement involves three to four screw brackets and a couple of wires.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 677S (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 116296 |
| Voltage | 220–240 volts |
| Frequency | 50–60 hertz |
| Fan stages | 2 |
| Bottom diameter | 5.7 inches |
| Height | 7 inches |
| Bolt height | 2-3/4 inches |
| Waterlift | 94.2 inches |
| Airflow | 110.5 CFM |
| AirWatts | 349 |
| Amps | 4.4 |
| Listed motor life | 900–1,200 hours |
| Listed Beam fit | 677S, 240V |
| Other listed compatibility | Modern Day, SilentMaster, and Beam systems; compatible with 116296-00 |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 116296 motor
- Select Beam 677S 240V systems
- Modern Day and SilentMaster central vacuum systems
- Systems showing motor failure symptoms
Not Ideal For
- Systems that do not use the 116296 motor
- Orders made without confirming the central vacuum model
- Customers looking for a rebuilt motor or a core trade-in
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116296 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What motor does this replace?
It replaces the 116296 motor only and is also compatible with 116296-00.
Does this motor fit Beam central vacuums?
The record lists compatibility with select Beam systems, including the 677S at 240V. Confirm your exact model before ordering because it does not replace every motor.
What other systems are listed as compatible?
The compatibility note lists Modern Day, SilentMaster, and Beam systems.
How do I know if my motor may need replacement?
Possible signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.
What voltage does this motor use?
The motor is specified for 220–240 volts and 50–60 hertz.
Can the motor brushes be replaced?
Yes. The Lamb 116296 motor has carbon brushes that can be replaced, and two brushes are needed.
How difficult is installation?
The record describes installation as involving three to four screw brackets and a couple of wires.
Is there a core trade-in?
No. There is no core trade-in for this motor.
