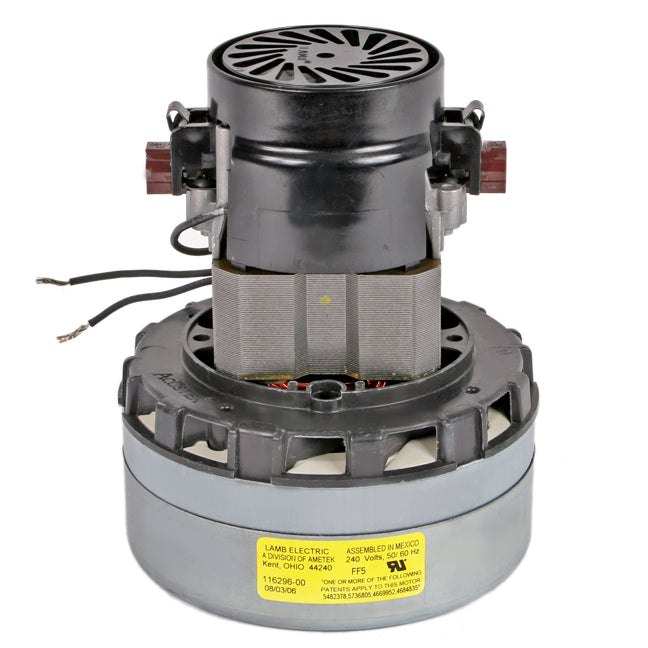

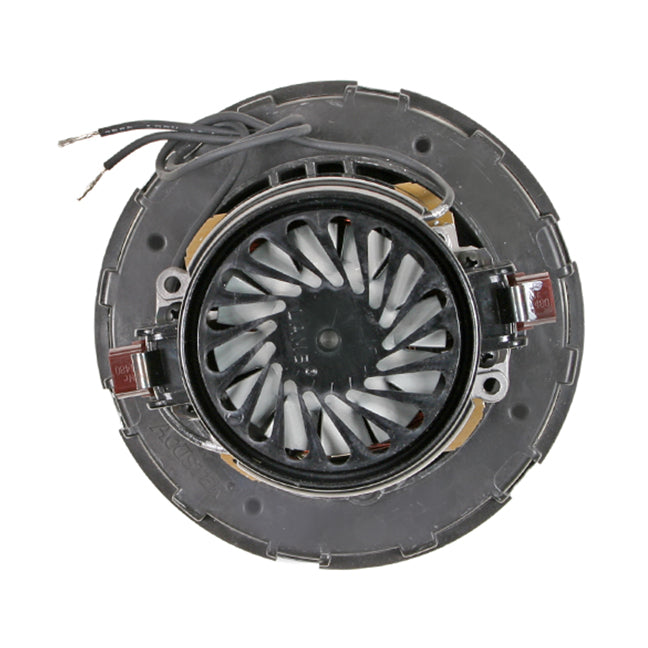

AMETEK Lamb 116296 Vacuum Motor for MD Central Vacuum – Part# 202A

AMETEK Lamb 116296 Vacuum Motor for MD Central Vacuum – Part# 202A

Available: In Stock
$151.40
  • Order within

Quick Summary

This 116296 vacuum motor is a new replacement motor used in some MD central vacuum systems. It is a 220-240 volt AMETEK Lamb motor with 2 stages and compatibility noted for select Modern Day, SilentMaster, and Beam units.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • 220-240 volt motor
  • 2 fan stages
  • 5.7 inch bottom diameter
  • Compatible with 116296-00
  • Used in select MD central vacuum models

Product Overview

The 116296 vacuum motor is a replacement motor for some central vacuum brands and models, including select MD central vacuum units. The record notes compatibility with Modern Day, SilentMaster, and Beam, and lists MD B2 (240V), MD E2 (240V), and MD E3 (240V) among the MD models this part fits.

This is a new AMETEK Lamb original motor, not a rebuilt unit. It has 2 fan stages and is rated for 220-240 volts, 50-60 hertz.

The motor may also be marked 6296 or 11-6296 and is noted as compatible with 116296-00. Signs of replacement can include breaker popping, electrical smell, blue sparks from the motor top, a clicking sound, or shutdowns during use.


Key Features

  • New replacement motor: This is a brand new motor rather than a rebuilt one.
  • Original Lamb part: The 116296 is an AMETEK Lamb original motor.
  • 220-240 volt operation: This motor is specified for 220-240 volt central vacuum applications.
  • Two-stage design: The motor uses 2 fan stages as listed in the product record.
  • Fits select MD models: The listed MD central vacuum models include MD B2 (240V), MD E2 (240V), and MD E3 (240V).
  • Alternate numbers noted: This motor may be labeled 6296 or 11-6296 and is also compatible with 116296-00.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD B2 (240V)
  • MD E2 (240V)
  • MD E3 (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part number 116296
Voltage 220-240 volt
Hertz 50-60
Fan stages 2
Bottom diameter 5.7 inches
Height 7 inches
Bolt height 2-3/4 inches
Waterlift 94.2 inches
CFM 110.5
AirWatts 349
Amps 4.4
Compatible with 116296-00
Fits MD models MD B2 (240V), MD E2 (240V), MD E3 (240V)
Compatibility note Modern Day, SilentMaster and Beam
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 116296 motor in an MD central vacuum
  • MD B2 (240V), MD E2 (240V), and MD E3 (240V) units
  • 220-240 volt central vacuum applications
  • Replacing a motor marked 116296, 6296, or 11-6296

Not Ideal For

  • Not for systems that do not use the 116296 motor
  • Not for non-220-240 volt applications
  • Compatibility should be confirmed if your MD model is not listed

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116296 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

This 116296 vacuum motor is a new replacement motor used in some MD central vacuum systems. It is a 220-240 volt AMETEK Lamb motor with 2 stages and compatibility noted for select Modern Day, SilentMaster, and Beam units.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • 220-240 volt motor
  • 2 fan stages
  • 5.7 inch bottom diameter
  • Compatible with 116296-00
  • Used in select MD central vacuum models

Product Overview

The 116296 vacuum motor is a replacement motor for some central vacuum brands and models, including select MD central vacuum units. The record notes compatibility with Modern Day, SilentMaster, and Beam, and lists MD B2 (240V), MD E2 (240V), and MD E3 (240V) among the MD models this part fits.

This is a new AMETEK Lamb original motor, not a rebuilt unit. It has 2 fan stages and is rated for 220-240 volts, 50-60 hertz.

The motor may also be marked 6296 or 11-6296 and is noted as compatible with 116296-00. Signs of replacement can include breaker popping, electrical smell, blue sparks from the motor top, a clicking sound, or shutdowns during use.


Key Features

  • New replacement motor: This is a brand new motor rather than a rebuilt one.
  • Original Lamb part: The 116296 is an AMETEK Lamb original motor.
  • 220-240 volt operation: This motor is specified for 220-240 volt central vacuum applications.
  • Two-stage design: The motor uses 2 fan stages as listed in the product record.
  • Fits select MD models: The listed MD central vacuum models include MD B2 (240V), MD E2 (240V), and MD E3 (240V).
  • Alternate numbers noted: This motor may be labeled 6296 or 11-6296 and is also compatible with 116296-00.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD B2 (240V)
  • MD E2 (240V)
  • MD E3 (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part number 116296
Voltage 220-240 volt
Hertz 50-60
Fan stages 2
Bottom diameter 5.7 inches
Height 7 inches
Bolt height 2-3/4 inches
Waterlift 94.2 inches
CFM 110.5
AirWatts 349
Amps 4.4
Compatible with 116296-00
Fits MD models MD B2 (240V), MD E2 (240V), MD E3 (240V)
Compatibility note Modern Day, SilentMaster and Beam
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 116296 motor in an MD central vacuum
  • MD B2 (240V), MD E2 (240V), and MD E3 (240V) units
  • 220-240 volt central vacuum applications
  • Replacing a motor marked 116296, 6296, or 11-6296

Not Ideal For

  • Not for systems that do not use the 116296 motor
  • Not for non-220-240 volt applications
  • Compatibility should be confirmed if your MD model is not listed

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116296 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Will this motor fit my MD central vacuum?

It is listed for MD B2 (240V), MD E2 (240V), and MD E3 (240V). If your MD central vacuum model is different, confirm your model and existing motor number before ordering.

Is this a rebuilt motor?

No. The record states this is a brand new motor, not rebuilt.

What voltage is this motor?

This motor is rated for 220-240 volts and 50-60 hertz.

What other numbers might this motor have on it?

The record notes that the motor may say 6296 or 11-6296.

Does this replace any other motor numbers?

The record states it only replaces the 116296 motor and is also compatible with 116296-00.

What are signs that this motor may need replacement?

Listed signs include a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, hearing only a click, the motor shutting down on its own and working later, or the motor reaching its service life.

Can the brushes be replaced on this motor?

Yes. The record states the Lamb 116296 vacuum motor has carbon motor brushes that can be replaced.

Is installation difficult?

The record says it is not difficult to replace, noting three to four screw brackets and a couple of wires.
