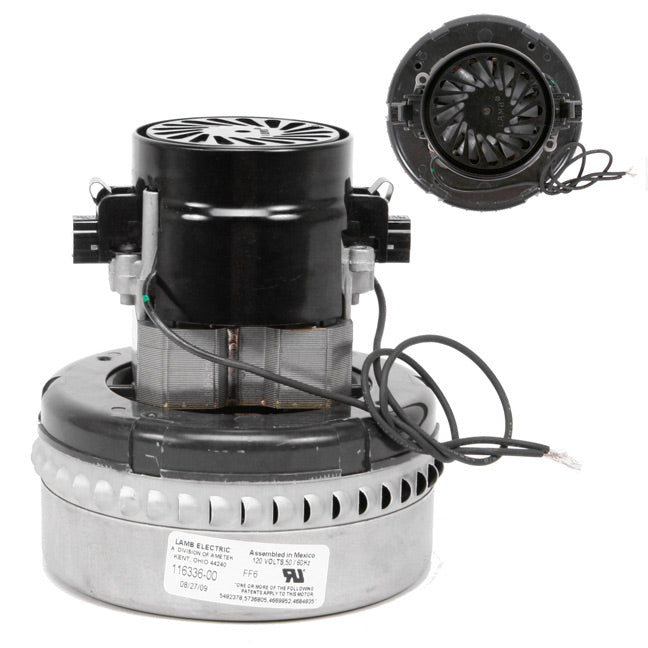

AMETEK Lamb 116336 Vacuum Motor for Beam Central Vacuum – Part# 205
- Product SKU: 205
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary
The AMETEK Lamb 116336 is a brand-new replacement motor for compatible central vacuum systems and blowers. It is commonly used in Modern Day, SilentMaster, Beam, Nutone, and Vacuflo systems, including the Beam 660 at 120V.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new AMETEK Lamb motor, not rebuilt
- Two fan stages with 84.3-inch waterlift
- 110-120V operation at 50-60Hz
- 94 CFM and 274 AirWatts
- 8-amp motor with a 6-1/4-inch height
- Replaces several listed Lamb motor numbers
Product Overview
The 116336 motor is a Lamb Ametek original motor commonly used in central vacuum systems. As of late 2016, the motor was upgraded to the 116336-01, which uses a bearing instead of a bushing on the cooling fan.
This motor can replace Lamb motor numbers 116757, 116212, 115477, 115757, 115407, 116758, and 115737. The 119413 motor is also an alternative that fits in place of the 116336, but it has 10% less power.
Replacement typically involves three to four screw brackets and a couple of wires. The motor uses replaceable carbon brushes, and two brushes are needed when replacing them.
Key Features
- Brand-New Replacement: This is a new AMETEK Lamb motor rather than a rebuilt motor.
- Two Fan Stages: The motor has two fan stages and produces 84.3 inches of waterlift.
- Common System Compatibility: It is commonly used in Modern Day, SilentMaster, Beam, Nutone, and Vacuflo systems.
- Replaceable Carbon Brushes: The motor has carbon brushes that can be replaced before the motor reaches the end of its service life.
- Alternative Motor Available: The 119413 motor fits in place of the 116336 but provides 10% less power.
- Straightforward Replacement: Installation uses three to four screw brackets and a couple of wires.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 660 (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor | AMETEK Lamb 116336 |
| Fan stages | 2 |
| Voltage | 110-120V |
| Frequency | 50-60Hz |
| Bottom diameter | 5.7 inches |
| Height | 6-1/4 inches |
| Bolt height | 2-5/8 inches |
| Waterlift | 84.3 inches |
| Airflow | 94 CFM |
| AirWatts | 274 |
| Amperage | 8 amps |
| Beam fit listed | Beam 660 (120V) |
| Replaces | 116757, 116212, 115477, 115757, 115407, 116758, and 115737 |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 116336 Lamb motor
- Beam 660 systems operating at 120V
- Central vacuum systems using one of the listed replacement motor numbers
- Systems showing motor failure symptoms such as electrical smell or excessive blue sparks
Not Ideal For
- Systems where the relay may be the actual cause of failure, especially when there is no motor click
- Installations where the motor fit has not been confirmed for the specific system
- Replacing only the motor brushes when the complete motor needs replacement
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116336 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The AMETEK Lamb 116336 is a brand-new replacement motor for compatible central vacuum systems and blowers. It is commonly used in Modern Day, SilentMaster, Beam, Nutone, and Vacuflo systems, including the Beam 660 at 120V.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new AMETEK Lamb motor, not rebuilt
- Two fan stages with 84.3-inch waterlift
- 110-120V operation at 50-60Hz
- 94 CFM and 274 AirWatts
- 8-amp motor with a 6-1/4-inch height
- Replaces several listed Lamb motor numbers
Product Overview
The 116336 motor is a Lamb Ametek original motor commonly used in central vacuum systems. As of late 2016, the motor was upgraded to the 116336-01, which uses a bearing instead of a bushing on the cooling fan.
This motor can replace Lamb motor numbers 116757, 116212, 115477, 115757, 115407, 116758, and 115737. The 119413 motor is also an alternative that fits in place of the 116336, but it has 10% less power.
Replacement typically involves three to four screw brackets and a couple of wires. The motor uses replaceable carbon brushes, and two brushes are needed when replacing them.
Key Features
- Brand-New Replacement: This is a new AMETEK Lamb motor rather than a rebuilt motor.
- Two Fan Stages: The motor has two fan stages and produces 84.3 inches of waterlift.
- Common System Compatibility: It is commonly used in Modern Day, SilentMaster, Beam, Nutone, and Vacuflo systems.
- Replaceable Carbon Brushes: The motor has carbon brushes that can be replaced before the motor reaches the end of its service life.
- Alternative Motor Available: The 119413 motor fits in place of the 116336 but provides 10% less power.
- Straightforward Replacement: Installation uses three to four screw brackets and a couple of wires.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 660 (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor | AMETEK Lamb 116336 |
| Fan stages | 2 |
| Voltage | 110-120V |
| Frequency | 50-60Hz |
| Bottom diameter | 5.7 inches |
| Height | 6-1/4 inches |
| Bolt height | 2-5/8 inches |
| Waterlift | 84.3 inches |
| Airflow | 94 CFM |
| AirWatts | 274 |
| Amperage | 8 amps |
| Beam fit listed | Beam 660 (120V) |
| Replaces | 116757, 116212, 115477, 115757, 115407, 116758, and 115737 |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 116336 Lamb motor
- Beam 660 systems operating at 120V
- Central vacuum systems using one of the listed replacement motor numbers
- Systems showing motor failure symptoms such as electrical smell or excessive blue sparks
Not Ideal For
- Systems where the relay may be the actual cause of failure, especially when there is no motor click
- Installations where the motor fit has not been confirmed for the specific system
- Replacing only the motor brushes when the complete motor needs replacement
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 116336 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
Is this a genuine Beam motor?
No. This is an AMETEK Lamb motor sold as a replacement part for compatible systems. It is not made by Beam.
Which Beam model is listed for this motor?
The listed Beam fit is the Beam 660 at 120V. Confirm the system model and motor fit before ordering if your model is different.
What other systems commonly use the 116336?
The record lists Modern Day, SilentMaster, Beam, Nutone, and Vacuflo systems as compatible brands or systems.
What motors does the 116336 replace?
It replaces Lamb motors 116757, 116212, 115477, 115757, 115407, 116758, and 115737.
What are the signs that the motor needs replacement?
Possible signs include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, hearing only a click, or the motor shutting down and working again later.
Can I use a 119413 instead of the 116336?
Yes. The 119413 fits in place of the 116336 and can operate alongside an 116336 in a two-motor system, but it has 10% less power.
Can the carbon brushes be replaced?
Yes. The 116336 has replaceable carbon motor brushes. Two brushes are needed for a brush replacement.
Is there a core trade-in?
No. There is no core trade-in for this motor.
