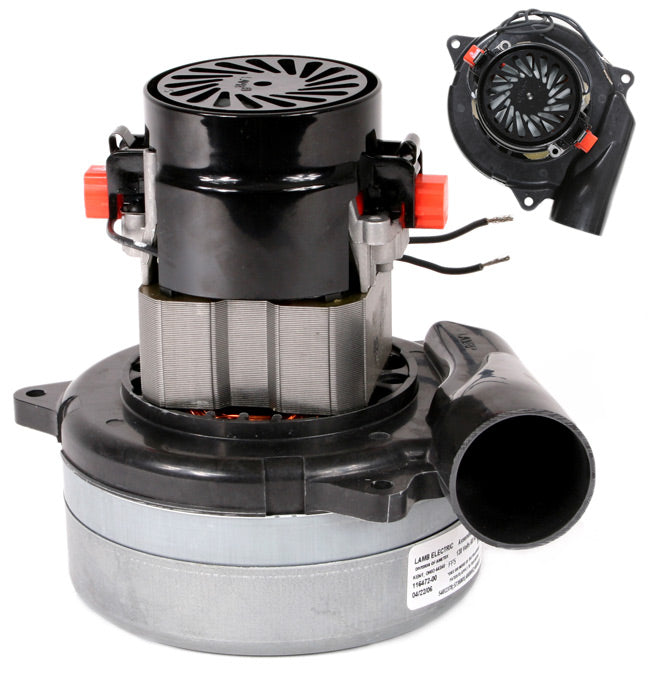

AMETEK Lamb 116472 Vacuum Motor for Beam Central Vacuum – Part# 209

AMETEK Lamb 116472 Vacuum Motor for Beam Central Vacuum – Part# 209

Available: In Stock
$230.75
  • Order within

Quick Summary

The 116472 Lamb vacuum motor is a brand-new, original AMETEK Lamb replacement motor for select central vacuum systems. It replaces several related motor numbers and provides 2 fan stages, 112 CFM, and 404 AirWatts at 110–120V.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Brand-new, not rebuilt
  • AMETEK Lamb original motor
  • 2 fan stages
  • 112 CFM and 404 AirWatts
  • Replaces 116472-13 and 116472-00
  • Fits listed Beam models and other compatible systems

Product Overview

This 116472 Lamb motor is used in select central vacuum systems and blowers. It is compatible with listed AirMaster, Flo-Master, Beam, Nutone, Vacuflo, Kenmore, and Eureka systems, with specific Beam models listed below.

The motor has a 5.7-inch bottom diameter, 6.75-inch height, 106.7-inch waterlift, and 10.7 amps. Replacement involves three bolts and a couple of wires, and its carbon brushes can be replaced separately.


Key Features

  • Brand-New Replacement: This motor is new and not rebuilt.
  • Central Vacuum Motor: The 116472 is designed for use in select central vacuum systems and blowers.
  • Strong Airflow Performance: It is rated at 112 CFM, 106.7 inches of waterlift, and 404 AirWatts.
  • Replaceable Carbon Brushes: The motor uses carbon brushes that can be replaced before the motor reaches the end of its service life.
  • Straightforward Installation: Installation requires removing three bolts and reconnecting a couple of wires.
  • Multiple Replacement Numbers: This motor replaces 116472-13, 116472-00, 116474, 117073, 117795, and 119260 motors.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 100 (120V)
  • Beam 167 (120V)
  • Beam 167C (120V)
  • Beam 177 (120V)
  • Beam 178 (120V)
  • Beam 189 (120V)
  • Beam 189D (120V)
  • Beam 200 (120V)
  • Beam 2089 (120V)
  • Beam 353 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor part number 116472
Fan stages 2
Voltage 110–120V
Frequency 50–60 Hz
Bottom diameter 5.7 inches
Height 6.75 inches
Bolt height 2 inches
Waterlift 106.7 inches
Airflow 112 CFM
AirWatts 404
Amps 10.7
Listed Beam models 100, 167, 167C, 177, 178, 189, 189D, 200, and 2089, all 120V
Other listed compatibility AirMaster, Flo-Master, Nutone, Vacuflo, Kenmore, and Eureka systems; Vacuflo 260, 460, and 760; Ametek 122159
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 116472 Lamb central vacuum motor
  • Listed Beam models with 120V systems
  • Systems showing motor replacement symptoms such as electrical smell or excessive blue sparks
  • Customers who want a new motor with replaceable carbon brushes

Not Ideal For

  • Systems that do not match the listed voltage, measurements, or model information
  • Customers seeking a motor without checking their existing motor measurements
  • Repairs where the relay or mini breaker is the only failed component

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116472 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 116472 Lamb vacuum motor is a brand-new, original AMETEK Lamb replacement motor for select central vacuum systems. It replaces several related motor numbers and provides 2 fan stages, 112 CFM, and 404 AirWatts at 110–120V.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Brand-new, not rebuilt
  • AMETEK Lamb original motor
  • 2 fan stages
  • 112 CFM and 404 AirWatts
  • Replaces 116472-13 and 116472-00
  • Fits listed Beam models and other compatible systems

Product Overview

This 116472 Lamb motor is used in select central vacuum systems and blowers. It is compatible with listed AirMaster, Flo-Master, Beam, Nutone, Vacuflo, Kenmore, and Eureka systems, with specific Beam models listed below.

The motor has a 5.7-inch bottom diameter, 6.75-inch height, 106.7-inch waterlift, and 10.7 amps. Replacement involves three bolts and a couple of wires, and its carbon brushes can be replaced separately.


Key Features

  • Brand-New Replacement: This motor is new and not rebuilt.
  • Central Vacuum Motor: The 116472 is designed for use in select central vacuum systems and blowers.
  • Strong Airflow Performance: It is rated at 112 CFM, 106.7 inches of waterlift, and 404 AirWatts.
  • Replaceable Carbon Brushes: The motor uses carbon brushes that can be replaced before the motor reaches the end of its service life.
  • Straightforward Installation: Installation requires removing three bolts and reconnecting a couple of wires.
  • Multiple Replacement Numbers: This motor replaces 116472-13, 116472-00, 116474, 117073, 117795, and 119260 motors.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 100 (120V)
  • Beam 167 (120V)
  • Beam 167C (120V)
  • Beam 177 (120V)
  • Beam 178 (120V)
  • Beam 189 (120V)
  • Beam 189D (120V)
  • Beam 200 (120V)
  • Beam 2089 (120V)
  • Beam 353 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor part number 116472
Fan stages 2
Voltage 110–120V
Frequency 50–60 Hz
Bottom diameter 5.7 inches
Height 6.75 inches
Bolt height 2 inches
Waterlift 106.7 inches
Airflow 112 CFM
AirWatts 404
Amps 10.7
Listed Beam models 100, 167, 167C, 177, 178, 189, 189D, 200, and 2089, all 120V
Other listed compatibility AirMaster, Flo-Master, Nutone, Vacuflo, Kenmore, and Eureka systems; Vacuflo 260, 460, and 760; Ametek 122159
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 116472 Lamb central vacuum motor
  • Listed Beam models with 120V systems
  • Systems showing motor replacement symptoms such as electrical smell or excessive blue sparks
  • Customers who want a new motor with replaceable carbon brushes

Not Ideal For

  • Systems that do not match the listed voltage, measurements, or model information
  • Customers seeking a motor without checking their existing motor measurements
  • Repairs where the relay or mini breaker is the only failed component

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116472 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

What motor does this product replace?

The 116472 motor replaces 116472-13, 116472-00, 116474, 117073, 117795, and 119260 motors.

Which Beam models does this motor fit?

The listed Beam models are 100, 167, 167C, 177, 178, 189, 189D, 200, 2089, and 353, all with 120V specifications.

Will this fit my Beam central vacuum system?

It is listed for the Beam models above. If your model is not listed, confirm the model or inlet type and compare the motor measurements before ordering.

What are the motor specifications?

The motor has 2 fan stages, 110–120V operation, 112 CFM, 106.7 inches of waterlift, 404 AirWatts, and 10.7 amps.

How do I know if my motor needs replacement?

Common signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.

How is the 116472 motor installed?

Replacement involves removing three bolts and reconnecting a couple of wires. The record describes the installation as straightforward.

Can the motor brushes be replaced?

Yes. The motor has replaceable carbon brushes, and two brushes are needed for a brush replacement.

Could another part be causing the problem?

If you do not hear a click, the relay may need replacement instead of the motor. The mini breaker can also fail along with the motor.
