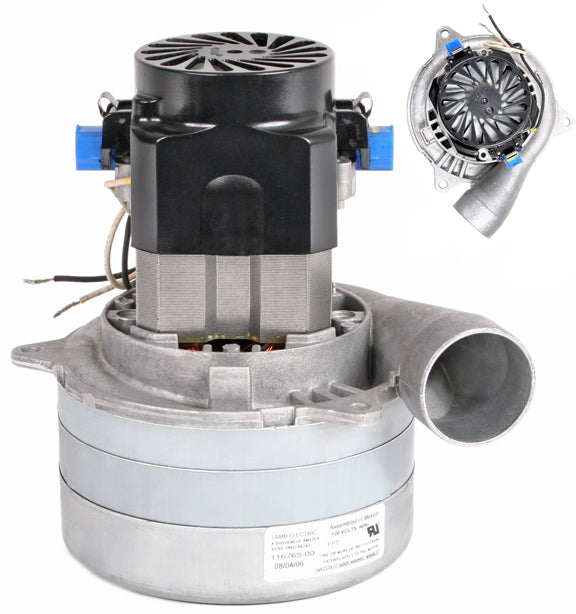

AMETEK Lamb 116765 Vacuum Motor for Beam Central Vacuum – Part# 199

AMETEK Lamb 116765 Vacuum Motor for Beam Central Vacuum – Part# 199

Available: In Stock
$172.69
  • Order within

Quick Summary

The 116765 Lamb Ametek vacuum motor is a replacement motor used in many central vacuum systems and blowers. It delivers 136 inches of waterlift, 95 CFM, and 465 AirWatts at 110–120 volts.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Three fan stages
  • 110–120V operation
  • 136-inch waterlift
  • 95 CFM airflow
  • 465 AirWatts
  • Also marked 6765 or 11-6765

Product Overview

The 116765 Lamb Ametek motor has been used across many brands and models, including AirMaster, Modern Day, Flo-Master, Beam, Electrolux, Kenmore, and Eureka systems. It is compatible with Electrolux E130A and replaces AV3500, E130A, and CV-353w motors.

Replacement involves three bolts and a couple of wires. The motor includes replaceable carbon brushes, and the record recommends evaluating the mini breaker if it is also malfunctioning.


Key Features

  • Three-stage motor: The motor uses three fan stages for central vacuum operation.
  • Strong airflow and lift: It is rated at 95 CFM, 136 inches of waterlift, and 465 AirWatts.
  • Broad system use: This motor has been used in many models from AirMaster, Modern Day, Flo-Master, Beam, Electrolux, Kenmore, and Eureka.
  • Replacement markings: The motor may also be identified by the markings 6765 or 11-6765.
  • Replaceable brushes: Its carbon motor brushes can be replaced before the motor reaches the end of its service life.
  • Straightforward installation: Installation uses three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 193 (120V)
  • Beam 197C (120V)
  • Beam 197S (120V)
  • Beam 199 (120V)
  • Beam 199C (120V)
  • Beam 199D (120V)
  • Beam 2100 (120V)
  • Beam 2150 (120V)
  • Beam 2220 (120V)
  • Beam 225A (120V)
  • Beam 261 (120V)
  • Beam 275A (120V)
  • Beam 371 (120V)
  • Beam 371G (120V)
  • Beam 377 (120V)
  • Beam 90 (120V)
  • Beam PE371 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor part number 116765
Alternate markings 6765; 11-6765
Fan stages 3
Voltage 110–120V
Frequency 50–60 Hz
Motor height 8 inches
Bottom diameter 5.7 inches
Bolt height 3 inches
Waterlift 136 inches
Airflow 95 CFM
AirWatts 465
Amperage 13.1 amps
Compatible model Electrolux E130A
Replaces AV3500, E130A, and CV-353w
Beam models 193, 197C, 197S, 199, 199C, 199D, 2100, 2150, 2220, 225A, 261, 275A, 371, 371G, 377, 90, and PE371, all 120V
Core trade-in None
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 116765, 6765, or 11-6765 motor
  • Compatible 120V Beam models listed in the specifications
  • Electrolux E130A systems
  • Systems needing a replacement for AV3500 or CV-353w motors

Not Ideal For

  • Systems that do not match the listed voltage or model compatibility
  • Repairs where the relay or mini breaker is the only failed component
  • Customers expecting a core trade-in

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116765 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 116765 Lamb Ametek vacuum motor is a replacement motor used in many central vacuum systems and blowers. It delivers 136 inches of waterlift, 95 CFM, and 465 AirWatts at 110–120 volts.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Three fan stages
  • 110–120V operation
  • 136-inch waterlift
  • 95 CFM airflow
  • 465 AirWatts
  • Also marked 6765 or 11-6765

Product Overview

The 116765 Lamb Ametek motor has been used across many brands and models, including AirMaster, Modern Day, Flo-Master, Beam, Electrolux, Kenmore, and Eureka systems. It is compatible with Electrolux E130A and replaces AV3500, E130A, and CV-353w motors.

Replacement involves three bolts and a couple of wires. The motor includes replaceable carbon brushes, and the record recommends evaluating the mini breaker if it is also malfunctioning.


Key Features

  • Three-stage motor: The motor uses three fan stages for central vacuum operation.
  • Strong airflow and lift: It is rated at 95 CFM, 136 inches of waterlift, and 465 AirWatts.
  • Broad system use: This motor has been used in many models from AirMaster, Modern Day, Flo-Master, Beam, Electrolux, Kenmore, and Eureka.
  • Replacement markings: The motor may also be identified by the markings 6765 or 11-6765.
  • Replaceable brushes: Its carbon motor brushes can be replaced before the motor reaches the end of its service life.
  • Straightforward installation: Installation uses three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 193 (120V)
  • Beam 197C (120V)
  • Beam 197S (120V)
  • Beam 199 (120V)
  • Beam 199C (120V)
  • Beam 199D (120V)
  • Beam 2100 (120V)
  • Beam 2150 (120V)
  • Beam 2220 (120V)
  • Beam 225A (120V)
  • Beam 261 (120V)
  • Beam 275A (120V)
  • Beam 371 (120V)
  • Beam 371G (120V)
  • Beam 377 (120V)
  • Beam 90 (120V)
  • Beam PE371 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor part number 116765
Alternate markings 6765; 11-6765
Fan stages 3
Voltage 110–120V
Frequency 50–60 Hz
Motor height 8 inches
Bottom diameter 5.7 inches
Bolt height 3 inches
Waterlift 136 inches
Airflow 95 CFM
AirWatts 465
Amperage 13.1 amps
Compatible model Electrolux E130A
Replaces AV3500, E130A, and CV-353w
Beam models 193, 197C, 197S, 199, 199C, 199D, 2100, 2150, 2220, 225A, 261, 275A, 371, 371G, 377, 90, and PE371, all 120V
Core trade-in None
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 116765, 6765, or 11-6765 motor
  • Compatible 120V Beam models listed in the specifications
  • Electrolux E130A systems
  • Systems needing a replacement for AV3500 or CV-353w motors

Not Ideal For

  • Systems that do not match the listed voltage or model compatibility
  • Repairs where the relay or mini breaker is the only failed component
  • Customers expecting a core trade-in

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 116765 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

What is the 116765 vacuum motor?

It is an AMETEK Lamb central vacuum motor identified as 116765. It may also be marked 6765 or 11-6765.

Which motors does this replace?

The record lists AV3500, E130A, and CV-353w as replacement applications.

Does this motor fit Beam central vacuum systems?

It fits the listed 120V Beam models, including 193, 197C, 197S, 199, 199C, 199D, 2100, 2150, 2220, 225A, 261, 275A, 371, 371G, 377, 90, and PE371. Confirm your model or inlet type before ordering if your system is not listed.

What are the motor specifications?

It has three fan stages, 110–120V operation, 50–60 Hz frequency, 136 inches of waterlift, 95 CFM, 465 AirWatts, and 13.1 amps.

What are signs that the motor may need replacement?

Possible signs include a mini breaker that pops, an electrical smell, excessive blue sparks from the motor top, only hearing a click, or a motor that shuts down and later works again.

How is the motor replaced?

The record states that replacement uses three bolts and a couple of wires.

Can the motor brushes be replaced?

Yes. The motor has carbon brushes that can be replaced, and two brushes are needed for a brush replacement.

Is there a core trade-in?

No. There is no core trade-in for this motor.
