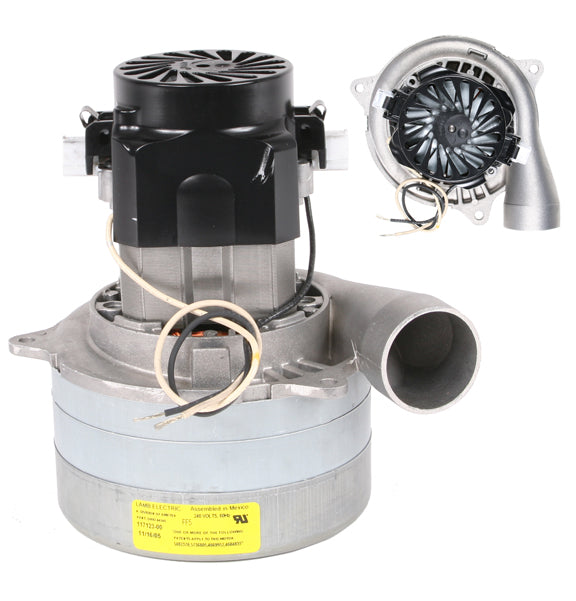

AMETEK Lamb 117123 Vacuum Motor for Beam Central Vacuum – Part# 199X

AMETEK Lamb 117123 Vacuum Motor for Beam Central Vacuum – Part# 199X

Available: In Stock
$187.40
  • Order within

Quick Summary

The 117123 Lamb Ametek vacuum motor is a brand-new replacement motor for select central vacuum systems and blowers. It operates at 220–240 volts and replaces the 116859 motor.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • 220–240 volt motor
  • Three fan stages
  • 95.1 CFM airflow
  • 448 AirWatts
  • 137.1-inch waterlift
  • Brand-new, not rebuilt

Product Overview

This 117123 motor is used in select AirMaster, Modern Day, Flo-Master, Beam, and Nutone central vacuum systems. Listed Beam applications include the 199ED, 2500, 697B, 697C, 697D, and 697G models.

The motor has three bolts and a couple of wires for replacement. Its carbon motor brushes can also be replaced before the motor reaches the end of its service life; two brushes are needed.


Key Features

  • Original Lamb Ametek motor: This is a brand-new Lamb Ametek 117123 motor, not a rebuilt unit.
  • Select system compatibility: The motor is listed for AirMaster, Modern Day, Flo-Master, Beam, and Nutone systems.
  • Beam model fit: Listed Beam models include 199ED, 2500, 697B, 697C, 697D, and 697G, all at 240 volts.
  • Replacement match: The 117123 motor replaces the 116859 motor.
  • Replaceable brushes: The motor has carbon brushes that can be replaced, and two brushes are needed.
  • Straightforward installation: Replacement involves three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 199ED (240V)
  • Beam 2500 (240V)
  • Beam 697B (240V)
  • Beam 697C (240V)
  • Beam 697D (240V)
  • Beam 697G (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part number 117123; may also be marked 7123 or 11-7123
Voltage 220–240 volts
Frequency 50–60 Hz
Fan stages 3
Bottom diameter 5.7 inches
Height 8 inches
Bolt height 3 inches
Waterlift 137.1 inches
Airflow 95.1 CFM
AirWatts 448
Amps 6.8
Replacement motor Replaces 116859
Listed Beam models 199ED, 2500, 697B, 697C, 697D, 697G, all 240V
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 220–240 volt central vacuum motor
  • Select Beam systems listed in the compatibility information
  • AirMaster, Modern Day, Flo-Master, and Nutone systems using this motor
  • Systems showing motor failure symptoms such as electrical odor or excessive blue sparks

Not Ideal For

  • Systems that require a voltage other than 220–240 volts
  • Systems not listed in the compatibility information without confirming fit first
  • Replacing a relay or mini breaker when the motor itself is still operating

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117123 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 117123 Lamb Ametek vacuum motor is a brand-new replacement motor for select central vacuum systems and blowers. It operates at 220–240 volts and replaces the 116859 motor.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • 220–240 volt motor
  • Three fan stages
  • 95.1 CFM airflow
  • 448 AirWatts
  • 137.1-inch waterlift
  • Brand-new, not rebuilt

Product Overview

This 117123 motor is used in select AirMaster, Modern Day, Flo-Master, Beam, and Nutone central vacuum systems. Listed Beam applications include the 199ED, 2500, 697B, 697C, 697D, and 697G models.

The motor has three bolts and a couple of wires for replacement. Its carbon motor brushes can also be replaced before the motor reaches the end of its service life; two brushes are needed.


Key Features

  • Original Lamb Ametek motor: This is a brand-new Lamb Ametek 117123 motor, not a rebuilt unit.
  • Select system compatibility: The motor is listed for AirMaster, Modern Day, Flo-Master, Beam, and Nutone systems.
  • Beam model fit: Listed Beam models include 199ED, 2500, 697B, 697C, 697D, and 697G, all at 240 volts.
  • Replacement match: The 117123 motor replaces the 116859 motor.
  • Replaceable brushes: The motor has carbon brushes that can be replaced, and two brushes are needed.
  • Straightforward installation: Replacement involves three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 199ED (240V)
  • Beam 2500 (240V)
  • Beam 697B (240V)
  • Beam 697C (240V)
  • Beam 697D (240V)
  • Beam 697G (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part number 117123; may also be marked 7123 or 11-7123
Voltage 220–240 volts
Frequency 50–60 Hz
Fan stages 3
Bottom diameter 5.7 inches
Height 8 inches
Bolt height 3 inches
Waterlift 137.1 inches
Airflow 95.1 CFM
AirWatts 448
Amps 6.8
Replacement motor Replaces 116859
Listed Beam models 199ED, 2500, 697B, 697C, 697D, 697G, all 240V
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 220–240 volt central vacuum motor
  • Select Beam systems listed in the compatibility information
  • AirMaster, Modern Day, Flo-Master, and Nutone systems using this motor
  • Systems showing motor failure symptoms such as electrical odor or excessive blue sparks

Not Ideal For

  • Systems that require a voltage other than 220–240 volts
  • Systems not listed in the compatibility information without confirming fit first
  • Replacing a relay or mini breaker when the motor itself is still operating

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117123 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

What motor does the 117123 replace?

The 117123 motor replaces the 116859 motor.

Which Beam models does this motor fit?

The listed Beam models are 199ED, 2500, 697B, 697C, 697D, and 697G, all at 240 volts. Confirm your model or inlet and motor connection before ordering if your system is not listed.

What voltage does this motor use?

The motor is rated for 220–240 volts and 50–60 Hz.

How do I know if my motor may need replacement?

Possible signs include a mini breaker that pops, an electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.

Could the relay be the problem instead of the motor?

If you do not hear a click, the relay most likely needs replacement and the motor may be fine.

Can the motor brushes be replaced?

Yes. The 117123 motor has replaceable carbon brushes, and two brushes are needed.

Is installation difficult?

Replacement involves three bolts and a couple of wires.

Is there a core trade-in?

No. There is no core trade-in for the used motor.
