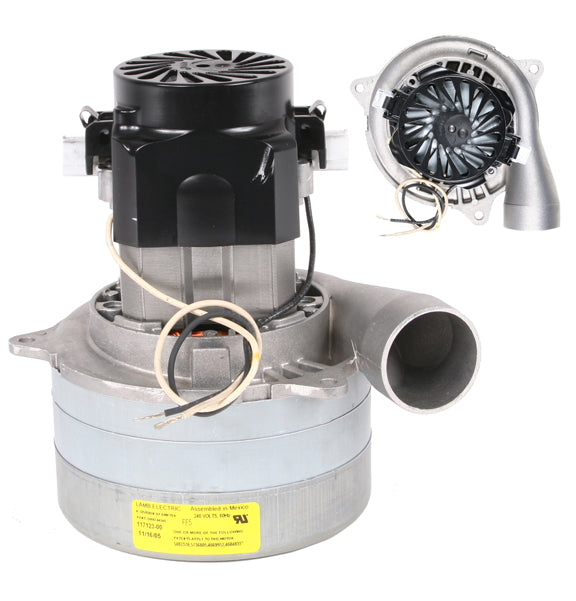

AMETEK Lamb 117123 Vacuum Motor for MD Central Vacuum – Part# 199X

AMETEK Lamb 117123 Vacuum Motor for MD Central Vacuum – Part# 199X

Available: In Stock
$187.40
  • Order within

Quick Summary

The 117123 vacuum motor is a new AMETEK Lamb replacement motor used in some central vacuum brands and models, including select MD central vacuum units. It is a 220-240 volt, 3-stage motor that replaces motor 116859.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • 220-240 volt operation
  • 3-stage design
  • Replaces 116859 motor
  • Fits select MD central vacuum models
  • Part number 199X

Product Overview

This 117123 vacuum motor is an AMETEK Lamb original motor for certain central vacuum systems and blowers. It is listed for select MD central vacuum power units and is sold as a brand new motor, not a rebuilt one.

The motor is rated at 220-240 volts and uses a 3-stage design. According to the product record, it may also be marked as 7123 or 11-7123, and it replaces the 116859 motor.

Common signs that a motor replacement may be needed include a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, a clicking sound, or a motor that shuts down on its own and works again later. If there is no click, the relay may need replacement instead of the motor.


Key Features

  • New Replacement Motor: This is a brand new motor, not a rebuilt unit.
  • AMETEK Lamb Original: The 117123 is an original AMETEK Lamb motor.
  • 220-240 Volt Motor: This motor is designed for 220-240 volt applications at 50-60 hertz.
  • 3-Stage Design: The motor uses a 3-stage fan configuration as listed in the product specifications.
  • Replaces 116859: This motor is listed as a replacement for motor 116859.
  • Brushes Can Be Replaced: The carbon motor brushes on this motor can be replaced before the motor is at the end of its life.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD G23 (240V)
  • MD J (240V)
  • MD M850 (240V)
  • MD M850H2 (240V)
  • MD M965H2 (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part Number 199X
Motor Number 117123
Voltage 220-240 volt
Hertz 50-60
Fan Stages 3
Bottom Diameter 5.7 inches
Height 8 inches
Bolt Height 3 inches
Waterlift 137.1 inches
CFM 95.1
AirWatts 448
Amps 6.8
Replaces 116859 motor
Fits MD Models MD G23 (240V), MD J (240V), MD M850 (240V), MD M850H2 (240V), MD M965H2 (240V)
Also Used In AirMaster, Modern Day, Flo-Master, Beam and Nutone
Markings You May See 7123 or 11-7123
Estimated Motor Life 900-1,200 hours
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 117123 motor in an MD central vacuum
  • 240V MD central vacuum models listed in the fit information
  • Replacing motor 116859
  • Repairing a unit with common motor failure symptoms

Not Ideal For

  • Not for systems outside the listed voltage range
  • Not for buyers who have not confirmed their motor number or MD model
  • May not solve the issue if the relay is the actual problem

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117123 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 117123 vacuum motor is a new AMETEK Lamb replacement motor used in some central vacuum brands and models, including select MD central vacuum units. It is a 220-240 volt, 3-stage motor that replaces motor 116859.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • 220-240 volt operation
  • 3-stage design
  • Replaces 116859 motor
  • Fits select MD central vacuum models
  • Part number 199X

Product Overview

This 117123 vacuum motor is an AMETEK Lamb original motor for certain central vacuum systems and blowers. It is listed for select MD central vacuum power units and is sold as a brand new motor, not a rebuilt one.

The motor is rated at 220-240 volts and uses a 3-stage design. According to the product record, it may also be marked as 7123 or 11-7123, and it replaces the 116859 motor.

Common signs that a motor replacement may be needed include a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, a clicking sound, or a motor that shuts down on its own and works again later. If there is no click, the relay may need replacement instead of the motor.


Key Features

  • New Replacement Motor: This is a brand new motor, not a rebuilt unit.
  • AMETEK Lamb Original: The 117123 is an original AMETEK Lamb motor.
  • 220-240 Volt Motor: This motor is designed for 220-240 volt applications at 50-60 hertz.
  • 3-Stage Design: The motor uses a 3-stage fan configuration as listed in the product specifications.
  • Replaces 116859: This motor is listed as a replacement for motor 116859.
  • Brushes Can Be Replaced: The carbon motor brushes on this motor can be replaced before the motor is at the end of its life.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD G23 (240V)
  • MD J (240V)
  • MD M850 (240V)
  • MD M850H2 (240V)
  • MD M965H2 (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part Number 199X
Motor Number 117123
Voltage 220-240 volt
Hertz 50-60
Fan Stages 3
Bottom Diameter 5.7 inches
Height 8 inches
Bolt Height 3 inches
Waterlift 137.1 inches
CFM 95.1
AirWatts 448
Amps 6.8
Replaces 116859 motor
Fits MD Models MD G23 (240V), MD J (240V), MD M850 (240V), MD M850H2 (240V), MD M965H2 (240V)
Also Used In AirMaster, Modern Day, Flo-Master, Beam and Nutone
Markings You May See 7123 or 11-7123
Estimated Motor Life 900-1,200 hours
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 117123 motor in an MD central vacuum
  • 240V MD central vacuum models listed in the fit information
  • Replacing motor 116859
  • Repairing a unit with common motor failure symptoms

Not Ideal For

  • Not for systems outside the listed voltage range
  • Not for buyers who have not confirmed their motor number or MD model
  • May not solve the issue if the relay is the actual problem

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117123 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Will this fit my MD central vacuum?

It is listed for MD G23 (240V), MD J (240V), MD M850 (240V), MD M850H2 (240V), and MD M965H2 (240V). If you are not sure, confirm your MD central vacuum model and existing motor number before ordering.

Is this motor new or rebuilt?

It is a brand new motor, not a rebuilt one.

What motor does this replace?

This 117123 motor replaces the 116859 motor.

What voltage is this motor?

This motor is rated for 220-240 volts and 50-60 hertz.

Are there other numbers printed on this motor?

Yes. The product record notes that the motor may say 7123 or 11-7123.

What are common signs that the motor needs replacement?

Listed signs include a mini breaker popping, electrical smell, excessive blue sparks from the top of the motor, hearing only a click, or the motor shutting down on its own and working again later.

If I do not hear a click, is the motor bad?

Not necessarily. The record says that if you do not hear a click, the relay most likely needs to be replaced and the motor may be fine.

Can the brushes be replaced on this motor?

Yes. The 117123 AMETEK Lamb motor has carbon motor brushes that can be replaced.
