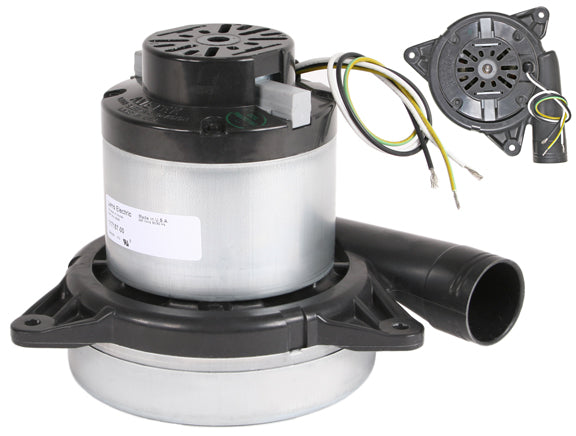

AMETEK Lamb 117157 Vacuum Motor for MD Central Vacuum – Part# 207X

AMETEK Lamb 117157 Vacuum Motor for MD Central Vacuum – Part# 207X

Available: In Stock
$386.27
  • Order within

Quick Summary

This replacement vacuum motor is the Lamb 117157 model in a 220-240 volt configuration. It is used in some central vacuum brands and is listed for select MD central vacuum power units.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Lamb 117157 vacuum motor
  • 220-240 volt, 50-60 hertz
  • 2 fan stages
  • Fits MD B (240V) and MD SV (240V)
  • Part number 207X
  • Original Lamb Ametek motor

Product Overview

The 117157 vacuum motor is a brand new Lamb Ametek original motor, not a rebuilt unit. It is used in some central vacuum brands and models and is listed here for select MD central vacuum systems.

This motor is listed for MD B (240V) and MD SV (240V) power units. It may also be identified as 11-7157 or 7157, and it only replaces the 117157 motor.

Replacement is described as a straightforward job with three bolts and a couple of wires. The motor brushes can also be replaced separately, and two brushes are required if servicing the brushes.


Key Features

  • Original replacement motor: This is a Lamb Ametek original 117157 motor and is sold as a brand new motor, not a rebuilt one.
  • 220-240 volt operation: The motor is rated for 220-240 volts and 50-60 hertz.
  • Two-stage design: This motor has 2 fan stages as listed in the product specifications.
  • MD model fit: It is listed for MD B (240V) and MD SV (240V) central vacuum power units.
  • Direct 117157 replacement: This motor only replaces the 117157 motor.
  • Serviceable brushes: The carbon motor brushes can be replaced, and two brushes are needed.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD B (240V)
  • MD SV (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor Model 117157
Part Number 207X
Voltage 220-240 volt
Hertz 50-60
Fan Stages 2
Bottom Diameter 7.2 in
Height 7.75 in
Bolt Height 1.5 in
Waterlift 122 in
CFM 104.9
AirWatts 437
Amps 5.8
Fits MD Models MD B (240V), MD SV (240V)
Compatibility Note AirMaster, Modern Day and Flo-Master
Also Marked As 11-7157 or 7157
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn or failed 117157 motor
  • MD central vacuum models MD B (240V) and MD SV (240V)
  • 220-240 volt central vacuum applications
  • Shoppers who want a new original Lamb Ametek motor

Not Ideal For

  • Not for replacing motors other than 117157
  • Not for buyers who have not confirmed 220-240 volt requirements
  • Mini breaker or relay issues may need separate diagnosis or parts

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117157 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

This replacement vacuum motor is the Lamb 117157 model in a 220-240 volt configuration. It is used in some central vacuum brands and is listed for select MD central vacuum power units.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Lamb 117157 vacuum motor
  • 220-240 volt, 50-60 hertz
  • 2 fan stages
  • Fits MD B (240V) and MD SV (240V)
  • Part number 207X
  • Original Lamb Ametek motor

Product Overview

The 117157 vacuum motor is a brand new Lamb Ametek original motor, not a rebuilt unit. It is used in some central vacuum brands and models and is listed here for select MD central vacuum systems.

This motor is listed for MD B (240V) and MD SV (240V) power units. It may also be identified as 11-7157 or 7157, and it only replaces the 117157 motor.

Replacement is described as a straightforward job with three bolts and a couple of wires. The motor brushes can also be replaced separately, and two brushes are required if servicing the brushes.


Key Features

  • Original replacement motor: This is a Lamb Ametek original 117157 motor and is sold as a brand new motor, not a rebuilt one.
  • 220-240 volt operation: The motor is rated for 220-240 volts and 50-60 hertz.
  • Two-stage design: This motor has 2 fan stages as listed in the product specifications.
  • MD model fit: It is listed for MD B (240V) and MD SV (240V) central vacuum power units.
  • Direct 117157 replacement: This motor only replaces the 117157 motor.
  • Serviceable brushes: The carbon motor brushes can be replaced, and two brushes are needed.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD B (240V)
  • MD SV (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor Model 117157
Part Number 207X
Voltage 220-240 volt
Hertz 50-60
Fan Stages 2
Bottom Diameter 7.2 in
Height 7.75 in
Bolt Height 1.5 in
Waterlift 122 in
CFM 104.9
AirWatts 437
Amps 5.8
Fits MD Models MD B (240V), MD SV (240V)
Compatibility Note AirMaster, Modern Day and Flo-Master
Also Marked As 11-7157 or 7157
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn or failed 117157 motor
  • MD central vacuum models MD B (240V) and MD SV (240V)
  • 220-240 volt central vacuum applications
  • Shoppers who want a new original Lamb Ametek motor

Not Ideal For

  • Not for replacing motors other than 117157
  • Not for buyers who have not confirmed 220-240 volt requirements
  • Mini breaker or relay issues may need separate diagnosis or parts

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117157 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Will this fit my MD central vacuum?

This motor is listed for MD B (240V) and MD SV (240V). If you are not sure about your exact MD central vacuum model, confirm the model before ordering.

Is this a rebuilt motor?

No. This is a brand new Lamb Ametek original motor, not a rebuilt motor.

What motor does this replace?

It only replaces the 117157 motor.

Are there other numbers I might see on this motor?

Yes. The 117157 motor may also say 11-7157 or 7157.

What are the electrical specs for this motor?

It is rated for 220-240 volts and 50-60 hertz, with 5.8 amps.

What are common signs that the motor needs replacement?

Signs listed include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, only hearing a click, the motor shutting down on its own but working later, or the motor reaching its 900-1,200 hour life.

Can the brushes be replaced instead of the whole motor?

Yes. The carbon motor brushes can be replaced, and you will need to buy two brushes.

Is replacing this motor difficult?

The description says it is not difficult to replace. It uses three bolts and a couple of wires.
