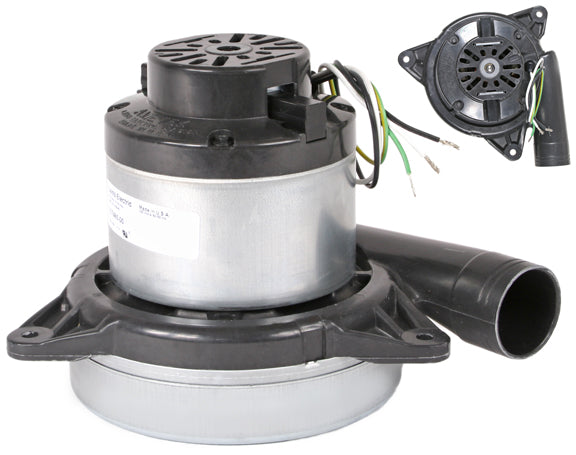

AMETEK Lamb 117465 Vacuum Motor for Beam Central Vacuum – Part# 207
- Product SKU: 207
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary
The 117465 vacuum motor is a new, original Lamb Ametek motor for compatible central vacuum systems and blowers. It replaces several related Lamb motor numbers and fits select Beam models, including the 193, 199, 287, 287C, and 287S.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- New, not rebuilt, Lamb Ametek motor
- Two fan stages with 396 AirWatts
- 110-120V operation at 50-60 Hz
- Replaces 116465, 116467, 116488-13, 117129, and 117467 motors
- Fits select 120V Beam models
- Carbon motor brushes can be replaced
Product Overview
The Lamb Ametek 117465 motor is commonly used in central vacuum brands and models, including AirMaster, Modern Day, Beam, Nutone, and Eureka systems. It may also be marked 7465 or 11-7465.
Replacement requires removing three bolts and reconnecting a couple of wires. The motor has replaceable carbon brushes, and the manufacturer-recommended replacement instructions should be followed when servicing the motor or ground wire.
Key Features
- New replacement motor: This is a brand new Lamb Ametek 117465 motor, not a rebuilt motor.
- Two fan stages: The motor uses two fan stages and produces 396 AirWatts.
- Broad replacement coverage: It replaces Lamb motor numbers 116465, 116467, 116488-13, 117129, and 117467.
- Replaceable brushes: The carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Straightforward installation: Installation involves three bolts and a couple of wires, with attention to the ground connection.
- Common failure indicators: Possible replacement signs include a popping mini breaker, electrical smell, excessive blue sparks, a click without motor operation, or intermittent shutdowns.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 193 (120V)
- Beam 199 (120V)
- Beam 287 (120V)
- Beam 287C (120V)
- Beam 287S (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Product type | Lamb Ametek vacuum motor |
| Motor part number | 117465; may also be marked 7465 or 11-7465 |
| Fan stages | 2 |
| Voltage | 110-120V |
| Frequency | 50-60 Hz |
| Bottom diameter | 7.2 inches |
| Height | 7-1/4 inches |
| Bolt height | 1-1/2 inches |
| Waterlift | 112.8 inches |
| Airflow | 107 CFM |
| AirWatts | 396 |
| Amperage | 11.3 amps |
| Listed compatibility | AirMaster, Modern Day, Beam, Nutone, and Eureka |
| Beam models | 193 (120V), 199 (120V), 287 (120V), 287C (120V), and 287S (120V) |
| Replaces | 116465, 116467, 116488-13, 117129, and 117467 |
| Motor service life | Approximately 900-1,200 hours |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 117465, 7465, or 11-7465 motor
- Compatible 120V Beam central vacuum models
- Systems showing motor sparks, electrical smell, or intermittent shutdowns
- Servicing systems that use replaceable carbon motor brushes
Not Ideal For
- Systems that do not match the listed voltage or compatibility information
- Systems where the motor does not click on, since the relay may need replacement instead
- Installations requiring a replacement mini breaker as well as the motor
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 117465 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The 117465 vacuum motor is a new, original Lamb Ametek motor for compatible central vacuum systems and blowers. It replaces several related Lamb motor numbers and fits select Beam models, including the 193, 199, 287, 287C, and 287S.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- New, not rebuilt, Lamb Ametek motor
- Two fan stages with 396 AirWatts
- 110-120V operation at 50-60 Hz
- Replaces 116465, 116467, 116488-13, 117129, and 117467 motors
- Fits select 120V Beam models
- Carbon motor brushes can be replaced
Product Overview
The Lamb Ametek 117465 motor is commonly used in central vacuum brands and models, including AirMaster, Modern Day, Beam, Nutone, and Eureka systems. It may also be marked 7465 or 11-7465.
Replacement requires removing three bolts and reconnecting a couple of wires. The motor has replaceable carbon brushes, and the manufacturer-recommended replacement instructions should be followed when servicing the motor or ground wire.
Key Features
- New replacement motor: This is a brand new Lamb Ametek 117465 motor, not a rebuilt motor.
- Two fan stages: The motor uses two fan stages and produces 396 AirWatts.
- Broad replacement coverage: It replaces Lamb motor numbers 116465, 116467, 116488-13, 117129, and 117467.
- Replaceable brushes: The carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Straightforward installation: Installation involves three bolts and a couple of wires, with attention to the ground connection.
- Common failure indicators: Possible replacement signs include a popping mini breaker, electrical smell, excessive blue sparks, a click without motor operation, or intermittent shutdowns.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 193 (120V)
- Beam 199 (120V)
- Beam 287 (120V)
- Beam 287C (120V)
- Beam 287S (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Product type | Lamb Ametek vacuum motor |
| Motor part number | 117465; may also be marked 7465 or 11-7465 |
| Fan stages | 2 |
| Voltage | 110-120V |
| Frequency | 50-60 Hz |
| Bottom diameter | 7.2 inches |
| Height | 7-1/4 inches |
| Bolt height | 1-1/2 inches |
| Waterlift | 112.8 inches |
| Airflow | 107 CFM |
| AirWatts | 396 |
| Amperage | 11.3 amps |
| Listed compatibility | AirMaster, Modern Day, Beam, Nutone, and Eureka |
| Beam models | 193 (120V), 199 (120V), 287 (120V), 287C (120V), and 287S (120V) |
| Replaces | 116465, 116467, 116488-13, 117129, and 117467 |
| Motor service life | Approximately 900-1,200 hours |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 117465, 7465, or 11-7465 motor
- Compatible 120V Beam central vacuum models
- Systems showing motor sparks, electrical smell, or intermittent shutdowns
- Servicing systems that use replaceable carbon motor brushes
Not Ideal For
- Systems that do not match the listed voltage or compatibility information
- Systems where the motor does not click on, since the relay may need replacement instead
- Installations requiring a replacement mini breaker as well as the motor
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 117465 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
Which Beam models does this motor fit?
The listed Beam models are 193, 199, 287, 287C, and 287S, all in 120V versions. Confirm your model before ordering, especially if your system is not listed.
Is this a genuine Beam motor?
No. This is a Lamb Ametek replacement motor listed for compatible Beam central vacuum systems; it is not made by Beam.
What motor numbers does the 117465 replace?
It replaces Lamb motor numbers 116465, 116467, 116488-13, 117129, and 117467.
How do I know if my motor needs to be replaced?
Common signs include a popping mini breaker, electrical smell, excessive blue sparks, hearing only a click, intermittent shutdowns, or reaching approximately 900-1,200 hours of use.
What if the motor does not make a clicking sound?
If you do not hear a click, the relay most likely needs to be replaced and the motor may still be functional.
Can the motor brushes be replaced?
Yes. The 117465 motor has carbon motor brushes that can be replaced. Two brushes are needed when replacing the pair.
Is a mini breaker included?
The record does not indicate that a mini breaker is included. In some cases, the mini breaker may also fail and should be evaluated after motor replacement.
Is installation difficult?
The motor is secured with three bolts and uses a couple of wires. Follow the replacement instructions and connect the ground wire appropriately for the unit.
