AMETEK Lamb 117465 Vacuum Motor for MD Central Vacuum – Part# 207

AMETEK Lamb 117465 Vacuum Motor for MD Central Vacuum – Part# 207

Available: In Stock
$354.67
  • Order within

Quick Summary

The 117465 vacuum motor is a new AMETEK Lamb replacement motor used in many central vacuum brands and models, including MD central vacuum model MD SV (120V). It is also commonly used in vacuums and blowers and replaces several related motor numbers.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • Part number 207
  • 2 fan stages
  • 110-120 volts, 50-60 hertz
  • Fits MD SV (120V)
  • Replaces several Lamb motor numbers

Product Overview

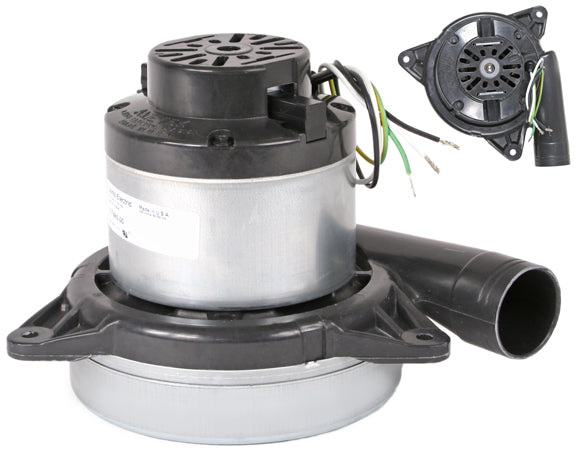

This 117465 vacuum motor is an original AMETEK Lamb motor sold as a brand new replacement, not a rebuilt unit. It is listed for the MD SV (120V) and is also noted as commonly used in AirMaster, Modern Day, Beam, Nutone, and Eureka systems.

The motor has 2 fan stages and measures 7.2 inches across the bottom with a 7-1/4 inch height. It replaces Lamb motor numbers 116465, 116467, 116488-13, 117129, and 117467.

Signs a motor may need replacement can include a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down on its own and works again later.


Key Features

  • Original Lamb Motor: This is an AMETEK Lamb original motor supplied as a new replacement unit.
  • Listed for MD SV: This motor is listed to fit the MD central vacuum model MD SV (120V).
  • Multiple Replacement Numbers: It replaces 116465, 116467, 116488-13, 117129, and 117467 motors.
  • 2-Stage Design: The motor is specified with 2 fan stages.
  • Standard Electrical Specs: It is rated for 110-120 volts and 50-60 hertz operation.
  • Brushes Can Be Replaced: The carbon motor brushes on the 117465 motor can be replaced before the motor is at the end of its life.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD SV (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Product name 117465 Lamb Vacuum Motor
Part number 207
Fan stages 2
Bottom diameter 7.2 in
Voltage 110-120
Hertz 50-60
Height 7-1/4 in
Bolt height 1-1/2 in
Waterlift 112.8 in
CFM 107
Air watts 396
Amps 11.3
Fits MD model MD SV (120V)
Compatibility note AirMaster, Modern Day, Beam, Nutone and Eureka
Replaces 116465, 116467, 116488-13, 117129, 117467
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn or failing motor in an MD SV (120V)
  • Matching one of the listed replacement motor numbers
  • Repairing a central vacuum or blower that uses the 117465 motor
  • Replacing a motor showing blue sparks, electrical smell, or repeated shutdown

Not Ideal For

  • Units outside the listed fit or replacement numbers without confirming compatibility
  • Repairs where the relay, not the motor, is the actual problem
  • Shoppers looking for a rebuilt motor or a core trade-in program

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117465 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 117465 vacuum motor is a new AMETEK Lamb replacement motor used in many central vacuum brands and models, including MD central vacuum model MD SV (120V). It is also commonly used in vacuums and blowers and replaces several related motor numbers.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New motor, not rebuilt
  • Part number 207
  • 2 fan stages
  • 110-120 volts, 50-60 hertz
  • Fits MD SV (120V)
  • Replaces several Lamb motor numbers

Product Overview

This 117465 vacuum motor is an original AMETEK Lamb motor sold as a brand new replacement, not a rebuilt unit. It is listed for the MD SV (120V) and is also noted as commonly used in AirMaster, Modern Day, Beam, Nutone, and Eureka systems.

The motor has 2 fan stages and measures 7.2 inches across the bottom with a 7-1/4 inch height. It replaces Lamb motor numbers 116465, 116467, 116488-13, 117129, and 117467.

Signs a motor may need replacement can include a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down on its own and works again later.


Key Features

  • Original Lamb Motor: This is an AMETEK Lamb original motor supplied as a new replacement unit.
  • Listed for MD SV: This motor is listed to fit the MD central vacuum model MD SV (120V).
  • Multiple Replacement Numbers: It replaces 116465, 116467, 116488-13, 117129, and 117467 motors.
  • 2-Stage Design: The motor is specified with 2 fan stages.
  • Standard Electrical Specs: It is rated for 110-120 volts and 50-60 hertz operation.
  • Brushes Can Be Replaced: The carbon motor brushes on the 117465 motor can be replaced before the motor is at the end of its life.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD SV (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Product name 117465 Lamb Vacuum Motor
Part number 207
Fan stages 2
Bottom diameter 7.2 in
Voltage 110-120
Hertz 50-60
Height 7-1/4 in
Bolt height 1-1/2 in
Waterlift 112.8 in
CFM 107
Air watts 396
Amps 11.3
Fits MD model MD SV (120V)
Compatibility note AirMaster, Modern Day, Beam, Nutone and Eureka
Replaces 116465, 116467, 116488-13, 117129, 117467
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn or failing motor in an MD SV (120V)
  • Matching one of the listed replacement motor numbers
  • Repairing a central vacuum or blower that uses the 117465 motor
  • Replacing a motor showing blue sparks, electrical smell, or repeated shutdown

Not Ideal For

  • Units outside the listed fit or replacement numbers without confirming compatibility
  • Repairs where the relay, not the motor, is the actual problem
  • Shoppers looking for a rebuilt motor or a core trade-in program

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117465 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Is this a new or rebuilt motor?

This is a brand new motor, not a rebuilt one.

Will this fit my MD central vacuum?

It is listed for the MD central vacuum model MD SV (120V). If your model is different, confirm your power unit model and motor number before ordering.

What motors does this replace?

It replaces 116465, 116467, 116488-13, 117129, and 117467 motors.

What are the main specifications of this motor?

The listed specs are 2 fan stages, 110-120 volts, 50-60 hertz, 7.2 inch bottom diameter, 7-1/4 inch height, 1-1/2 inch bolt height, 112.8 inch waterlift, 107 CFM, 396 air watts, and 11.3 amps.

What are common signs that this motor needs to be replaced?

Signs can include a mini breaker popping, an electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down on its own but works later.

If I only hear a click, is the motor always bad?

No. The record notes that if you do not hear a click, your relay most likely needs to be replaced and your motor may be fine.

Can the brushes be replaced on this motor?

Yes. The 117465 motor has carbon motor brushes that can be replaced.

Does this motor have a core trade-in?

No. There is no core trade-in for used motors.
