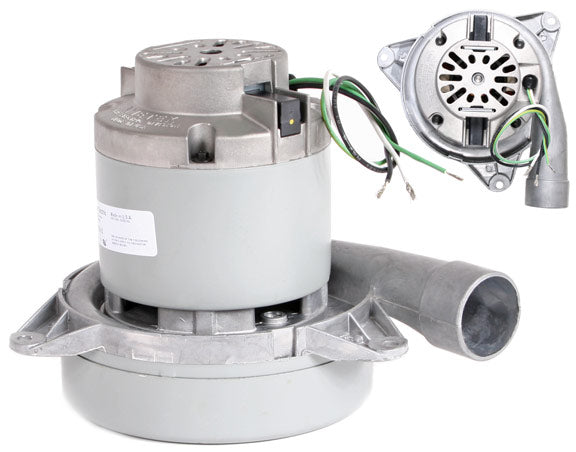

AMETEK Lamb 117478 Vacuum Motor for Beam Central Vacuum – Part# 201P

AMETEK Lamb 117478 Vacuum Motor for Beam Central Vacuum – Part# 201P

Available: In Stock
$393.90
  • Order within

Quick Summary

The 117478 Lamb motor is a brand-new replacement motor for select central vacuum systems and blowers. It fits listed Beam models and replaces the 117549 motor with higher stated airwatts.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Original Lamb Ametek 117478 motor
  • Two fan stages
  • 110–120V, 50–60 Hz
  • 549 AirWatts and 115.8 CFM
  • Replaces motor 117549
  • Carbon motor brushes can be replaced

Product Overview

The 117478 Lamb Ametek motor is used in select SilentMaster, Beam, Electrolux, and Vacuflo central vacuum systems. It may also be marked 7478 or 11-7478, and is compatible with 117478 motors such as the 117478-12.

This brand-new motor installs with three bolts and a couple of wires. The carbon brushes are replaceable, and the motor can replace a 117549 motor when the system and fit are confirmed.


Key Features

  • Replacement motor: Replaces the Lamb 117549 motor and provides 549 AirWatts compared with the 117549 motor’s stated 483 AirWatts.
  • Broad system compatibility: Listed for select SilentMaster, Beam, Electrolux, and Vacuflo systems.
  • Beam model fit: Fits the listed Beam 2875, 310, 387, and 875 models in 120V versions.
  • Two fan stages: The motor has two fan stages for central vacuum applications.
  • Replaceable brushes: Its carbon motor brushes can be replaced before the motor reaches the end of its service life.
  • Straightforward installation: Replacement involves three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 2875 (120V)
  • Beam 310 (120V)
  • Beam 387 (120V)
  • Beam 875 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor part number 117478
Alternate markings 7478 or 11-7478
Compatible motor numbers 117478, including 117478-12
Replacement for 117549
Fan stages 2
Bottom diameter 7.2 inches
Voltage 110–120V
Frequency 50–60 Hz
Height 7-3/4 inches
Bolt height 1-3/4 inches
Waterlift 120 inches
Airflow 115.8 CFM
Airwatts 549
Amps 13.5
Listed Beam models 2875 (120V), 310 (120V), 387 (120V), 875 (120V)
Core trade-in None
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 117478 or 117549 central vacuum motor
  • Listed 120V Beam models
  • Select SilentMaster, Electrolux, and Vacuflo systems
  • Systems showing motor failure symptoms such as electrical smell or excessive blue sparks

Not Ideal For

  • Systems that do not match the listed motor or model specifications
  • Installations where the motor’s voltage and physical fit have not been confirmed
  • Replacing a relay when the motor itself is still operating

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117478 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 117478 Lamb motor is a brand-new replacement motor for select central vacuum systems and blowers. It fits listed Beam models and replaces the 117549 motor with higher stated airwatts.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Original Lamb Ametek 117478 motor
  • Two fan stages
  • 110–120V, 50–60 Hz
  • 549 AirWatts and 115.8 CFM
  • Replaces motor 117549
  • Carbon motor brushes can be replaced

Product Overview

The 117478 Lamb Ametek motor is used in select SilentMaster, Beam, Electrolux, and Vacuflo central vacuum systems. It may also be marked 7478 or 11-7478, and is compatible with 117478 motors such as the 117478-12.

This brand-new motor installs with three bolts and a couple of wires. The carbon brushes are replaceable, and the motor can replace a 117549 motor when the system and fit are confirmed.


Key Features

  • Replacement motor: Replaces the Lamb 117549 motor and provides 549 AirWatts compared with the 117549 motor’s stated 483 AirWatts.
  • Broad system compatibility: Listed for select SilentMaster, Beam, Electrolux, and Vacuflo systems.
  • Beam model fit: Fits the listed Beam 2875, 310, 387, and 875 models in 120V versions.
  • Two fan stages: The motor has two fan stages for central vacuum applications.
  • Replaceable brushes: Its carbon motor brushes can be replaced before the motor reaches the end of its service life.
  • Straightforward installation: Replacement involves three bolts and a couple of wires.

Beam Compatibility

This part is listed as the match for these Beam central vacuum models:

  • Beam 2875 (120V)
  • Beam 310 (120V)
  • Beam 387 (120V)
  • Beam 875 (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Motor part number 117478
Alternate markings 7478 or 11-7478
Compatible motor numbers 117478, including 117478-12
Replacement for 117549
Fan stages 2
Bottom diameter 7.2 inches
Voltage 110–120V
Frequency 50–60 Hz
Height 7-3/4 inches
Bolt height 1-3/4 inches
Waterlift 120 inches
Airflow 115.8 CFM
Airwatts 549
Amps 13.5
Listed Beam models 2875 (120V), 310 (120V), 387 (120V), 875 (120V)
Core trade-in None
Authorized Dealer Ace Vacuums

Best For

  • Replacing a failed 117478 or 117549 central vacuum motor
  • Listed 120V Beam models
  • Select SilentMaster, Electrolux, and Vacuflo systems
  • Systems showing motor failure symptoms such as electrical smell or excessive blue sparks

Not Ideal For

  • Systems that do not match the listed motor or model specifications
  • Installations where the motor’s voltage and physical fit have not been confirmed
  • Replacing a relay when the motor itself is still operating

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117478 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Which Beam models does this motor fit?

The record lists Beam 2875, 310, 387, and 875 models, all in 120V versions. Confirm your model before ordering.

Is this a genuine Beam motor?

No. This is an AMETEK Lamb motor listed for use with select Beam central vacuum systems.

What motors does the 117478 replace?

The 117478 can replace motor 117549 and is also compatible with 117478 motors, including 117478-12.

What are the motor’s electrical specifications?

The motor is rated for 110–120V, 50–60 Hz, and 13.5 amps.

How do I know if my motor may need replacement?

Possible signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.

Can the motor brushes be replaced?

Yes. The Lamb 117478 has carbon motor brushes that can be replaced, and two brushes are needed for a brush replacement.

Is installation difficult?

The record describes installation as involving three bolts and a couple of wires. Follow the appropriate replacement instructions for your system.

Does this motor fit every Beam central vacuum?

No fit is universal. Confirm your Beam model or inlet and compare the motor specifications before ordering, especially if your system is not one of the listed models.
