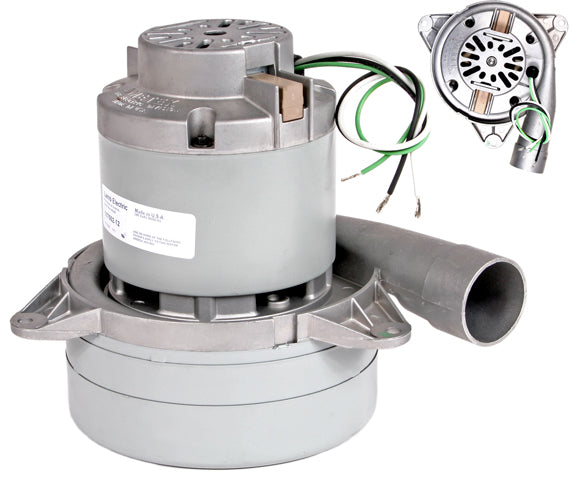

AMETEK Lamb 117502 Vacuum Motor for MD Central Vacuum – Part# 203PX
- Product SKU: 203PX
- Category: Central Vacuum Parts & Accessories, MD Central Vacuum Attachment Kit
- Order within
Quick Summary
This 117502 vacuum motor is a new AMETEK Lamb replacement motor used in some MD central vacuum systems. It is a 220-240 volt motor and is listed for the MD SVT (240V).
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- New motor, not rebuilt
- 220-240 volt motor
- 3 fan stages
- Fits MD SVT (240V)
- Replaces 117502 only
- Part number 203PX
Product Overview
This 117502 vacuum motor is an original AMETEK Lamb motor for certain central vacuum units. On MD central vacuum systems, it is listed for the MD SVT (240V).
The motor is rated for 220-240 volts and has 3 fan stages. The product details note that this motor may also be marked 7502 or 11-7502, but it only replaces the 117502 motor.
Common replacement signs listed include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, a click with no startup, or a motor that shuts down and works again later.
Key Features
- Original replacement motor: This is a brand new AMETEK Lamb original motor, not a rebuilt unit.
- Listed for select MD systems: This motor is listed for the MD SVT (240V) and the compatibility note includes Modern Day and SilentMaster.
- 220-240 volt operation: The motor is rated for 220-240 volts and 50-60 hertz.
- Three-stage design: This motor uses 3 fan stages as stated in the product specifications.
- Direct 117502 replacement: It replaces only the 117502 motor.
- Brushes can be replaced: The carbon motor brushes on the 117502 motor can be replaced before the motor is at the end of its service life.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD SVT (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Part Number | 203PX |
| Motor Number | 117502 |
| Voltage | 220-240 |
| Hertz | 50-60 |
| Fan Stages | 3 |
| Bottom Diameter | 7.2 in |
| Height | 8-3/4 in |
| Bolt Height | 2-3/4 in |
| Waterlift | 145.6 in |
| CFM | 103.2 |
| AirWatts | 521 |
| Amps | 7.3 |
| Fits MD Models | MD SVT (240V) |
| Compatibility Note | Modern Day and SilentMaster |
| Also Marked As | 7502 or 11-7502 |
| Replaces | 117502 only |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 117502 motor in an MD central vacuum
- MD SVT (240V) units that use this exact motor
- Fixing issues such as blue sparks, electrical smell, or shutdown symptoms
- Buyers who need a new motor instead of a rebuilt one
Not Ideal For
- Not for systems that do not use the 117502 motor
- Not for non-220-240 volt applications
- Not a universal motor; confirm your MD central vacuum model before ordering
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 117502 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
This 117502 vacuum motor is a new AMETEK Lamb replacement motor used in some MD central vacuum systems. It is a 220-240 volt motor and is listed for the MD SVT (240V).
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- New motor, not rebuilt
- 220-240 volt motor
- 3 fan stages
- Fits MD SVT (240V)
- Replaces 117502 only
- Part number 203PX
Product Overview
This 117502 vacuum motor is an original AMETEK Lamb motor for certain central vacuum units. On MD central vacuum systems, it is listed for the MD SVT (240V).
The motor is rated for 220-240 volts and has 3 fan stages. The product details note that this motor may also be marked 7502 or 11-7502, but it only replaces the 117502 motor.
Common replacement signs listed include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, a click with no startup, or a motor that shuts down and works again later.
Key Features
- Original replacement motor: This is a brand new AMETEK Lamb original motor, not a rebuilt unit.
- Listed for select MD systems: This motor is listed for the MD SVT (240V) and the compatibility note includes Modern Day and SilentMaster.
- 220-240 volt operation: The motor is rated for 220-240 volts and 50-60 hertz.
- Three-stage design: This motor uses 3 fan stages as stated in the product specifications.
- Direct 117502 replacement: It replaces only the 117502 motor.
- Brushes can be replaced: The carbon motor brushes on the 117502 motor can be replaced before the motor is at the end of its service life.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD SVT (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Part Number | 203PX |
| Motor Number | 117502 |
| Voltage | 220-240 |
| Hertz | 50-60 |
| Fan Stages | 3 |
| Bottom Diameter | 7.2 in |
| Height | 8-3/4 in |
| Bolt Height | 2-3/4 in |
| Waterlift | 145.6 in |
| CFM | 103.2 |
| AirWatts | 521 |
| Amps | 7.3 |
| Fits MD Models | MD SVT (240V) |
| Compatibility Note | Modern Day and SilentMaster |
| Also Marked As | 7502 or 11-7502 |
| Replaces | 117502 only |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 117502 motor in an MD central vacuum
- MD SVT (240V) units that use this exact motor
- Fixing issues such as blue sparks, electrical smell, or shutdown symptoms
- Buyers who need a new motor instead of a rebuilt one
Not Ideal For
- Not for systems that do not use the 117502 motor
- Not for non-220-240 volt applications
- Not a universal motor; confirm your MD central vacuum model before ordering
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 117502 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
Will this fit my MD central vacuum?
It is listed for the MD SVT (240V), and the compatibility note includes Modern Day and SilentMaster. If you are not sure, confirm your MD central vacuum model and verify that your existing motor is a 117502 before ordering.
Is this motor new or rebuilt?
This is a brand new motor, not a rebuilt one.
What motor does this replace?
It replaces only the 117502 motor.
Can this motor be marked with a different number?
Yes. The product notes say the 117502 motor may also say 7502 or 11-7502.
What are common signs that this motor needs replacement?
The listed signs include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, only hearing a click, the motor shutting down on its own and working later, or the motor reaching its service life.
If I do not hear a click, is the motor bad?
Not necessarily. The product notes say that if you do not hear a click, the relay most likely needs to be replaced and the motor may be fine.
Can the brushes be replaced on this motor?
Yes. The 117502 vacuum motor has carbon motor brushes that can be replaced.
Is this hard to install?
The product notes say it is not difficult to replace and involves three bolts and a couple of wires.
