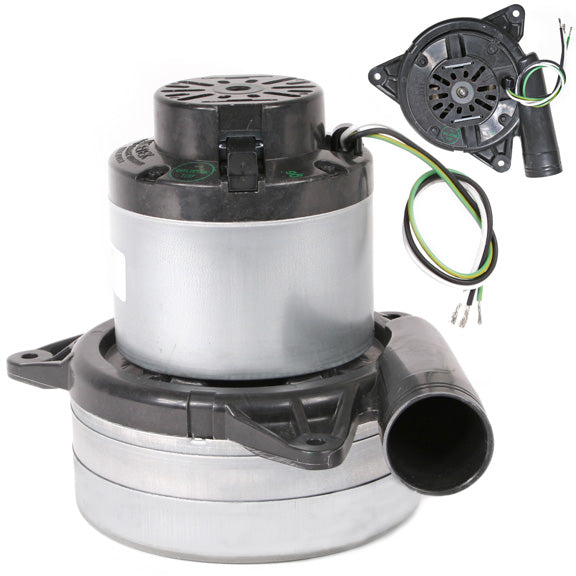

AMETEK Lamb 117507 Vacuum Motor for Beam Central Vacuum – Part# 203
- Product SKU: 203
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary
The 117507 vacuum motor is a brand-new AMETEK Lamb motor for compatible central vacuum systems and blowers. It is listed for select Beam models and replaces several Lamb motor numbers.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new, not rebuilt AMETEK Lamb motor
- Three fan stages
- 110–120 V, 50–60 Hz
- 134.1-inch waterlift and 94 CFM
- Replaces 747012, 117470, and 116507 motors
- Carbon motor brushes can be replaced
Product Overview
The 117507 motor is an AMETEK Lamb original motor that may also be marked 7507 or 11-7507. It is compatible with select AirMaster, Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Eureka systems.
Motor replacement involves three bolts and a couple of wires. The motor has replaceable carbon brushes, and there is no core trade-in for the removed motor.
Key Features
- Brand-new motor: This motor is brand new and not rebuilt.
- Three fan stages: The 117507 motor uses three fan stages.
- Replaceable brushes: Its carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Common replacement numbers: It replaces 747012, 117470, and 116507 motors.
- Straightforward replacement: The motor is secured with three bolts and uses a couple of wires.
- Listed Beam fit: It is listed for select 120 V Beam models, including 2240, 297, 297C, 297D, 297F, 297S, and 299A.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 2240 (120V)
- Beam 297 (120V)
- Beam 297C (120V)
- Beam 297D (120V)
- Beam 297F (120V)
- Beam 297S (120V)
- Beam 299A (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 117507 |
| Alternate markings | 7507 or 11-7507 |
| Fan stages | 3 |
| Voltage | 110–120 V |
| Frequency | 50–60 Hz |
| Bottom diameter | 7.2 inches |
| Height | 8.5 inches |
| Bolt height | 2.5 inches |
| Waterlift | 134.1 inches |
| Airflow | 94 CFM |
| Air watts | 406 |
| Amperage | 12.5 A |
| Replaces | 747012, 117470, and 116507 motors |
| Listed Beam models | 2240, 297, 297C, 297D, 297F, 297S, and 299A, all 120 V |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 117507, 7507, or 11-7507 motor
- Select 120 V Beam central vacuum systems
- Systems showing motor wear symptoms such as blue sparks or electrical smell
- Customers who need a motor with replaceable carbon brushes
Not Ideal For
- Systems that do not match the listed voltage or model information
- Repairs where the relay is the actual failed component
- Customers expecting a core trade-in
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 117507 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The 117507 vacuum motor is a brand-new AMETEK Lamb motor for compatible central vacuum systems and blowers. It is listed for select Beam models and replaces several Lamb motor numbers.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new, not rebuilt AMETEK Lamb motor
- Three fan stages
- 110–120 V, 50–60 Hz
- 134.1-inch waterlift and 94 CFM
- Replaces 747012, 117470, and 116507 motors
- Carbon motor brushes can be replaced
Product Overview
The 117507 motor is an AMETEK Lamb original motor that may also be marked 7507 or 11-7507. It is compatible with select AirMaster, Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Eureka systems.
Motor replacement involves three bolts and a couple of wires. The motor has replaceable carbon brushes, and there is no core trade-in for the removed motor.
Key Features
- Brand-new motor: This motor is brand new and not rebuilt.
- Three fan stages: The 117507 motor uses three fan stages.
- Replaceable brushes: Its carbon motor brushes can be replaced before the motor reaches the end of its service life.
- Common replacement numbers: It replaces 747012, 117470, and 116507 motors.
- Straightforward replacement: The motor is secured with three bolts and uses a couple of wires.
- Listed Beam fit: It is listed for select 120 V Beam models, including 2240, 297, 297C, 297D, 297F, 297S, and 299A.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 2240 (120V)
- Beam 297 (120V)
- Beam 297C (120V)
- Beam 297D (120V)
- Beam 297F (120V)
- Beam 297S (120V)
- Beam 299A (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 117507 |
| Alternate markings | 7507 or 11-7507 |
| Fan stages | 3 |
| Voltage | 110–120 V |
| Frequency | 50–60 Hz |
| Bottom diameter | 7.2 inches |
| Height | 8.5 inches |
| Bolt height | 2.5 inches |
| Waterlift | 134.1 inches |
| Airflow | 94 CFM |
| Air watts | 406 |
| Amperage | 12.5 A |
| Replaces | 747012, 117470, and 116507 motors |
| Listed Beam models | 2240, 297, 297C, 297D, 297F, 297S, and 299A, all 120 V |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 117507, 7507, or 11-7507 motor
- Select 120 V Beam central vacuum systems
- Systems showing motor wear symptoms such as blue sparks or electrical smell
- Customers who need a motor with replaceable carbon brushes
Not Ideal For
- Systems that do not match the listed voltage or model information
- Repairs where the relay is the actual failed component
- Customers expecting a core trade-in
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 117507 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What motor numbers does this replace?
The 117507 motor replaces 747012, 117470, and 116507 motors.
Which Beam models is this motor listed to fit?
It is listed for Beam models 2240, 297, 297C, 297D, 297F, 297S, and 299A, all at 120 V.
Will this fit my Beam central vacuum?
The listed fit includes the Beam models above. Confirm your model or inlet type before ordering if your system is not listed or fit is uncertain.
What other systems may use this motor?
The compatibility note lists AirMaster, Modern Day, Flo-Master, Beam, Nutone, Vacuflo, and Eureka systems.
How do I know when the motor may need replacement?
Possible signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.
Can the motor brushes be replaced?
Yes. The 117507 motor has carbon motor brushes that can be replaced, and two brushes are needed when replacing them.
How is the motor replaced?
Replacement involves three bolts and a couple of wires.
Is there a core trade-in?
No. There is no core trade-in for the removed motor.
