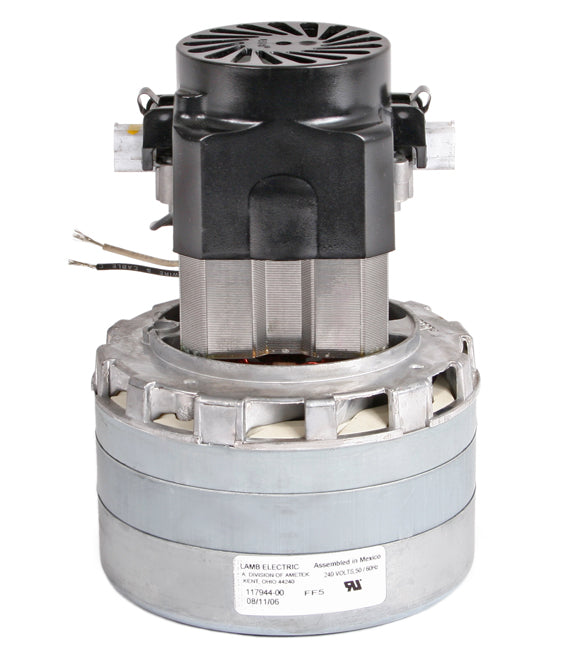

AMETEK Lamb 117944 Vacuum Motor for MD Central Vacuum – Part# 199RX

AMETEK Lamb 117944 Vacuum Motor for MD Central Vacuum – Part# 199RX

Available: In Stock
$220.74
  • Order within

Quick Summary

The 117944 Lamb motor is a replacement vacuum motor used in some MD central vacuum systems. This is a new AMETEK Lamb original motor for 220-240 volt applications.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New, not rebuilt motor
  • AMETEK Lamb original motor
  • 3-stage motor design
  • 220-240 volt, 50-60 hertz
  • Listed for MD M850 and M850H2
  • Part number 199RX

Product Overview

The 117944 vacuum motor is used in some MD central vacuum power units, including MD M850 (240V) and MD M850H2 (240V). It is a new AMETEK Lamb original motor, not a rebuilt unit.

This motor has a 3-stage design and is rated for 220-240 volts at 50-60 hertz. The record notes common replacement signs such as a popping mini breaker, electrical smell, excessive blue sparks, a clicking sound, or a motor that shuts down and later works again.

The motor can also have replaceable carbon brushes. If the relay does not click, the record notes the relay may need replacement instead of the motor.


Key Features

  • New replacement motor: This is a brand new motor, not a rebuilt motor.
  • Original Lamb part: The 117944 is an AMETEK Lamb original motor.
  • 3-stage performance: This motor is specified as a 3-stage unit.
  • 240 volt application: Designed for 220-240 volt systems and rated for 50-60 hertz.
  • Listed MD model fit: The record lists this motor for MD M850 (240V) and MD M850H2 (240V).
  • Brush serviceable: The carbon motor brushes on the 117944 can be replaced.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD M850 (240V)
  • MD M850H2 (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Product name 117944 Lamb Motor (S4,S5 - 240 volt)
Part number 199RX
Voltage 220-240
Hertz 50-60
Fan stages 3
Bottom diameter 5.7 in
Height 8 in
Bolt height 3.5 in
Waterlift 138.1 in
CFM 100.3
AirWatts 444
Amps 6.7
Compatibility note Includes AirMaster, Modern Day and SilentMaster
MD models this part fits MD M850 (240V), MD M850H2 (240V)
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 117944 motor in an MD central vacuum
  • MD M850 (240V) and MD M850H2 (240V) units
  • 220-240 volt central vacuum motor replacement
  • Fixing symptoms like blue sparks, electrical smell, or shutdowns

Not Ideal For

  • Not for buyers who have not confirmed the motor number or voltage
  • May not solve the issue if the relay is the failed part
  • Mini breaker may also need evaluation after motor replacement

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117944 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

The 117944 Lamb motor is a replacement vacuum motor used in some MD central vacuum systems. This is a new AMETEK Lamb original motor for 220-240 volt applications.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New, not rebuilt motor
  • AMETEK Lamb original motor
  • 3-stage motor design
  • 220-240 volt, 50-60 hertz
  • Listed for MD M850 and M850H2
  • Part number 199RX

Product Overview

The 117944 vacuum motor is used in some MD central vacuum power units, including MD M850 (240V) and MD M850H2 (240V). It is a new AMETEK Lamb original motor, not a rebuilt unit.

This motor has a 3-stage design and is rated for 220-240 volts at 50-60 hertz. The record notes common replacement signs such as a popping mini breaker, electrical smell, excessive blue sparks, a clicking sound, or a motor that shuts down and later works again.

The motor can also have replaceable carbon brushes. If the relay does not click, the record notes the relay may need replacement instead of the motor.


Key Features

  • New replacement motor: This is a brand new motor, not a rebuilt motor.
  • Original Lamb part: The 117944 is an AMETEK Lamb original motor.
  • 3-stage performance: This motor is specified as a 3-stage unit.
  • 240 volt application: Designed for 220-240 volt systems and rated for 50-60 hertz.
  • Listed MD model fit: The record lists this motor for MD M850 (240V) and MD M850H2 (240V).
  • Brush serviceable: The carbon motor brushes on the 117944 can be replaced.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD M850 (240V)
  • MD M850H2 (240V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Product name 117944 Lamb Motor (S4,S5 - 240 volt)
Part number 199RX
Voltage 220-240
Hertz 50-60
Fan stages 3
Bottom diameter 5.7 in
Height 8 in
Bolt height 3.5 in
Waterlift 138.1 in
CFM 100.3
AirWatts 444
Amps 6.7
Compatibility note Includes AirMaster, Modern Day and SilentMaster
MD models this part fits MD M850 (240V), MD M850H2 (240V)
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 117944 motor in an MD central vacuum
  • MD M850 (240V) and MD M850H2 (240V) units
  • 220-240 volt central vacuum motor replacement
  • Fixing symptoms like blue sparks, electrical smell, or shutdowns

Not Ideal For

  • Not for buyers who have not confirmed the motor number or voltage
  • May not solve the issue if the relay is the failed part
  • Mini breaker may also need evaluation after motor replacement

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 117944 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Is this a new motor or a rebuilt motor?

This is a brand new motor, not a rebuilt motor.

What voltage is this motor?

It is rated for 220-240 volts and 50-60 hertz.

Which MD central vacuum models is this listed for?

The record lists it for MD M850 (240V) and MD M850H2 (240V).

How do I know if my motor may need replacement?

The record lists signs such as a popping mini breaker, electrical smell, excessive blue sparks from the motor top, a click with no running motor, shutdowns followed by later operation, or a motor that has reached its service life.

Could the problem be something other than the motor?

Yes. If you do not hear a click, the record says the relay most likely needs to be replaced and the motor may be fine. It also notes that sometimes the mini breaker goes bad along with the motor.

Can the brushes be replaced on this motor?

Yes. The 117944 vacuum motor has carbon motor brushes that can be replaced.

Is this compatible with my MD central vacuum?

It is listed for MD M850 (240V) and MD M850H2 (240V). If your model is different, confirm your MD power unit model and motor number before ordering.

Is motor replacement difficult?

The record says replacing the 117944 motor is not difficult and involves three to four screw brackets and a couple of wires.
