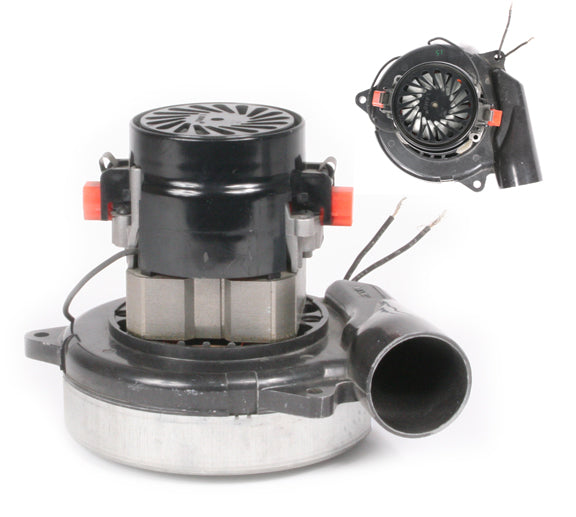

AMETEK Lamb 119512 Vacuum Motor for Beam Central Vacuum – Part# 209-1
- Product SKU: 209-1
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary
The 119512 Lamb Ametek vacuum motor is a brand-new replacement motor used in select central vacuum systems. It fits listed Beam models 2725 and 725 in 120V versions.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Lamb Ametek 119512 motor
- Brand-new, not rebuilt
- Fits Beam 2725 and 725 models at 120V
- Single fan stage
- Tangential bypass design
- Replaces only motor 119512
Product Overview
This 119512 motor is used in some central vacuum brands and models, including the listed 120V Beam 2725 and 725 systems. It may also be marked 9512 or 11-9512.
Replacement involves three bolts and a couple of wires. Common signs of motor failure include a popping mini breaker, electrical smell, excessive blue sparks, a clicking sound without motor operation, or a motor that shuts down and later works again.
Key Features
- Brand-new replacement: This Lamb Ametek motor is new and not rebuilt.
- Tangential bypass: The 119512 uses a tangential bypass design.
- Single fan stage: The motor has one fan stage.
- Listed Beam fit: This motor fits the listed 120V Beam 2725 and 725 models.
- Straightforward installation: Replacement uses three bolts and a couple of wires.
- Motor identification: The motor may be marked 119512, 9512, or 11-9512.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 2725 (120V)
- Beam 725 (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 119512 |
| Part number | 209-1 |
| Fan stages | 1 |
| Voltage | 110-120V |
| Frequency | 50-60 Hz |
| Bottom diameter | 5.7 inches |
| Height | 6-3/4 inches |
| Bolt height | 1-1/4 inches |
| Waterlift | 87.5 inches |
| Airflow | 138.3 CFM |
| AirWatts | 418 |
| Amps | 11.2 |
| Bypass type | Tangential bypass |
| Listed Beam models | 2725 (120V), 725 (120V) |
| Motor service life | 900-1,200 hours |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 119512 motor
- Listed Beam 2725 systems with 120V power
- Listed Beam 725 systems with 120V power
- Systems showing motor failure symptoms
- Technicians or homeowners handling a three-bolt motor replacement
Not Ideal For
- Systems that do not use motor 119512
- Systems with a relay problem instead of a failed motor
- Installations where the listed model or voltage has not been confirmed
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 119512 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The 119512 Lamb Ametek vacuum motor is a brand-new replacement motor used in select central vacuum systems. It fits listed Beam models 2725 and 725 in 120V versions.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Lamb Ametek 119512 motor
- Brand-new, not rebuilt
- Fits Beam 2725 and 725 models at 120V
- Single fan stage
- Tangential bypass design
- Replaces only motor 119512
Product Overview
This 119512 motor is used in some central vacuum brands and models, including the listed 120V Beam 2725 and 725 systems. It may also be marked 9512 or 11-9512.
Replacement involves three bolts and a couple of wires. Common signs of motor failure include a popping mini breaker, electrical smell, excessive blue sparks, a clicking sound without motor operation, or a motor that shuts down and later works again.
Key Features
- Brand-new replacement: This Lamb Ametek motor is new and not rebuilt.
- Tangential bypass: The 119512 uses a tangential bypass design.
- Single fan stage: The motor has one fan stage.
- Listed Beam fit: This motor fits the listed 120V Beam 2725 and 725 models.
- Straightforward installation: Replacement uses three bolts and a couple of wires.
- Motor identification: The motor may be marked 119512, 9512, or 11-9512.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 2725 (120V)
- Beam 725 (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 119512 |
| Part number | 209-1 |
| Fan stages | 1 |
| Voltage | 110-120V |
| Frequency | 50-60 Hz |
| Bottom diameter | 5.7 inches |
| Height | 6-3/4 inches |
| Bolt height | 1-1/4 inches |
| Waterlift | 87.5 inches |
| Airflow | 138.3 CFM |
| AirWatts | 418 |
| Amps | 11.2 |
| Bypass type | Tangential bypass |
| Listed Beam models | 2725 (120V), 725 (120V) |
| Motor service life | 900-1,200 hours |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 119512 motor
- Listed Beam 2725 systems with 120V power
- Listed Beam 725 systems with 120V power
- Systems showing motor failure symptoms
- Technicians or homeowners handling a three-bolt motor replacement
Not Ideal For
- Systems that do not use motor 119512
- Systems with a relay problem instead of a failed motor
- Installations where the listed model or voltage has not been confirmed
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 119512 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What motor does this replace?
This motor replaces only the 119512 motor. The motor may be marked 9512 or 11-9512.
Which Beam models does it fit?
The record lists Beam model 2725 (120V) and Beam model 725 (120V). Confirm your system model before ordering.
Is this a genuine Beam motor?
No. This is a Lamb Ametek 119512 replacement motor, not a Beam-branded product.
What are signs that the motor needs replacement?
Signs include a popping mini breaker, electrical smell, excessive blue sparks from the motor top, hearing only a click, or a motor that shuts down and later works again.
How is the motor installed?
The motor is secured with three bolts and uses a couple of wires. Follow the step-by-step motor replacement instructions before beginning work.
What should I do with the ground wire?
If the unit bolts into metal brackets, the ground wire can be snipped. If it bolts into plastic, attach the ground wire to the power-cord ground or to metal on the unit.
Could the mini breaker also need replacement?
The record notes that the mini breaker can also go bad. Replace the motor first and then evaluate the mini breaker if needed.
Is there a core trade-in?
No. There is no core trade-in. Used motors can be discarded or taken to a metal recycling center.
