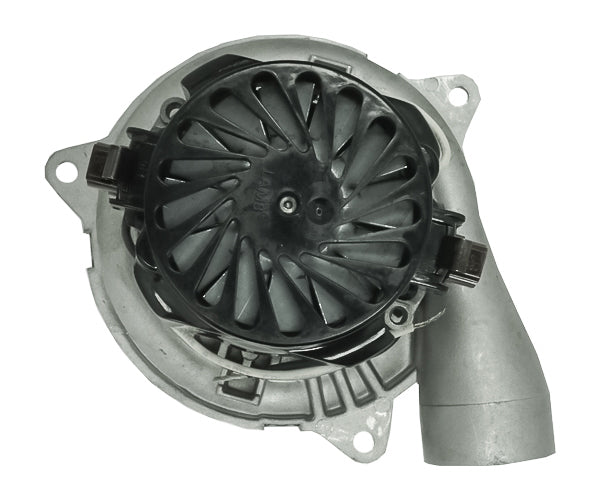

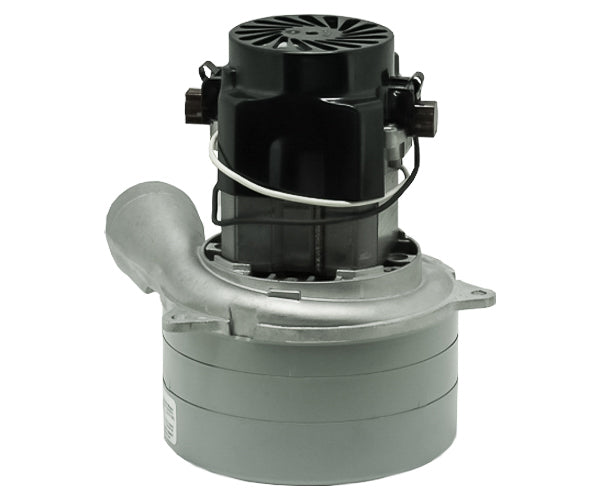

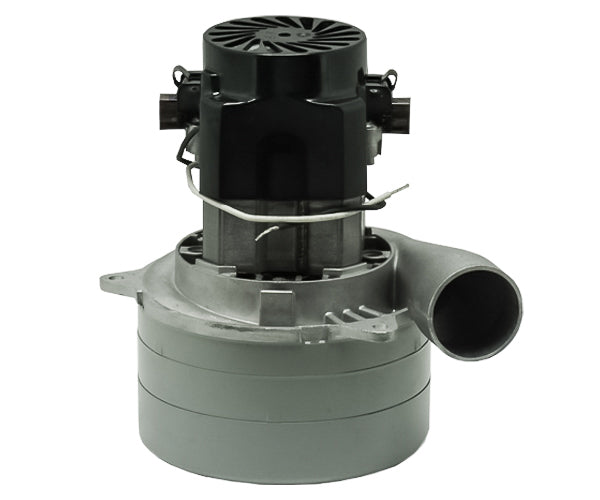

AMETEK Lamb 122568-00 Vacuum Motor for MD Central Vacuum – Part# 199CX
- Product SKU: 199CX
- Category: Central Vacuum Parts & Accessories, MD Central Vacuum Attachment Kit
- Order within
Quick Summary
This 240 volt replacement vacuum motor is used in some MD central vacuum systems. It is a new Lamb Ametek original motor and includes a wire set with spade connectors for installation.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- 240 volt motor
- Lamb Ametek original motor
- 3 fan stages
- 5.7 inch bottom diameter
- Includes wire set with spades
- Listed for MD M615H2 (240V)
Product Overview
The 122568-00 vacuum motor is a replacement motor used in some MD central vacuum systems. This is a brand new Lamb Ametek original motor, not a rebuilt unit.
It includes a wire set with spade connectors to connect to the motor. The other end is recommended to be spliced to the old wire using wire nuts.
This motor is listed for the MD M615H2 (240V) and the compatibility note includes Modern Day and Vacuflo.
Key Features
- Original replacement motor: This is a new Lamb Ametek original motor rather than a rebuilt motor.
- 240 volt design: The motor is rated for 240 volts and 50-60 hertz operation.
- Three-stage motor: It uses a 3-stage fan design as listed in the specifications.
- Installation wire set included: A wire set with spade connectors is included for connection to the motor.
- Common replacement signs: Typical signs for replacement include electrical smell, excessive blue sparks, clicking, or shutdown after use.
- Brushes can be replaced: The carbon motor brushes on this motor can be replaced before the motor is at the end of its life.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD M615H2 (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Part number | 122568-00 |
| Voltage | 240 volt |
| Hertz | 50-60 |
| Fan stages | 3 |
| Bottom diameter | 5.7 inches |
| Height | 8 inches |
| Waterlift | 160.2 inches |
| CFM | 103.5 |
| AirWatts | 588 |
| Amps | 8.4 |
| Also may be marked | 2568 or 12-2568 |
| Includes | Wire set with spades to connect to motor |
| Fits MD model | MD M615H2 (240V) |
| Compatibility note | Modern Day and Vacuflo |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 122568-00 motor in an MD central vacuum
- MD M615H2 (240V) applications
- Fixing a motor with blue sparks, electrical smell, or repeated shutdown
- Restoring suction when the existing motor has reached its service life
Not Ideal For
- Not for systems that do not use part 122568-00
- Relay issues may be the problem if you do not hear a click
- Mini breaker may also need evaluation after motor replacement
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 122568-00 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
This 240 volt replacement vacuum motor is used in some MD central vacuum systems. It is a new Lamb Ametek original motor and includes a wire set with spade connectors for installation.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- 240 volt motor
- Lamb Ametek original motor
- 3 fan stages
- 5.7 inch bottom diameter
- Includes wire set with spades
- Listed for MD M615H2 (240V)
Product Overview
The 122568-00 vacuum motor is a replacement motor used in some MD central vacuum systems. This is a brand new Lamb Ametek original motor, not a rebuilt unit.
It includes a wire set with spade connectors to connect to the motor. The other end is recommended to be spliced to the old wire using wire nuts.
This motor is listed for the MD M615H2 (240V) and the compatibility note includes Modern Day and Vacuflo.
Key Features
- Original replacement motor: This is a new Lamb Ametek original motor rather than a rebuilt motor.
- 240 volt design: The motor is rated for 240 volts and 50-60 hertz operation.
- Three-stage motor: It uses a 3-stage fan design as listed in the specifications.
- Installation wire set included: A wire set with spade connectors is included for connection to the motor.
- Common replacement signs: Typical signs for replacement include electrical smell, excessive blue sparks, clicking, or shutdown after use.
- Brushes can be replaced: The carbon motor brushes on this motor can be replaced before the motor is at the end of its life.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD M615H2 (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Part number | 122568-00 |
| Voltage | 240 volt |
| Hertz | 50-60 |
| Fan stages | 3 |
| Bottom diameter | 5.7 inches |
| Height | 8 inches |
| Waterlift | 160.2 inches |
| CFM | 103.5 |
| AirWatts | 588 |
| Amps | 8.4 |
| Also may be marked | 2568 or 12-2568 |
| Includes | Wire set with spades to connect to motor |
| Fits MD model | MD M615H2 (240V) |
| Compatibility note | Modern Day and Vacuflo |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a worn 122568-00 motor in an MD central vacuum
- MD M615H2 (240V) applications
- Fixing a motor with blue sparks, electrical smell, or repeated shutdown
- Restoring suction when the existing motor has reached its service life
Not Ideal For
- Not for systems that do not use part 122568-00
- Relay issues may be the problem if you do not hear a click
- Mini breaker may also need evaluation after motor replacement
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 122568-00 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
Will this fit my MD central vacuum?
This motor is listed for the MD M615H2 (240V). If your MD central vacuum model is different, confirm your model number and existing motor part number before ordering.
Is this a new motor or a rebuilt motor?
This is a brand new Lamb Ametek original motor, not a rebuilt motor.
What voltage is this motor?
This motor is rated for 240 volts.
What is included with the motor?
It includes a wire set with spade connectors to connect to the motor.
What part numbers might I see on the motor?
This motor may be marked as 122568-00, 2568, or 12-2568.
What are common signs that this motor needs replacement?
Common signs include a mini breaker popping, electrical smell, excessive blue sparks from the top of the motor, hearing only a click, the motor shutting down on its own and working later, or the motor having reached its expected life.
If I do not hear a click, does that mean the motor is bad?
Not necessarily. If you do not hear a click, the relay most likely needs to be replaced and the motor may still be fine.
Can the brushes be replaced on this motor?
Yes. The carbon motor brushes on the 122568-00 motor can be replaced.
