AMETEK Lamb 122685 Vacuum Motor for Beam Central Vacuum – Part# 199B2
- Product SKU: 199B2
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary

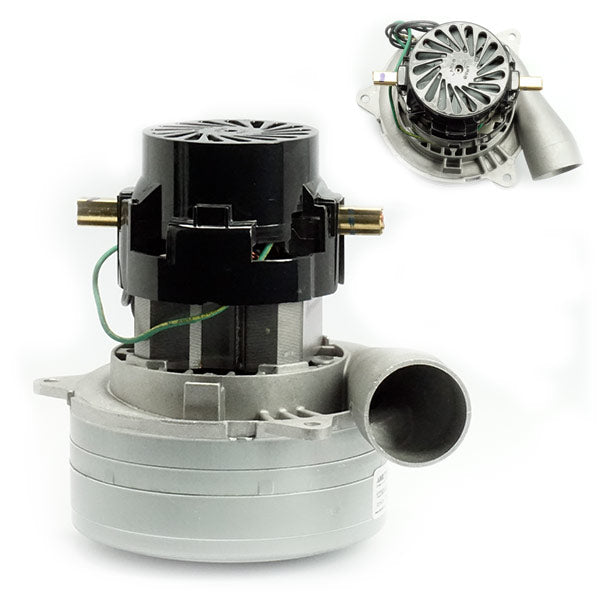

The brand-new AMETEK Lamb 122685 motor is a replacement motor used in select central vacuum systems. It replaces Lamb motors 119914, 119956, and 119992, including 119992-01.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new, not rebuilt
- Two fan stages
- 120V, 50–60 Hz
- 130-inch waterlift and 128 CFM
- Replaces Lamb 119914, 119956, and 119992 motors
- Fits select Beam models including 275A, 2775, and SC275A
Product Overview
The 122685 Lamb vacuum motor is used in select AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, and Vacuflo central vacuum systems. The motor may be marked 2685 or 12-2685.
Replacement is completed with three bolts and a couple of wires. Common signs of motor failure include a popping mini breaker, electrical smell, excessive blue sparks, a motor that only clicks, or a motor that shuts down and later works again.
Key Features
- Original Lamb motor: This is a brand-new AMETEK Lamb motor, not a rebuilt motor.
- Replacement coverage: The 122685 replaces Lamb 119914, 119956, and 119992 motors, including 119992-01.
- Two fan stages: The motor uses two fan stages for central vacuum operation.
- Motor performance: Specifications include 130 inches of waterlift, 128 CFM, and 574 AirWatts.
- Carbon brushes: The motor has replaceable carbon brushes, and two brushes are needed when replacing them.
- Straightforward installation: Installation uses three bolts and a couple of wires, with grounding requirements depending on whether the unit uses metal or plastic brackets.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 275A (120V)
- Beam 2775 (120V)
- Beam SC275A (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 122685; may be marked 2685 or 12-2685 |
| Fan stages | 2 |
| Voltage | 120V |
| Frequency | 50–60 Hz |
| Height | 7-1/2 inches |
| Bottom diameter | 5.7 inches |
| Bolt height | 3 inches |
| Waterlift | 130 inches |
| Airflow | 128 CFM |
| AirWatts | 574 |
| Amps | 15.2 |
| Replaces | 119914, 119956, and 119992, including 119992-01 |
| Beam models listed | 275A (120V), 2775 (120V), and SC275A (120V) |
| Listed model fit | S44 and A525h power units |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 122685 Lamb central vacuum motor
- Systems using Lamb 119914, 119956, or 119992 motors
- Listed Beam models 275A, 2775, and SC275A
- Customers needing a brand-new replacement motor
Not Ideal For
- Systems where the relay is the actual problem, especially when the motor does not click
- Systems that do not match the listed motor or model specifications
- Customers seeking a motor brush replacement instead of a complete motor
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 122685 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The brand-new AMETEK Lamb 122685 motor is a replacement motor used in select central vacuum systems. It replaces Lamb motors 119914, 119956, and 119992, including 119992-01.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Brand-new, not rebuilt
- Two fan stages
- 120V, 50–60 Hz
- 130-inch waterlift and 128 CFM
- Replaces Lamb 119914, 119956, and 119992 motors
- Fits select Beam models including 275A, 2775, and SC275A
Product Overview
The 122685 Lamb vacuum motor is used in select AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, and Vacuflo central vacuum systems. The motor may be marked 2685 or 12-2685.
Replacement is completed with three bolts and a couple of wires. Common signs of motor failure include a popping mini breaker, electrical smell, excessive blue sparks, a motor that only clicks, or a motor that shuts down and later works again.
Key Features
- Original Lamb motor: This is a brand-new AMETEK Lamb motor, not a rebuilt motor.
- Replacement coverage: The 122685 replaces Lamb 119914, 119956, and 119992 motors, including 119992-01.
- Two fan stages: The motor uses two fan stages for central vacuum operation.
- Motor performance: Specifications include 130 inches of waterlift, 128 CFM, and 574 AirWatts.
- Carbon brushes: The motor has replaceable carbon brushes, and two brushes are needed when replacing them.
- Straightforward installation: Installation uses three bolts and a couple of wires, with grounding requirements depending on whether the unit uses metal or plastic brackets.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 275A (120V)
- Beam 2775 (120V)
- Beam SC275A (120V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | AMETEK Lamb |
| Motor number | 122685; may be marked 2685 or 12-2685 |
| Fan stages | 2 |
| Voltage | 120V |
| Frequency | 50–60 Hz |
| Height | 7-1/2 inches |
| Bottom diameter | 5.7 inches |
| Bolt height | 3 inches |
| Waterlift | 130 inches |
| Airflow | 128 CFM |
| AirWatts | 574 |
| Amps | 15.2 |
| Replaces | 119914, 119956, and 119992, including 119992-01 |
| Beam models listed | 275A (120V), 2775 (120V), and SC275A (120V) |
| Listed model fit | S44 and A525h power units |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 122685 Lamb central vacuum motor
- Systems using Lamb 119914, 119956, or 119992 motors
- Listed Beam models 275A, 2775, and SC275A
- Customers needing a brand-new replacement motor
Not Ideal For
- Systems where the relay is the actual problem, especially when the motor does not click
- Systems that do not match the listed motor or model specifications
- Customers seeking a motor brush replacement instead of a complete motor
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The AMETEK Lamb 122685 Vacuum Motor for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What does the 122685 Lamb motor replace?
It replaces Lamb motors 119914, 119956, and 119992, including 119992-01.
Which Beam models are listed as compatible?
The listed Beam models are 275A (120V), 2775 (120V), and SC275A (120V). Confirm your model or inlet type before ordering if fit is uncertain.
Is this a genuine Beam motor?
No. This is an AMETEK Lamb replacement motor for select central vacuum systems, including certain Beam systems.
What are the signs that the motor needs replacement?
Signs can include a popping mini breaker, electrical smell, excessive blue sparks from the top, hearing only a click, or a motor that shuts down and later works again.
Could the relay be the problem instead of the motor?
If you do not hear a click, the relay most likely needs replacement and the motor may still be fine.
How is the 122685 motor installed?
Replacement uses three bolts and a couple of wires. Grounding differs depending on whether the unit uses metal or plastic brackets.
Can the motor brushes be replaced?
Yes. The 122685 has replaceable carbon brushes, and two brushes are needed for a brush replacement.
Is there a core charge or trade-in?
No. There is no core trade-in for this motor.
