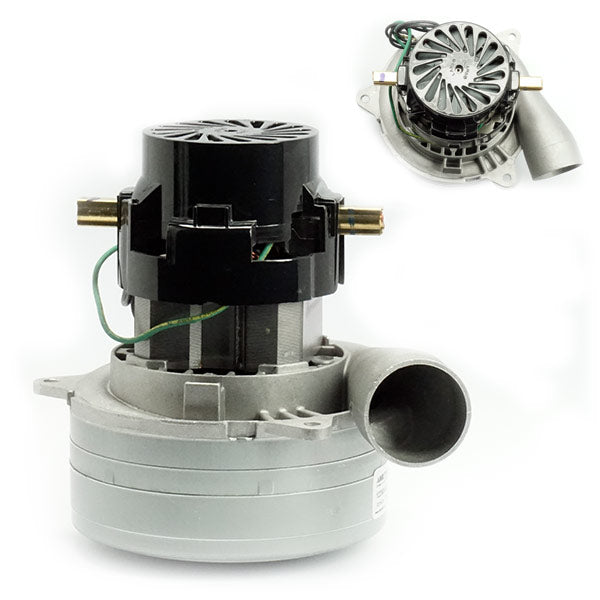

AMETEK Lamb 122685 Vacuum Motor for MD Central Vacuum – Part# 199B2

AMETEK Lamb 122685 Vacuum Motor for MD Central Vacuum – Part# 199B2

Available: In Stock
$215.30
  • Order within

Quick Summary

This new 122685 vacuum motor is an AMETEK Lamb replacement motor used in some central vacuum brands and models, including certain MD central vacuum units. It replaces several older motor numbers and is listed for specific MD power units.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New AMETEK Lamb motor, not rebuilt
  • Replaces 119914, 119956, and 119992
  • 2-stage motor
  • 120 volt, 50-60 hertz
  • Listed for MD K and MD M575H (120V)
  • May be marked 2685 or 12-2685

Product Overview

The 122685 vacuum motor is a replacement motor for some central vacuum systems and is listed for MD central vacuum models MD K (120V) and MD M575H (120V). It is a new AMETEK Lamb motor, not a rebuilt unit.

This motor replaces Lamb part numbers 119914, 119956, and 119992. It has a 2-stage design and the recorded specifications include 120 volts, 130 inches of waterlift, 128 CFM, and 574 airwatts.

Common signs that a motor may need replacement include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, a click without startup, or a motor that shuts down on its own and later works again.


Key Features

  • New replacement motor: This is a brand new AMETEK Lamb motor rather than a rebuilt motor.
  • Replaces older motor numbers: The 122685 replaces 119914, 119956, and 119992 motors.
  • Listed for select MD units: This part is listed for MD central vacuum models MD K (120V) and MD M575H (120V).
  • 2-stage performance: The recorded specifications identify this as a 2-stage vacuum motor.
  • Common service part: The motor may be marked as 2685 or 12-2685 when you inspect the original unit.
  • Brushes can be replaced: The carbon motor brushes on the Lamb 122685 can be replaced before the motor is at the end of its life.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD K (120V)
  • MD M575H (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part Number 199B2
Motor Number 122685
Fan Stages 2
Bottom Diameter 5.7 in
Voltage 120
Hertz 50-60
Height 7-1/2 in
Bolt Height 3 in
Waterlift 130 in
CFM 128
AirWatts 574
Amps 15.2
Replaces 119914, 119956, 119992
May Be Marked 2685 or 12-2685
MD Models This Part Fits MD K (120V), MD M575H (120V)
Compatibility Note AirMaster, Modern Day, SilentMaster, Flo-Master, Beam and Vacuflo
Model Note Fits Model S44, A525h Power unit
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 122685 motor in an MD central vacuum
  • MD K (120V) and MD M575H (120V) power units
  • Replacing older motors numbered 119914, 119956, or 119992
  • Fixing issues such as blue sparks, electrical smell, or shutdown after running

Not Ideal For

  • Not for systems outside the listed fit information without confirming compatibility
  • Not the right fix if the relay is the problem and the motor is still working
  • Motor brush replacement may be an option before replacing the full motor

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 122685 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

This new 122685 vacuum motor is an AMETEK Lamb replacement motor used in some central vacuum brands and models, including certain MD central vacuum units. It replaces several older motor numbers and is listed for specific MD power units.

Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • New AMETEK Lamb motor, not rebuilt
  • Replaces 119914, 119956, and 119992
  • 2-stage motor
  • 120 volt, 50-60 hertz
  • Listed for MD K and MD M575H (120V)
  • May be marked 2685 or 12-2685

Product Overview

The 122685 vacuum motor is a replacement motor for some central vacuum systems and is listed for MD central vacuum models MD K (120V) and MD M575H (120V). It is a new AMETEK Lamb motor, not a rebuilt unit.

This motor replaces Lamb part numbers 119914, 119956, and 119992. It has a 2-stage design and the recorded specifications include 120 volts, 130 inches of waterlift, 128 CFM, and 574 airwatts.

Common signs that a motor may need replacement include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, a click without startup, or a motor that shuts down on its own and later works again.


Key Features

  • New replacement motor: This is a brand new AMETEK Lamb motor rather than a rebuilt motor.
  • Replaces older motor numbers: The 122685 replaces 119914, 119956, and 119992 motors.
  • Listed for select MD units: This part is listed for MD central vacuum models MD K (120V) and MD M575H (120V).
  • 2-stage performance: The recorded specifications identify this as a 2-stage vacuum motor.
  • Common service part: The motor may be marked as 2685 or 12-2685 when you inspect the original unit.
  • Brushes can be replaced: The carbon motor brushes on the Lamb 122685 can be replaced before the motor is at the end of its life.

MD Compatibility

This part is listed as the match for these MD central vacuum power units:

  • MD K (120V)
  • MD M575H (120V)

Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.


Technical Specifications

Specification Details
Brand AMETEK Lamb
Part Number 199B2
Motor Number 122685
Fan Stages 2
Bottom Diameter 5.7 in
Voltage 120
Hertz 50-60
Height 7-1/2 in
Bolt Height 3 in
Waterlift 130 in
CFM 128
AirWatts 574
Amps 15.2
Replaces 119914, 119956, 119992
May Be Marked 2685 or 12-2685
MD Models This Part Fits MD K (120V), MD M575H (120V)
Compatibility Note AirMaster, Modern Day, SilentMaster, Flo-Master, Beam and Vacuflo
Model Note Fits Model S44, A525h Power unit
Authorized Dealer Ace Vacuums

Best For

  • Replacing a worn 122685 motor in an MD central vacuum
  • MD K (120V) and MD M575H (120V) power units
  • Replacing older motors numbered 119914, 119956, or 119992
  • Fixing issues such as blue sparks, electrical smell, or shutdown after running

Not Ideal For

  • Not for systems outside the listed fit information without confirming compatibility
  • Not the right fix if the relay is the problem and the motor is still working
  • Motor brush replacement may be an option before replacing the full motor

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your MD system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The AMETEK Lamb 122685 Vacuum Motor for MD Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Will this fit my MD central vacuum?

This motor is listed for MD central vacuum models MD K (120V) and MD M575H (120V). If your unit is different, confirm your model and original motor number before ordering.

Is this motor new or rebuilt?

It is a brand new AMETEK Lamb motor, not a rebuilt motor.

What motor numbers does the 122685 replace?

It replaces 119914, 119956, and 119992 motors.

What are the main electrical specs?

The listed specs are 120 volts, 50-60 hertz, and 15.2 amps.

How can I identify this motor?

The motor may be marked 2685 or 12-2685 in addition to 122685.

What are signs that the motor may need replacement?

Signs listed include a mini breaker popping, electrical smell, excessive blue sparks from the motor top, hearing only a click, or the motor shutting down on its own and working again later.

Could the problem be something other than the motor?

Yes. If you do not hear a click, the relay most likely needs to be replaced and the motor may be fine. The description also notes that the mini breaker can fail along with the motor in some cases.

Can I replace just the brushes instead of the whole motor?

Yes. The Lamb 122685 vacuum motor has carbon motor brushes that can be replaced, and the description notes this should be done before the motor is on its last legs.
