Avnan Dual-Motor 12 Amp 240V Control Board for Beam Central Vacuum – Part# 236M
- Product SKU: 236M
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary

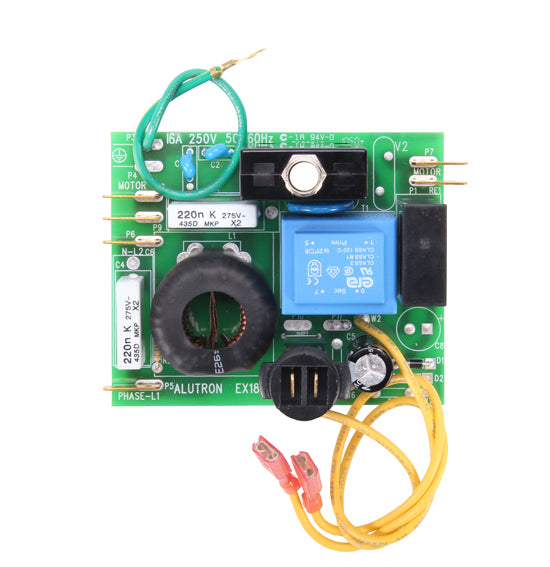

Replacement control board with a relay, transformer, mini breaker, ground, and two pairs of low-voltage leads. This 240-volt board fits select Beam models and other listed central vacuum systems.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Part number 236M
- For 240-volt systems
- Designed for dual-motor central vacuums
- Includes relay, transformer, mini breaker, and ground
- Includes two pairs of low-voltage leads
- Quarter-inch female spade terminals are not included
Product Overview
This control module includes the main components needed to control a compatible central vacuum system, including a relay, transformer, mini breaker, ground, and two pairs of low-voltage leads.
The board mounts through holes from inside the vacuum. The reset button, threaded low-voltage connection stems, included nuts, and external mounting nuts hold it in place. Check your vacuum model and wiring requirements before ordering.
Key Features
- Control components: Includes a relay, transformer, mini breaker, ground, and two pairs of low-voltage leads.
- 240-volt design: This control board is intended for compatible 240-volt central vacuum systems.
- Dual-motor support: The board is described for dual-motor central vacuum applications.
- Internal mounting: Mount the board through holes from inside the vacuum.
- Included mounting hardware: The reset button and threaded low-voltage stems use included nuts, and external mounting nuts are included.

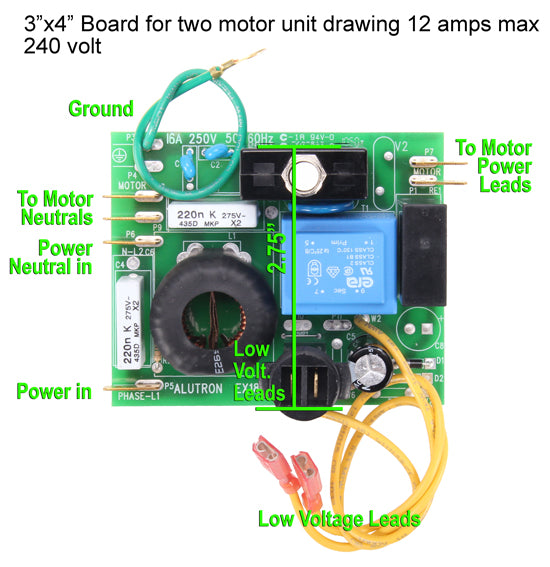

- Wiring reference: The product photo can be clicked and printed for wire placement instructions.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 199ED (240V)
- Beam 2500 (240V)
- Beam 677S (240V)
- Beam 697B (240V)
- Beam 697C (240V)
- Beam 697D (240V)
- Beam 697G (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Avnan |
| Part number | 236M |
| Voltage | 240V |
| Amperage | 12 amp |
| Application | Dual-motor central vacuum systems |
| Board height | 2.5 inches from the metal frame to the top of the reset button |
| Reset button to low-voltage stem spacing | 2.125 inches center to center |
| Outer-edge spacing | 2.75 inches from the outer edges of the reset button and low-voltage connection stem |
| Compatible systems listed | AirMaster, Modern Day, SilentMaster, Flo-Master, and Beam |
| Beam models listed | 199ED (240V), 2500 (240V), 677S (240V), 697B (240V), 697C (240V), 697D (240V), and 697G (240V) |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a compatible 240-volt central vacuum control board
- Select dual-motor Beam models listed in the specifications
- AirMaster, Modern Day, SilentMaster, and Flo-Master systems listed in the compatibility note
- Installations that need included external mounting nuts
Not Ideal For
- Vacuums outside the listed compatible models or systems
- Installations requiring included quarter-inch female spade terminals
- Systems that do not match the listed dimensions or wiring arrangement
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Avnan Dual-Motor 12 Amp 240V Control Board for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
Replacement control board with a relay, transformer, mini breaker, ground, and two pairs of low-voltage leads. This 240-volt board fits select Beam models and other listed central vacuum systems.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Part number 236M
- For 240-volt systems
- Designed for dual-motor central vacuums
- Includes relay, transformer, mini breaker, and ground
- Includes two pairs of low-voltage leads
- Quarter-inch female spade terminals are not included
Product Overview
This control module includes the main components needed to control a compatible central vacuum system, including a relay, transformer, mini breaker, ground, and two pairs of low-voltage leads.
The board mounts through holes from inside the vacuum. The reset button, threaded low-voltage connection stems, included nuts, and external mounting nuts hold it in place. Check your vacuum model and wiring requirements before ordering.
Key Features
- Control components: Includes a relay, transformer, mini breaker, ground, and two pairs of low-voltage leads.
- 240-volt design: This control board is intended for compatible 240-volt central vacuum systems.
- Dual-motor support: The board is described for dual-motor central vacuum applications.
- Internal mounting: Mount the board through holes from inside the vacuum.
- Included mounting hardware: The reset button and threaded low-voltage stems use included nuts, and external mounting nuts are included.
- Wiring reference: The product photo can be clicked and printed for wire placement instructions.
Beam Compatibility
This part is listed as the match for these Beam central vacuum models:
- Beam 199ED (240V)
- Beam 2500 (240V)
- Beam 677S (240V)
- Beam 697B (240V)
- Beam 697C (240V)
- Beam 697D (240V)
- Beam 697G (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Avnan |
| Part number | 236M |
| Voltage | 240V |
| Amperage | 12 amp |
| Application | Dual-motor central vacuum systems |
| Board height | 2.5 inches from the metal frame to the top of the reset button |
| Reset button to low-voltage stem spacing | 2.125 inches center to center |
| Outer-edge spacing | 2.75 inches from the outer edges of the reset button and low-voltage connection stem |
| Compatible systems listed | AirMaster, Modern Day, SilentMaster, Flo-Master, and Beam |
| Beam models listed | 199ED (240V), 2500 (240V), 677S (240V), 697B (240V), 697C (240V), 697D (240V), and 697G (240V) |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a compatible 240-volt central vacuum control board
- Select dual-motor Beam models listed in the specifications
- AirMaster, Modern Day, SilentMaster, and Flo-Master systems listed in the compatibility note
- Installations that need included external mounting nuts
Not Ideal For
- Vacuums outside the listed compatible models or systems
- Installations requiring included quarter-inch female spade terminals
- Systems that do not match the listed dimensions or wiring arrangement
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Avnan Dual-Motor 12 Amp 240V Control Board for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What is included with this control board?
The board includes a relay, transformer, mini breaker, ground, two pairs of low-voltage leads, included nuts, and external mounting nuts.
What voltage is this board for?
This control board is for 240-volt systems.
Which Beam models does this board fit?
The listed Beam models are 199ED, 2500, 677S, 697B, 697C, 697D, and 697G, all in 240V versions. Confirm your model or inlet type before ordering if fit is uncertain.
Does it fit every central vacuum?
No. The description states that this board does not work on all vacuums. Compare your model, wiring, and the listed dimensions before purchase.
Are quarter-inch female spade terminals included?
No. Quarter-inch female spade terminals are not included.
How is the board mounted?
Mount it through holes from inside the vacuum. The reset button and threaded low-voltage stems with included nuts hold the board in place, and external mounting nuts are included.
Can I use the product photo for wiring help?
Yes. The photo can be clicked and printed for wire placement instructions.
What are the board dimensions and spacing?
The board is 2.5 inches high from the metal frame to the top of the reset button. The reset button and low-voltage connection stem are 2.125 inches apart center to center, with 2.75 inches between their outer edges.
