Avnan Single Motor 7 Amp 240V Circuit Board for MD Central Vacuum – Part# 236S
- Product SKU: 236S
- Category: Central Vacuum Parts & Accessories, MD Central Vacuum Attachment Kit
- Order within
Quick Summary
This replacement control module circuit board is for 240 volt, single motor central vacuums under 8 amps. It includes key control components and is listed for select MD central vacuum models.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- For 240V single motor units under 8 amps
- Includes relay and transformer
- Includes mini breaker and ground
- Two pairs of low voltage leads included
- External mounting nuts included
- Part number 236S

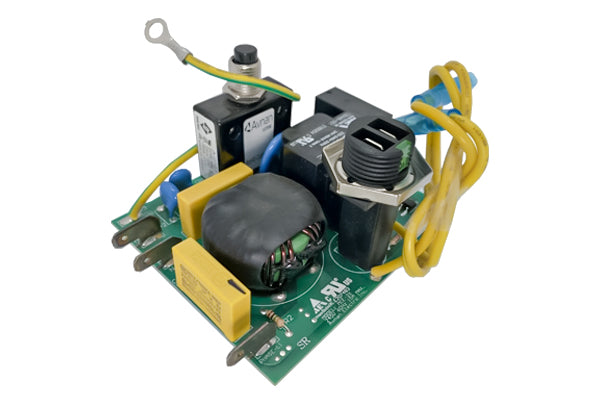

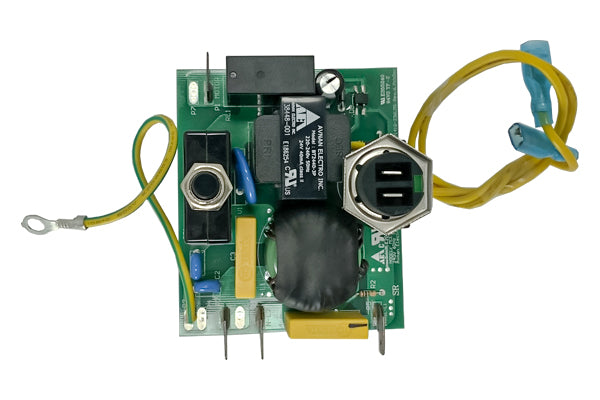

Product Overview
This control module circuit board is designed for 240 volt, single motor central vacuums rated under 8 amps. It includes the relay, transformer, mini breaker, ground, and two pairs of low voltage leads.
The board measures 2 inches high from the board to the top of the reset button. The reset button and low voltage stems are threaded to attach through openings in the vacuum exterior, and the external mounting nuts are included.
This part is listed for select MD central vacuum models and also includes brand compatibility notes. This board does not work on all vacuums, and quarter inch female spade terminals are not included.
Key Features
- 240 Volt Control Module: Made for 240 volt, single motor central vacuums under 8 amps.
- Complete Main Components: Includes relay, transformer, mini breaker, ground, and two pairs of low voltage leads.
- Threaded Reset Button: The reset button is threaded to mount through the vacuum exterior.
- Threaded Low Voltage Stems: The low voltage stems are threaded and attach through exterior openings on the vacuum.
- Mounting Nuts Included: External mounting nuts for the reset button and low voltage stems are included.

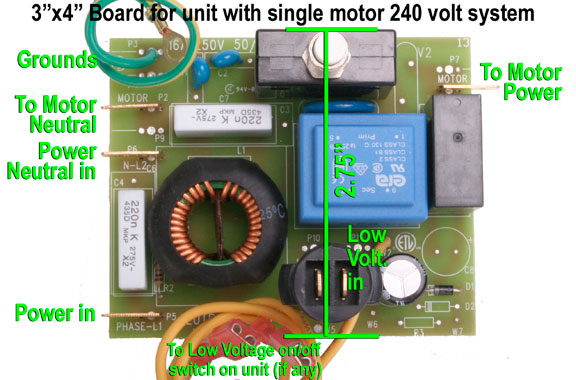

- Photo Reference Available: The product photo can be clicked and printed to use as wire placement instructions.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD A (240V)
- MD B (240V)
- MD E (240V)
- MD J (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Avnan |
| Part Number | 236S |
| Voltage | 240V |
| Motor Configuration | Single motor |
| Amp Rating | Under 8 amps |
| Board Height | 2 inches from board to top of reset button |
| Listed MD Models | MD A (240V), MD B (240V), MD E (240V), MD J (240V) |
| Compatibility Note | Includes: AirMaster, Modern Day, SilentMaster, Flo-Master and Vacuflo |
| Included Components | Relay, transformer, mini breaker, ground, two pairs of low voltage leads, external mounting nuts |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 240V single motor circuit board under 8 amps
- MD central vacuum models MD A (240V), MD B (240V), MD E (240V), and MD J (240V)
- Repairs needing a board with reset button and low voltage lead connections
- Matching systems listed under AirMaster, Modern Day, SilentMaster, Flo-Master, or Vacuflo
Not Ideal For
- Not for all vacuums, so fit must be confirmed before ordering
- Not for systems outside the listed 240V single motor under 8 amp range
- Quarter inch female spade terminals are not included
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Avnan Single Motor 7 Amp 240V Circuit Board for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
This replacement control module circuit board is for 240 volt, single motor central vacuums under 8 amps. It includes key control components and is listed for select MD central vacuum models.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- For 240V single motor units under 8 amps
- Includes relay and transformer
- Includes mini breaker and ground
- Two pairs of low voltage leads included
- External mounting nuts included
- Part number 236S
Product Overview
This control module circuit board is designed for 240 volt, single motor central vacuums rated under 8 amps. It includes the relay, transformer, mini breaker, ground, and two pairs of low voltage leads.
The board measures 2 inches high from the board to the top of the reset button. The reset button and low voltage stems are threaded to attach through openings in the vacuum exterior, and the external mounting nuts are included.
This part is listed for select MD central vacuum models and also includes brand compatibility notes. This board does not work on all vacuums, and quarter inch female spade terminals are not included.
Key Features
- 240 Volt Control Module: Made for 240 volt, single motor central vacuums under 8 amps.
- Complete Main Components: Includes relay, transformer, mini breaker, ground, and two pairs of low voltage leads.
- Threaded Reset Button: The reset button is threaded to mount through the vacuum exterior.
- Threaded Low Voltage Stems: The low voltage stems are threaded and attach through exterior openings on the vacuum.
- Mounting Nuts Included: External mounting nuts for the reset button and low voltage stems are included.
- Photo Reference Available: The product photo can be clicked and printed to use as wire placement instructions.
MD Compatibility
This part is listed as the match for these MD central vacuum power units:
- MD A (240V)
- MD B (240V)
- MD E (240V)
- MD J (240V)
Check the model number on your power unit label before ordering. Our team can confirm the match if you are unsure.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Avnan |
| Part Number | 236S |
| Voltage | 240V |
| Motor Configuration | Single motor |
| Amp Rating | Under 8 amps |
| Board Height | 2 inches from board to top of reset button |
| Listed MD Models | MD A (240V), MD B (240V), MD E (240V), MD J (240V) |
| Compatibility Note | Includes: AirMaster, Modern Day, SilentMaster, Flo-Master and Vacuflo |
| Included Components | Relay, transformer, mini breaker, ground, two pairs of low voltage leads, external mounting nuts |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a failed 240V single motor circuit board under 8 amps
- MD central vacuum models MD A (240V), MD B (240V), MD E (240V), and MD J (240V)
- Repairs needing a board with reset button and low voltage lead connections
- Matching systems listed under AirMaster, Modern Day, SilentMaster, Flo-Master, or Vacuflo
Not Ideal For
- Not for all vacuums, so fit must be confirmed before ordering
- Not for systems outside the listed 240V single motor under 8 amp range
- Quarter inch female spade terminals are not included
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Avnan Single Motor 7 Amp 240V Circuit Board for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What does this circuit board include?
It includes a relay, transformer, mini breaker, ground, two pairs of low voltage leads, and external mounting nuts.
What type of vacuum is this board for?
It is for 240 volt, single motor central vacuums under 8 amps.
Which MD central vacuum models is this part listed for?
It is listed for MD A (240V), MD B (240V), MD E (240V), and MD J (240V).
Does this board fit all central vacuums?
No. The product notes state that this board does not work on all vacuums.
Are the mounting nuts included?
Yes. External mounting nuts for the reset button and low voltage stems are included.
Are quarter inch female spade terminals included?
No. Quarter inch female spade terminals are not included.
How is the reset button mounted?
The reset button is threaded and attaches through an opening in the vacuum exterior.
How can I confirm compatibility with my MD central vacuum?
Start by checking whether your unit is a 240V single motor model under 8 amps and compare it with the listed MD models. If your model is not listed or you are unsure, confirm your exact model before ordering.
