Hide-A-Hose Valve Rough-In Kit HS6000 for Beam Central Vacuum – Part# HS6000R
- Product SKU: HS6000R
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary

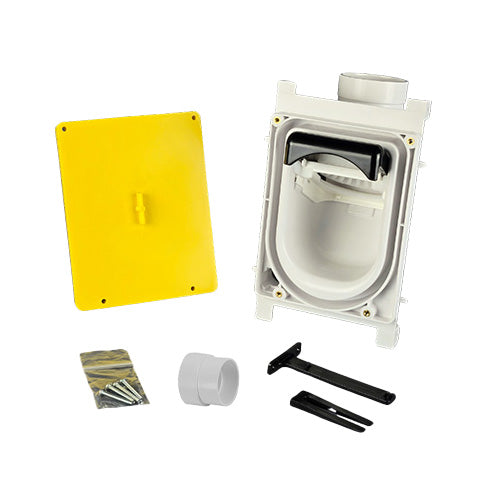

The HS6000 valve rough-in kit provides the mounting plate and valve mechanism for a Hide-A-Hose installation. It includes installation support components but does not include the trim valve, hose, hose end, or separate finish cover.
Available from Authorized MD Dealer Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Part number HS6000R
- Includes mounting plate and valve mechanism
- Includes leveling wedge and additional support arm
- Includes mud cover and mud cover screws
- Supports wall thicknesses up to 4 inches with extension rings
- Made in the USA
Product Overview
The Hide-A-Hose HS6000 valve rough-in kit is designed for new installations and includes the components needed to rough in the valve location. Its enhanced design includes improved mounting features, a door seal with magnetic catches, a boot seal and locking mechanism, and an improved on/off switch.
The kit does not include the trim valve, hose, hose end, or separate finish cover. It is compatible with many popular central vacuum power unit brands, including Beam, but fit should be confirmed for the specific system and inlet type.
Key Features
- Mounting plate and valve mechanism: Provides the primary rough-in components for the HS6000 valve installation.
- Improved mounting features: The HS6000 design includes updated features intended to support valve mounting.
- Door and boot seals: Includes an improved door seal with magnetic catches and an improved boot seal with locking mechanism.
- Installation support: Includes a leveling wedge and additional support arm.
- Mud cover included: Includes a mud cover and mud cover screws for the rough-in stage.
- Improved switch: The valve design includes an improved on/off switch.
Beam Compatibility
This product is listed for Beam central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hide-A-Hose |
| Part number | HS6000R |
| Wall thickness | Up to 4 inches with extension rings |
| Country of manufacture | Made in the USA |
| Compatible power unit brands | AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, Eureka, Cyclovac, OVO, and Vacumaid |
| Warranty | Hide-A-Hose manufacturer warranty for up to 5 years |
| Authorized Dealer | Ace Vacuums |
Best For
- New Hide-A-Hose HS6000 valve rough-in installations
- Beam central vacuum systems using a compatible inlet setup
- Installations requiring a leveling wedge and additional support arm
- Rough-in work before the finish cover is installed
Not Ideal For
- Projects needing a complete valve, hose, and hose end in one package
- Installations requiring a separate finish cover, which is sold separately
- HS5000, HS4000, Chameleon, or Retra-Flex retractable hose inlet systems
Why Buy from Ace Vacuums
When you purchase from Authorized MD Dealer Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Hide-A-Hose Valve Rough-In Kit HS6000 for Beam Central Vacuum is available online and in-store through Authorized MD Dealer Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
The HS6000 valve rough-in kit provides the mounting plate and valve mechanism for a Hide-A-Hose installation. It includes installation support components but does not include the trim valve, hose, hose end, or separate finish cover.
Available from Authorized MD Dealer Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Part number HS6000R
- Includes mounting plate and valve mechanism
- Includes leveling wedge and additional support arm
- Includes mud cover and mud cover screws
- Supports wall thicknesses up to 4 inches with extension rings
- Made in the USA
Product Overview
The Hide-A-Hose HS6000 valve rough-in kit is designed for new installations and includes the components needed to rough in the valve location. Its enhanced design includes improved mounting features, a door seal with magnetic catches, a boot seal and locking mechanism, and an improved on/off switch.
The kit does not include the trim valve, hose, hose end, or separate finish cover. It is compatible with many popular central vacuum power unit brands, including Beam, but fit should be confirmed for the specific system and inlet type.
Key Features
- Mounting plate and valve mechanism: Provides the primary rough-in components for the HS6000 valve installation.
- Improved mounting features: The HS6000 design includes updated features intended to support valve mounting.
- Door and boot seals: Includes an improved door seal with magnetic catches and an improved boot seal with locking mechanism.
- Installation support: Includes a leveling wedge and additional support arm.
- Mud cover included: Includes a mud cover and mud cover screws for the rough-in stage.
- Improved switch: The valve design includes an improved on/off switch.
Beam Compatibility
This product is listed for Beam central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hide-A-Hose |
| Part number | HS6000R |
| Wall thickness | Up to 4 inches with extension rings |
| Country of manufacture | Made in the USA |
| Compatible power unit brands | AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, Eureka, Cyclovac, OVO, and Vacumaid |
| Warranty | Hide-A-Hose manufacturer warranty for up to 5 years |
| Authorized Dealer | Ace Vacuums |
Best For
- New Hide-A-Hose HS6000 valve rough-in installations
- Beam central vacuum systems using a compatible inlet setup
- Installations requiring a leveling wedge and additional support arm
- Rough-in work before the finish cover is installed
Not Ideal For
- Projects needing a complete valve, hose, and hose end in one package
- Installations requiring a separate finish cover, which is sold separately
- HS5000, HS4000, Chameleon, or Retra-Flex retractable hose inlet systems
Why Buy from Ace Vacuums
When you purchase from Authorized MD Dealer Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Hide-A-Hose Valve Rough-In Kit HS6000 for Beam Central Vacuum is available online and in-store through Authorized MD Dealer Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What does the HS6000 rough-in kit include?
The kit includes the mounting plate and valve mechanism, leveling wedge, additional support arm, mud cover, and mud cover screws.
What is not included with this kit?
The trim valve, hose, hose end, and separate finish cover are not included.
Which finish covers fit this kit?
Separate Finish Cover #653HHA6 or W6 is referenced for the HS6000, but it is not included with the rough-in kit.
Is this kit compatible with Beam central vacuum systems?
It is listed as compatible with many popular power unit brands, including Beam. Confirm the specific Beam model and inlet type before ordering when fit is uncertain.
Which systems are not compatible with the HS6000?
The HS6000 is not compatible with HS5000, HS4000, Chameleon, or Retra-Flex retractable hose inlets.
Can the HS6000 support thicker walls?
The description states that it supports wall thicknesses up to 4 inches with extension rings.
Where is the HS6000 made?
The product description states that the HS6000 is made in the USA.
Does the product have a warranty?
Hide-A-Hose offers a manufacturer warranty for up to 5 years. Specific warranty details are provided through the manufacturer.
