Nadair HD-750-22H Heavy Duty Hybrid Central Vacuum Power Unit, 750 AW, 22L

Quick Summary

The Nadair HD-750-22H is a Heavy Duty Series central vacuum power unit for whole-house vacuum systems. Its 750 airwatts, 146 inches of water lift, and 141.2 CFM provide strong suction and airflow for compatible existing piping networks.

Authorized Nadair Dealer Ace Vacuums can help you compare the HD-750-22H with the home's piping run and select compatible hose and attachment equipment. The hybrid filtration design supports operation with or without disposable bags, while the 22-liter aluminum canister, soft-start/stop motor control, and 15-year residential warranty add practical value.

Quick Highlights

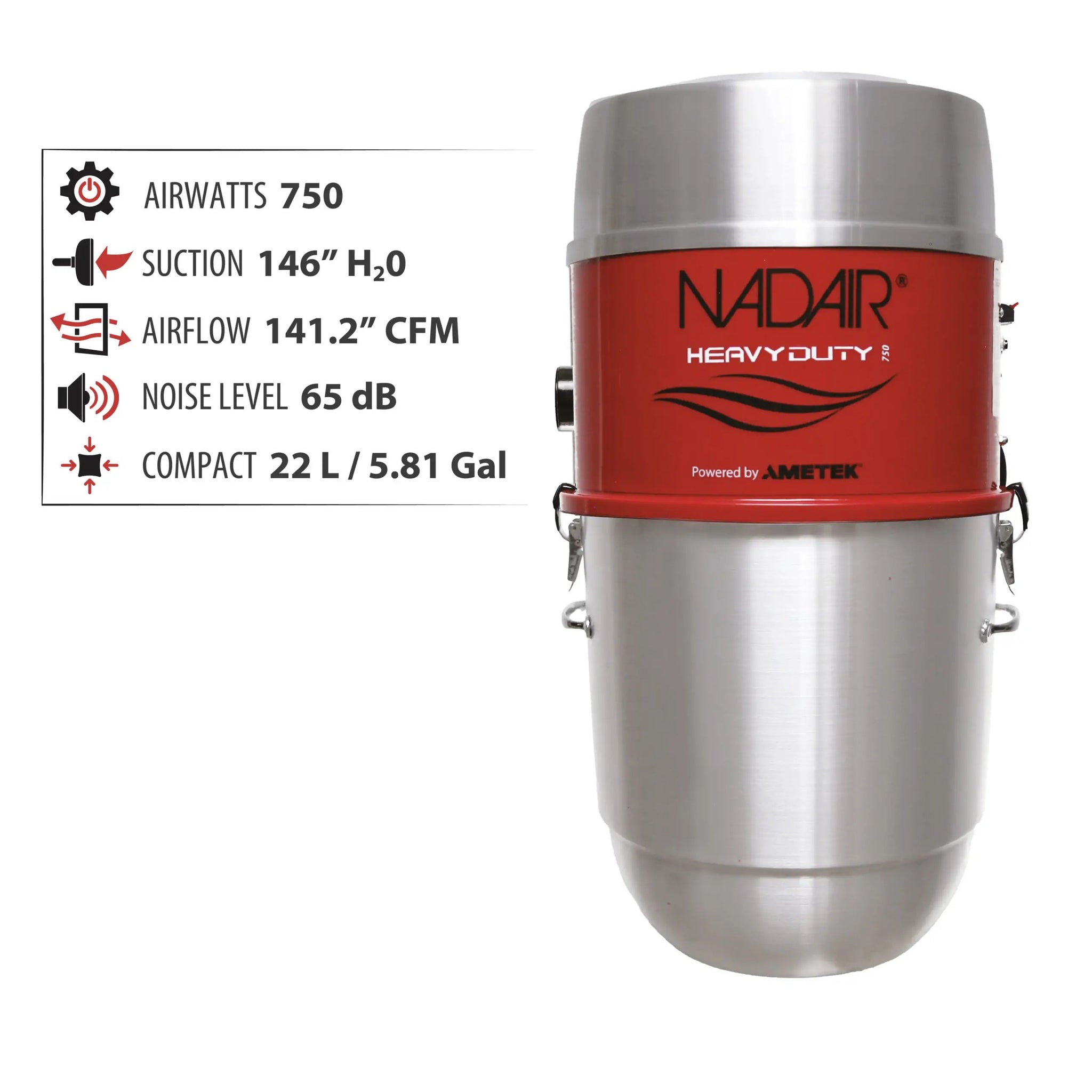

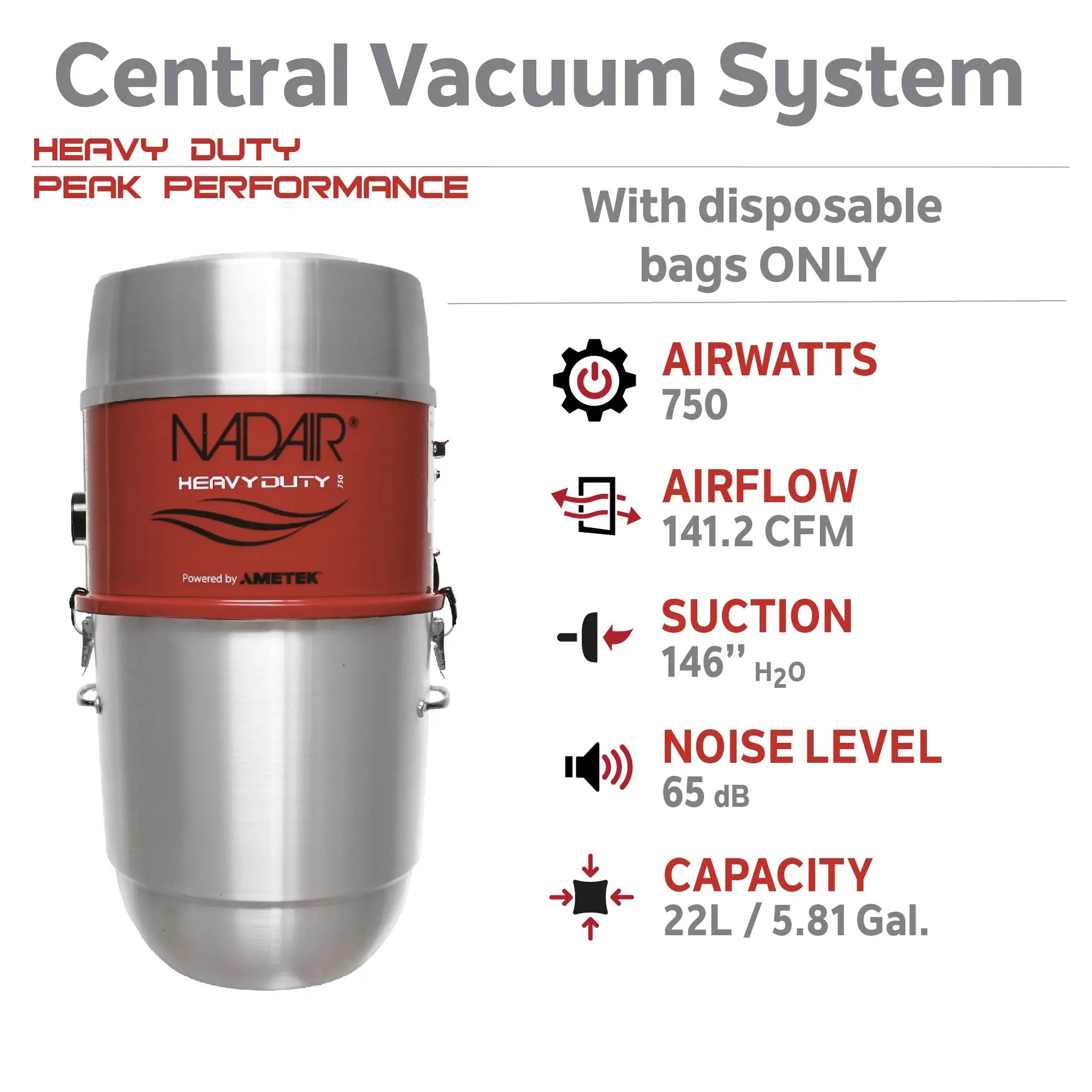

• 750 airwatts with a 5.7-inch, 2-stage Ametek thru-flow motor
• 146 inches of water lift and 141.2 CFM of airflow
• 65 dB operating noise with foam isolation and an integrated muffler
• 22 L / 5.81 gal. bottom-load aluminum canister
• 15-year residential warranty on the motor, electronics, body, housing, and dust canister

Product Overview

The HD-750-22H is designed for homeowners replacing or installing a central vacuum power unit on a standard piping network. Its top air intake is intended to simplify connection to existing piping, and it supports standard 2-inch outside-diameter PVC piping that meets ASTM F2158.

This model combines a 750-airwatt motor with 146 inches of water lift and 141.2 CFM. Water lift reflects sealed suction strength, while CFM describes moving air through the system; together, these specifications describe the unit's suction and airflow performance without assigning a square-foot coverage figure.

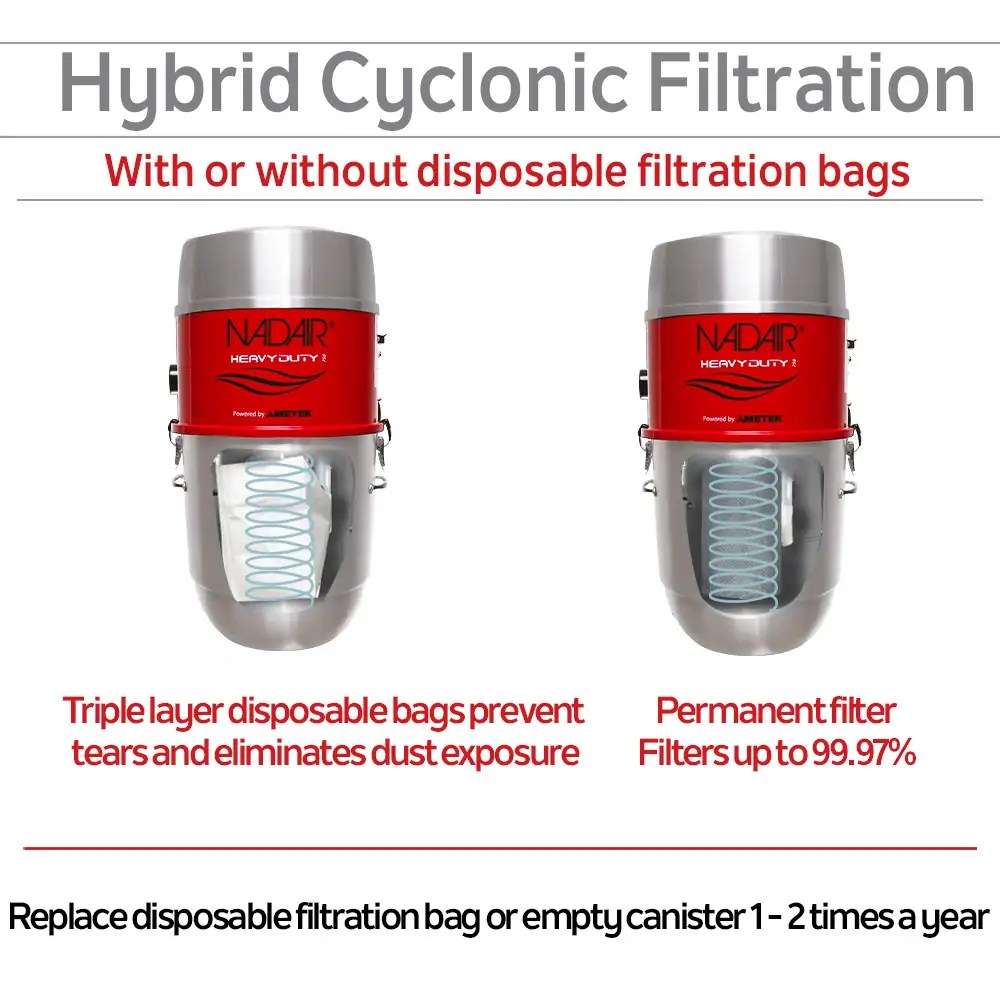

The hybrid cyclonic filtration system gives homeowners two operating choices. The HD-750-22H can use the included triple-layer disposable bag, or it can operate bagless with the included permanent washable filter. Filtration is specified at up to 99.97%, and the permanent filter must remain installed during operation.

The unit also includes convenience features intended for regular household use. Soft-start/stop technology is designed to extend motor life by 20%, a three-second delay helps clear debris from the hose and piping, and the LED indicator displays unit status and service reminders.

Expert Recommendation

The HD-750-22H suits homeowners who want a strong Heavy Duty Series unit without moving to the larger 32-liter canister. It is a practical fit when 750 airwatts, high water lift, hybrid bag or bagless operation, and a bottom-load aluminum canister are more important than minimizing the unit's 65 dB noise rating.

The 22-liter capacity is smaller than the HD-750-32H's 32-liter canister, so the sibling model may be preferable when longer intervals between servicing the bag or canister are a priority. The ST-700-25H and ST-700-35H offer lower 700-airwatt output and lower 63 dB noise, while the ST-700-35H provides a larger 35-liter canister.

Homeowners seeking self-cleaning filtration should compare the HD-750-22H with a Super Duty model, because the Super Duty units use cyclonic self-cleaning filtration specified at up to 99.99%. The HD-750-22H remains the more direct choice when its 750 airwatts, 146-inch water lift, and hybrid operating flexibility are the deciding factors.

Best For

Strong Central Vacuum Performance

The 750-airwatt motor, 146 inches of water lift, and 141.2 CFM make this unit appropriate for homeowners seeking substantial suction and airflow from a central vacuum power unit.

Bagged or Bagless Homes

Its hybrid filtration system allows operation with the included triple-layer disposable bag or with the included permanent washable filter for bagless use.

Existing Piping Networks

The top air intake and compatibility with standard 2-inch outside-diameter PVC piping can make it a suitable replacement for a compatible existing central vacuum installation.

Noise-Conscious Households

Noise-isolating foam and an integrated muffler provide double noise isolation, with a stated operating noise level of 65 dB.

Long-Term Residential Ownership

Soft-start/stop technology is designed to extend motor life by 20%, and the residential warranty covers the motor, electronic module, body, housing, and dust canister for 15 years.

Compact Utility Locations

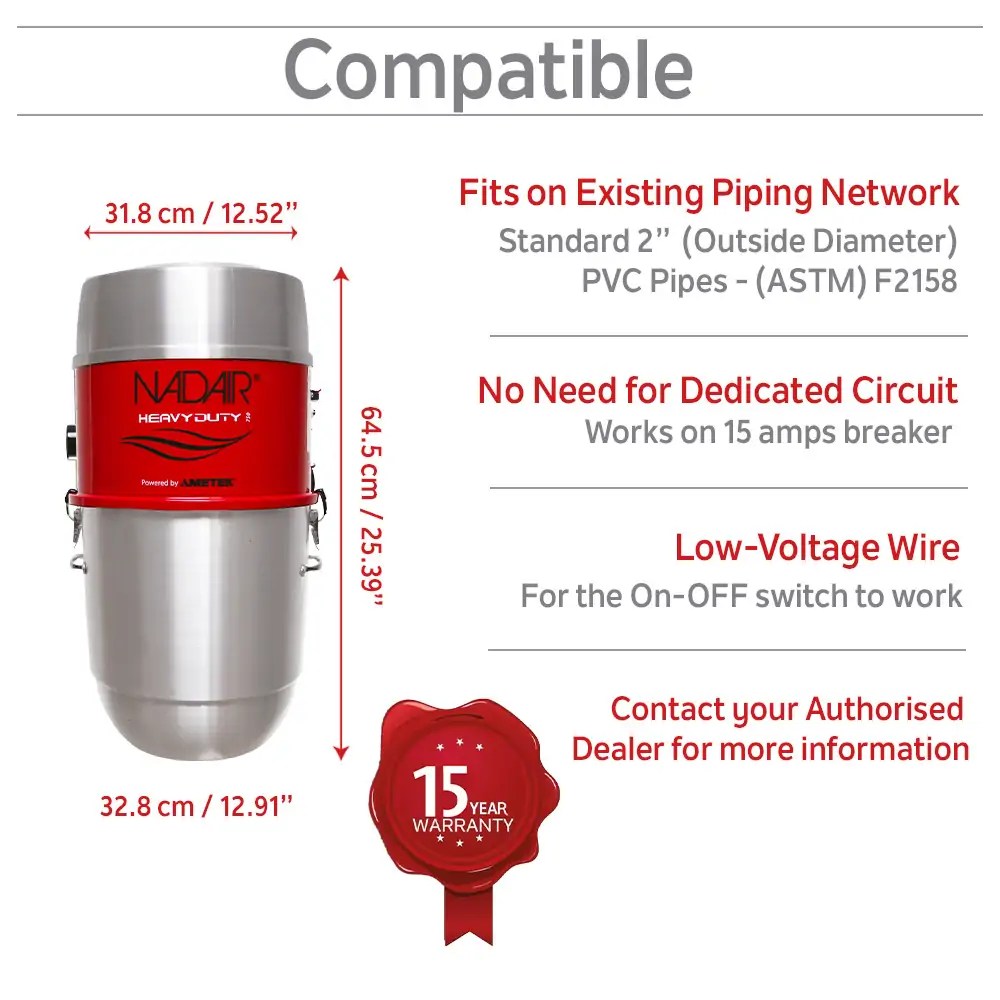

The 22-liter aluminum canister measures 12.91 inches deep, 25.39 inches high, and 12.52 inches wide, allowing homeowners to evaluate it for an appropriate indoor utility location.

Not Ideal For

• It may not be the best fit when the longest possible service interval is the priority; the HD-750-32H has a larger 32-liter canister.
• At 65 dB, it is not as quiet on paper as the 62 dB ST-600-18B or the 63 dB ST-700-25H and ST-700-35H.
• Homeowners who specifically want self-cleaning filtration may prefer a Super Duty model, which is specified with cyclonic self-cleaning filtration.
• The hose and attachment kit are sold separately, and the power unit requires professional installation and compatible low-voltage hose wiring.

Key Features

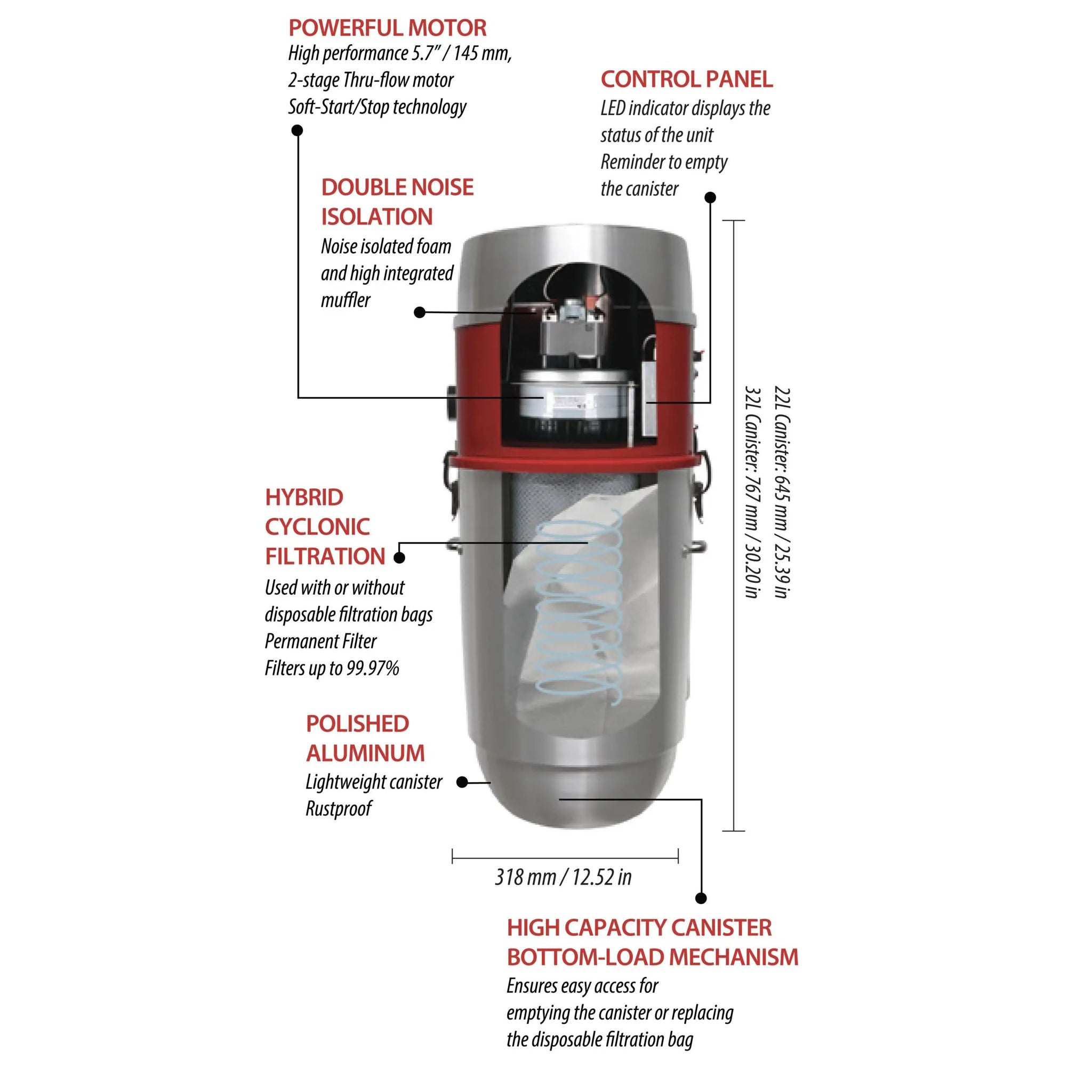

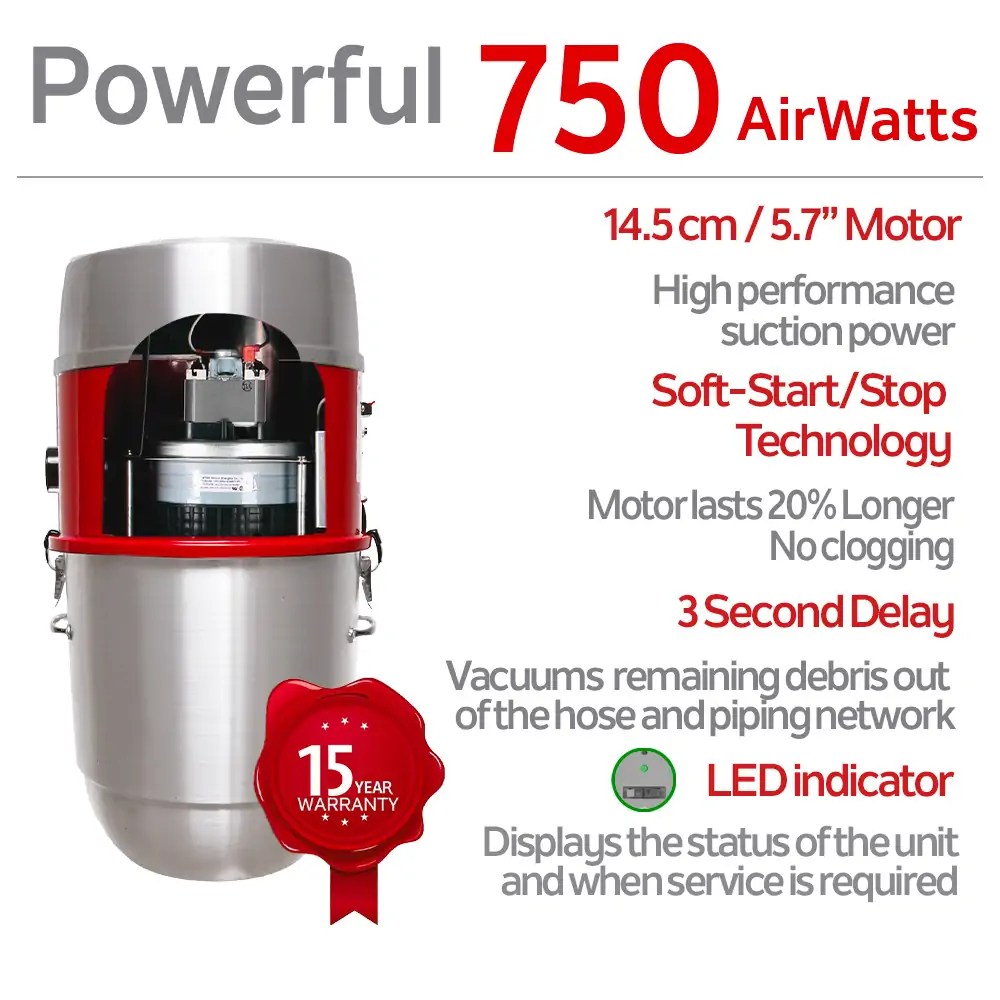

• 750 Airwatts: The 5.7-inch, 2-stage Ametek thru-flow motor delivers 750 airwatts for central vacuum cleaning.
• Strong Suction: The unit is rated at 146 inches of water lift and 141.2 CFM of airflow.
• Hybrid Filtration: Use the system with a disposable bag or in bagless mode with the permanent washable filter.
• 22-Liter Canister: The bottom-load 22 L / 5.81 gal. canister is designed for removal wherever the unit is installed.
• Aluminum Construction: The canister is made from lightweight, rustproof aluminum with a smooth, polished finish.
• Noise Isolation: Noise-isolating foam and an integrated muffler provide double noise isolation at a stated 65 dB.
• Soft Start/Stop: Soft-start/stop technology is designed to extend motor life by 20%.
• LED Indicator: The LED displays unit status and provides a reminder to empty the canister.
• Three-Second Delay: The motor delay helps clear debris from the hose and piping after cleaning stops.

What Makes This Model Stand Out

The HD-750-22H stands out for combining heavy-duty output with hybrid operating flexibility. Homeowners can use a triple-layer disposable bag for convenient debris removal or choose bagless operation with the permanent washable filter, while the filtration system is specified to filter up to 99.97%.

Its polished aluminum canister, top air intake, bottom-load design, LED service indicator, and soft-start/stop controls address installation and ownership details beyond basic suction numbers. The unit also supports a standard 15-amp circuit, so a dedicated circuit is recommended but not required according to the owner manual.

Product Comparisons

HD-750-22H vs HD-750-32H

Both Heavy Duty models provide 750 airwatts, 146 inches of water lift, 141.2 CFM, 65 dB operation, hybrid filtration, and soft-start/stop technology. The HD-750-22H has a 22-liter canister, while the HD-750-32H has a larger 32-liter canister and uses the larger FD-22.5L-3NAD bag and FP-12 filter.

HD-750-22H vs ST-700-35H

The HD-750-22H offers higher output at 750 airwatts and 146 inches of water lift, compared with 700 airwatts and 141.2 inches for the ST-700-35H. The ST-700-35H has a larger 35-liter canister and a lower stated noise level of 63 dB, while both models support hybrid operation.

HD-750-22H vs SD-659-22SF

The HD-750-22H has 750 airwatts, 146 inches of water lift, and 141.2 CFM. The SD-659-22SF has 659 airwatts, 144.9 inches of water lift, and 135.8 CFM, but uses cyclonic self-cleaning filtration specified at up to 99.99%.

Central Vacuum vs Portable Vacuum

A central vacuum power unit sits in a garage, basement, or another suitable indoor utility location, so the homeowner does not carry the main machine from room to room. The system can also be configured with exhaust venting outdoors, subject to proper installation, while a portable vacuum keeps its motor and collection system with the user.

Questions Buyers Commonly Ask

Can I use the HD-750-22H with my existing central vacuum piping?

The unit is designed to fit standard 2-inch outside-diameter PVC piping meeting ASTM F2158. An installer should confirm the existing piping, inlet wiring, and connection layout before installation.

Can I choose between bags and bagless operation?

Yes. The hybrid filtration system supports operation with the included FD-12.5L-3NAD triple-layer bag or without a disposable bag using the included permanent washable filter. The permanent filter must remain installed in either operating configuration.

Is the hose included?

No hose or attachment kit is listed as included. The hose and tools are sold separately and must match the home's inlets, including whether the system uses low-voltage or electric hose switching.

How much canister space does this model provide?

The bottom-load canister holds 22 liters, or 5.81 gallons. It is smaller than the 32-liter canister on the HD-750-32H, so the larger sibling may be preferable when capacity is the priority.

Is this unit loud?

The stated noise level is 65 dB. Noise-isolating foam and an integrated muffler provide double noise isolation, although some ST Series models have lower stated noise levels.

Technical Specifications

Installation Notes

• Install the power unit indoors in a well-ventilated, weather-protected location; do not install it outdoors.
• Leave at least 6 inches of clearance on all sides of the unit.
• Exhaust venting outdoors is recommended when the installation allows it.
• The owner manual calls for a 110-120 VAC, 60 Hz, 15-amp circuit. A dedicated circuit is recommended but not required.
• Use the supplied 72-inch grounded cord, and do not use an extension cord or adapter.
• Have a certified central vacuum installer connect the unit to compatible piping and low-voltage hose-switch wiring.

Maintenance Tips

• Service the disposable bag or canister three or four times per year, with actual frequency depending on use and debris.
• When using bagged operation, use the FD-12.5L-3NAD 12.5-liter replacement bag.
• The permanent polypropylene filter must remain installed at all times, including during bagless operation.
• Wash the permanent filter with cold water each time the canister is emptied, and allow it to be handled according to the manufacturer's care instructions before reuse.
• Replace the permanent filter yearly to help maintain the warranty.

Ideal Buyers

Perfect for:

• Homeowners replacing a compatible central vacuum power unit on an existing standard 2-inch PVC piping network.
• Households that want the choice of disposable-bag or bagless hybrid operation.
• Buyers seeking 750 airwatts, 146 inches of water lift, and 141.2 CFM from a Heavy Duty Series unit.
• Homeowners who value an aluminum canister, LED service indicator, soft-start/stop, and a three-second debris-clearing delay.
• Residential buyers who want a 15-year warranty on the listed motor, electronics, body, housing, and dust canister components.

Why Buy from Ace Vacuums

When you purchase from Authorized Nadair Dealer Ace Vacuums, you receive:

• Genuine Nadair central vacuum power units
• Expert help sizing the right unit for your home and piping
• Guidance on matching hoses and attachment kits to your inlets
• Genuine Nadair replacement bags and filters
• Knowledgeable customer support before and after the sale

Available Online & In-Store

The Nadair HD-750-22H is available online and in-store through Authorized Nadair Dealer Ace Vacuums.

Visit Our Showrooms

• Fairfax, VA: 11110 Main St, Fairfax, VA 22030
• Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg). Both stores are open 7 days a week to compare central vacuum systems and talk with our specialists.

Comparison Table

Pros and Cons

Pros

• 750 airwatts, 146 inches of water lift, and 141.2 CFM provide strong stated suction and airflow.
• Hybrid filtration lets homeowners choose disposable-bag or bagless operation.
• Soft-start/stop technology is designed to extend motor life by 20%.
• Aluminum construction is lightweight and rustproof, with a convenient bottom-load canister.
• Noise-isolating foam and an integrated muffler reduce operating noise to a stated 65 dB.
• The 15-year residential warranty covers the motor, electronic module, body, housing, and dust canister.

Cons

• The hose and cleaning tools are sold separately and must match the home's inlet and switching type.
• Professional installation is needed, including compatible piping and low-voltage wiring.
• Disposable bags are an ongoing consideration for homeowners who prefer bagged operation.
• The 22-liter canister has less capacity than the HD-750-32H's 32-liter canister.

Frequently Asked Questions

What is the Nadair HD-750-22H?

It is a Heavy Duty Series central vacuum power unit with 750 airwatts, 146 inches of water lift, and 141.2 CFM. It connects to a home's central vacuum piping and does not include a hose or tool kit.

What does hybrid filtration mean on this model?

Hybrid filtration means the unit can operate with a disposable bag or without one. For bagless use, the included permanent washable filter must remain installed.

What bag fits the HD-750-22H?

The specified replacement bag is the Nadair FD-12.5L-3NAD. It is a 12.5-liter bag supplied in a pack of three.

Can I operate the unit without a bag?

Yes. The unit supports bagless operation with the included FP-8 permanent washable filter. That filter must stay installed at all times.

How do I clean the permanent filter?

Wash the permanent polypropylene filter with cold water each time the canister is emptied. The manual also calls for yearly filter replacement to keep the warranty.

How often should I empty or service the canister?

The manual recommends servicing the bag or canister three or four times per year. The LED indicator also provides a reminder to empty the canister.

Will this unit fit standard central vacuum piping?

The HD-750-22H is specified for standard 2-inch outside-diameter PVC piping meeting ASTM F2158. An installer should verify the home's actual piping and connections.

Does the unit require a dedicated electrical circuit?

The manual specifies a 110-120 VAC, 60 Hz, 15-amp circuit. A dedicated circuit is recommended but not required.

Can I use an extension cord?

No. The manual specifies a 72-inch grounded power cord and says not to use extension cords or adapters.

How loud is the Nadair HD-750-22H?

Its stated noise level is 65 dB. Noise-isolating foam and an integrated muffler provide double noise isolation.

Does the HD-750-22H include a hose?

No hose or attachment kit is listed as included. These items are sold separately and must match the home's low-voltage or electric inlet configuration.

Where should the power unit be installed?

Install it indoors in a well-ventilated, weather-protected location, not outdoors. The manual calls for at least 6 inches of clearance around the unit.

Can the exhaust be vented outdoors?

Outdoor exhaust venting is recommended when practical. The installation should be planned by a certified central vacuum installer.

What does soft-start/stop do?

Soft-start/stop technology is designed to extend motor life by 20%. The unit also uses a three-second delay to help clear debris from the hose and piping.

What does the LED indicator show?

The LED displays the unit's status and provides a reminder to empty the canister. It adds a visual service cue during normal ownership.

What does the warranty cover?

The residential warranty lasts 15 years while you own the unit. It covers the motor, electronic module, body, housing, and dust canister.

Is the HD-750-22H suitable for every home?

The correct model depends on the home's piping run, inlet wiring, installation location, and desired capacity. Ace Vacuums can help size the unit for the home and piping run.
