The Nadair SD-659-32SF is a Super Duty central vacuum power unit with 659 airwatts, 144.9 inches of water lift, and 135.8 CFM of airflow. Its 32 L aluminum canister, hybrid filtration, self-cleaning True HEPA filter, and 65 dB noise level make it a practical choice for homeowners upgrading a whole-house vacuum system.
Authorized Nadair Dealer Ace Vacuums can help you confirm compatibility with your existing piping, choose the right hose and attachment kit, and size the central vacuum system for the home and piping run. The unit includes one triple-layer disposable bag and one True HEPA self-cleaning filter; the hose and cleaning tools are sold separately.
The Nadair SD-659-32SF is a central vacuum power unit designed for an installed whole-house vacuum network. Its 6.6-inch, two-stage Ametek Lamb by-pass motor delivers 659 airwatts, 144.9 inches of water lift, and 135.8 CFM of airflow for cleaning through compatible central vacuum piping.

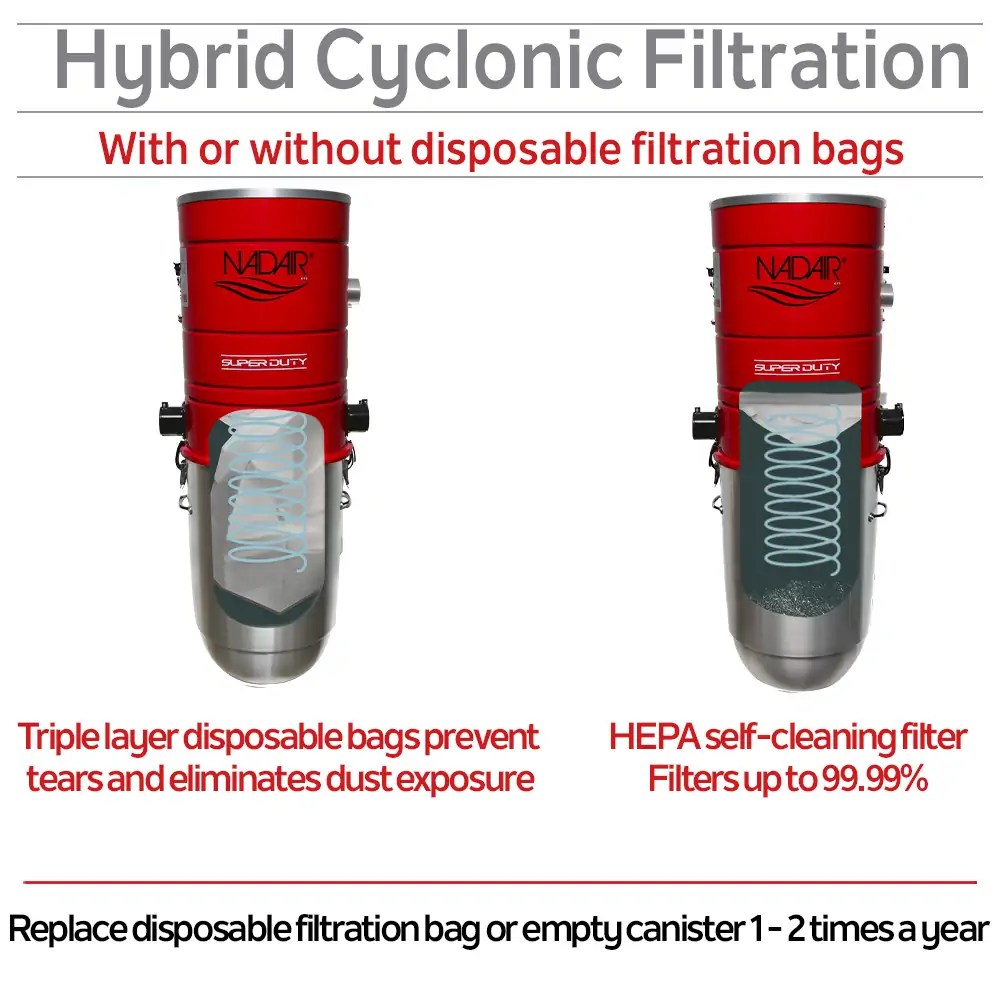

This model uses a hybrid filtration system, so it can operate with a disposable bag or in bagless mode. The included triple-layer bag helps contain collected debris, while the included True HEPA self-cleaning polypropylene filter remains installed during operation and filters up to 99.99% according to the supplied product information.
The 32 L bottom-load canister provides more capacity than the 22 L version in the same Super Duty family. The polished aluminum canister is described as lightweight, rustproof, and smooth, while dual noise isolation combines noise-isolating foam with an external or integrated muffler for quieter operation.

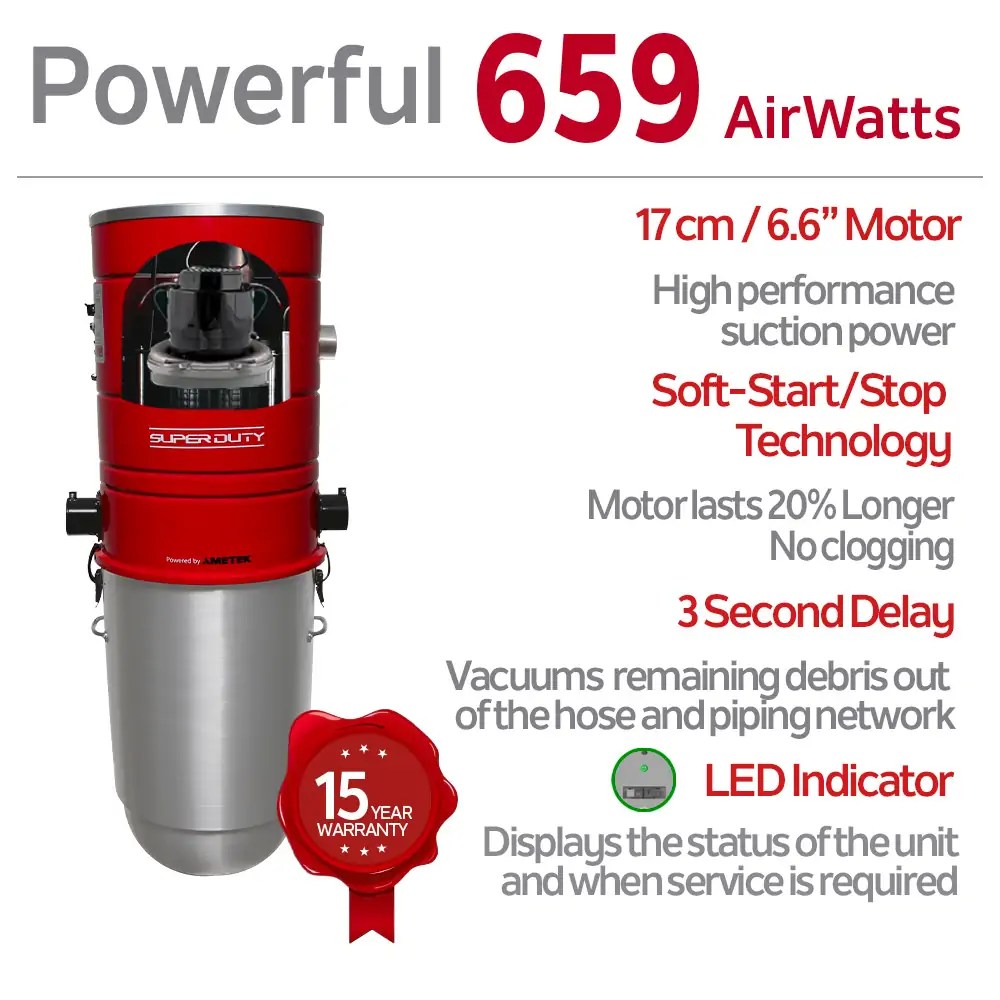

Soft-start and stop technology is intended to extend motor life by 20%, and the three-second stop delay helps clear the hose and piping after the system is switched off. An LED indicator displays unit status and provides a reminder to empty the canister.
The SD-659-32SF suits homeowners who want a large-capacity central vacuum system with flexible bagged or bagless operation and a self-cleaning True HEPA filter. Its 65 dB rating, bottom-load canister, dual side air intake, and compatibility with standard 2-inch outside-diameter PVC piping make it useful for replacement installations and existing central vacuum networks.
Choose the SD-659-32SF over the SD-659-22SF when the larger 32 L capacity is more useful than the smaller 22 L canister. The smaller model has the same listed motor performance, filtration rating, airflow, water lift, and noise level, but the 22 L unit may be easier to accommodate where installation space is limited.
A sibling model may be a better fit when a different priority comes first. The HD-750-32H provides 750 airwatts, 146 inches of water lift, and 141.2 CFM at the same listed 65 dB noise level, while the SD-750SM-32SF adds app and voice start-stop, three speeds, and live status.
The 32 L / 8.45 gal bottom-load canister provides more debris capacity than the 22 L Super Duty model, which can reduce how often the canister needs attention.
This unit can be used with or without a disposable bag and includes both a triple-layer bag and a True HEPA self-cleaning filter.
The included True HEPA self-cleaning polypropylene filter is designed to filter up to 99.99%, and the filter must remain installed even when the unit is used with a bag.

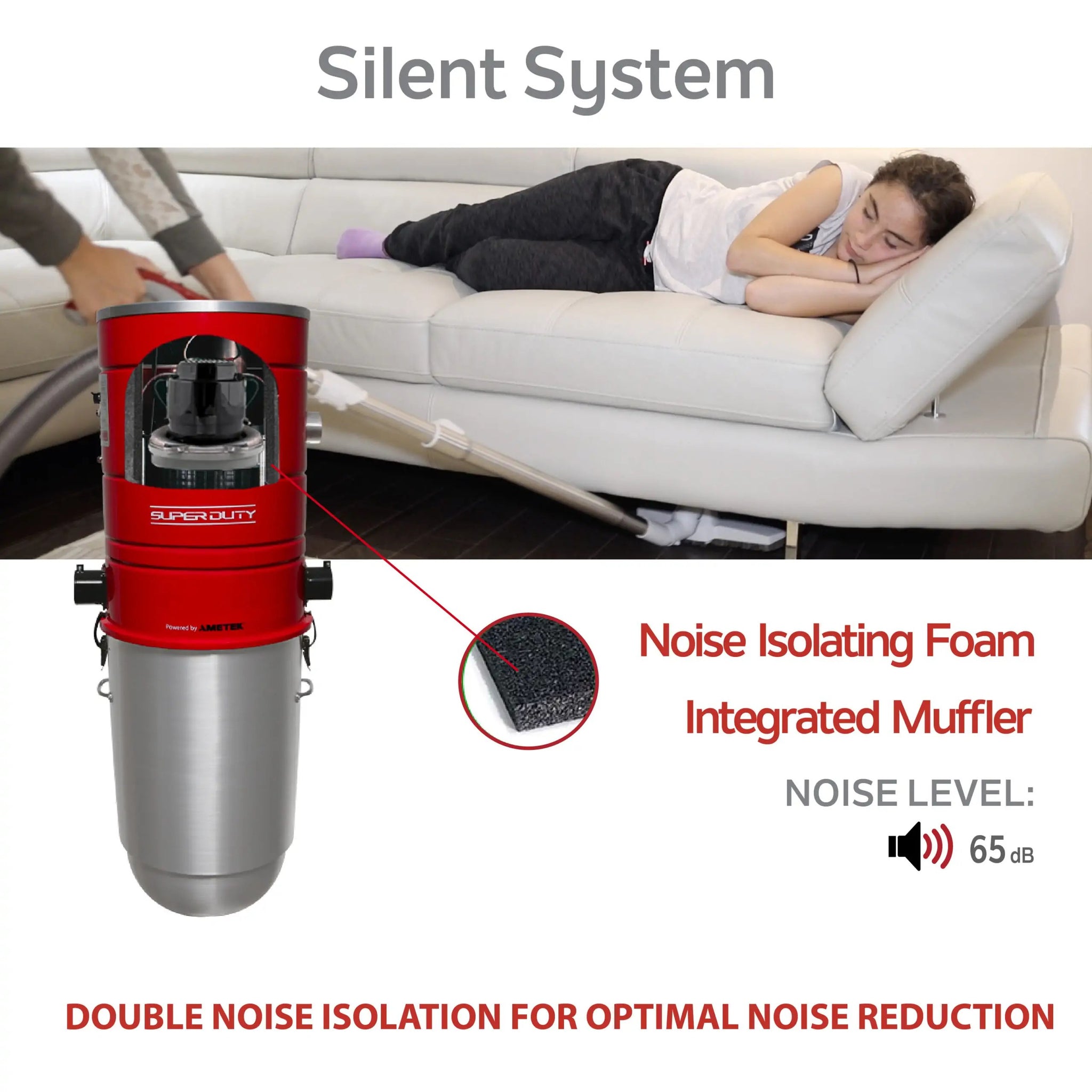

The motor is listed at 65 dB and uses double noise isolation with noise-isolating foam and an included muffler.

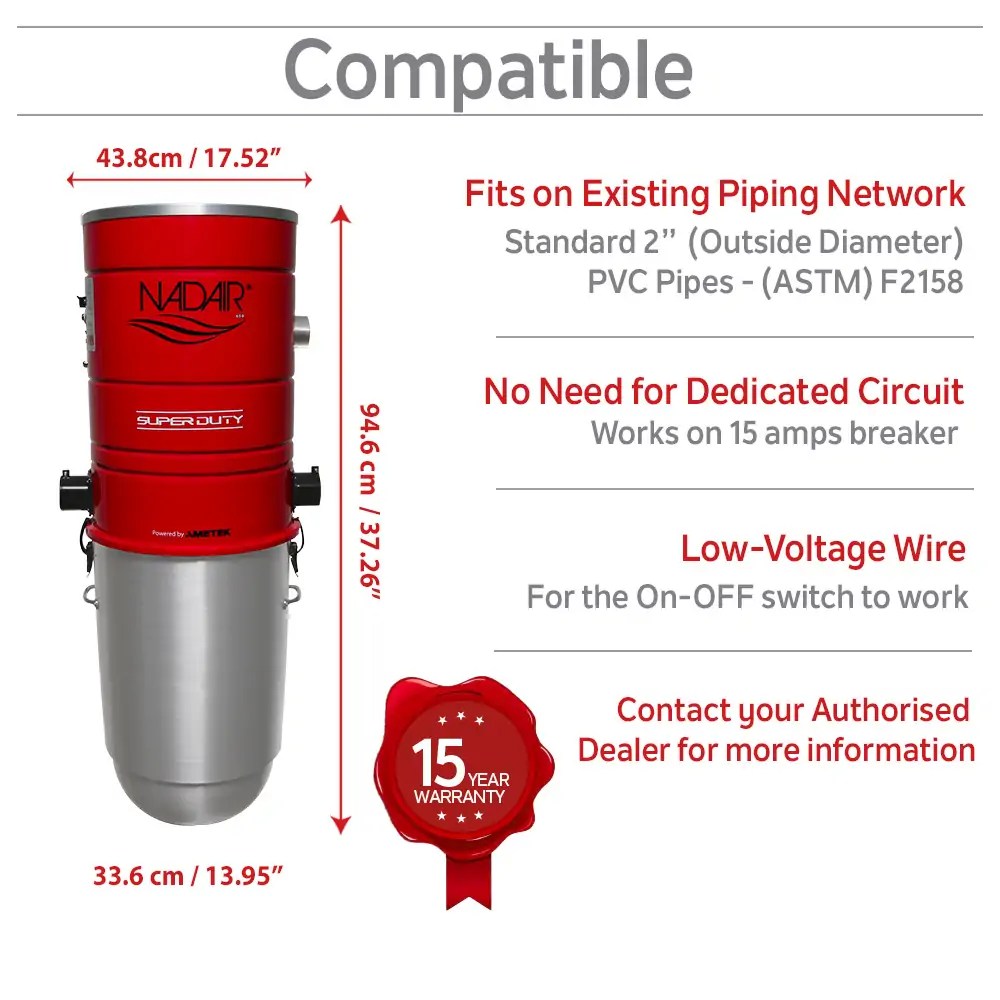

Dual side air intakes and compatibility with standard 2-inch outside-diameter PVC piping can simplify connection to an existing central vacuum piping network.

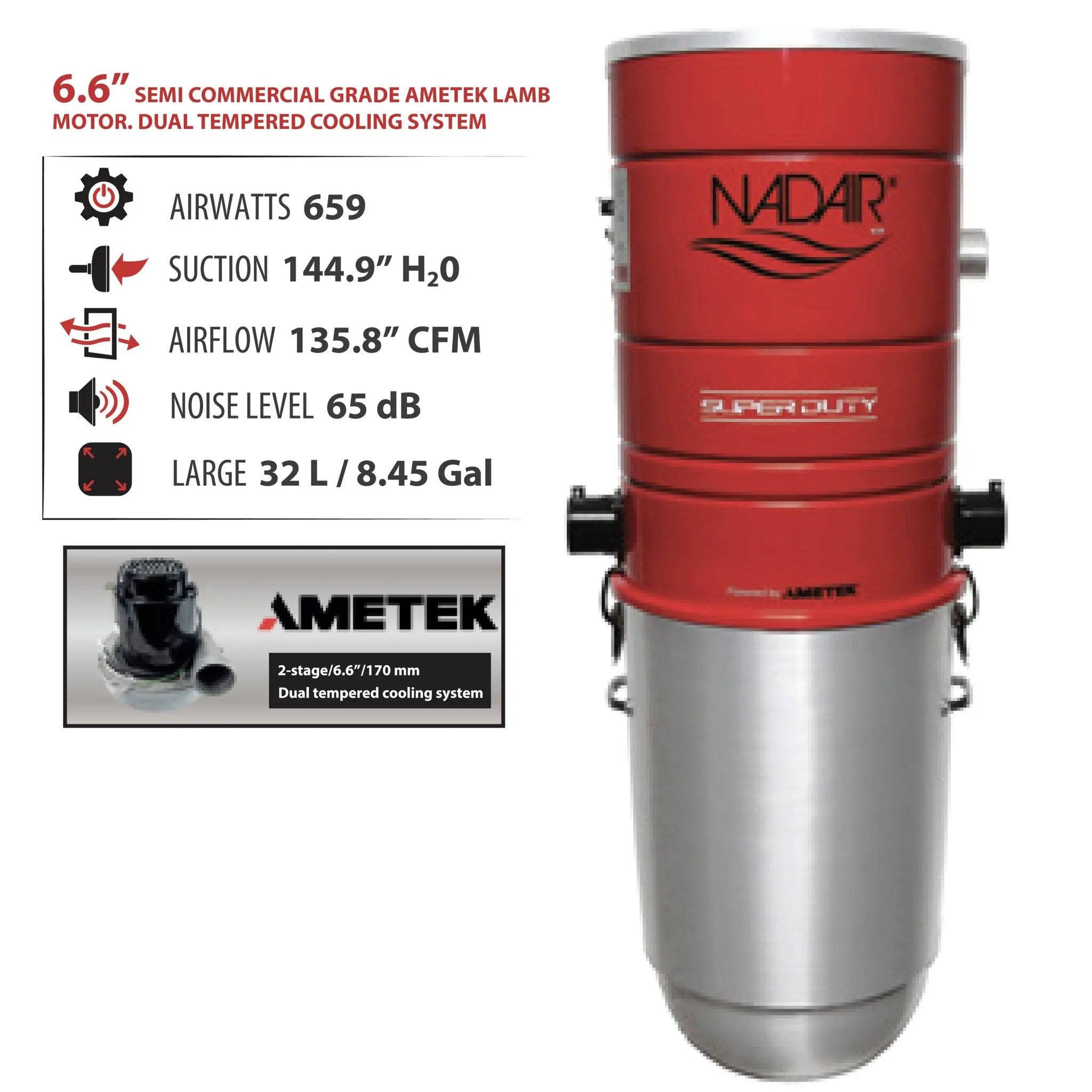

The two-stage semi-commercial-grade motor provides 659 airwatts, 144.9 inches of water lift, and 135.8 CFM for a central vacuum system with substantial listed suction performance.
The SD-659-32SF combines a high-capacity 32 L canister with flexible hybrid filtration. You can use the included FD-45L-3NAD disposable bag or operate bagless with the included FILP-SF True HEPA self-cleaning filter, while the filter remains installed in either configuration.
Its feature set is oriented toward long-term installed use rather than portable cleaning. The aluminum bottom-load canister, soft-start and stop technology, LED status indicator, dual side air intake, noise isolation, and 15-year residential parts warranty all support a central vacuum power unit intended to stay connected to the home's piping.
Both models are listed with 659 airwatts, 144.9 inches of water lift, 135.8 CFM, 65 dB noise, hybrid cyclonic filtration up to 99.99%, soft-start and stop technology, and the Super Duty self-cleaning filter system. The SD-659-32SF has a 32 L / 8.45 gal canister, while the SD-659-22SF has a 22 L / 5.8 gal canister.
Both units have 32 L / 8.45 gal capacity and a listed 65 dB noise level. The HD-750-32H lists 750 airwatts, 146 inches of water lift, and 141.2 CFM, while the SD-659-32SF lists 659 airwatts, 144.9 inches of water lift, and 135.8 CFM; the SD model lists up to 99.99% filtration and self-cleaning True HEPA filtration.
A central vacuum power unit stays in a garage, basement, or other suitable utility location, so you do not carry the main machine from room to room. The system can also be configured with exhaust venting outdoors, subject to proper installation, while the hose and cleaning tools connect at the home's inlets.
Bagged operation uses the included triple-layer disposable bag and can make collected debris easier to remove. Hybrid operation allows bagless use with the True HEPA self-cleaning filter, but the filter must stay installed and must not be washed.
It is designed to fit existing standard 2-inch outside-diameter PVC piping meeting ASTM F2158. Ace Vacuums can help verify the piping and inlet arrangement before purchase.
Yes. The hybrid system supports bagged or bagless operation, but the True HEPA self-cleaning filter must be installed at all times, including when a bag is used.
No hose or attachment kit is listed as included. The hose and tools are sold separately and must match the home's inlets, including whether the system uses low-voltage or electric hose controls.
The manual advises emptying the canister or replacing the bag two or three times per year. Actual timing depends on use and how much debris the system collects.
Clean or replace the filter whenever the canister is emptied or after every three bags. Do not wash the True HEPA filter, and replace it every year to maintain the warranty.
| Specification | Details |
|---|---|
| Brand | Nadair |
| Model | SD-659-32SF |
| Series | Super Duty Series |
| Motor | 6.6-inch, two-stage Ametek Lamb by-pass, semi-commercial grade motor |
| Airwatts | 659 |
| Water Lift | 144.9 inches |
| Airflow | 135.8 CFM |
| Noise Level | 65 dB |
| Canister Capacity | 32 L / 8.45 gal |
| Canister Material | Aluminum |
| Canister Loading | Bottom load |
| Filtration | Cyclonic self-cleaning hybrid filtration; usable with or without a bag; filters up to 99.99% |
| Replacement Bag | FD-45L-3NAD bag |
| Replacement Filter | FILP-SF True HEPA self-cleaning filter |
| Air Intake | Dual side air intake |
| Electrical | Dedicated individual 15 A branch circuit; 110-120 VAC, 60 Hz |
| Power Cord | 72-inch grounded cord |
| Dimensions | 13.25 inches deep x 37.26 inches high x 17.25 inches wide |
| Included | One triple-layer disposable filtration bag and one True HEPA self-cleaning filter |
| Warranty | 15 years parts on the motor, body, housing, electronic module, and dust bin while owned, plus 1 year of labor; residential use only |
| Piping Compatibility | Standard 2-inch outside-diameter PVC piping meeting ASTM F2158 |
| Authorized Dealer | Ace Vacuums |
Perfect for:
When you purchase from Authorized Nadair Dealer Ace Vacuums, you receive:
The Nadair SD-659-32SF is available online and in-store through Authorized Nadair Dealer Ace Vacuums.
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg). Both stores are open 7 days a week to compare central vacuum systems and talk with our specialists.
| Feature | Nadair SD-659-32SF | Nadair HD-750-32H |
|---|---|---|
| Airwatts | 659 | 750 |
| Water lift | 144.9 inches | 146 inches |
| Airflow | 135.8 CFM | 141.2 CFM |
| Noise level | 65 dB | 65 dB |
| Canister capacity | 32 L / 8.45 gal | 32 L / 8.45 gal |
| Filtration | Hybrid cyclonic, with or without bag, up to 99.99% | Hybrid cyclonic, with or without bag, up to 99.97% |
| Soft start and stop | Yes | Yes |
| Series | Super Duty Series | Heavy Duty Series |
The Nadair SD-659-32SF is a Super Duty central vacuum power unit with 659 airwatts, 144.9 inches of water lift, and 135.8 CFM of airflow. Its 32 L aluminum canister, hybrid filtration, self-cleaning True HEPA filter, and 65 dB noise level make it a practical choice for homeowners upgrading a whole-house vacuum system.
Authorized Nadair Dealer Ace Vacuums can help you confirm compatibility with your existing piping, choose the right hose and attachment kit, and size the central vacuum system for the home and piping run. The unit includes one triple-layer disposable bag and one True HEPA self-cleaning filter; the hose and cleaning tools are sold separately.
The Nadair SD-659-32SF is a central vacuum power unit designed for an installed whole-house vacuum network. Its 6.6-inch, two-stage Ametek Lamb by-pass motor delivers 659 airwatts, 144.9 inches of water lift, and 135.8 CFM of airflow for cleaning through compatible central vacuum piping.
This model uses a hybrid filtration system, so it can operate with a disposable bag or in bagless mode. The included triple-layer bag helps contain collected debris, while the included True HEPA self-cleaning polypropylene filter remains installed during operation and filters up to 99.99% according to the supplied product information.
The 32 L bottom-load canister provides more capacity than the 22 L version in the same Super Duty family. The polished aluminum canister is described as lightweight, rustproof, and smooth, while dual noise isolation combines noise-isolating foam with an external or integrated muffler for quieter operation.
Soft-start and stop technology is intended to extend motor life by 20%, and the three-second stop delay helps clear the hose and piping after the system is switched off. An LED indicator displays unit status and provides a reminder to empty the canister.
The SD-659-32SF suits homeowners who want a large-capacity central vacuum system with flexible bagged or bagless operation and a self-cleaning True HEPA filter. Its 65 dB rating, bottom-load canister, dual side air intake, and compatibility with standard 2-inch outside-diameter PVC piping make it useful for replacement installations and existing central vacuum networks.
Choose the SD-659-32SF over the SD-659-22SF when the larger 32 L capacity is more useful than the smaller 22 L canister. The smaller model has the same listed motor performance, filtration rating, airflow, water lift, and noise level, but the 22 L unit may be easier to accommodate where installation space is limited.
A sibling model may be a better fit when a different priority comes first. The HD-750-32H provides 750 airwatts, 146 inches of water lift, and 141.2 CFM at the same listed 65 dB noise level, while the SD-750SM-32SF adds app and voice start-stop, three speeds, and live status.
The 32 L / 8.45 gal bottom-load canister provides more debris capacity than the 22 L Super Duty model, which can reduce how often the canister needs attention.
This unit can be used with or without a disposable bag and includes both a triple-layer bag and a True HEPA self-cleaning filter.
The included True HEPA self-cleaning polypropylene filter is designed to filter up to 99.99%, and the filter must remain installed even when the unit is used with a bag.
The motor is listed at 65 dB and uses double noise isolation with noise-isolating foam and an included muffler.
Dual side air intakes and compatibility with standard 2-inch outside-diameter PVC piping can simplify connection to an existing central vacuum piping network.
The two-stage semi-commercial-grade motor provides 659 airwatts, 144.9 inches of water lift, and 135.8 CFM for a central vacuum system with substantial listed suction performance.
The SD-659-32SF combines a high-capacity 32 L canister with flexible hybrid filtration. You can use the included FD-45L-3NAD disposable bag or operate bagless with the included FILP-SF True HEPA self-cleaning filter, while the filter remains installed in either configuration.
Its feature set is oriented toward long-term installed use rather than portable cleaning. The aluminum bottom-load canister, soft-start and stop technology, LED status indicator, dual side air intake, noise isolation, and 15-year residential parts warranty all support a central vacuum power unit intended to stay connected to the home's piping.
Both models are listed with 659 airwatts, 144.9 inches of water lift, 135.8 CFM, 65 dB noise, hybrid cyclonic filtration up to 99.99%, soft-start and stop technology, and the Super Duty self-cleaning filter system. The SD-659-32SF has a 32 L / 8.45 gal canister, while the SD-659-22SF has a 22 L / 5.8 gal canister.
Both units have 32 L / 8.45 gal capacity and a listed 65 dB noise level. The HD-750-32H lists 750 airwatts, 146 inches of water lift, and 141.2 CFM, while the SD-659-32SF lists 659 airwatts, 144.9 inches of water lift, and 135.8 CFM; the SD model lists up to 99.99% filtration and self-cleaning True HEPA filtration.
A central vacuum power unit stays in a garage, basement, or other suitable utility location, so you do not carry the main machine from room to room. The system can also be configured with exhaust venting outdoors, subject to proper installation, while the hose and cleaning tools connect at the home's inlets.
Bagged operation uses the included triple-layer disposable bag and can make collected debris easier to remove. Hybrid operation allows bagless use with the True HEPA self-cleaning filter, but the filter must stay installed and must not be washed.
It is designed to fit existing standard 2-inch outside-diameter PVC piping meeting ASTM F2158. Ace Vacuums can help verify the piping and inlet arrangement before purchase.
Yes. The hybrid system supports bagged or bagless operation, but the True HEPA self-cleaning filter must be installed at all times, including when a bag is used.
No hose or attachment kit is listed as included. The hose and tools are sold separately and must match the home's inlets, including whether the system uses low-voltage or electric hose controls.
The manual advises emptying the canister or replacing the bag two or three times per year. Actual timing depends on use and how much debris the system collects.
Clean or replace the filter whenever the canister is emptied or after every three bags. Do not wash the True HEPA filter, and replace it every year to maintain the warranty.
| Specification | Details |
|---|---|
| Brand | Nadair |
| Model | SD-659-32SF |
| Series | Super Duty Series |
| Motor | 6.6-inch, two-stage Ametek Lamb by-pass, semi-commercial grade motor |
| Airwatts | 659 |
| Water Lift | 144.9 inches |
| Airflow | 135.8 CFM |
| Noise Level | 65 dB |
| Canister Capacity | 32 L / 8.45 gal |
| Canister Material | Aluminum |
| Canister Loading | Bottom load |
| Filtration | Cyclonic self-cleaning hybrid filtration; usable with or without a bag; filters up to 99.99% |
| Replacement Bag | FD-45L-3NAD bag |
| Replacement Filter | FILP-SF True HEPA self-cleaning filter |
| Air Intake | Dual side air intake |
| Electrical | Dedicated individual 15 A branch circuit; 110-120 VAC, 60 Hz |
| Power Cord | 72-inch grounded cord |
| Dimensions | 13.25 inches deep x 37.26 inches high x 17.25 inches wide |
| Included | One triple-layer disposable filtration bag and one True HEPA self-cleaning filter |
| Warranty | 15 years parts on the motor, body, housing, electronic module, and dust bin while owned, plus 1 year of labor; residential use only |
| Piping Compatibility | Standard 2-inch outside-diameter PVC piping meeting ASTM F2158 |
| Authorized Dealer | Ace Vacuums |
Perfect for:
When you purchase from Authorized Nadair Dealer Ace Vacuums, you receive:
The Nadair SD-659-32SF is available online and in-store through Authorized Nadair Dealer Ace Vacuums.
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg). Both stores are open 7 days a week to compare central vacuum systems and talk with our specialists.
| Feature | Nadair SD-659-32SF | Nadair HD-750-32H |
|---|---|---|
| Airwatts | 659 | 750 |
| Water lift | 144.9 inches | 146 inches |
| Airflow | 135.8 CFM | 141.2 CFM |
| Noise level | 65 dB | 65 dB |
| Canister capacity | 32 L / 8.45 gal | 32 L / 8.45 gal |
| Filtration | Hybrid cyclonic, with or without bag, up to 99.99% | Hybrid cyclonic, with or without bag, up to 99.97% |
| Soft start and stop | Yes | Yes |
| Series | Super Duty Series | Heavy Duty Series |
It is a Super Duty central vacuum power unit with a 659-airwatt, two-stage Ametek Lamb by-pass motor. It connects to installed central vacuum piping and uses a 32 L bottom-load canister.
The listed performance is 659 airwatts, 144.9 inches of water lift, and 135.8 CFM of airflow. These figures describe the power unit's stated suction and airflow specifications.
It is a hybrid system. You can use the FD-45L-3NAD disposable bag or operate without a bag using the included True HEPA self-cleaning filter.
Yes. The True HEPA self-cleaning polypropylene filter must be installed at all times, including during bagged operation.
No. The manual specifically says not to wash the True HEPA filter because washing may clog it and void the warranty.
The manual calls for cleaning or replacement whenever the canister is emptied or after every three bags. It also calls for yearly replacement to maintain the warranty.
The 32 L SD-659-32SF uses the FD-45L-3NAD bag. The listed replacement pack contains three bags.
The unit is designed for standard 2-inch outside-diameter PVC piping meeting ASTM F2158. Existing piping and connections should still be checked before installation.
No hose is listed as included. A compatible hose and attachment kit must be purchased separately and matched to the home's low-voltage or electric inlet configuration.
The listed noise level is 65 dB. Noise-isolating foam and a muffler are included as part of the double noise-isolation system.
The Super Duty owner manual requires a dedicated individual 15 A branch circuit at 110-120 VAC and 60 Hz. Do not use an extension cord or adapter.
No. The manual calls for a well-ventilated, weather-protected location and says not to install the unit outdoors. Exhaust venting outdoors is recommended when practical.
The manual specifies 6 inches of clearance all around the unit. The listed dimensions are 13.25 inches deep, 37.26 inches high, and 17.25 inches wide.
The manual advises emptying the canister or replacing the bag two or three times per year. Heavy use may require more frequent attention.
The feature is designed to extend motor life by 20%. The system also has a three-second stop delay intended to help clear the hose and piping.
The warranty provides 15 years of parts coverage on the motor, body, housing, electronic module, and dust bin while you own the unit, plus 1 year of labor. It is for residential use only and requires proof of purchase and an invoice for installation by a qualified electrician.
Yes. Ace Vacuums can help review the home's existing piping, inlet type, hose requirements, and installation conditions. Coverage should be sized for the home and piping run rather than estimated from a general square-foot claim.
