Nadair SD-750SM-32SF Smart Central Vacuum Power Unit, 750 AW, 32L HEPA

Quick Summary

The Nadair SD-750SM-32SF is a 750-airwatt central vacuum power unit with smart-device and voice-control operation, three suction speeds, and live unit-status information. Its 32 L canister, hybrid filtration, and self-cleaning True HEPA filter support either bagged or bagless operation.

As an Authorized Nadair Dealer Ace Vacuums, we can help compare this whole-house vacuum with the home's piping, inlet style, and cleaning needs. The unit is designed for standard 2-inch PVC central vacuum piping and carries a 15-year residential-use warranty.

Quick Highlights

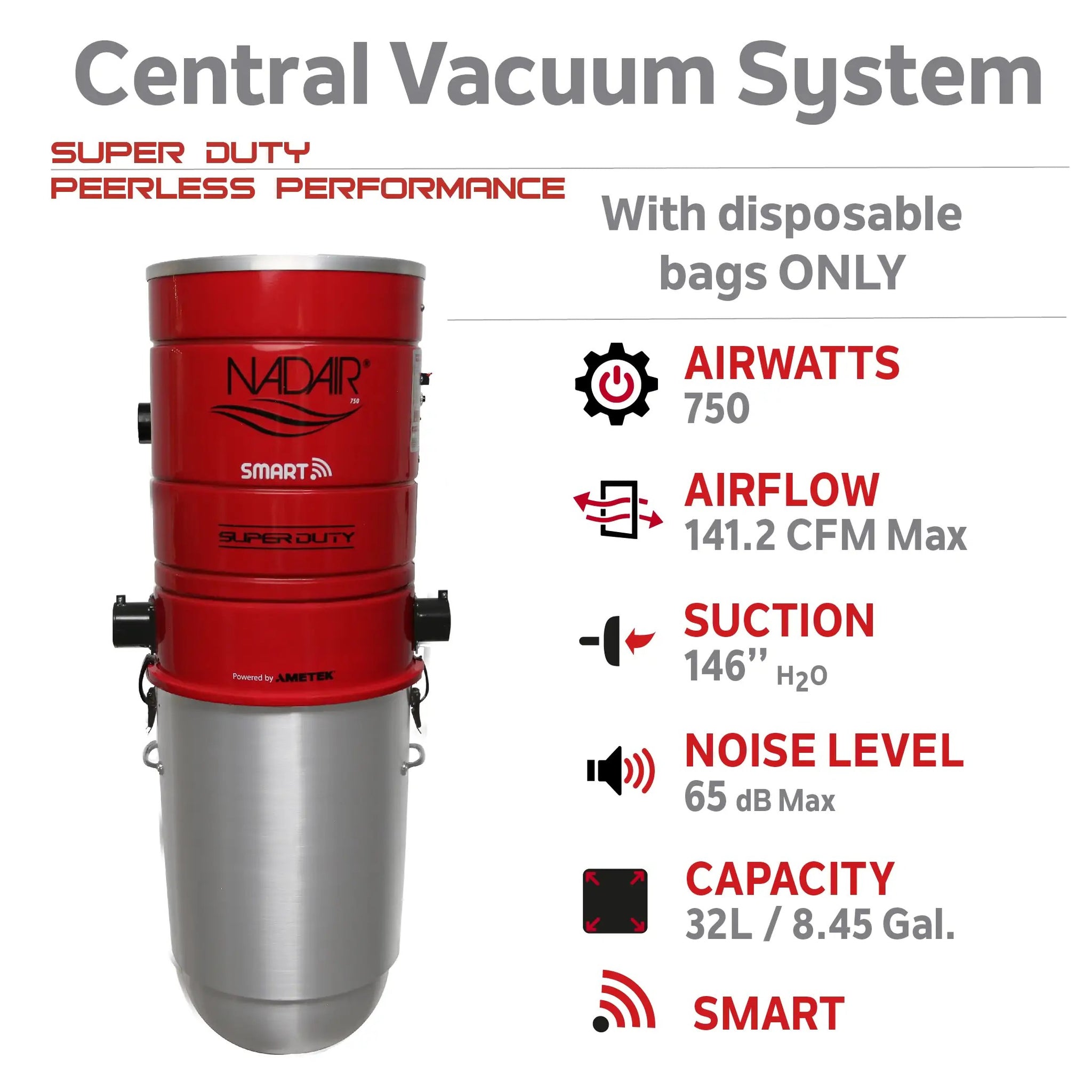

• 750 airwatts from a 5.7-inch, 2-stage Ametek Lamb motor
• 146-inch maximum water lift and 141.2 maximum CFM
• 65 dB maximum noise level with double noise isolation
• 32 L / 8.45 gal bottom-load aluminum canister
• 15-year residential-use warranty

Product Overview

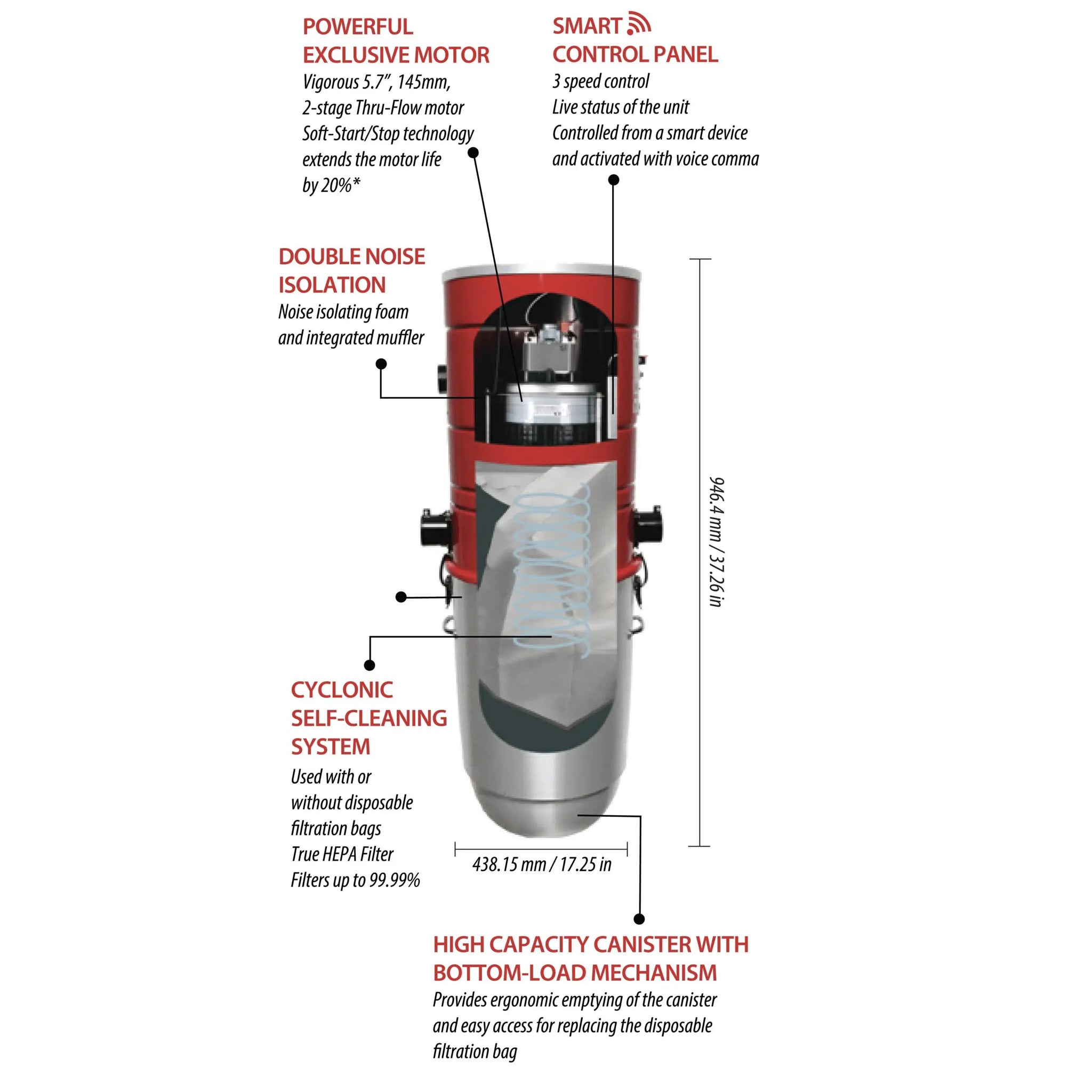

The Nadair SD-750SM-32SF combines the performance of a Super Duty central vacuum system with connected controls. A smart device or voice command can start and stop the unit, which is useful with a retractable hose or when updating an older system. The smart module can also show live status, including reminders related to the bag, filter, and service.

Its 5.7-inch, 2-stage Ametek Lamb motor produces 750 airwatts, 146 inches of maximum water lift, and 141.2 maximum CFM. A three-speed control lets the homeowner select suction for different cleaning needs, while soft-start and soft-stop technology is designed to extend motor life by 20 percent.

Filtration is flexible. The unit can operate with the included triple-layer disposable filtration bag or with the included True HEPA self-cleaning filter for bagless operation. The cyclonic self-cleaning filtration system filters up to 99.99%, although the True HEPA filter must not be washed.

The bottom-load 32 L canister is made from lightweight, rustproof aluminum and can be removed from wherever the power unit is installed. Dual side air intakes help it connect to an existing piping network, and the dimensions are 13.25 inches deep by 37.26 inches high by 17.25 inches wide.

Expert Recommendation

This model suits homeowners who want strong central vacuum performance, a large canister, and more control than a conventional low-voltage-only system provides. Smart start and stop can be especially useful for retractable hose installations, older systems, or anyone who wants to bypass a defective hose switch or older low-voltage control arrangement.

The SD-750SM-32SF is also a practical choice when flexible filtration matters. Use the disposable bag for a cleaner, simpler emptying process, or use the self-cleaning True HEPA filter for bagless operation. The 65 dB maximum rating, integrated muffler, and noise-isolating foam provide sound reduction, though the unit still produces operating noise.

A sibling unit may be a better fit when smart controls are not needed. The Nadair HD-750-32H has the same listed 750 airwatts, 146-inch maximum water lift, 141.2 maximum CFM, 65 dB maximum noise, and 32 L capacity, while the less expensive ST-700-35H offers a 35 L canister at 700 airwatts and 63 dB.

Best For

Large Cleaning Loads

The 32 L / 8.45 gal bottom-load canister provides substantial capacity, and Nadair notes the bag or canister may need attention only once or twice a year depending on use.

Smart-Home Control

The unit can start and stop from a smart device or by voice control, offers three speeds, and reports live status information.

Retractable Hose Systems

Smart start and stop can be useful with a retractable hose, and the system can bypass the low-voltage system when replacing defective hose switches or working with older systems.

Flexible Filtration

The hybrid design supports operation with the included triple-layer disposable bag or the included True HEPA self-cleaning filter for bagless use.

Noise-Conscious Homes

The unit is rated at 65 dB maximum and uses noise-isolating foam plus an integrated muffler for noise reduction.

Existing Piping Networks

Dual side air intakes and compatibility with standard 2-inch PVC central vacuum piping support replacement or connection to an existing network.

Not Ideal For

• It may not be the right choice if a homeowner wants a portable plug-in vacuum rather than a permanently installed central vacuum power unit.
• The hose and cleaning tools are not included, so a compatible hose and attachment kit must be purchased separately.
• The 37.26-inch height and 32 L canister require an appropriate installation location with enough room for removal and service.
• Homeowners who do not need smart controls may prefer a conventional Nadair sibling such as the HD-750-32H.

Key Features

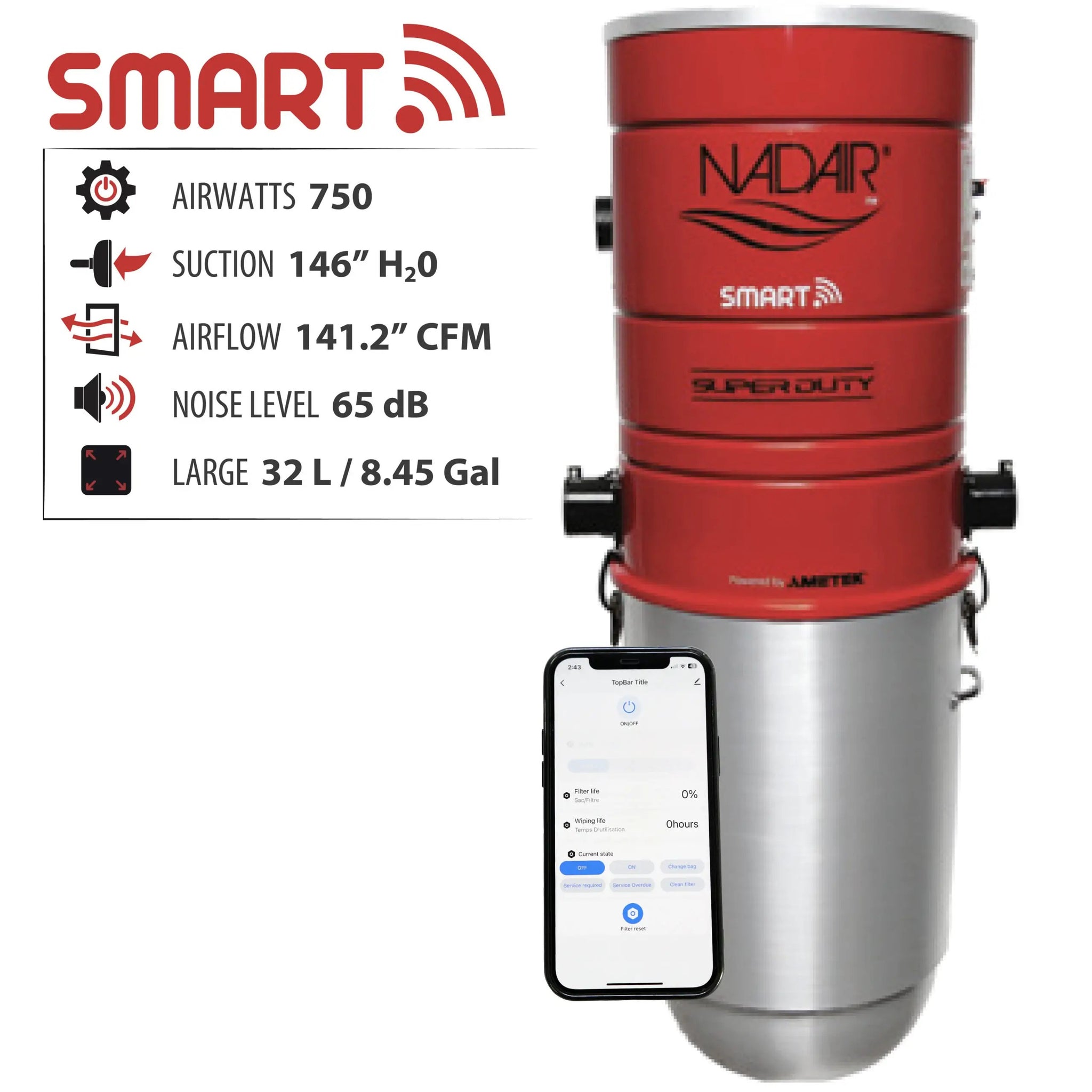

• Smart Controls: Start or stop the power unit from a smart device or by voice control.
• Three Speeds: Select from three speed settings to adapt suction to different cleaning needs.
• Live Status: The smart system reports unit status and reminders related to the bag, filter, and service.

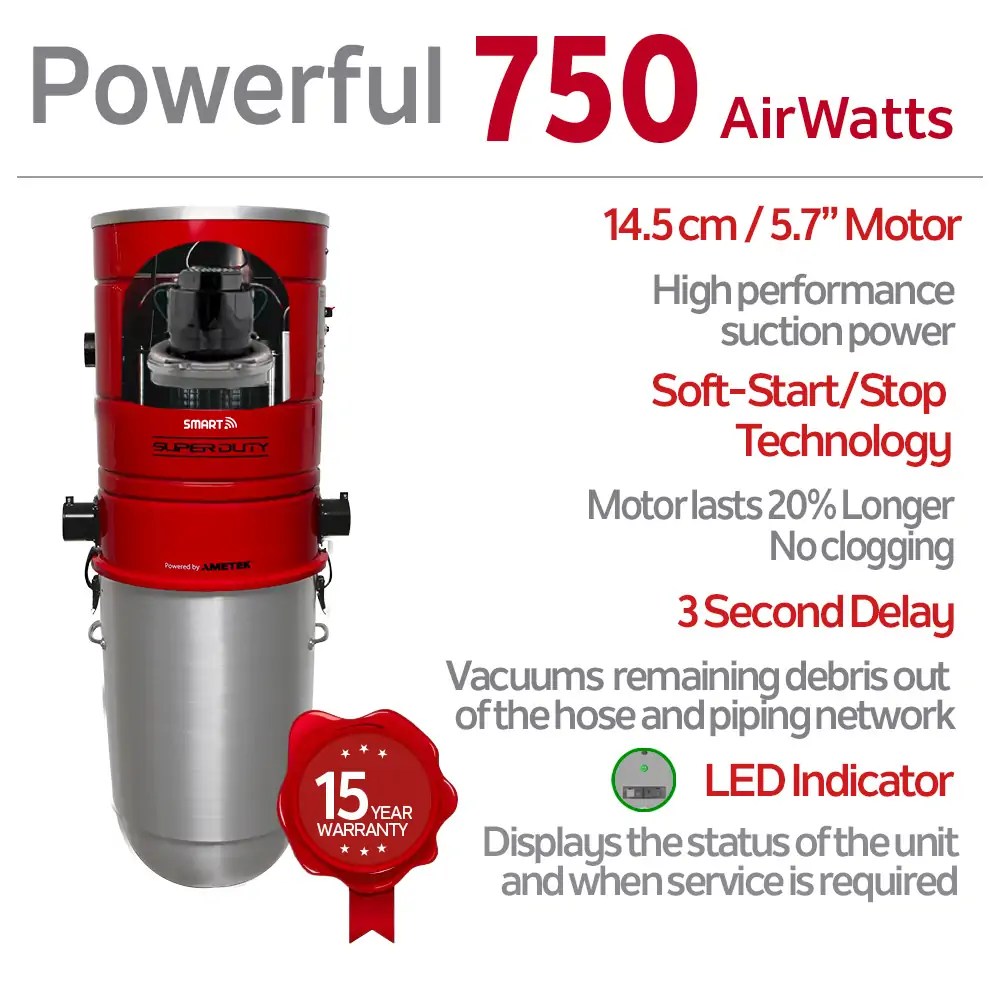

• 750 Airwatts: A 5.7-inch, 2-stage Ametek Lamb motor delivers 750 airwatts.

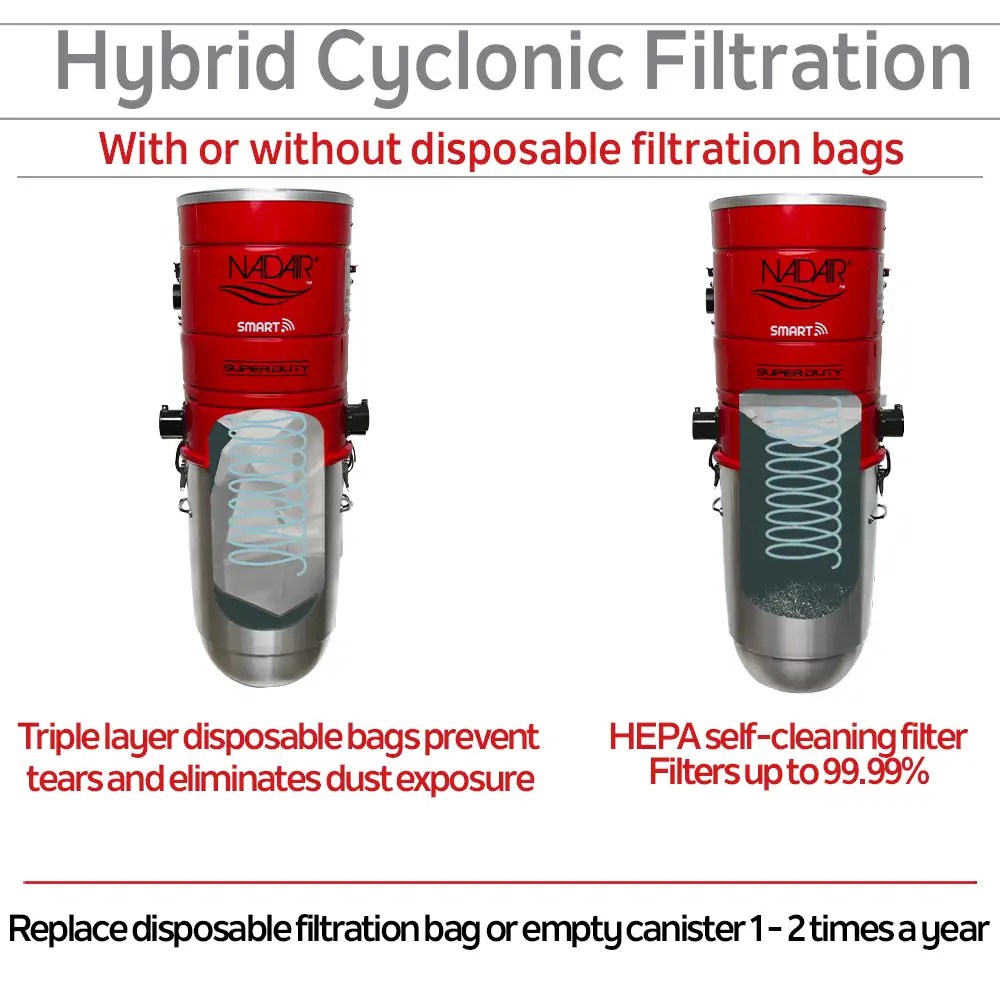

• Hybrid Filtration: Operate with the included triple-layer disposable bag or the included True HEPA self-cleaning filter.
• Large Canister: The bottom-load aluminum canister holds 32 L / 8.45 gal.
• Soft Start/Stop: Soft-start and soft-stop technology is designed to extend motor life by 20 percent.

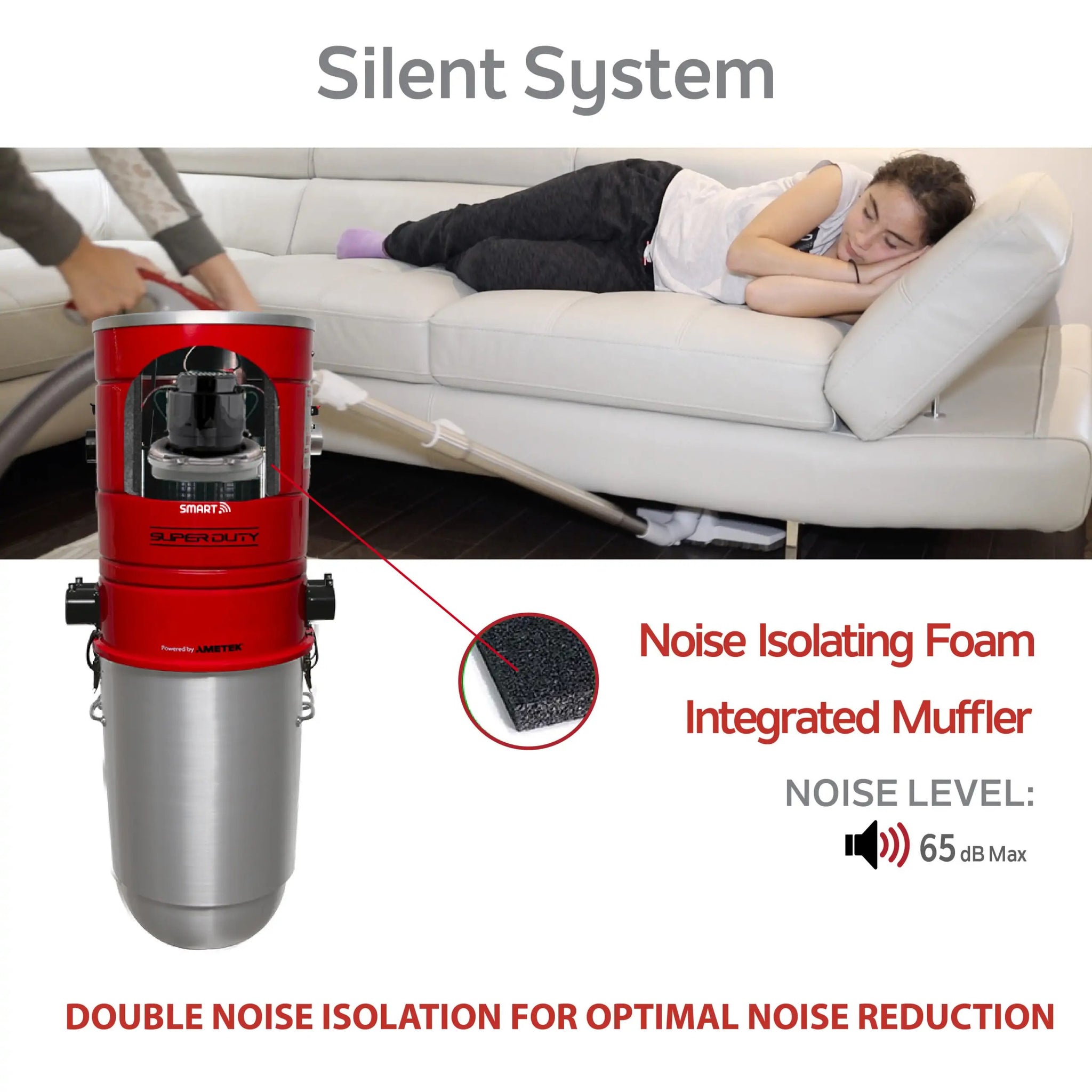

• Noise Isolation: Noise-isolating foam and an integrated muffler help reduce operating noise.
• Dual Air Intakes: Dual side air intakes make connection to an existing piping network easier.

What Makes This Model Stand Out

The defining feature is the combination of Super Duty performance and smart control. Instead of relying only on a hose switch or the home's low-voltage wiring, the homeowner can use a smart device or voice command to control the unit and check its status. This is particularly relevant for retractable hose installations and older central vacuum systems.

The filtration setup is another practical strength. The SD-750SM-32SF includes both a triple-layer bag and a True HEPA self-cleaning filter, letting the homeowner choose between bagged operation and bagless operation. The filter should not be washed, so care should follow the product's stated replacement and maintenance guidance.

Product Comparisons

SD-750SM-32SF vs HD-750-32H

Both units list 750 airwatts, 146 inches of maximum water lift, 141.2 maximum CFM, 65 dB maximum noise, and a 32 L / 8.45 gal canister. The SD-750SM-32SF adds smart-device and voice control, three speeds, live status, and the ability to bypass the low-voltage system; the HD-750-32H is the simpler conventional option.

SD-750SM-32SF vs SD-659-32SF

Both are Super Duty models with a 32 L / 8.45 gal canister, 65 dB maximum noise, cyclonic self-cleaning filtration, and operation with or without a bag. The SD-750SM-32SF lists 750 airwatts, 146-inch maximum water lift, and 141.2 maximum CFM, compared with 659 airwatts, 144.9 inches, and 135.8 CFM for the SD-659-32SF.

Central Vacuum vs Portable Vacuum

A central vacuum power unit is installed in a location such as a garage or basement, so the homeowner does not carry the main motor and canister through the home. The exhaust can vent outside, and cleaning is performed through connected inlets using a compatible hose and tools sold separately.

Bagged vs Hybrid Operation

Bagged operation uses the included triple-layer disposable filtration bag and can simplify debris removal. Hybrid operation uses the included True HEPA self-cleaning filter without a disposable bag; the filter must not be washed.

Questions Buyers Commonly Ask

Can this unit connect to my existing central vacuum piping?

The product images identify compatibility with existing standard 2-inch PVC piping meeting ASTM F2158. Dual side air intakes also support connection to an existing piping network, but the hose and inlet arrangement should be checked before ordering.

Can I use the unit without a disposable bag?

Yes. The hybrid filtration system supports bagless operation with the included True HEPA self-cleaning filter. The filter must not be washed.

How does the smart control work?

The unit can be started and stopped from a smart device or by voice control. It also offers three speeds and live status information, including reminders related to the bag, filter, and service.

Is a hose or tool kit included?

No hose or cleaning tools are listed as included. The hose and attachment kit are sold separately and must match the home's inlets, including whether the system uses low-voltage or electric hose connections.

How often will I need to empty or replace the collection components?

The product image facts indicate replacing the bag or emptying the canister once or twice a year. Actual timing depends on use, debris, and whether the unit is operated with a bag or in bagless mode.

Technical Specifications

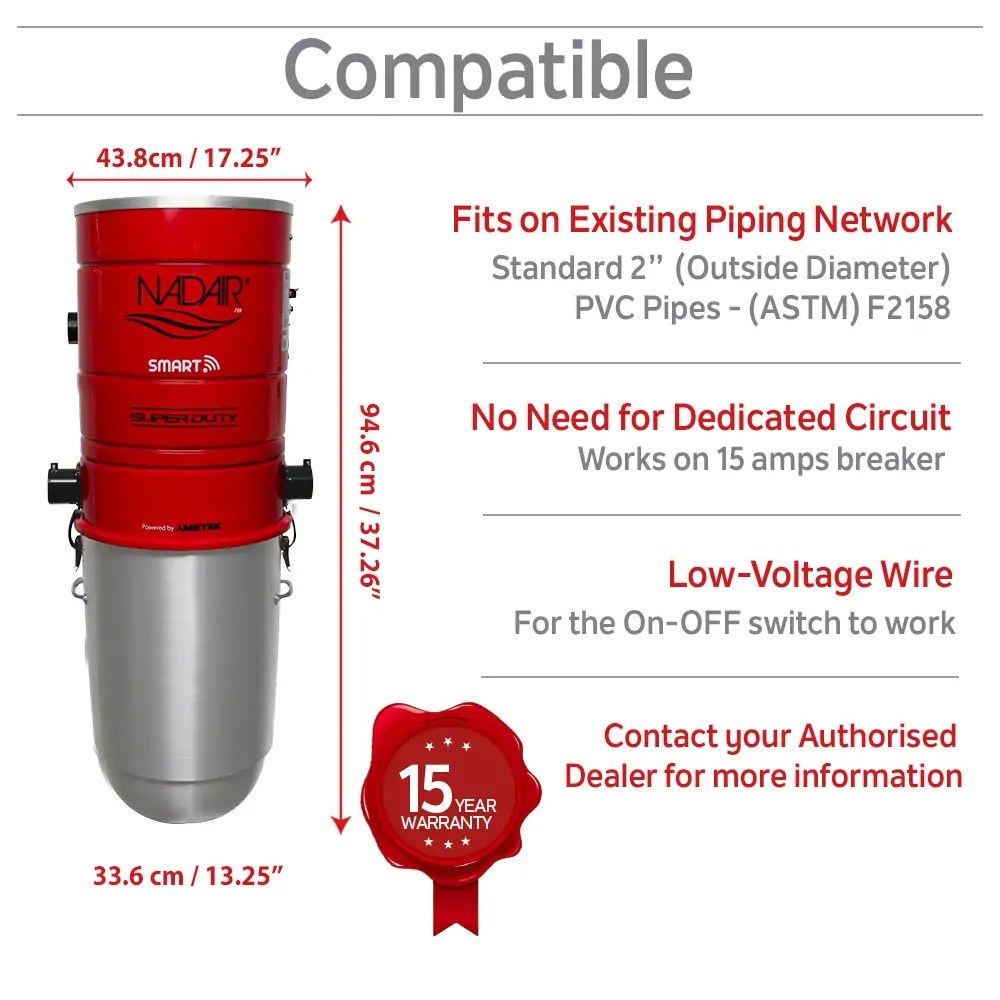

Installation Notes

• Install the power unit in an appropriate location such as a garage or basement, with enough room to access and remove the bottom-load canister.
• The unit is identified as compatible with existing standard 2-inch PVC central vacuum piping meeting ASTM F2158.
• Dual side air intakes can simplify connection to an existing piping network.
• The product image facts state that the unit works on a 15 A breaker and does not need a dedicated circuit.
• Low-voltage wire is used for the on-off switch, while the smart controls can start and stop the unit from a smart device or by voice control.
• Allow for the unit's listed dimensions of 13.25 inches deep by 37.26 inches high by 17.25 inches wide, plus access for canister removal and service.

Maintenance Tips

• The product image facts indicate replacing the bag or emptying the canister once or twice a year, depending on use.
• For bagged operation, use the FD-45L-3NAD replacement bag and replace it when full or when the smart status system indicates attention is needed.
• For bagless operation, use the FILP-SF True HEPA self-cleaning filter. Do not wash this Super Duty filter.
• Use the smart status information and LED indicator as reminders to check the bag, filter, canister, and service needs.
• Keep the canister accessible so it can be removed from the bottom for emptying.

Ideal Buyers

Perfect for:

• Homeowners replacing an older central vacuum power unit and wanting smart-device or voice control.
• Households that want the choice of bagged or bagless hybrid filtration.
• Users who prefer a large 32 L canister and bottom-load removal.
• Homeowners with retractable hose systems or older systems where bypassing the low-voltage system may be useful.
• Buyers looking for 750 airwatts, 146-inch maximum water lift, and 141.2 maximum CFM in a 65 dB maximum Super Duty unit.

Why Buy from Ace Vacuums

When you purchase from Authorized Nadair Dealer Ace Vacuums, you receive:

• Genuine Nadair central vacuum power units
• Expert help sizing the right unit for your home and piping
• Guidance on matching hoses and attachment kits to your inlets
• Genuine Nadair replacement bags and filters
• Knowledgeable customer support before and after the sale

Available Online & In-Store

The Nadair SD-750SM-32SF is available online and in-store through Authorized Nadair Dealer Ace Vacuums.

Visit Our Showrooms

• Fairfax, VA: 11110 Main St, Fairfax, VA 22030
• Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg). Both stores are open 7 days a week to compare central vacuum systems and talk with our specialists.

Comparison Table

Pros and Cons

Pros

• 750 airwatts with 146-inch maximum water lift and 141.2 maximum CFM
• Smart-device and voice-control start and stop with three speed settings
• Large 32 L / 8.45 gal bottom-load aluminum canister
• Hybrid bagged or bagless operation with self-cleaning True HEPA filtration
• 65 dB maximum rating with integrated muffler and noise-isolating foam
• 15-year residential-use warranty

Cons

• Hose and cleaning tools are sold separately.
• The True HEPA self-cleaning filter must not be washed.
• Installation requires suitable central vacuum piping, inlet compatibility, and an appropriate location.
• The larger canister and 37.26-inch height require adequate space for installation and removal.

Frequently Asked Questions

What is the Nadair SD-750SM-32SF?

It is a Super Duty central vacuum power unit with a 750-airwatt, 2-stage Ametek Lamb motor, a 32 L canister, hybrid filtration, and smart controls.

How powerful is this central vacuum system?

The unit is rated at 750 airwatts, 146 inches of maximum water lift, and 141.2 maximum CFM.

Can I control the unit with my phone or voice?

Yes. The smart system supports start and stop from a smart device and by voice control. It also provides three speeds and live status information.

Can this replace an older central vacuum power unit?

It may be suitable for an existing system using standard 2-inch PVC piping. The unit can also bypass the low-voltage system, which may help with defective hose switches or older systems, but inlet and hose compatibility should be confirmed.

Does it work with standard 2-inch piping?

The product image facts identify compatibility with existing standard 2-inch PVC piping meeting ASTM F2158.

Is this a bagged or bagless vacuum?

It is a hybrid central vacuum system. It can use the included triple-layer disposable bag or operate bagless with the included True HEPA self-cleaning filter.

Can the True HEPA filter be washed?

No. The Super Duty True HEPA self-cleaning filter must not be washed.

Which replacement bag does it use?

The specified replacement bag is the Nadair FD-45L-3NAD bag.

Which replacement filter does it use?

The specified replacement filter is the FILP-SF True HEPA self-cleaning filter for Super Duty units.

How large is the dirt canister?

The bottom-load aluminum canister holds 32 L, or 8.45 gal.

How often should I empty the canister or replace the bag?

The product image facts indicate emptying the canister or replacing the bag once or twice a year. Actual frequency depends on household use and debris.

How loud is this central vacuum power unit?

The listed maximum noise level is 65 dB. Noise-isolating foam and an integrated muffler are used for additional noise reduction.

Does the unit need a dedicated electrical circuit?

The product image facts state that it works on a 15 A breaker and does not need a dedicated circuit.

Is a power cord included?

Nadair lists operation on a standard 15 A breaker with no dedicated circuit needed. Ace Vacuums can confirm outlet placement for your installation.

Does the package include a hose?

No hose is listed as included. The hose and attachment kit are sold separately and must match the home's inlet type, including low-voltage versus electric connections.

Where is the unit installed?

A central vacuum power unit is commonly installed in a garage or basement, with enough room to access the bottom-load canister. The unit measures 13.25 inches deep by 37.26 inches high by 17.25 inches wide.

What warranty does it have?

The Nadair SD-750SM-32SF carries a 15-year warranty for residential use.

Can Ace Vacuums help size this unit for my home?

Yes. Ace Vacuums can help evaluate the home, existing piping run, inlet setup, and hose requirements. A square-foot coverage claim is not assigned to this model in the provided specifications.
