Nadair ST-600-18B Compact Central Vacuum Power Unit, 600 AW, 18L Bagged

Quick Summary

The Nadair ST-600-18B is a compact central vacuum power unit for homeowners who want a whole-house vacuum connected to existing central vacuum piping. Its 600 airwatts, 140.9 inches of water lift, and 127.1 CFM provide strong suction and airflow, while the 18 L canister and narrow footprint suit installations where space is limited.

Authorized Nadair Dealer Ace Vacuums can help you evaluate the piping run, inlet setup, and accessory compatibility before purchasing. This model uses a disposable triple-layer filtration bag together with a permanent protective filter, so it is a bag-only system rather than a bagless or hybrid unit.

Quick Highlights

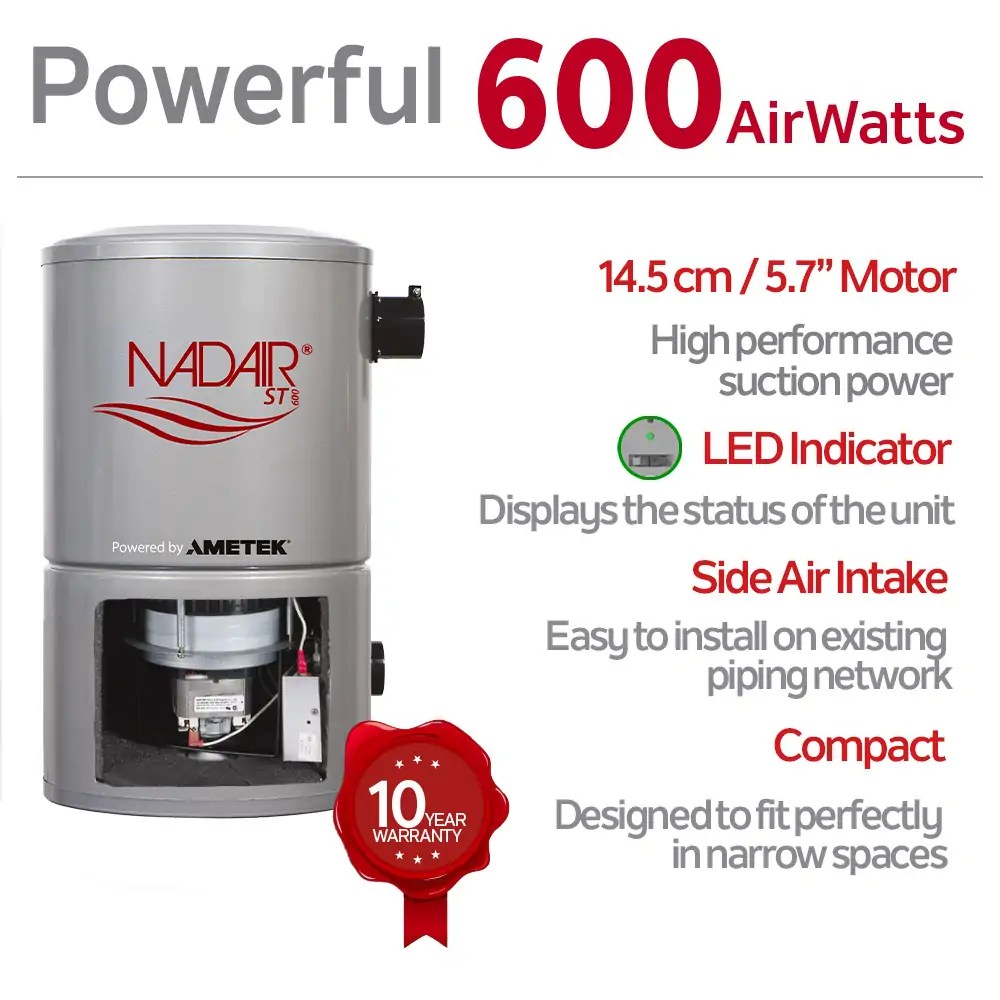

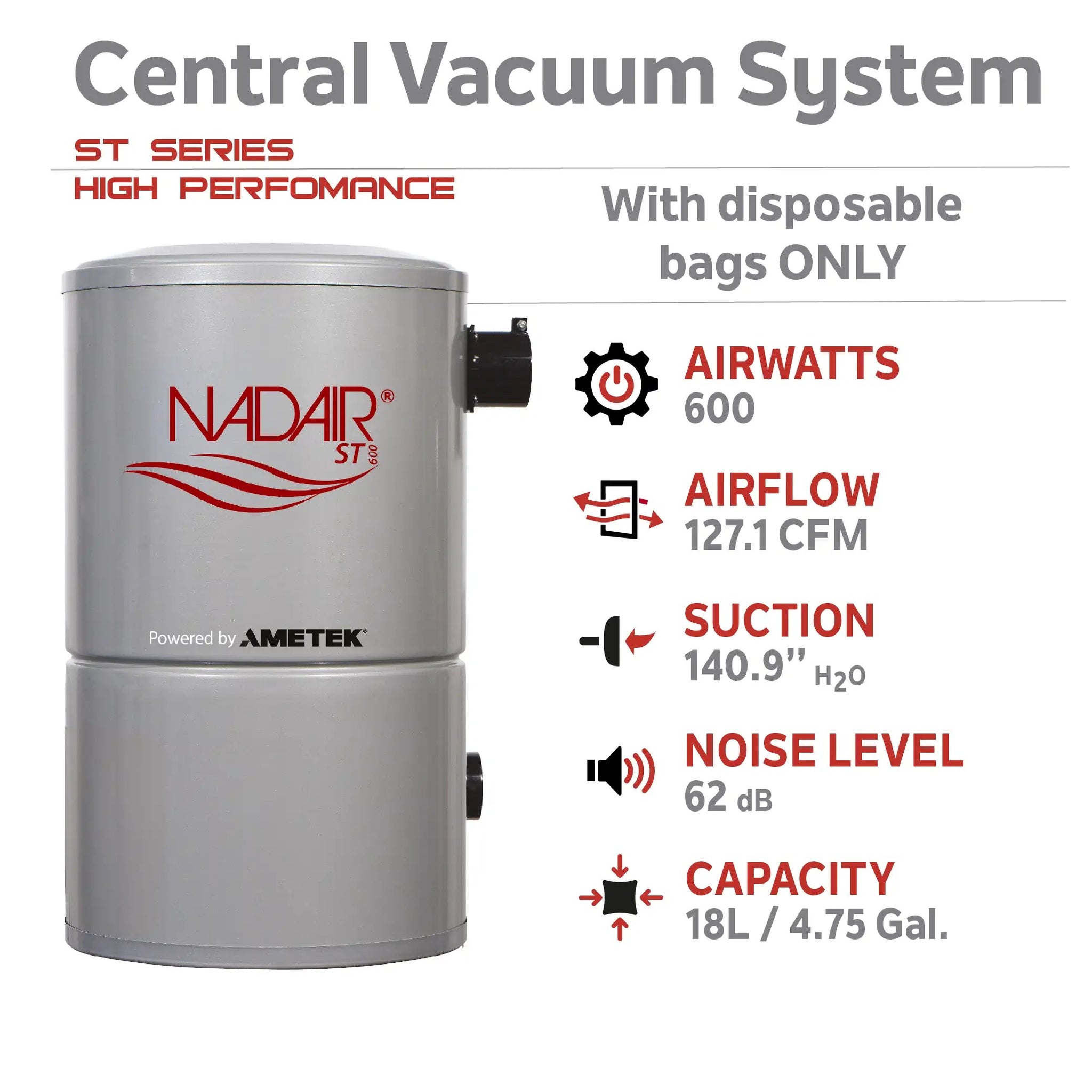

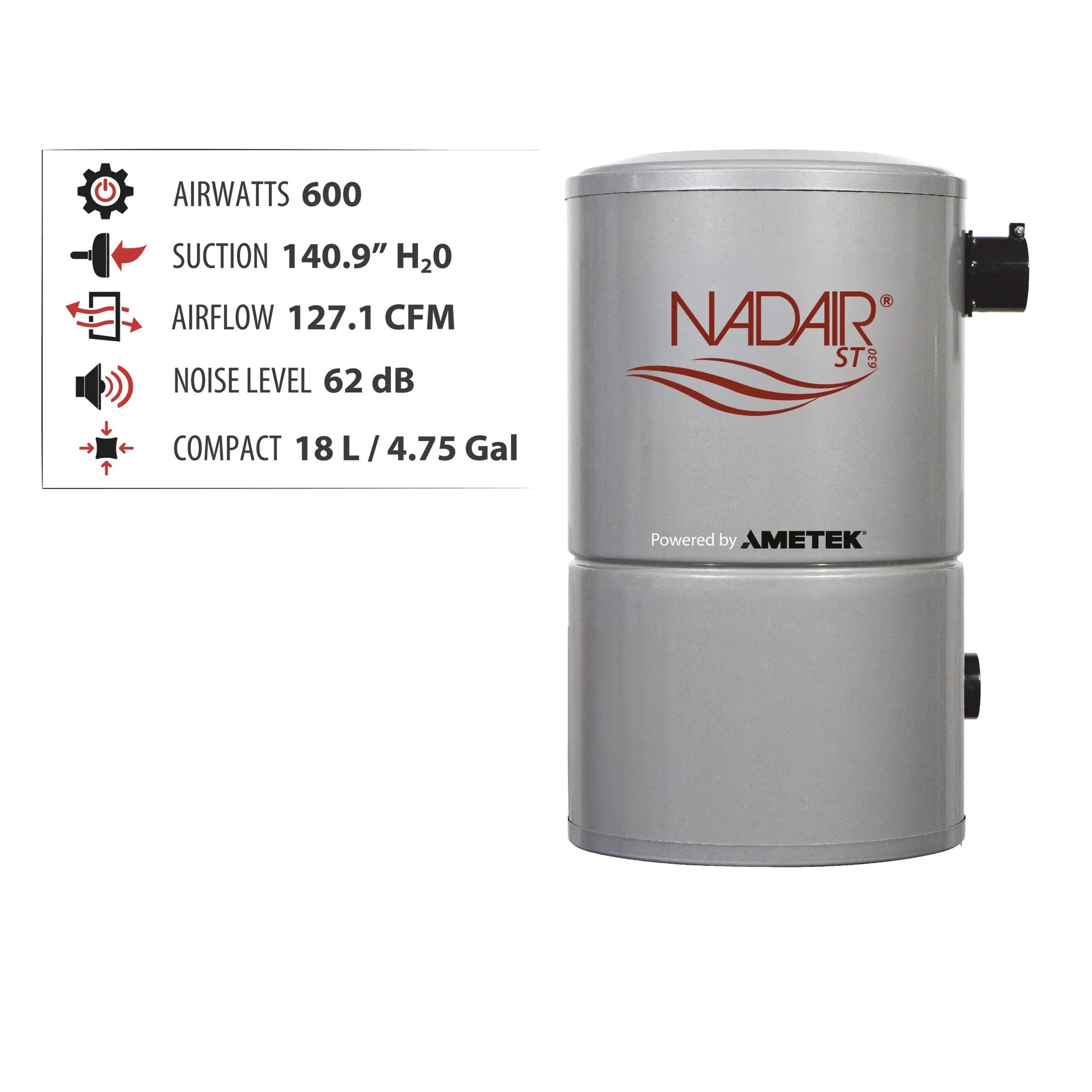

• 600 airwatts with a 5.7-inch, 1-stage Ametek thru-flow motor
• 140.9 inches of water lift and 127.1 CFM airflow
• 62 dB operating noise with foam isolation and an integrated muffler
• 18 L / 4.75 gal top-load rolled steel canister
• 10-year residential warranty on specified parts, with 1 year of labor

Product Overview

The ST-600-18B is designed as a compact central vacuum system for homes that already have, or are being fitted with, standard central vacuum piping. Its side air intake helps simplify connection to an existing piping network, and the rolled steel canister is designed to resist wear, corrosion, and damage.

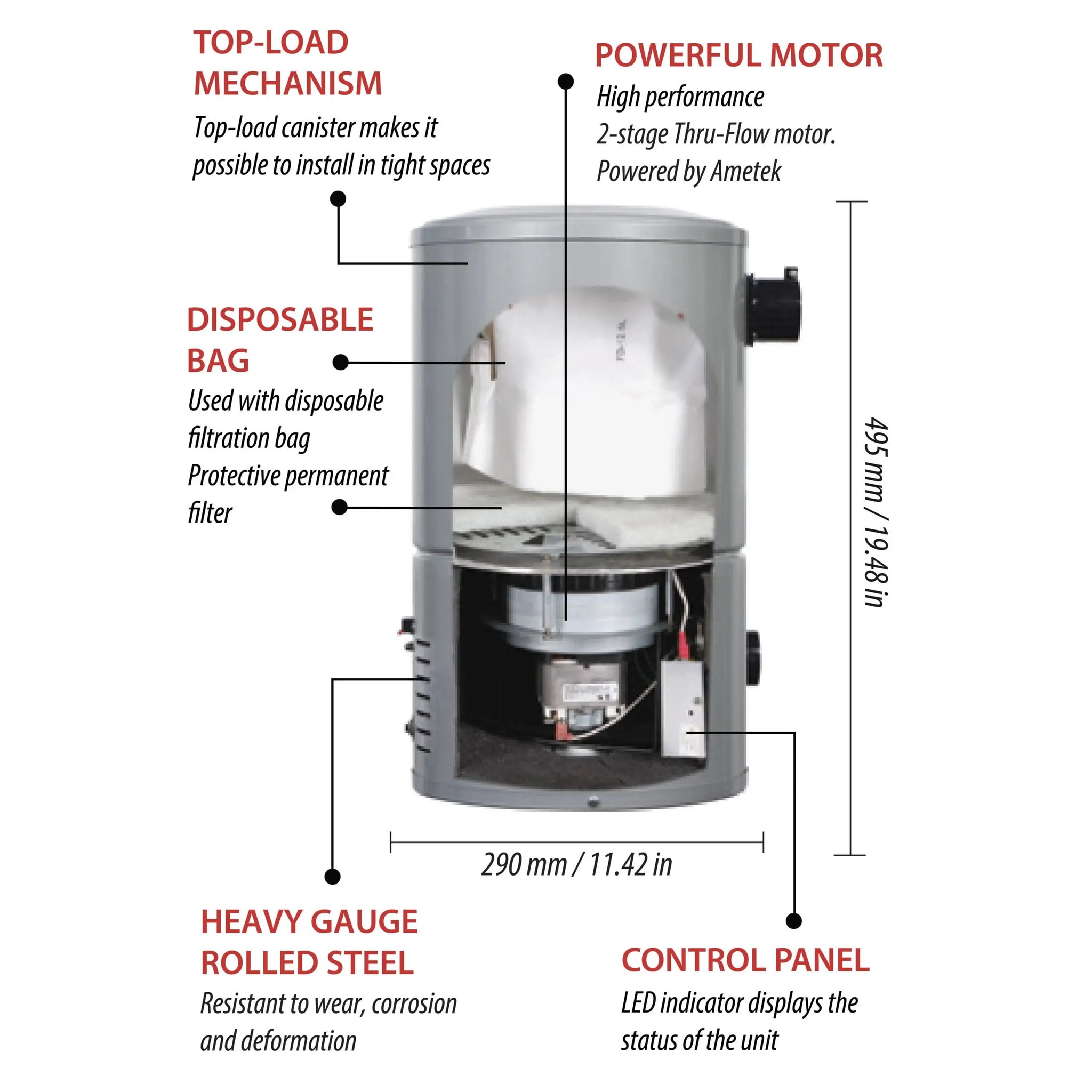

Inside, a 600-airwatt 1-stage Ametek thru-flow motor produces 140.9 inches of water lift and 127.1 CFM. Those specifications describe both the unit's suction strength and its ability to move air through the central vacuum piping and hose system. Ace Vacuums can help size the unit for the home and piping run rather than relying on a square-foot coverage claim.

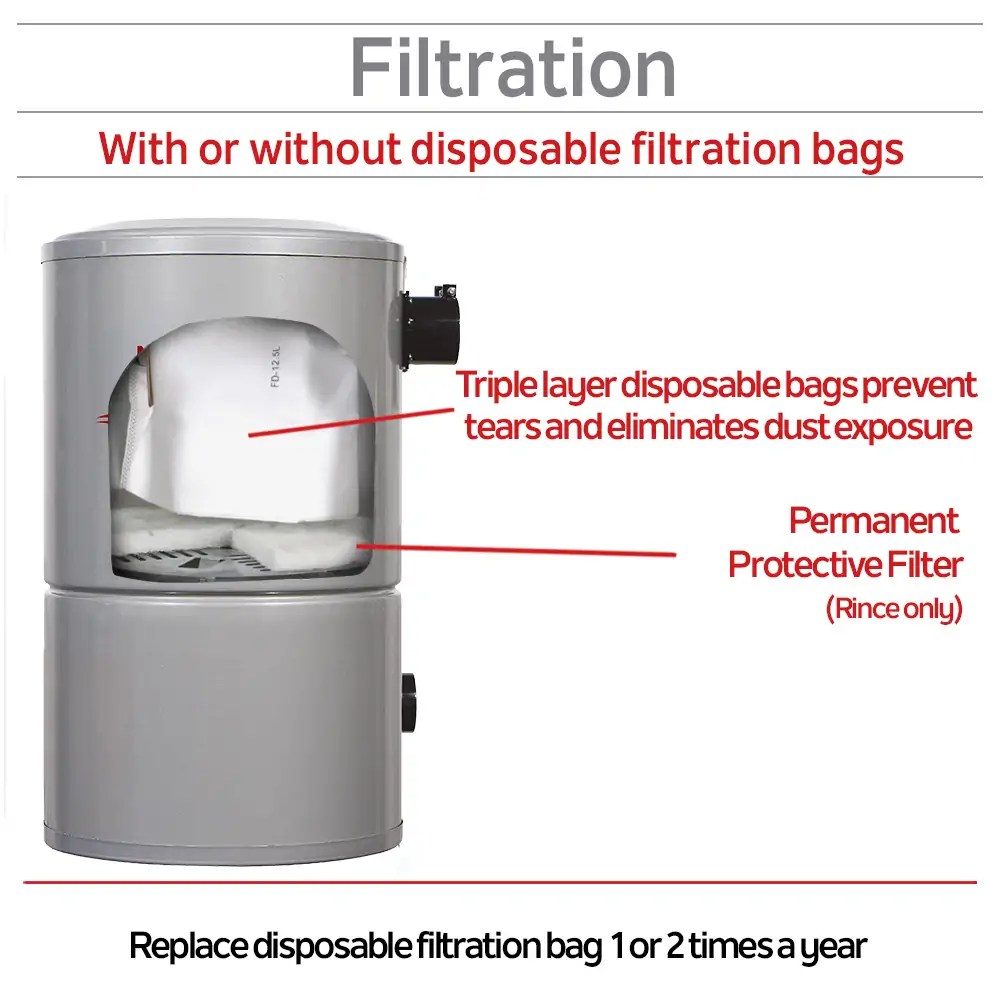

The ST-600-18B must be operated with a disposable bag and its permanent protective filter installed at all times. One triple-layer disposable bag and one permanent protective filter are included. This arrangement keeps collected debris in the bag and protects the motor, but it also means the unit is not intended for bagless operation.

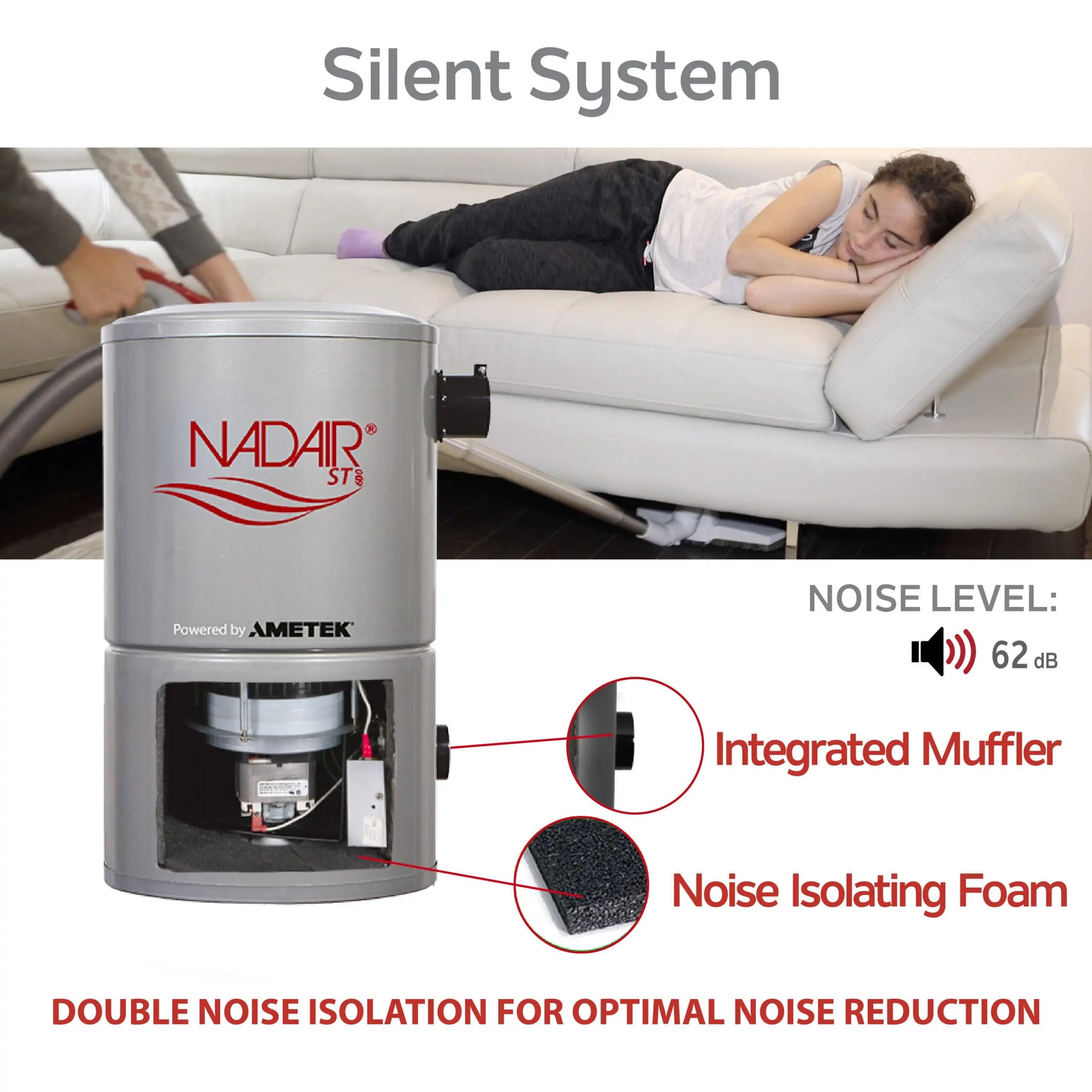

A 62 dB rating, noise-isolating foam, and an integrated muffler help reduce operating sound. The top-load 18 L canister is removable for service, and the compact dimensions are 11.42 inches deep by 19.48 inches high by 11.42 inches wide.

Expert Recommendation

This model suits homeowners who want a compact central vacuum power unit with straightforward bagged filtration. It is a practical fit for a narrow utility area, an existing standard piping network, or a household that prefers replacing a contained disposable bag instead of handling debris from a bagless canister.

The main tradeoff is the required bag-and-filter arrangement. If you want a larger canister or the option to operate with or without a bag, the Nadair ST-700-25H offers 700 airwatts, 141.2 inches of water lift, 140.2 CFM, and a 25 L canister with hybrid cyclonic filtration. If you need more capacity while keeping the same 700-airwatt specifications, the ST-700-35H has a 35 L canister.

The ST-600-18B is not a complete cleaning kit. The hose and attachment kit are sold separately and must match the home's inlets, including whether the installation uses low-voltage or electric hose control.

Best For

Tight Utility Spaces

Its compact 11.42-inch by 11.42-inch footprint and 19.48-inch height make it appropriate when the installation area is narrow, subject to the required clearance around the unit.

Bag-Preferring Households

The disposable triple-layer bag contains collected debris and is required along with the permanent protective filter, making the operating method clear and contained.

Existing Piping Networks

The side air intake is designed for easy connection to an existing piping network, and the unit fits standard 2-inch outside-diameter PVC piping.

Noise-Conscious Homes

The unit is rated at 62 dB and uses noise-isolating foam plus an integrated muffler to reduce operating sound.

Routine Residential Use

The ST-600-18B includes a 10-year residential warranty on specified parts, with 1 year of labor, when maintained according to the warranty requirements.

Not Ideal For

• It is not ideal for shoppers who specifically want bagless operation because a disposable bag and permanent protective filter are mandatory at all times.
• It may not suit households that want the larger 25 L or 35 L capacities available from the ST-700-25H and ST-700-35H.
• It is not a ready-to-use portable vacuum or complete central vacuum kit; the hose and cleaning attachments are sold separately.
• It requires proper installation, piping, low-voltage hose control wiring, and filter and bag maintenance.

Key Features

• 600 Airwatts: The motor provides 600 airwatts for central vacuum cleaning performance.
• Strong Suction: The unit produces 140.9 inches of water lift and 127.1 CFM airflow.
• Compact Housing: The 11.42-inch deep by 19.48-inch high by 11.42-inch wide body is designed for narrow spaces.
• Bag-Only Filtration: A disposable triple-layer bag and permanent protective filter must remain installed during operation.
• 18 L Canister: The top-load 18 L / 4.75 gal rolled steel canister is removable for emptying and service.
• Quieter Operation: Noise-isolating foam and an integrated muffler support the 62 dB noise rating.
• Side Air Intake: The side intake supports installation on an existing central vacuum piping network.
• LED Indicator: An LED indicator displays the status of the central vacuum power unit.
• Steel Canister: Rolled steel construction is resistant to wear, corrosion, and damage.

What Makes This Model Stand Out

The ST-600-18B combines a compact enclosure with 600 airwatts, 140.9 inches of water lift, and 127.1 CFM. That makes it a focused choice for homeowners who want a strong central vacuum power unit without moving to the larger canister sizes of other Nadair models.

Its filtration instructions are especially important: the disposable bag and FILP-SF-1 permanent protective filter are both required at all times. The filter is washable with cold water, but it must be replaced yearly to maintain the warranty, so buyers should plan for both bag replacement and filter care.

Product Comparisons

ST-600-18B vs ST-700-25H

The ST-600-18B has 600 airwatts, 140.9 inches of water lift, 127.1 CFM, a 62 dB rating, and an 18 L canister. The ST-700-25H increases output to 700 airwatts, 141.2 inches of water lift, and 140.2 CFM, has a 25 L canister, and uses hybrid cyclonic filtration that can operate with or without a bag.

ST-600-18B vs ST-700-35H

Both are in the compact ST Series, but the ST-700-35H provides a 35 L / 9.25 gal canister compared with the ST-600-18B's 18 L / 4.75 gal capacity. The ST-700-35H also has 700 airwatts, 141.2 inches of water lift, and 140.2 CFM, while the ST-600-18B is the smaller bag-only option.

Central Vacuum vs Portable Vacuum

A central vacuum power unit remains installed in a garage, basement, or other suitable utility location, so the homeowner does not carry the main machine from room to room. The exhaust can be vented outside when the installation allows, and cleaning is performed through a separately purchased hose and tool kit.

Bagged vs Hybrid Operation

The ST-600-18B is bag-only: its disposable bag and permanent protective filter must always be installed. A hybrid Nadair model such as the ST-700-25H can be used with or without a bag and uses hybrid cyclonic filtration, giving shoppers a different maintenance preference.

Questions Buyers Commonly Ask

Will this unit connect to my existing central vacuum piping?

The side air intake is designed for an existing piping network, and Nadair lists compatibility with standard 2-inch outside-diameter PVC piping. Have Ace Vacuums review the piping and inlet arrangement before installation.

Can I use the ST-600-18B without a bag?

No. This model must be used with a disposable bag and the FILP-SF-1 permanent protective filter at all times. It is not a bagless or hybrid-operating unit.

Does the unit include a hose and cleaning tools?

No hose or attachment kit is listed as included. The hose and tools are sold separately and must match the home's inlets and control type.

How quiet is this central vacuum power unit?

The stated noise level is 62 dB. Noise-isolating foam and an integrated muffler are included to support noise reduction.

How often should the bag and filter be serviced?

Nadair's manual recommends replacing the bag or emptying the canister three or four times per year. Wash the permanent filter with cold water whenever the canister is emptied, and replace the filter annually to maintain the warranty.

Technical Specifications

Installation Notes

• Install the unit indoors in a well-ventilated, weather-protected location away from heat. Do not install it outdoors.
• Leave at least 6 inches of clearance around all sides of the power unit.
• Have the unit installed by a certified central vacuum installer. The wall bracket is packed in the foam with the unit.
• The unit uses a standard 15 A breaker with 110-120 VAC, 60 Hz power. A dedicated circuit is recommended but not required.
• Do not use an extension cord or adapter. The unit has a 72-inch grounded power cord.
• Exhaust should not point at a wall or ceiling or discharge into a closed space; venting outdoors is recommended. The low-voltage wire needed for the hose on-off switch must be provided as part of the installation.

Maintenance Tips

• Replace the disposable bag three or four times per year, according to use and fill level. Replacement bags are sold in packs of three; Ace Vacuums can confirm the matching bag.
• Keep the FILP-SF-1 permanent protective filter installed at all times, including when a disposable bag is fitted.
• Wash the permanent filter with cold water each time the canister is emptied. Allow appropriate drying before service and follow the manufacturer's instructions.
• Replace the permanent protective filter every year to maintain the warranty requirements.
• Inspect the bag, filter, canister, and connections during routine service so airflow is not restricted by a full bag or improperly installed filter.

Ideal Buyers

Perfect for:

• Homeowners replacing a compact central vacuum power unit connected to an existing piping system
• Buyers who prefer a contained disposable-bag filtration system
• Households looking for 600 airwatts and 127.1 CFM in a narrow installation footprint
• Homeowners who value a 62 dB rating with foam isolation and an integrated muffler
• Residential customers prepared to maintain the permanent filter and replace the disposable bag

Why Buy from Ace Vacuums

When you purchase from Authorized Nadair Dealer Ace Vacuums, you receive:

• Genuine Nadair central vacuum power units
• Expert help sizing the right unit for your home and piping
• Guidance on matching hoses and attachment kits to your inlets
• Genuine Nadair replacement bags and filters
• Knowledgeable customer support before and after the sale

Available Online & In-Store

The Nadair ST-600-18B is available online and in-store through Authorized Nadair Dealer Ace Vacuums.

Visit Our Showrooms

• Fairfax, VA: 11110 Main St, Fairfax, VA 22030
• Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg). Both stores are open 7 days a week to compare central vacuum systems and talk with our specialists.

Comparison Table

Pros and Cons

Pros

• Compact dimensions suit narrow installation areas.
• 600 airwatts, 140.9 inches of water lift, and 127.1 CFM provide strong stated performance.
• 62 dB operation includes noise-isolating foam and an integrated muffler.
• Rolled steel canister resists wear, corrosion, and damage.
• The side air intake supports connection to existing standard central vacuum piping.
• The 10-year residential parts warranty provides long-term coverage when maintenance requirements are followed.

Cons

• A disposable bag and permanent protective filter are mandatory; bagless operation is not available.
• The hose and attachment kit are sold separately.
• Replacement bags are an ongoing cost, since this model always runs with a bag.
• Installation, bag replacement, and annual filter replacement are required for proper operation and warranty maintenance.

Frequently Asked Questions

What is the Nadair ST-600-18B?

It is a compact central vacuum power unit in Nadair's ST Series. It connects to central vacuum piping and provides 600 airwatts, 140.9 inches of water lift, and 127.1 CFM.

Is the ST-600-18B bagged or bagless?

It is a bag-only central vacuum unit. A disposable bag and the permanent protective filter must be installed at all times.

What filter does this model use?

It uses the FILP-SF-1 permanent protective filter along with a disposable triple-layer filtration bag. One protective filter and one bag are included.

Can the permanent filter be washed?

Yes. Nadair specifies washing the permanent filter with cold water whenever the canister is emptied. The filter should be replaced every year to maintain the warranty.

How often does the bag need to be replaced?

Nadair's manual recommends replacing the bag three or four times per year. Actual timing depends on use and how quickly the bag fills.

What is the canister capacity?

The top-load rolled steel canister holds 18 L, or 4.75 gallons. It is removable for emptying and service.

Will it work with standard existing piping?

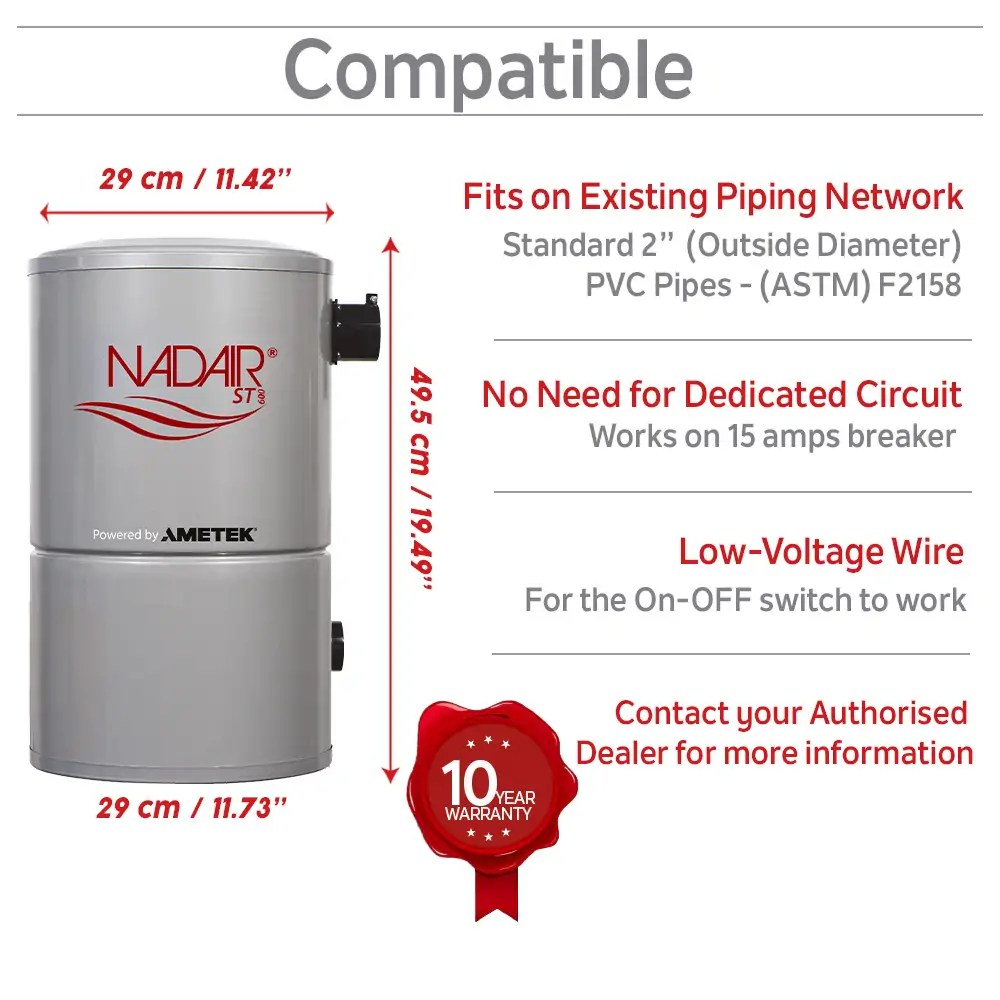

Nadair lists compatibility with standard 2-inch outside-diameter PVC piping (ASTM F2158). A professional should verify the home's piping and inlet connections before installation.

Does the side air intake matter during installation?

The side air intake is designed to make connection to an existing piping network easier. The installer should confirm the intake orientation and available space before mounting the unit.

Does this power unit include a hose?

No hose is listed as included. The hose and attachment kit are sold separately and must match the home's inlet and control type.

Does it need low-voltage wiring?

Low-voltage wire is needed for the hose on-off switch. The hose and accessory setup should be matched to the home's existing low-voltage or electric inlets.

What electrical supply does it use?

Nadair specifies 110-120 VAC, 60 Hz power on a 15 A circuit. A dedicated circuit is recommended but not required, and extension cords or adapters should not be used.

How long is the power cord?

The unit has a 72-inch grounded power cord. The installation should provide a suitable nearby outlet without relying on an extension cord.

How noisy is the Nadair ST-600-18B?

The stated noise level is 62 dB. Noise-isolating foam and an integrated muffler are used to reduce operating noise.

Where can this central vacuum power unit be installed?

Install it indoors in a well-ventilated, weather-protected location away from heat. It should not be installed outdoors and requires at least 6 inches of clearance around all sides.

Can the exhaust vent outdoors?

Outdoor venting is recommended when the installation allows it. Exhaust should not point at a wall or ceiling or discharge into a closed space.

What warranty comes with the unit?

The warranty is 10 years on the motor, electronic module, body, housing, and dust canister while you own the unit, with 1 year of labor. The warranty is for residential use and requires the specified filter maintenance.

How does it compare with the Nadair ST-700-25H?

The ST-700-25H has 700 airwatts, 140.2 CFM, and a 25 L canister, compared with 600 airwatts, 127.1 CFM, and 18 L for the ST-600-18B. The ST-700-25H also offers hybrid cyclonic filtration with or without a bag, while the ST-600-18B requires a bag.
