Nadair ST-700-25H Hybrid Central Vacuum Power Unit, 700 AW, 25L

Quick Summary

The Nadair ST-700-25H is a compact central vacuum power unit with 700 airwatts, 141.2 inches of water lift, and 140.2 CFM of airflow. Its 25 L bottom-load canister and hybrid filtration system let you operate it with a disposable bag or in bagless mode with the permanent washable filter installed.

Authorized Nadair Dealer Ace Vacuums can help you compare this whole-house vacuum with your existing piping and choose compatible hose and attachment options. The unit includes a 10-year residential warranty, with 1 year of labor coverage.

Quick Highlights

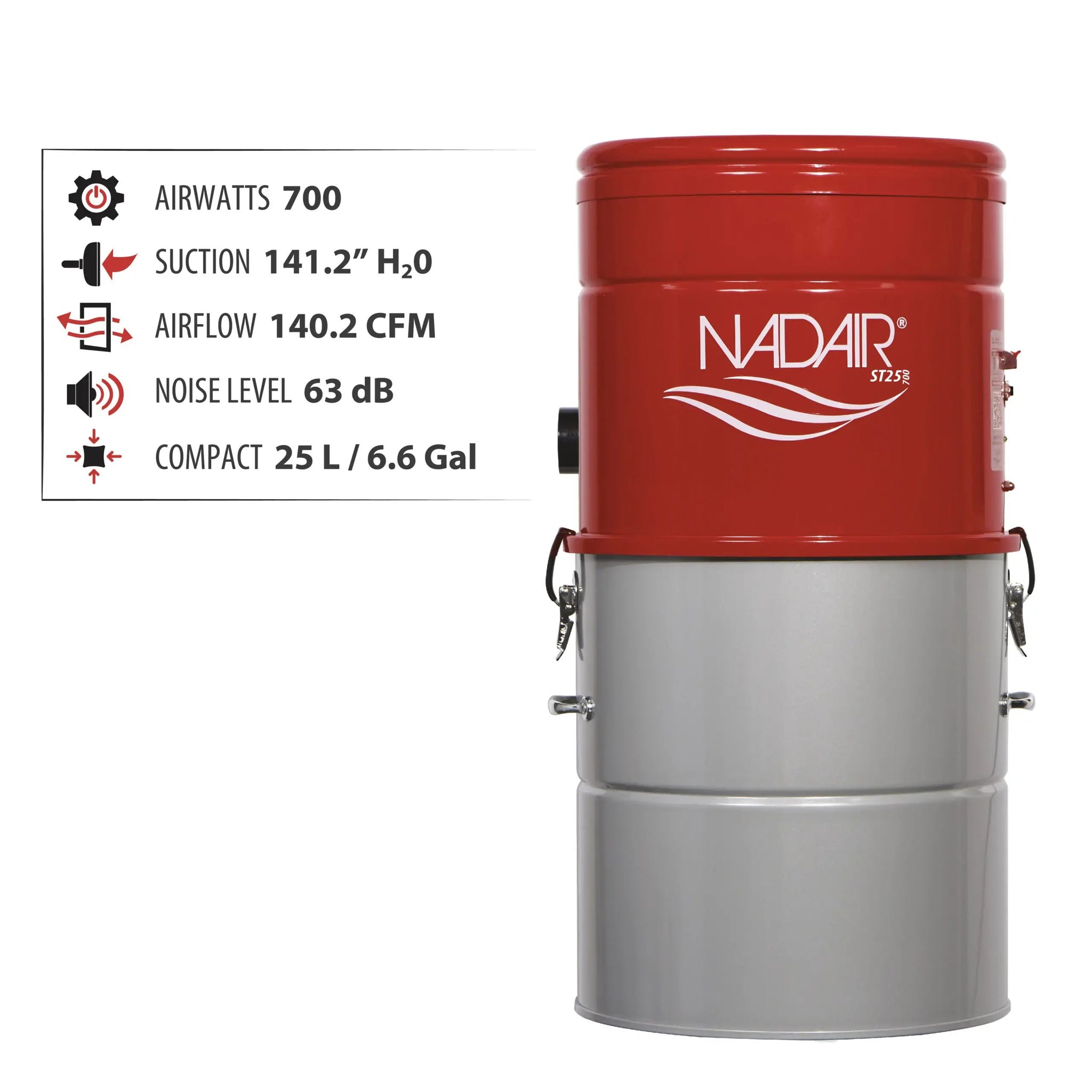

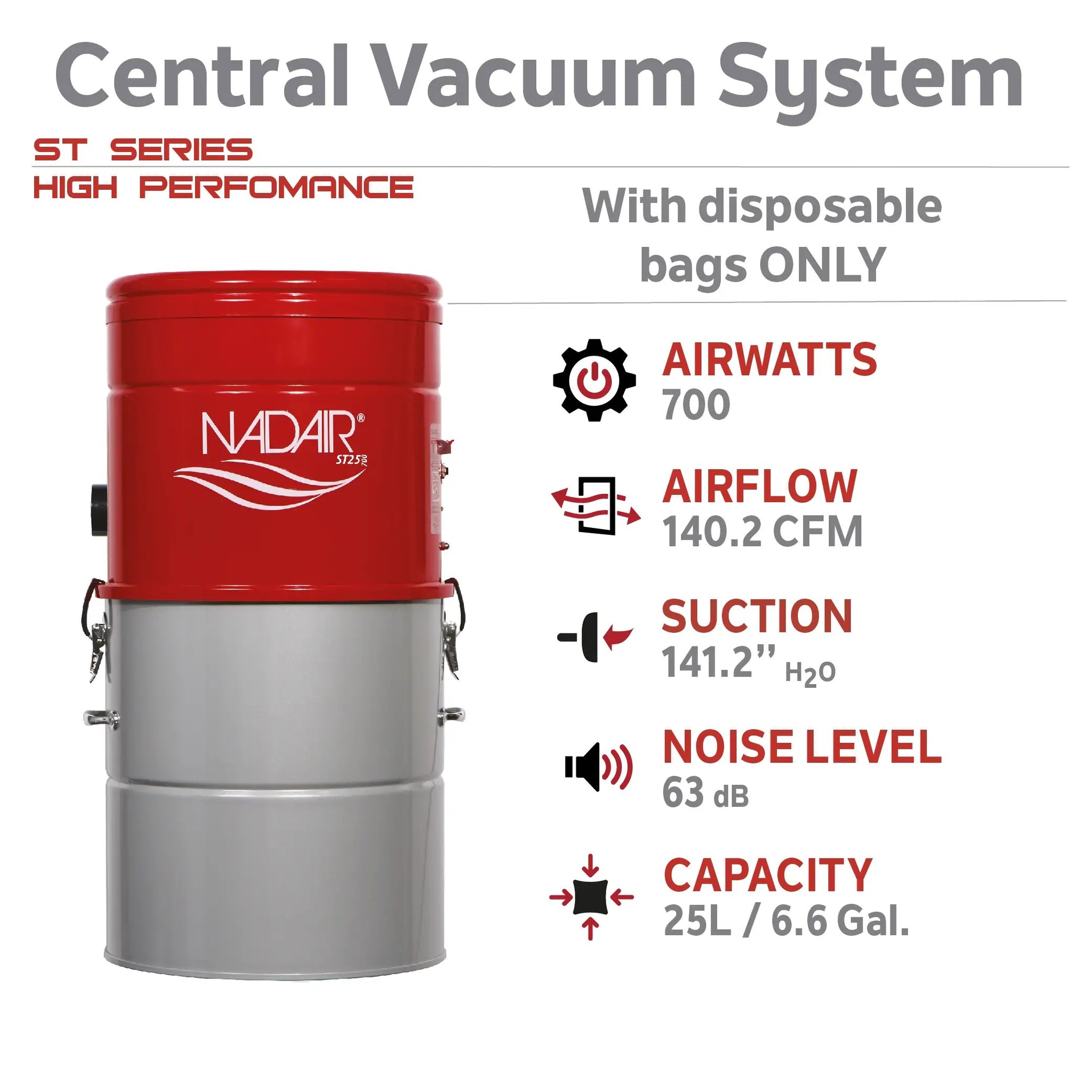

• 700 airwatts with a 5.7-inch, 2-stage Ametek thru-flow motor
• 141.2 inches of water lift and 140.2 CFM airflow
• 63 dB sound level with foam isolation and an integrated muffler
• 25 L / 6.6 gal bottom-load rolled steel canister
• 10-year residential parts warranty with 1 year of labor

Product Overview

The Nadair ST-700-25H is designed for homeowners who want a compact central vacuum system with strong airflow and flexible filtration. It connects to an existing central vacuum piping network and is operated through compatible hose inlets rather than carried from room to room like a portable vacuum.

Its 700-airwatt motor produces 141.2 inches of water lift and 140.2 CFM. That combination provides the power unit's stated suction and airflow performance, while the 63 dB operating level, noise-isolating foam, and integrated muffler help reduce sound at the machine.

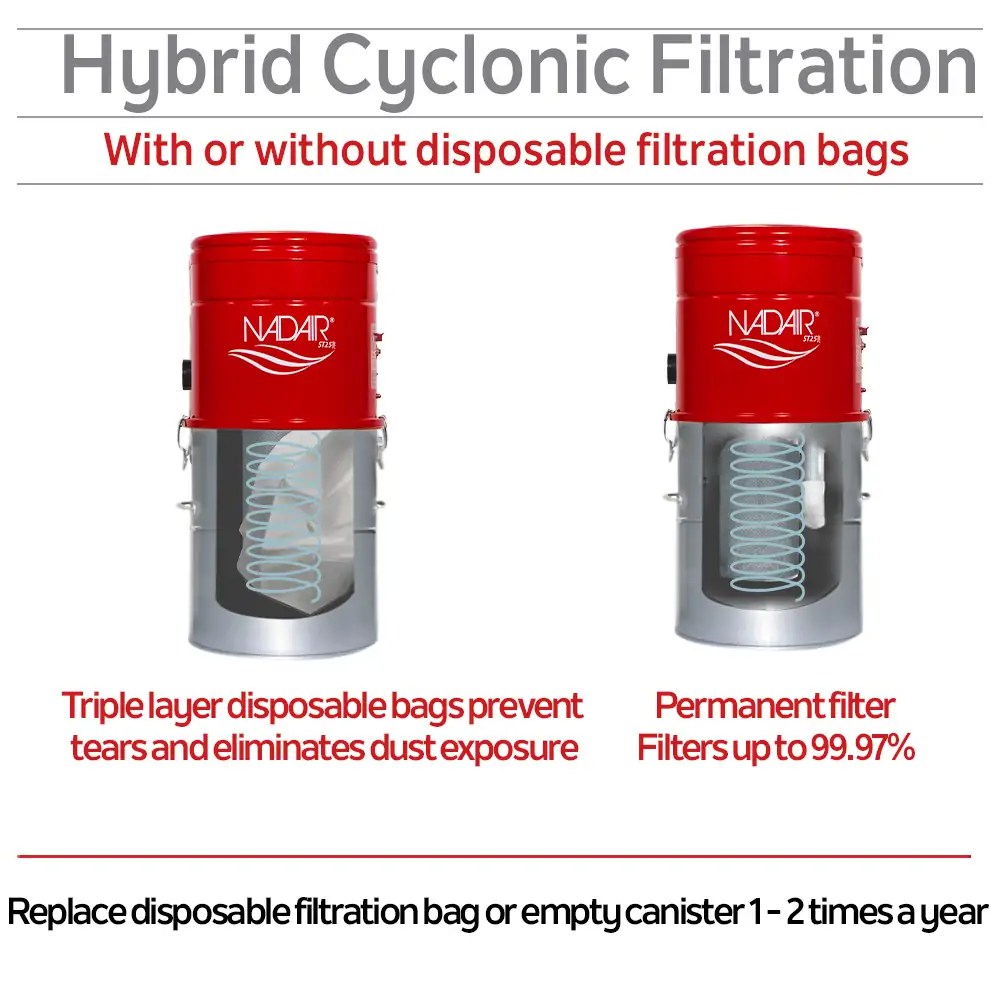

The hybrid cyclonic filtration system can be used with or without disposable filtration bags. One triple-layer disposable bag and one permanent machine-washable filter are included, and Nadair states that the filtration system filters up to 99.97%. The permanent filter must remain installed during operation, including when a bag is being used.

A bottom-load 25 L canister gives the ST-700-25H a practical balance between capacity and compact dimensions. The rolled steel canister is designed to resist wear, corrosion, and damage, while the top air intake helps simplify installation on an existing piping network.

Expert Recommendation

This model is a good fit when you want hybrid operation, a 25 L capacity, and the compact format of Nadair's ST Series. Bagged operation can make debris disposal more contained, while bagless operation avoids regular disposable-bag use; either method still requires the permanent filter to stay in place and receive the required care.

The ST-700-25H is not automatically the right choice for every home or piping layout. Ace Vacuums can help size the unit for the home and piping run, confirm that the existing system uses compatible 2-inch outside-diameter PVC piping, and identify a hose and attachment kit that matches the home's low-voltage or electric inlet configuration.

A sibling model may be preferable when priorities differ. The ST-700-35H provides the same listed motor performance, airflow, water lift, noise level, and hybrid filtration but increases capacity to 35 L / 9.25 gal. The less expensive ST-600-18B has an 18 L canister and is bag-only, while the HD-750 models add higher listed performance and soft start/stop.

Best For

Hybrid Filtration

A useful choice for homeowners who want the option of using a triple-layer disposable bag or operating bagless with the included permanent washable filter.

Compact Utility Areas

The compact ST Series format and top air intake can work well where an existing central vacuum piping network must be connected in a limited indoor utility space.

Contained Debris Disposal

Bagged operation offers a more contained way to remove collected debris, while the 25 L / 6.6 gal canister provides room for routine whole-house cleaning.

Filtration-Focused Homes

The hybrid cyclonic filtration system is stated to filter up to 99.97% and includes a triple-layer bag plus a permanent filter.

Quieter Utility Locations

The 63 dB rating, noise-isolating foam, and integrated muffler are intended to reduce operating noise at the power unit.

Existing Systems

The top air intake and compatibility with standard 2-inch outside-diameter PVC central vacuum piping support replacement or connection to an existing network.

Not Ideal For

• It is not a complete cleaning kit. The hose and attachments are sold separately and must match the home's inlet and wiring configuration.
• Homeowners who want the largest ST Series debris capacity may prefer the ST-700-35H, which has a 35 L canister compared with this model's 25 L capacity.
• This model is not bag-free by default: the permanent filter must remain installed at all times, and bagless operation still requires filter washing and maintenance.
• It needs an appropriate indoor installation location, compatible piping, low-voltage hose wiring, and a suitable electrical connection.

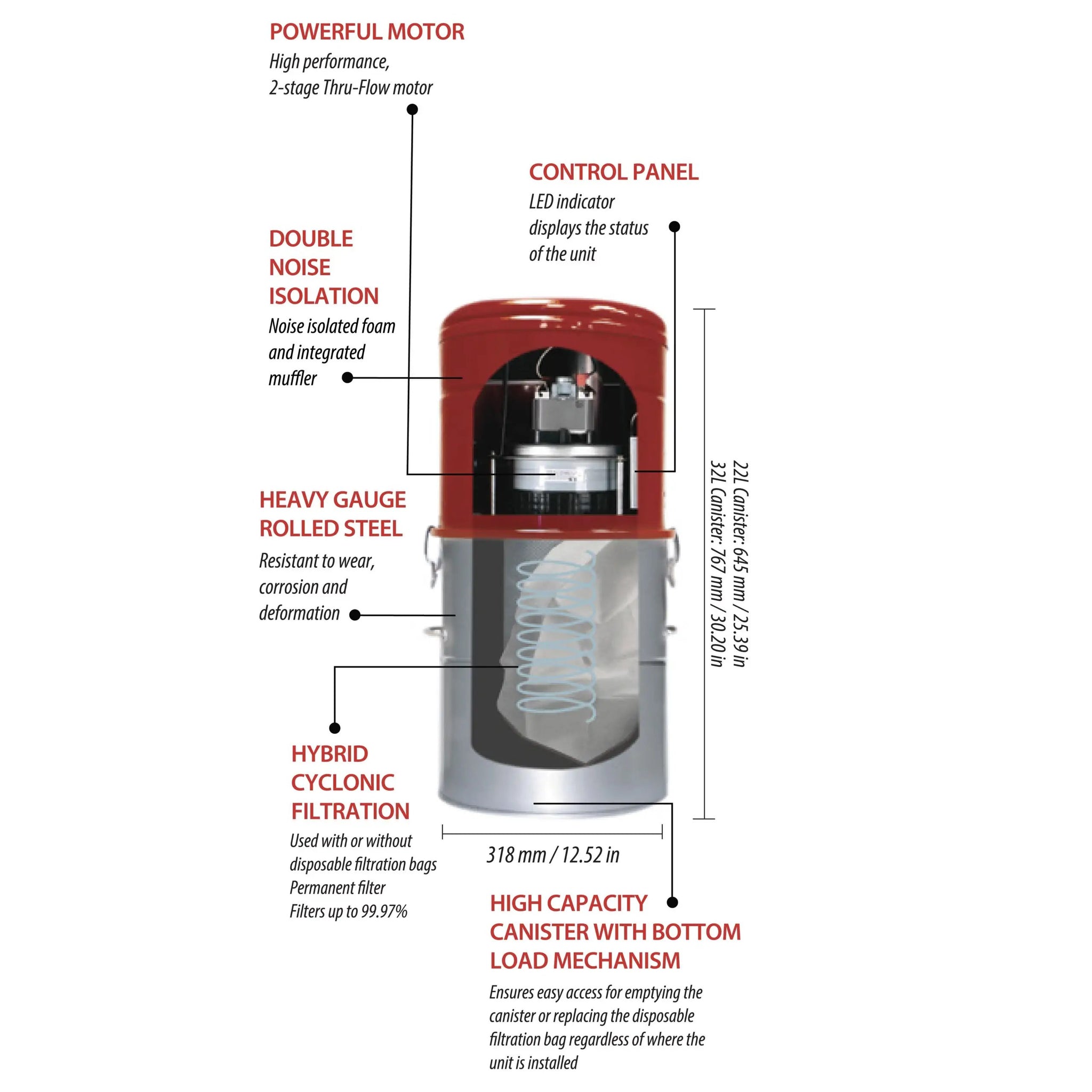

Key Features

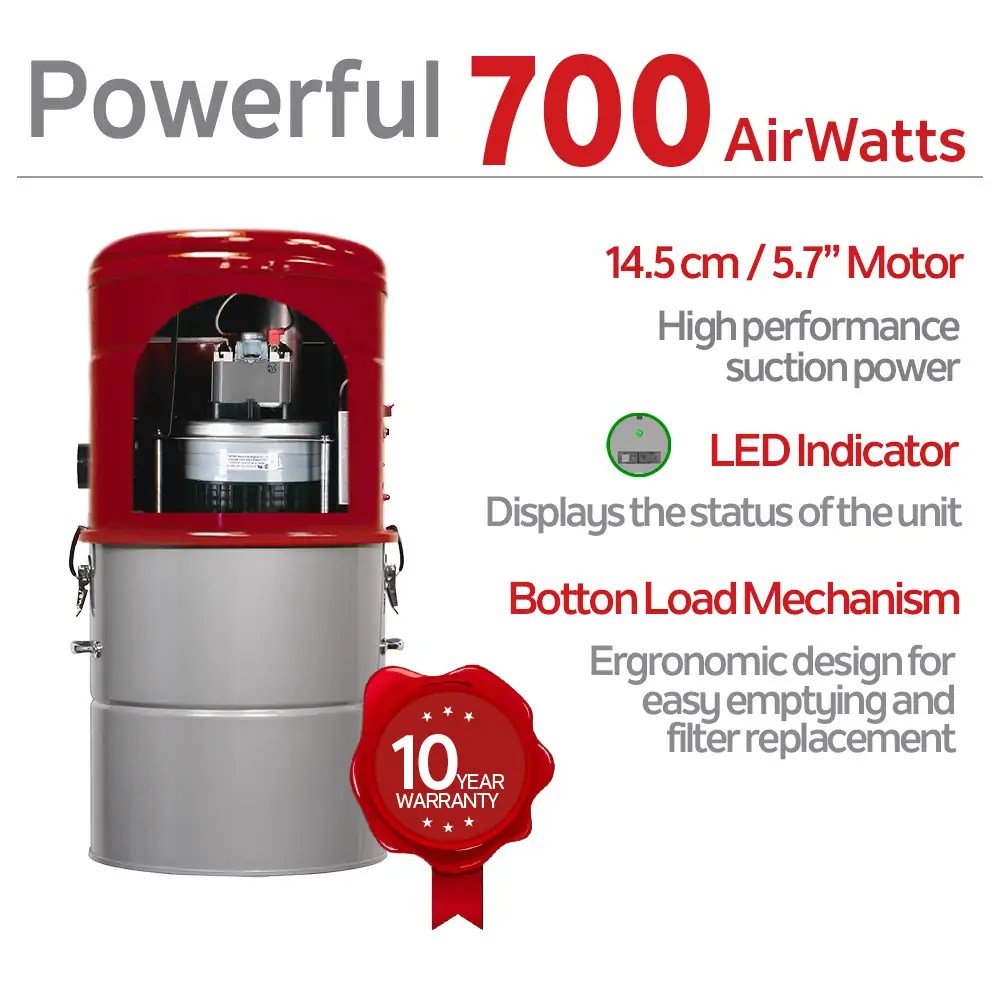

• 700 Airwatts: The 5.7-inch, 2-stage Ametek thru-flow motor is rated at 700 airwatts.
• Strong Airflow: The unit is rated at 141.2 inches of water lift and 140.2 CFM.
• Hybrid Filtration: Use the system with a disposable bag or in bagless mode with the permanent washable filter installed.
• 25 L Canister: The 6.6-gallon bottom-load canister provides a removable debris container for routine maintenance.
• Rolled Steel Body: The rolled steel canister is designed to resist wear, corrosion, and damage.
• Noise Isolation: Noise-isolating foam and an integrated muffler support the stated 63 dB sound level.
• Top Air Intake: The top intake is designed to make connection to an existing piping network easier.
• LED Indicator: An LED indicator displays the status of the power unit.
• Long Warranty: The residential warranty provides 10 years of parts coverage on specified components and 1 year of labor.

What Makes This Model Stand Out

The main advantage of the ST-700-25H is its balance of capacity, performance, and filtration flexibility. It has the same listed 700-airwatt motor performance as the larger ST-700-35H, but uses a 25 L canister in the more compact ST Series format.

The hybrid design also gives homeowners a choice in everyday maintenance. Use the included triple-layer bag when you prefer disposable containment, or operate bagless with the included permanent filter; in both cases, the permanent filter must stay installed and must be washed with cold water whenever the canister is emptied.

Product Comparisons

ST-700-25H vs ST-700-35H

Both models are rated at 700 airwatts, 141.2 inches of water lift, 140.2 CFM, and 63 dB, and both use hybrid filtration with or without a disposable bag. The ST-700-35H increases canister capacity from 25 L / 6.6 gal to 35 L / 9.25 gal, so it may be a better fit when less frequent emptying is more important than compact capacity.

ST-700-25H vs ST-600-18B

The ST-600-18B is a smaller 18 L / 4.75 gal bag-only unit with 600 airwatts, 140.9 inches of water lift, 127.1 CFM, and a 62 dB rating. The ST-700-25H offers higher listed airwatts and airflow, a larger canister, and the option of bagless operation.

ST-700-25H vs HD-750-22H

The HD-750-22H is rated at 750 airwatts, 146 inches of water lift, and 141.2 CFM, compared with 700 airwatts, 141.2 inches, and 140.2 CFM for the ST-700-25H. The HD model has a 22 L / 5.81 gal canister, a 65 dB rating, hybrid filtration, and soft start/stop, while the ST model has a 25 L / 6.6 gal canister and a 63 dB rating.

Central Vacuum vs Portable Vacuum

A central vacuum power unit stays in a garage, basement, or other suitable indoor utility location, so you do not carry the main machine from room to room. The system connects to inlets through installed piping, and its exhaust can be vented outdoors when the installation allows; the hose and cleaning tools are separate components.

Questions Buyers Commonly Ask

Can I use the ST-700-25H with my existing central vacuum piping?

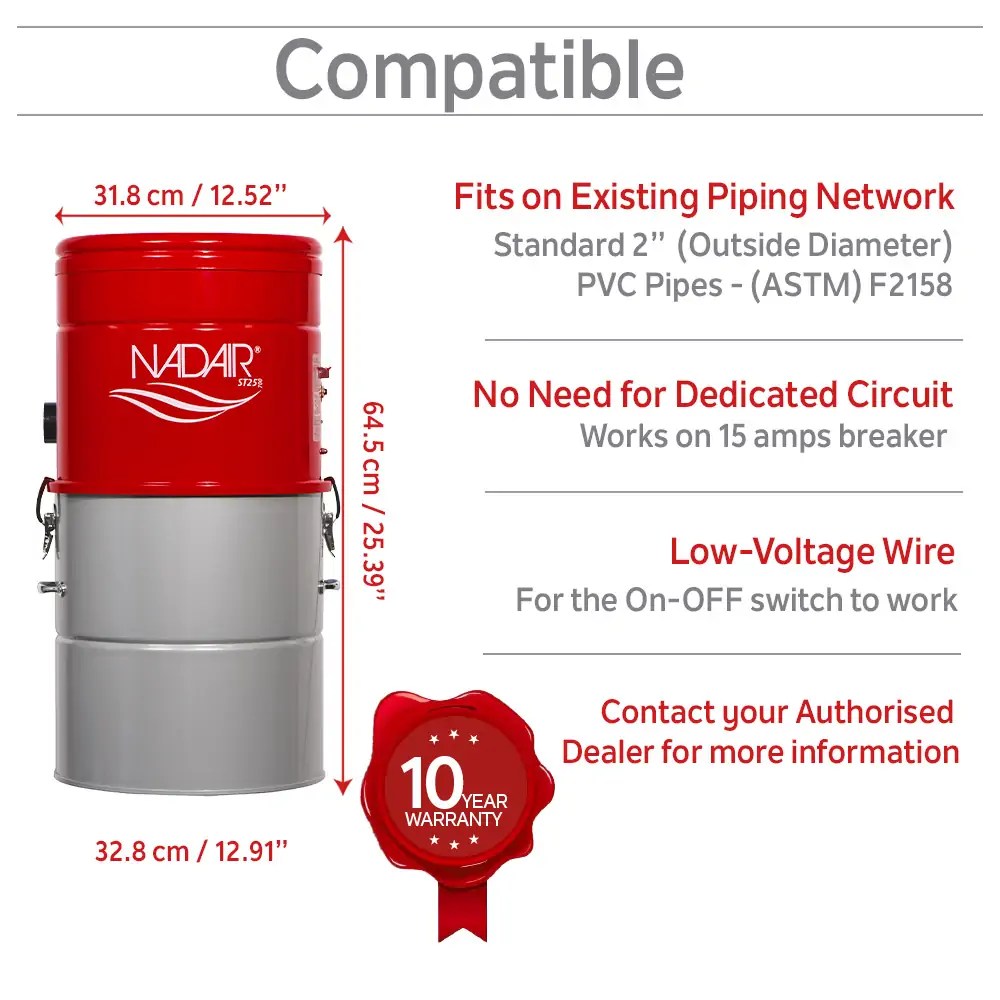

The unit is designed to fit existing standard 2-inch outside-diameter PVC central vacuum piping meeting ASTM F2158. Ace Vacuums can help verify the piping and evaluate the home's piping run before selecting the power unit.

Can I run it with or without a disposable bag?

Yes. The hybrid filtration system supports bagged or bagless operation, and one triple-layer disposable bag is included. The permanent filter must remain installed in either mode.

Is the permanent filter washable?

Yes. Nadair's manual instructs users to wash the permanent filter with cold water each time the canister is emptied. It should be replaced every year to maintain the warranty.

Does the package include a hose and attachments?

No hose or cleaning attachment kit is listed as included. These items are sold separately and must match the home's inlets, including whether the system uses low-voltage or electric hose operation.

How often should I empty the canister or replace the bag?

The manual advises replacing the bag or emptying the canister three or four times per year. Actual timing depends on use, and the permanent filter should be washed with cold water whenever the canister is emptied.

Technical Specifications

Installation Notes

• Have the unit installed by a certified central vacuum installer in a well-ventilated, weather-protected indoor location away from heat.
• Do not install the power unit outdoors. Leave at least 6 inches of clearance on all sides for ventilation and service access.
• The exhaust should not point toward a wall or ceiling or discharge into a closed space. Venting outdoors is recommended.
• The unit uses a 15 A, 110-120 VAC, 60 Hz circuit. Its own circuit is recommended but not required, and the manual prohibits extension cords and adapters.
• The included wall bracket is packed in the foam. The installation also requires low-voltage wire for the hose on-off switch.
• The unit is intended for standard 2-inch outside-diameter PVC central vacuum piping meeting ASTM F2158.

Maintenance Tips

• Replace the disposable bag or empty the canister three or four times per year, according to use.
• Keep the permanent filter installed at all times, including during bagged operation.
• Wash the permanent filter with cold water each time the canister is emptied.
• Replace the permanent filter every year to maintain the warranty. The replacement filter for this model is FP-8.
• Replacement bags are FD-12.5L-3NAD bags, sold in packs of three.

Ideal Buyers

Perfect for:

• Homeowners replacing or upgrading a central vacuum power unit connected to standard 2-inch outside-diameter PVC piping
• Buyers who want a compact unit with a 25 L / 6.6 gal canister
• Households that want a choice between disposable-bag and bagless operation
• Users who value a stated 63 dB sound level and built-in noise isolation
• Homeowners who want a long residential warranty and can follow the required filter maintenance schedule

Why Buy from Ace Vacuums

When you purchase from Authorized Nadair Dealer Ace Vacuums, you receive:

• Genuine Nadair central vacuum power units
• Expert help sizing the right unit for your home and piping
• Guidance on matching hoses and attachment kits to your inlets
• Genuine Nadair replacement bags and filters
• Knowledgeable customer support before and after the sale

Available Online & In-Store

The Nadair ST-700-25H is available online and in-store through Authorized Nadair Dealer Ace Vacuums.

Visit Our Showrooms

• Fairfax, VA: 11110 Main St, Fairfax, VA 22030
• Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg). Both stores are open 7 days a week to compare central vacuum systems and talk with our specialists.

Comparison Table

Pros and Cons

Pros

• 700 airwatts, 141.2 inches of water lift, and 140.2 CFM provide strong stated motor performance.
• Hybrid filtration allows bagged or bagless operation.
• The 25 L / 6.6 gal bottom-load canister offers useful capacity in a compact ST Series format.
• Noise-isolating foam and an integrated muffler support the 63 dB rating.
• Rolled steel construction is designed to resist wear, corrosion, and damage.
• Includes a 10-year residential parts warranty with 1 year of labor.

Cons

• The hose and attachment kit are sold separately.
• Installation requires compatible piping, low-voltage hose wiring, and an appropriate indoor location.
• Disposable bags are an additional ongoing supply when using bagged operation.
• The permanent filter requires regular cold-water washing and yearly replacement.

Frequently Asked Questions

What kind of central vacuum is the Nadair ST-700-25H?

It is a central vacuum power unit in Nadair's ST Series (Compact). It connects to an installed piping network and uses compatible hoses and inlets to clean throughout the home.

How powerful is the ST-700-25H?

The unit is rated at 700 airwatts, with 141.2 inches of water lift and 140.2 CFM of airflow. Its motor is a 5.7-inch, 2-stage Ametek thru-flow design.

What does hybrid filtration mean on this model?

Hybrid filtration means you can use the power unit with a disposable bag or operate it bagless. The permanent filter must remain installed in both configurations.

What bag does this unit use?

The specified replacement bag is the FD-12.5L-3NAD triple-layer bag. One bag is included, and replacement bags are sold in packs of three.

What replacement filter does it use?

The specified replacement filter is the FP-8 permanent filter. It is washable with cold water and should be replaced every year to maintain the warranty.

Can I operate the ST-700-25H without a bag?

Yes. The system supports bagless operation when the permanent filter is installed. The filter must stay in place at all times, and bagless operation still requires regular canister emptying and filter washing.

How often should I clean the permanent filter?

Wash it with cold water every time the canister is emptied. Nadair's manual also says to replace it every year to keep the warranty.

What is the noise level?

The stated noise level is 63 dB. The unit also uses noise-isolating foam and an integrated muffler for additional noise reduction.

Will this power unit fit standard existing piping?

It is designed for standard 2-inch outside-diameter PVC central vacuum piping meeting ASTM F2158. Existing installations should still be checked before purchase and installation.

Does the ST-700-25H include a hose?

No hose or cleaning tool kit is listed as included. The hose and attachments are sold separately and must match the home's inlet type, including low-voltage or electric compatibility.

What electrical connection does it need?

The manual specifies a 15 A, 110-120 VAC, 60 Hz circuit. An own circuit is recommended but not required; do not use an extension cord or adapter.

Can the unit be installed outside?

No. The manual says to install it indoors in a well-ventilated, weather-protected location away from heat. At least 6 inches of clearance should be left around the unit.

Can the exhaust be vented outdoors?

Outdoor venting is recommended when the installation permits it. The exhaust should not point at a wall or ceiling or discharge into a closed space.

How often should I empty the canister?

Nadair advises emptying the canister or replacing the bag three or four times per year. The actual schedule depends on how much the system is used.

What is the canister capacity?

The bottom-load rolled steel canister holds 25 L, or 6.6 gallons. Its removable design is intended to make emptying easier wherever the unit is installed.

What warranty comes with this central vacuum power unit?

The residential warranty lasts 10 years for parts on the motor, electronic module, body, housing, and dust canister, with 1 year of labor. The warranty is for residential use only, and the filter replacement schedule must be followed to maintain it.

Can Ace Vacuums help determine whether this model fits my home?

Yes. Ace Vacuums can help size the unit for the home and piping run, verify piping compatibility, and identify a hose and attachment kit that matches the home's inlet and wiring configuration.
