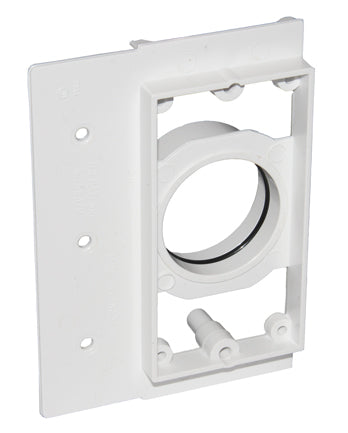

Vaculine 3-in-1 PVC Mounting Bracket for MD Central Vacuum – Part# 517
- Product SKU: 517
- Category: Central Vacuum Parts & Accessories, MD Central Vacuum Attachment Kit
- Order within
Quick Summary
This 3-in-1 PVC mounting bracket is used with rectangle-shaped basic inlet valve covers. It can be installed in new construction or adapted for existing home installation.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Fits rectangle-shaped basic inlet valve covers
- For new construction or existing home installation
- Mounts by nailing or screwing into a stud
- Can be trimmed for retrofit drywall installation
- Helps provide a firm hold for the inlet cover
- Part number 517
Product Overview
This mounting bracket is a popular choice for rectangle-shaped basic inlet valve covers. In new construction, it installs by nailing or screwing into a stud.
For existing home installation, the plastic stud mounting side can be cut off and the bracket set into a 2-3/8" x 4-1/4" hole cut into drywall or similar wall material. The inlet cover, with attached low voltage wire, fastens to the backing plate for a firm, long-lasting hold.
When piping, connect a fitting such as a tight 90 or coupling to the flange on the back side of the mounting bracket. For existing installation, it can be helpful to glue the fitting on before mounting it with the vacuum plate to the wall.
Key Features
- Rectangle inlet cover fit: Designed for use with rectangle-shaped basic inlet valve covers.
- New construction installation: Can be installed during new construction by nailing or screwing it into a stud.
- Existing home retrofit: Can be adapted for existing installations by cutting off the plastic stud mounting side.
- Drywall opening guidance: For existing installation, it fits into a 2-3/8" x 4-1/4" hole cut into drywall or similar wall material.
- Firm inlet support: The inlet cover fastens to the backing plate for a long-lasting, firm hold.
- Rear flange connection: A fitting such as a tight 90 or coupling connects to the flange on the back side of the bracket.
MD Compatibility
This product is listed for MD (Modern Day) central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Vaculine |
| Part number | 517 |
| Product type | 3-in-1 PVC mounting bracket |
| Installation use | New construction or existing home installation |
| Wall opening for existing installation | 2-3/8" x 4-1/4" |
| Compatibility | AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore and Eureka |
| Fits | Rectangle-shaped basic inlet valve covers |
| Authorized Dealer | Ace Vacuums |
Best For
- Installing rectangle-shaped basic inlet valve covers
- New construction central vacuum rough-in work
- Retrofitting an inlet in an existing wall
- Securing an inlet cover with low voltage wire
Not Ideal For
- Round inlet valve covers
- Shoppers who have not confirmed their inlet style
- Installations needing fittings that are not included
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Vaculine 3-in-1 PVC Mounting Bracket for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
This 3-in-1 PVC mounting bracket is used with rectangle-shaped basic inlet valve covers. It can be installed in new construction or adapted for existing home installation.
Available from Ace Vacuums, with help matching parts to your MD central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- Fits rectangle-shaped basic inlet valve covers
- For new construction or existing home installation
- Mounts by nailing or screwing into a stud
- Can be trimmed for retrofit drywall installation
- Helps provide a firm hold for the inlet cover
- Part number 517
Product Overview
This mounting bracket is a popular choice for rectangle-shaped basic inlet valve covers. In new construction, it installs by nailing or screwing into a stud.
For existing home installation, the plastic stud mounting side can be cut off and the bracket set into a 2-3/8" x 4-1/4" hole cut into drywall or similar wall material. The inlet cover, with attached low voltage wire, fastens to the backing plate for a firm, long-lasting hold.
When piping, connect a fitting such as a tight 90 or coupling to the flange on the back side of the mounting bracket. For existing installation, it can be helpful to glue the fitting on before mounting it with the vacuum plate to the wall.
Key Features
- Rectangle inlet cover fit: Designed for use with rectangle-shaped basic inlet valve covers.
- New construction installation: Can be installed during new construction by nailing or screwing it into a stud.
- Existing home retrofit: Can be adapted for existing installations by cutting off the plastic stud mounting side.
- Drywall opening guidance: For existing installation, it fits into a 2-3/8" x 4-1/4" hole cut into drywall or similar wall material.
- Firm inlet support: The inlet cover fastens to the backing plate for a long-lasting, firm hold.
- Rear flange connection: A fitting such as a tight 90 or coupling connects to the flange on the back side of the bracket.
MD Compatibility
This product is listed for MD (Modern Day) central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Vaculine |
| Part number | 517 |
| Product type | 3-in-1 PVC mounting bracket |
| Installation use | New construction or existing home installation |
| Wall opening for existing installation | 2-3/8" x 4-1/4" |
| Compatibility | AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore and Eureka |
| Fits | Rectangle-shaped basic inlet valve covers |
| Authorized Dealer | Ace Vacuums |
Best For
- Installing rectangle-shaped basic inlet valve covers
- New construction central vacuum rough-in work
- Retrofitting an inlet in an existing wall
- Securing an inlet cover with low voltage wire
Not Ideal For
- Round inlet valve covers
- Shoppers who have not confirmed their inlet style
- Installations needing fittings that are not included
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your MD system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Vaculine 3-in-1 PVC Mounting Bracket for MD Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What is this bracket used for?
It is used to mount rectangle-shaped basic inlet valve covers.
Can this be used in new construction?
Yes. For new construction, it can be nailed or screwed into a stud.
Can this be used in an existing home installation?
Yes. For existing installation, the plastic stud mounting side can be cut off and the bracket set into a 2-3/8" x 4-1/4" hole cut into drywall or similar wall material.
What kind of fitting connects to the back of the bracket?
The description says to connect a fitting such as a tight 90 or coupling to the flange on the back side of the mounting bracket.
Should the fitting be glued on before mounting in an existing installation?
For existing installation, it can be helpful to glue the fitting on before mounting it with the vacuum plate to the wall.
Is this compatible with MD central vacuum systems?
This part is sold on Parts for Modern Day pages for MD central vacuum use, and the compatibility note also lists Modern Day along with several other brands. Because fit depends on the inlet type, confirm that you have a rectangle-shaped basic inlet valve cover before ordering.
Which other brands are listed in the compatibility note?
The compatibility note lists AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore and Eureka.
