Vaculine Oval Door Basic Central Vacuum Inlet for Beam Central Vacuum

Vaculine Oval Door Basic Central Vacuum Inlet for Beam Central Vacuum

Available: In Stock
$9.80
Color
Almond
White
  • Order within

Quick Summary

Replace a worn or leaking oval central vacuum inlet with this basic low-voltage wall inlet. It has a smooth finish, installs with the door opening up or down, and is available in almond or white.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

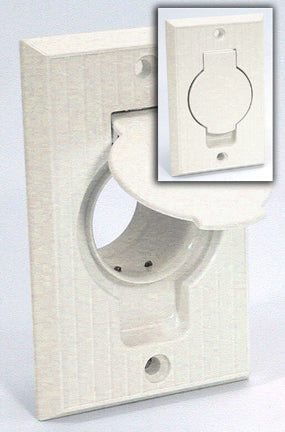

  • Basic oval door central vacuum inlet
  • Low-voltage connections only
  • Smooth modern finish
  • Installs with door opening up or down
  • Available in almond and white
  • Replaces Hayden MFG 1500 and may have model HM-1500

Product Overview

This oval basic inlet is designed to refresh the appearance of a central vacuum wall connection and help stop air leaks. Its smooth finish replaces the older vertical-line finish found on many existing inlets.

The inlet uses two low-voltage screws on the back and two slightly protruding metal contact points inside the opening. It fits systems from brands including Beam, AirMaster, Modern Day, SilentMaster, Flo-Master, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka.

A trim cover is available during checkout for covering wall marks around the existing inlet. Confirm that your system uses a low-voltage oval inlet before ordering.


Key Features

  • Low-voltage connection: The inlet connects to low-voltage wire with two screws on the back.
  • Oval door design: The basic oval door can be installed with the door opening upward or downward.
  • Smooth finish: The current inlet design has a smooth finish instead of the older vertical-line finish.
  • Replacement fit: It replaces Hayden MFG 1500 inlets and may be marked HM-1500.
  • Multiple color options: Choose almond or white to match the existing wall inlet.
  • Optional trim cover: A trim cover is available during checkout to cover marks left on the wall.

Beam Compatibility

This product is listed for Beam central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.

Available Options

Color Part Number
Almond 651HA
White 651HW

Technical Specifications

Specification Details
Brand Vaculine
Outer dimensions 3-1/8 in. by 4-7/8 in.
Connection type Low voltage
Low-voltage connections Two screws on the back and two metal contact points inside the opening
Replacement model Hayden MFG 1500; may have model HM-1500
Part numbers 651HA, 651HW, 651HI
Available colors Almond and white
Compatible brands listed AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka
Authorized Dealer Ace Vacuums

Best For

  • Replacing a basic oval central vacuum inlet
  • Low-voltage central vacuum systems
  • Refreshing an older inlet with a smooth-finish cover
  • Systems using a Hayden MFG 1500 or HM-1500 inlet

Not Ideal For

  • Systems with electric inlets or 110-volt connections
  • Installations requiring a different inlet shape without confirming fit
  • Covering large wall marks without the optional trim cover

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The Vaculine Oval Door Basic Central Vacuum Inlet for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Quick Summary

Replace a worn or leaking oval central vacuum inlet with this basic low-voltage wall inlet. It has a smooth finish, installs with the door opening up or down, and is available in almond or white.

Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.

Quick Highlights

  • Basic oval door central vacuum inlet
  • Low-voltage connections only
  • Smooth modern finish
  • Installs with door opening up or down
  • Available in almond and white
  • Replaces Hayden MFG 1500 and may have model HM-1500

Product Overview

This oval basic inlet is designed to refresh the appearance of a central vacuum wall connection and help stop air leaks. Its smooth finish replaces the older vertical-line finish found on many existing inlets.

The inlet uses two low-voltage screws on the back and two slightly protruding metal contact points inside the opening. It fits systems from brands including Beam, AirMaster, Modern Day, SilentMaster, Flo-Master, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka.

A trim cover is available during checkout for covering wall marks around the existing inlet. Confirm that your system uses a low-voltage oval inlet before ordering.


Key Features

  • Low-voltage connection: The inlet connects to low-voltage wire with two screws on the back.
  • Oval door design: The basic oval door can be installed with the door opening upward or downward.
  • Smooth finish: The current inlet design has a smooth finish instead of the older vertical-line finish.
  • Replacement fit: It replaces Hayden MFG 1500 inlets and may be marked HM-1500.
  • Multiple color options: Choose almond or white to match the existing wall inlet.
  • Optional trim cover: A trim cover is available during checkout to cover marks left on the wall.

Beam Compatibility

This product is listed for Beam central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.

Available Options

Color Part Number
Almond 651HA
White 651HW

Technical Specifications

Specification Details
Brand Vaculine
Outer dimensions 3-1/8 in. by 4-7/8 in.
Connection type Low voltage
Low-voltage connections Two screws on the back and two metal contact points inside the opening
Replacement model Hayden MFG 1500; may have model HM-1500
Part numbers 651HA, 651HW, 651HI
Available colors Almond and white
Compatible brands listed AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka
Authorized Dealer Ace Vacuums

Best For

  • Replacing a basic oval central vacuum inlet
  • Low-voltage central vacuum systems
  • Refreshing an older inlet with a smooth-finish cover
  • Systems using a Hayden MFG 1500 or HM-1500 inlet

Not Ideal For

  • Systems with electric inlets or 110-volt connections
  • Installations requiring a different inlet shape without confirming fit
  • Covering large wall marks without the optional trim cover

Why Buy from Ace Vacuums

When you purchase from Ace Vacuums, you receive:

  • Central vacuum parts matched to your Beam system
  • Help choosing the right hose, tools and inlet parts
  • Knowledgeable support before and after the sale
  • Shipping or pickup at our Fairfax and Leesburg showrooms

Available Online & In-Store

The Vaculine Oval Door Basic Central Vacuum Inlet for Beam Central Vacuum is available online and in-store through Ace Vacuums.

Visit Our Showrooms

  • Fairfax, VA: 11110 Main St, Fairfax, VA 22030
  • Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176

Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).


Frequently Asked Questions

Is this inlet compatible with Beam central vacuum systems?

Beam is one of the compatible brands listed for this inlet. Confirm your Beam model and verify that the existing inlet is an oval, low-voltage type before ordering.

Is this a low-voltage or electric inlet?

This is a low-voltage inlet with two screws on the back and two metal contact points inside the opening. It will not replace an electric 110-volt inlet.

What are the dimensions?

The outer dimensions are 3-1/8 inches by 4-7/8 inches.

Which colors are available?

This listing offers almond and white. The ivory-colored valve is no longer available.

Can the door open upward or downward?

Yes. The inlet can be installed with the door opening up or opening down.

What inlet does this replace?

It replaces Hayden MFG 1500 and may have model HM-1500. Listed part numbers include 651HA, 651HW, and 651HI.

Does it include a trim cover?

A trim cover is available during checkout and can help cover marks on the wall where the old inlet sat.

Can I use this on an electric inlet?

No. If the existing inlet has two female holes 3/8 inch apart on the face, it contains 110 volts and requires an electric valve instead.
