Vaculine SuperValve Inlet Cover Kit, Square Door for Beam Central Vacuum – Part# 662HW
- Product SKU: 662HW
- Category: Beam Central Vacuum Attachment Kit, Central Vacuum Parts & Accessories
- Order within
Quick Summary

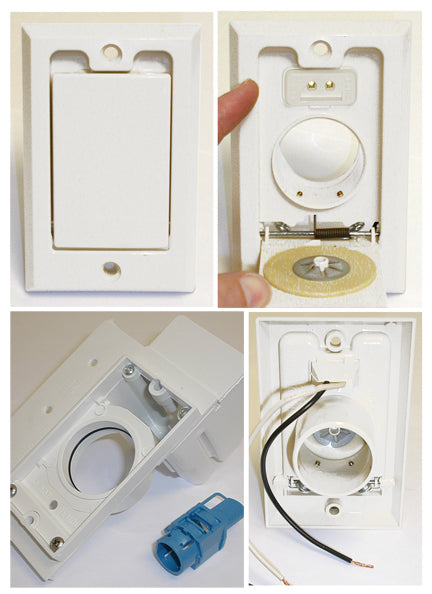

Square-door SuperValve inlet cover kit with a rough-in mounting plate, J-box, face plate, and screws. It is compatible with multiple central vacuum brands and is an exact replacement for wall inlet model LR61865.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- White square-door SuperValve inlet cover kit
- Includes rough-in mounting plate with J-box
- Includes face plate and screws
- Two screw connections for low-voltage wire
- High-voltage wire lead exits from the back
- Exact replacement for wall inlet model LR61865
Product Overview
This SuperValve inlet cover kit includes the rough-in mounting plate with J-box, face plate, and screws needed for installation. The face plate is not sold separately.
SuperValve styles and colors are interchangeable. The inlet is listed as compatible with AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka systems.
The back has two screw connections for low-voltage wire and a high-voltage wire lead for connection to the home's power. A trim plate is available separately.
Key Features
- Square-door design: Provides a replacement cover and inlet assembly for square-door SuperValve installations.
- Installation components: Includes the rough-in mounting plate with J-box, face plate, and screws.
- Electrical connections: The back has two screw connections for low-voltage wire and a high-voltage wire lead.
- Broad compatibility: Listed for use with AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka systems.
- Replacement fit: An exact replacement for wall inlet model LR61865.
- Trim plate option: A trim plate is available separately.
Beam Compatibility
This product is listed for Beam central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Vaculine |
| Color | White |
| Part number | 662HW |
| Outer dimensions | 3-1/8 in. by 4-7/8 in. |
| Inlet type | SuperValve, square door |
| Included components | Rough-in mounting plate with J-box, face plate, and screws |
| Low-voltage connection | Two screw connections on the back |
| High-voltage connection | Wire lead coming out the back |
| Replacement model | LR61865 |
| Manufacturer markings | HAYDEN MFG INLET VALVE ASSEMBLY #1750 SUPER-HOSE |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a square-door SuperValve inlet
- Wall inlet model LR61865 replacements
- Systems using compatible SuperValve styles
- Installations requiring low- and high-voltage connections
Not Ideal For
- Installations that need only a face plate, since the face plate is not sold separately
- Projects requiring a trim plate, which is available separately
- Inlets that do not match the listed SuperValve or LR61865 fit
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Vaculine SuperValve Inlet Cover Kit, Square Door for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Quick Summary
Square-door SuperValve inlet cover kit with a rough-in mounting plate, J-box, face plate, and screws. It is compatible with multiple central vacuum brands and is an exact replacement for wall inlet model LR61865.
Available from Ace Vacuums, with help matching parts to your Beam central vacuum system at our Fairfax and Leesburg, VA showrooms.
Quick Highlights
- White square-door SuperValve inlet cover kit
- Includes rough-in mounting plate with J-box
- Includes face plate and screws
- Two screw connections for low-voltage wire
- High-voltage wire lead exits from the back
- Exact replacement for wall inlet model LR61865
Product Overview
This SuperValve inlet cover kit includes the rough-in mounting plate with J-box, face plate, and screws needed for installation. The face plate is not sold separately.
SuperValve styles and colors are interchangeable. The inlet is listed as compatible with AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka systems.
The back has two screw connections for low-voltage wire and a high-voltage wire lead for connection to the home's power. A trim plate is available separately.
Key Features
- Square-door design: Provides a replacement cover and inlet assembly for square-door SuperValve installations.
- Installation components: Includes the rough-in mounting plate with J-box, face plate, and screws.
- Electrical connections: The back has two screw connections for low-voltage wire and a high-voltage wire lead.
- Broad compatibility: Listed for use with AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka systems.
- Replacement fit: An exact replacement for wall inlet model LR61865.
- Trim plate option: A trim plate is available separately.
Beam Compatibility
This product is listed for Beam central vacuum systems. Fit can depend on your hose, inlet type and system age, so confirm your setup before ordering or call Ace Vacuums for help.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Vaculine |
| Color | White |
| Part number | 662HW |
| Outer dimensions | 3-1/8 in. by 4-7/8 in. |
| Inlet type | SuperValve, square door |
| Included components | Rough-in mounting plate with J-box, face plate, and screws |
| Low-voltage connection | Two screw connections on the back |
| High-voltage connection | Wire lead coming out the back |
| Replacement model | LR61865 |
| Manufacturer markings | HAYDEN MFG INLET VALVE ASSEMBLY #1750 SUPER-HOSE |
| Authorized Dealer | Ace Vacuums |
Best For
- Replacing a square-door SuperValve inlet
- Wall inlet model LR61865 replacements
- Systems using compatible SuperValve styles
- Installations requiring low- and high-voltage connections
Not Ideal For
- Installations that need only a face plate, since the face plate is not sold separately
- Projects requiring a trim plate, which is available separately
- Inlets that do not match the listed SuperValve or LR61865 fit
Why Buy from Ace Vacuums
When you purchase from Ace Vacuums, you receive:
- Central vacuum parts matched to your Beam system
- Help choosing the right hose, tools and inlet parts
- Knowledgeable support before and after the sale
- Shipping or pickup at our Fairfax and Leesburg showrooms
Available Online & In-Store
The Vaculine SuperValve Inlet Cover Kit, Square Door for Beam Central Vacuum is available online and in-store through Ace Vacuums.
Visit Our Showrooms
- Fairfax, VA: 11110 Main St, Fairfax, VA 22030
- Leesburg, VA: 300 Fort Evans Rd NE, Leesburg, VA 20176
Call 703-997-9292 (ext. 1 Fairfax, ext. 2 Leesburg).
Frequently Asked Questions
What is included with this SuperValve inlet cover kit?
The kit includes a rough-in mounting plate with J-box, face plate, and screws.
What color is this kit?
This variant is white and has part number 662HW.
Does the kit include the face plate?
Yes. The face plate is included with the kit, but it is not sold separately.
What electrical connections are provided?
The back has two screw connections for low-voltage wire and a high-voltage wire lead for connection to the home's power.
Is a trim plate included?
A trim plate is available, but the record does not list it among the included components.
Which systems is this inlet compatible with?
It is listed as compatible with AirMaster, Modern Day, SilentMaster, Flo-Master, Beam, Nutone, Electrolux, Vacuflo, Kenmore, and Eureka systems.
Will this fit my Beam central vacuum system?
It is listed for Beam systems, but confirm your system's inlet type or model before ordering. It is an exact replacement for wall inlet model LR61865.
What are the outer dimensions?
The outer dimensions are 3-1/8 inches by 4-7/8 inches.
