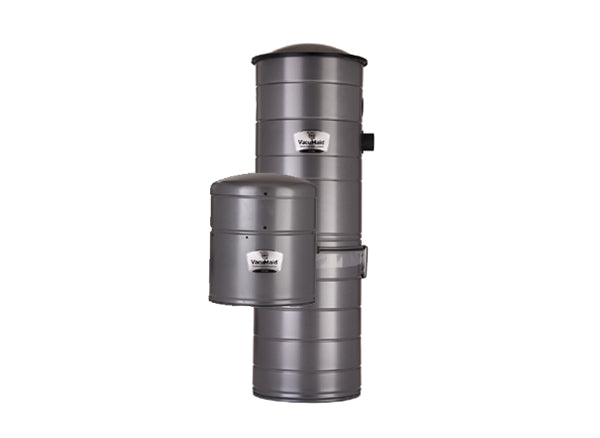

VacuMaid Split Canister Cyclonic with 5.7" 2-Stage By-Pass Motor #S1600
- Product SKU: S1600
- Category: CENTRAL VACUUM, VacuMaid Central Vacuum
- Order within
Quick Summary
The VacuMaid Split Canister Cyclonic with 5.7" 2-Stage By-Pass Motor #S1600 is a split cyclonic central vacuum power unit with a 5.7" 2-stage tangential by-pass motor, 440 air watts and a 27 qt dirt capacity. It is built for homes up to about 5,000 sq ft where you want the motor and dirt can mounted separately.
Available through Authorized VacuMaid Dealer Ace Vacuums. VacuMaid lists it as made in the USA.
Key Features
- 5.7" 2-stage tangential by-pass motor for strong, steady suction.
- 440 air watts, 111 CFM and 112" sealed vacuum for deep cleaning on carpets, rugs and hard floors.

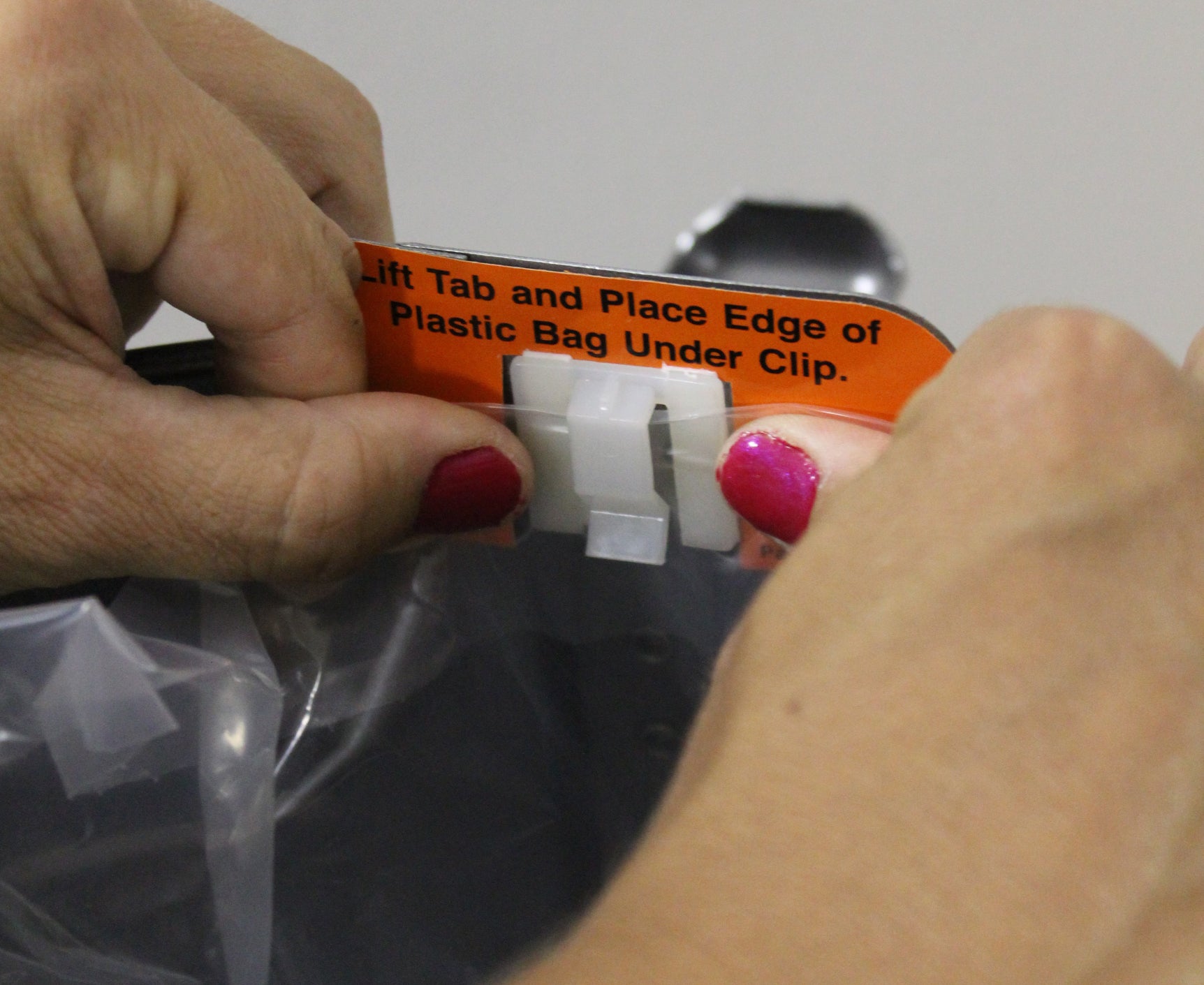

- Cyclonic filtration with AirChannel, which lets you use a can liner for mess-free emptying.
- 27 qt dirt capacity means less frequent emptying.

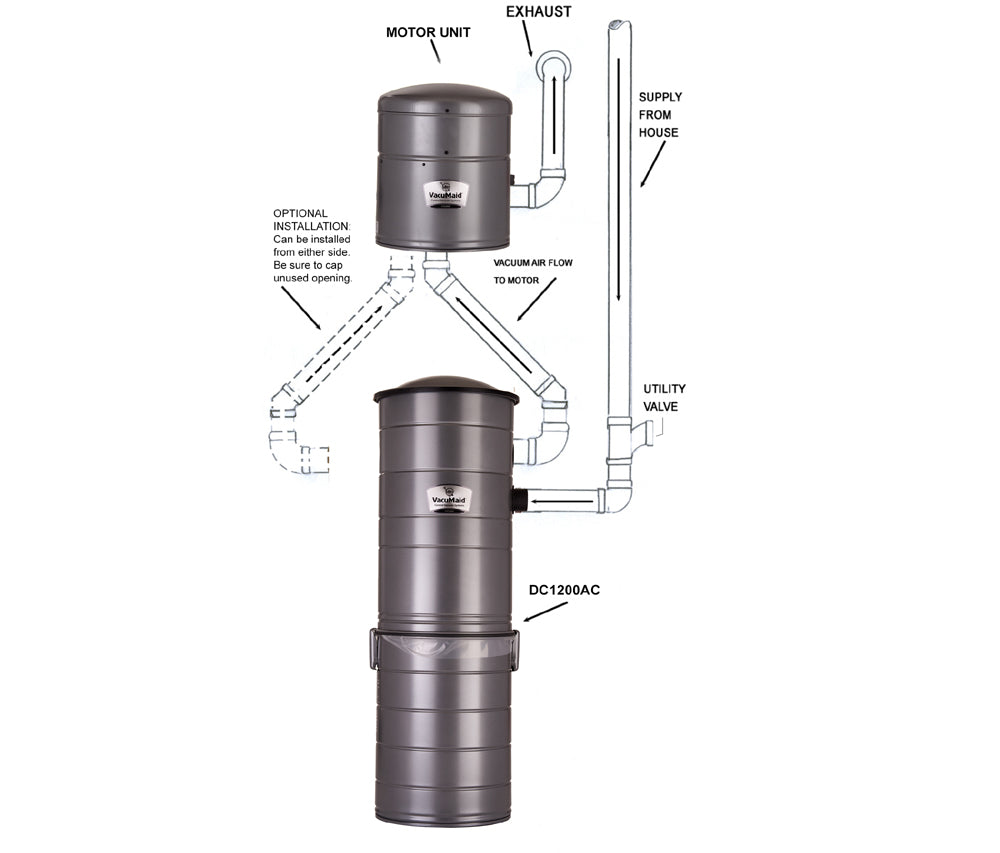

- Remote installation in a garage, basement or utility room keeps motor noise out of living spaces.
- Made in the USA by VacuMaid.
- Optional plastic can liners, part PB4MK.
- Rolled galvannealed steel, powder-coated, made in Ponca City, OK.
Specifications
| Motor | 5.7" 2-stage tangential by-pass motor |
| Voltage | 120 V |
| Max amps | 13.6 |
| Max air watts | 440 |
| Airflow | 111 CFM |
| Sealed vacuum (water lift) | 112" |
| Filtration | Cyclonic filtration with AirChannel, which lets you use a can liner for mess-free emptying |
| Dirt capacity | 27 qt |
| Sound rating (vented exhaust) | 61 dB |
| Coverage | Up to 5,000 sq ft |
| Dimensions | Power unit: diameter 13-5/8 in., height 12-1/2 in. Dirt can: diameter 14-1/8 in., height 39 in. |
| Warranty | 10-year limited lifetime |
| Made in | USA |
Frequently Asked Questions
What size home is the VacuMaid S1600 for?
VacuMaid rates it for homes up to about 5,000 sq ft where you want the motor and dirt can mounted separately.
What power does the S1600 need?
It runs on 120 V with a maximum draw of about 13.6 amps.
How is the dirt collected?
Cyclonic filtration with AirChannel, which lets you use a can liner for mess-free emptying.
How loud is it?
VacuMaid lists 61 dB with vented exhaust. The unit is mounted away from living areas, which keeps noise down while you clean.
What warranty does it have?
A 10-year limited lifetime warranty from VacuMaid.
Where can I buy it?
From Authorized VacuMaid Dealer Ace Vacuums, with showrooms in Fairfax and Leesburg, Virginia.
