VacuMaid Inverted Bag with Two 5.7" 2-Stage By-Pass Motors 240 Volt #SR64
- Product SKU: SR64
- Category: CENTRAL VACUUM, VacuMaid Central Vacuum
- Order within
Quick Summary
The VacuMaid Inverted Bag with Two 5.7" 2-Stage By-Pass Motors 240 Volt #SR64 is a inverted bag central vacuum power unit with a Two 5.7" 2-stage tangential by-pass motors, 1,040 air watts and a 38 qt dirt capacity. It is built for very large homes up to about 18,000 sq ft with a 240 V circuit.
Available through Authorized VacuMaid Dealer Ace Vacuums. VacuMaid lists it as made in the USA.
Key Features
- Two 5.7" 2-stage tangential by-pass motors for strong, steady suction.
- 1,040 air watts, 220 CFM and 123" sealed vacuum for deep cleaning on carpets, rugs and hard floors.
- Permanent inverted bag filtration.
- 38 qt dirt capacity means less frequent emptying.
- Remote installation in a garage, basement or utility room keeps motor noise out of living spaces.
- Made in the USA by VacuMaid.

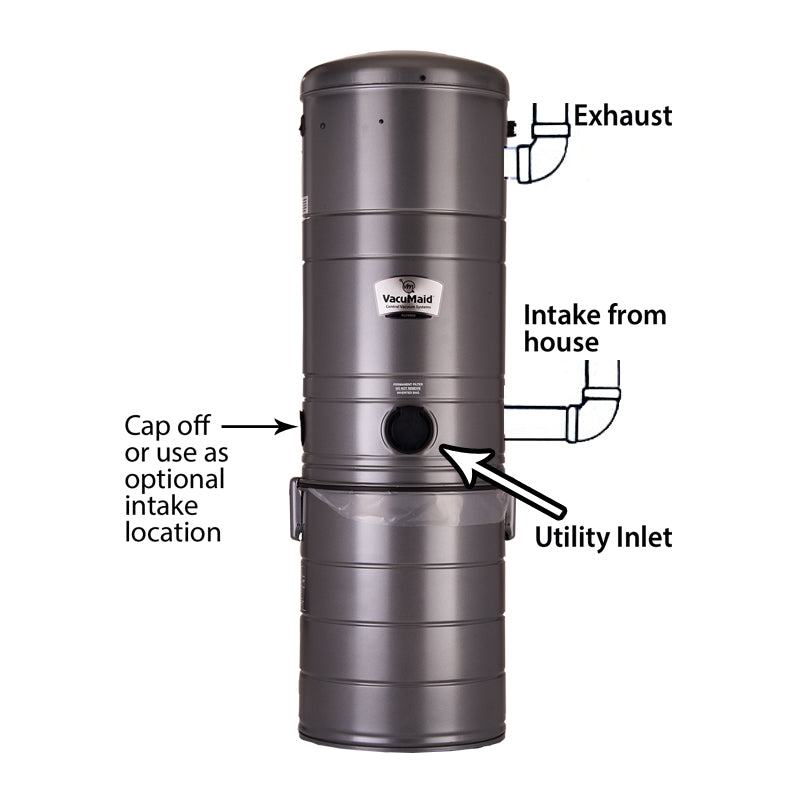

- Gemini installation: a special inlet stem lets you choose which side of the unit takes the intake.
- Utility valve on the front lets you plug a hose straight into the power unit.
- Quick and easy replacement for the Imperium CV3800.
Specifications
| Motor | Two 5.7" 2-stage tangential by-pass motors |
| Voltage | 240 V |
| Max amps | 13.0 |
| Max air watts | 1,040 |
| Airflow | 220 CFM |
| Sealed vacuum (water lift) | 123" |
| Filtration | Permanent inverted bag filtration |
| Dirt capacity | 38 qt |
| Sound rating (vented exhaust) | 74 dB |
| Coverage | Up to 18,000 sq ft |
| Dimensions | Diameter 16-1/8 in., height 42-3/8 in. |
| Warranty | 10-year limited lifetime |
| Made in | USA |
Frequently Asked Questions
What size home is the VacuMaid SR64 for?
VacuMaid rates it for very large homes up to about 18,000 sq ft with a 240 V circuit.
What power does the SR64 need?
It runs on 240 V with a maximum draw of about 13.0 amps. It needs a 240 V circuit, so plan this with your electrician.
How is the dirt collected?
Permanent inverted bag filtration.
How loud is it?
VacuMaid lists 74 dB with vented exhaust. The unit is mounted away from living areas, which keeps noise down while you clean.
What warranty does it have?
A 10-year limited lifetime warranty from VacuMaid.
Where can I buy it?
From Authorized VacuMaid Dealer Ace Vacuums, with showrooms in Fairfax and Leesburg, Virginia.
