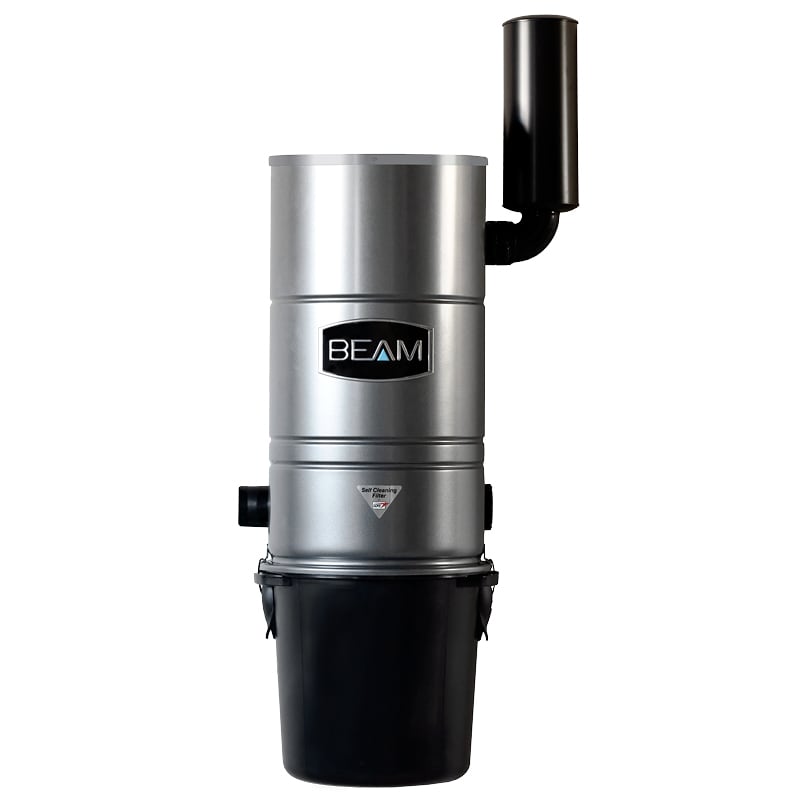

Beam 205 Hybrid Central Vacuum Power Unit | ABEAM205A
- Product SKU: ABEAM205A
- Category: Beam Central Vacuum, CENTRAL VACUUM, Central Vacuum Systems
- Order within
Compact 120 V • Hybrid Gore • 64 dBA • Model ABEAM205A
Compact central-vacuum power for apartments, condos, and small homes.
The BEAM 205 Hybrid delivers 610 AirWatts, 118 CFM, and 119.7 inches of water lift in a narrow power unit designed for spaces up to approximately 2,500 square feet. Choose disposable-bag convenience or bagless collection through the permanent Gore filter.
At a Glance
Quick Summary
Choose the BEAM 205 when a compact 120-volt central-vacuum power unit matches a straightforward apartment, condo, townhome, or small-house pipe network. It is BEAM's space-conscious Hybrid Gore option—not a large-home or commercial unit.
Published power-unit rating.
Published manufacturer sound figure.
Disposable bag or bagless Gore filtration.
4.7-in. thru-flow motor; 12.8 A maximum.
Power Unit, Filtration, and System Role
Product Overview
ABEAM205A is the motor-and-collection unit at the center of a built-in vacuum system. Its single 4.7-inch, one-stage thru-flow motor publishes 610 AirWatts, 118 CFM, and 119.7 inches of water lift while drawing up to 12.8 amps at 120 volts.
“Hybrid” describes collection—not motor technology. Owners may use a genuine disposable BEAM bag for contained disposal or remove the bag and collect debris in the receptacle while the permanent self-cleaning GORE filter remains installed. Bagless use still requires seasonal receptacle and filter care.
The unit connects to compatible wall piping, low-voltage control wire, inlets, and a separately selected hose-and-tool set. The power unit creates airflow and suction; the carpet nozzle, hard-floor brush, hose, and system design determine surface contact and pickup.
What's Included
| Item | Status | Buyer guidance |
|---|---|---|
| ABEAM205A power unit | Included | Compact 120 V motor-and-collection module. |
| Disposable collection bag | Factory-installed | Use the correct genuine three-notch BEAM replacement bag. |
| Permanent Gore filter | Built in | TDFILTGORE11 supports bagless conversion and remains installed. |
| Mounting/intake components | Verify live carton | Documentation shows a wall plate, coupling, clamps, intake cap, and alternate adapter. |
| Muffler or extra fittings | Verify live carton | Do not assume every service part shown in an exploded diagram is packed with the retail unit. |
| Hose, powerhead, and tools | Separate unless bundled | Choose attachments for carpet, hardwood, pets, stairs, and controls. |
| Inlets, PVC, wire, and labor | Separate | Required for a new system or substantial retrofit. |
Professional Buying Guidance
Expert Recommendation
Our experts recommend the BEAM 205 for a simple, appropriately sized pipe network where compact dimensions, a familiar 120-volt supply, quiet operation, and bagged-or-bagless flexibility matter more than large-home reserve.
Choose the BEAM 205
Your apartment, condo, townhome, or small house has compatible piping and stays within a professionally verified small-home design.
Consider the BEAM 345
Your house approaches 4,000 square feet or needs more airflow, a two-stage bypass motor, and a longer parts warranty.
Size beyond the 205
The network has long runs, many elbows, elevation changes, multiple retractable hoses, future expansion, or frequent heavy use.
For replacement work, diagnose the hose, pipe, inlet seals, low-voltage controls, bag/filter, and motor first. A clog or leak can imitate a weak power unit. Ace Vacuums evaluates the installed system in the home before recommending repair, replacement, or an upgrade.
Homes and Cleaning Priorities
Best For
Apartments, condos, and small homes
BEAM recommends the 205 for compact residences up to approximately 2,500 square feet.
Limited utility-wall space
The narrow body suits installations where a larger-diameter BEAM unit is impractical, subject to service clearances.
Pet owners
Pair it with an electric or turbine carpet head plus upholstery and hard-floor tools selected for pet debris.
Allergy-conscious households
Central piping moves contacted debris away from rooms; bagged disposal can reduce dust handling.
Hardwood, tile, LVP, and mixed floors
Use a non-marring floor brush and add a compatible powered nozzle for carpet.
Quiet living-area cleaning
The published 64 dBA figure and remote placement can reduce noise beside the cleaner.
Simple replacement projects
Dual intake options can help align with existing piping after dimensions, controls, voltage, and airflow needs are checked.
Flexible maintenance preferences
Choose sealed bag disposal or accept the hands-on cleaning required in bagless mode.
Balanced Buying Advice
Not Ideal For
- Large luxury homes or expansive estates: The official recommendation is approximately 2,500 square feet.
- Long, restrictive networks: Extended pipe, numerous bends, elevation, and leakage may justify a larger model.
- Automatic retractable-hose assumptions: A long Hide-A-Hose or Retraflex route adds resistance and requires sizing.
- Heavy commercial use: BEAM publishes separate 90-day commercial warranty terms.
- Wet or construction pickup: It is for ordinary dry household debris—not liquid, hot ash, or drywall dust.
- Homes without built-in piping: This is not a portable plug-in vacuum.
- High-pile carpet without a powerhead: The power unit does not agitate carpet by itself.
- Buyers requiring documented HEPA certification: BEAM identifies Gore filtration but not this unit as HEPA-certified.
- Zero-contact bagless maintenance: Bagless users must empty the canister and clean the filter.
- Buyers expecting a complete cleaning kit: Hose, tools, inlets, piping, and labor are separate unless listed.
Feature-to-Benefit Guide
Key Features
| Feature | What it means | Why it matters |
|---|---|---|
| 610 AirWatts | BEAM's published model rating. | Balanced power for a correctly designed small-home network. |
| 118 CFM airflow | Published maximum airflow. | Supports debris transport through appropriately sized piping. |
| 119.7-in. water lift | Published sealed-suction rating. | Indicates resistance-handling ability; it is not a hose-end guarantee. |
| 64 dBA | Manufacturer's published sound figure. | A quiet published rating, with results dependent on placement. |
| 120 V / 12.8 A maximum | North American electrical specification. | Requires a dedicated grounded 15-amp circuit. |
| 4.7-in. thru-flow motor | One 4.7-in., single-stage thru-flow motor. | Compact, residential architecture suited to regular small-home cleaning. |
| Hybrid Gore collection | Reversible bagged or bagless operation. | Choose contained disposal or reusable collection. |
| 5.3-gal. compatible bag | Specified capacity for the genuine three-notch BEAM bag. | Change when full; actual frequency varies with use. |
| Approx. 3.7-gal. canister | Current lineup's bagless receptacle figure. | Compact capacity; manufacturer literature has varied. |
| Dual side intakes | Use the side that best matches the pipe approach; cap the other. | Can simplify a compatible replacement layout. |
| Serviceable carbon brushes | No motor lubrication; authorized inspection is recommended. | Supports repair-first ownership rather than automatic replacement. |
Why This Compact Model Matters
What Makes This Model Stand Out
Compact BEAM footprint
A narrow body for small residences and constrained installation areas.
True collection choice
Switch between genuine disposable bags and bagless Gore filtration.
Quiet published rating
BEAM publishes 64 dBA, with remote placement reducing nearby cleaning noise.
Repairable system path
Motor, board, bags, filter, and installation components have documented service references.
Compact without vague claims
The BEAM 205 is not marketed as BEAM's strongest or longest-run model. Its advantage is proportion: 610 AirWatts and 118 CFM in a compact Hybrid Gore unit for smaller layouts.
It also avoids forcing one disposal method. Bagged use favors contained maintenance; bagless use avoids replacement bags but requires direct canister and filter care.
Model and Brand-Level Decisions
Product Comparisons
BEAM 205 vs. BEAM 275
Both publish 610 AW, 118 CFM, 119.7-in. lift, 64 dBA, and 12.8 A. The 205 provides Hybrid Gore bagged/bagless collection; the shorter 275 uses a top-access bag-and-filter design.
BEAM 205 vs. BEAM 345
The 345 steps up to 655 AW, 142 CFM, a two-stage 5.7-in. motor, about 4,000-sq.-ft. guidance, and 10-year parts coverage. The 205 has a published 64 dBA rating and draws less current; BEAM has not published a 345 sound figure.
BEAM 205 vs. Cana-Vac 50
They publish nearly identical airflow, lift, amperage, and sound. The compact Cana-Vac 50 is bag-and-filter only; BEAM 205 adds reversible Hybrid Gore collection.
BEAM 205 vs. MD Flo-Master CV300
MD publishes 650 AW, 130.2 CFM, 143.1-in. lift, a 3,000-sq.-ft. guide, and closed-bag filtration. BEAM favors hybrid flexibility and a lower 12.8-amp maximum.
BEAM 205 vs. VACUFLO FC300
Both carry 2,500-sq.-ft. guidance. BEAM publishes higher AW, CFM, and lift; FC300 draws less current and uses filtered-cyclonic collection with a replaceable cartridge.
BEAM 205 vs. a portable vacuum
The BEAM keeps its motor and collected debris away from the cleaner, but requires permanent piping, inlets, a hose/tool kit, mounting space, and installation.
Manufacturer test methods can differ. AirWatts, CFM, and water lift measure different performance characteristics; compare the complete installation rather than ranking one number.
Natural-Language Buying Answers
Questions Buyers Commonly Ask
Is the BEAM 205 good for pet hair?
Yes, when paired with a suitable carpet powerhead plus upholstery and hard-floor tools.
Is it good for allergy-conscious homes?
Central piping removes contacted debris from rooms; bagged disposal can reduce dust handling. This is not a HEPA certification.
Is the BEAM 205 worth buying?
Yes for a verified small-home system. A larger BEAM is better value when pipe resistance or future plans exceed its scope.
Is it quiet enough for an apartment?
BEAM publishes 64 dBA. Placement, walls, exhaust, and building rules affect perceived noise.
Will it work with Hide-A-Hose or Retraflex?
Potentially, but BEAM does not specifically position the 205 for long retractable hoses. Size the complete route first.
Which homes benefit most?
Apartments, condos, townhomes, and small houses with simple, leak-free central-vacuum piping.
Verified Manufacturer Data
Technical Specifications
| Brand | BEAM |
|---|---|
| Model | 205 Hybrid |
| Model number / SKU / MPN | ABEAM205A |
| Product type | Compact residential central vacuum power unit |
| Manufacturer's approximate coverage | Up to approximately 2,500 sq. ft. / 232 m²; layout-dependent |
| AirWatts | 610 AW |
| Maximum airflow | 118 CFM / 201 m³/h |
| Water lift | 119.7 in. H2O |
| Sound level | Published manufacturer figure: 64 dBA; installation acoustics vary |
| Voltage / maximum amperage | 120 V / 12.8 A |
| Required branch circuit | Dedicated grounded 120 V / 15 A circuit; outlet within 3 ft.; no extension cord or adapter |
| Control connection | Low-voltage wall-inlet activation; verify wiring and inlet compatibility |
| Motor | One 4.7-in. / 120-mm Domel thru-flow motor; one turbine stage |
| Motor service reference | 463.3.606-2 / TMTFD600 |
| Filtration | Hybrid Gore; convertible bagged or bagless operation |
| Compatible bag | Genuine three-notch BEAM bag; 5.3 gal. / 20 L. Model documentation lists TDSAC93N as the three-pack reference. |
| Permanent filter | TDFILTGORE11 self-cleaning Gore filter; approximately 11 in. |
| Bagless canister capacity | Current lineup: 3.7 US gal. / 14.2 L; an earlier model sheet lists 4.1 gal. Verify current production if exact volume matters. |
| Published physical specifications | Technical sheets: 31.25 in. high × 11.9 in. diameter; 25 lb. Current web page lists 31.3 × 11.1 in. and 19.4 lb. Confirm installation-critical dimensions. |
| Intake layout | Left and right air intakes; cap the unused side |
| Exterior exhaust | Not required by BEAM; evaluate site conditions and local requirements |
| Maintenance access | Allow documented clearance around and below the unit for the receptacle, bag, and filter |
| Motor care | No lubrication; BEAM recommends authorized inspection every 5–6 years |
| Domestic motor/electrical parts warranty | 5 years, subject to manufacturer terms |
| Domestic labor warranty | 1 year, subject to manufacturer terms; transportation and service-call costs are excluded, and the dealer may charge for in-home warranty service |
| Canister/body coverage | Limited lifetime for the original owner at the original installation, subject to full terms |
| Commercial-use warranty | Separate 90-day parts and labor terms in the current manual |
| Intended use | Ordinary dry household debris; no liquids, hot ash, flammables, or drywall dust |
| Manufacturing location | Designed and manufactured in Blainville, Quebec, Canada |
Published electrical and airflow figures are consistent; manufacturer documents differ on canister capacity, physical measurements, and some unit labels or conversions. Verify the rating label, carton, clearances, and written warranty before installation.
Who Receives the Most Value
Ideal Buyers
The condo or townhome owner
You already have compatible piping and need proportionate 120-volt power.
The small-home replacement shopper
You want pipe, controls, voltage, dimensions, and inlet orientation checked first.
The space-conscious buyer
You need a narrow power unit with service clearance for bottom access.
The bagged-maintenance household
You prefer contained disposal and genuine replacement bags.
The flexible-filtration owner
You may choose bagless use and accept seasonal filter cleaning.
The service-supported buyer
You value in-home diagnosis, repair, installation, and parts support.
Local Expertise Before and After the Sale
Why Buy from Ace Vacuums
Ace Vacuums is an authorized BEAM dealer with central-vacuum specialists who match the 205 to the complete property—not simply to a square-foot number.
In-home diagnosis first
Technicians evaluate piping, inlets, controls, hose, filtration, and the existing power unit together before recommending replacement.
Repair, replace, or redesign
Compare clog or leak repair, motor/electrical service, compact replacement, new installation, and professionally sized Hide-A-Hose or Retraflex options.
Parts and authorized support
Access BEAM bags, filters, hoses, powerheads, inlets, warranty guidance, and certified technicians. Same-day repair on parts availability.
Shop Nationwide or Arrange Local Service
Available Online & In-Store
Use the live purchase panel above for current price, stock, shipping, and bundle contents. Before a DMV installation or replacement, share the property size, pipe and hose lengths, inlet count, old model, electrical information, and mounting-area photos.
Ace Vacuums Fairfax
11110 Main StFairfax, VA 22030
BEAM guidance, genuine parts, warranty support, and in-home central-vacuum service coordination for Fairfax, Northern Virginia, Washington DC, and nearby Maryland—with free and easy parking.
Ace Vacuums Leesburg
300 Fort Evans Rd NE, Suite 104Leesburg, VA 20176
BEAM guidance, genuine parts, warranty support, and in-home service coordination for Loudoun County, Ashburn, Sterling, Leesburg, and surrounding areas—with free and easy parking.
At-a-Glance Alternatives
Comparison Table
| Model | Electrical / motor | AirWatts | CFM / lift | Sound | Collection | Published fit |
|---|---|---|---|---|---|---|
| BEAM 205 | 120 V; 12.8 A; one 4.7-in. 1-stage thru-flow | 610 AW | 118 CFM / 119.7 in. | 64 dBA | Hybrid Gore; 5.3-gal. bag or bagless | Approx. 2,500 sq. ft.; compact residences |
| BEAM 275 | 120 V; 12.8 A; one 4.7-in. 1-stage thru-flow | 610 AW | 118 CFM / 119.7 in. | 64 dBA | 4.2-gal. bag and flat filter; top access | Apartments, studios, small houses |
| BEAM 345 | 120 V; 15.8 A; one 5.7-in. 2-stage bypass | 655 AW | 142 CFM / 115.6 in. | Pending | Hybrid Gore; 5.3-gal. bag or bagless | Approx. 4,000 sq. ft.; houses |
| Cana-Vac 50 | 120 V; 12.8 A; one 1-stage thru-flow | 606 AW | 118 CFM / 119.7 in. | 64 dB | 3.6-gal. bag and permanent filter | Condo to mid-size, weekly residential use |
| MD Flo-Master CV300 | 120 V; 15 A; one 5.7-in. 2-stage thru-flow | 650 AW | 130.2 CFM / 143.1 in. | 64 dB | 5-gal. closed bag | Up to 3,000 sq. ft. |
| VACUFLO FC300 | 120 V; 11.2 A max | 422 AW | 115 CFM / 106 in. | 73.7 dBA | Filtered cyclonic; 4-gal. canister | Up to 2,500 sq. ft. |
Published sound, coverage, and performance figures may use different test methods. VACUFLO states its sound readings are taken at six feet using an ASTM draft method; the cited BEAM, Cana-Vac, and MD pages do not establish identical protocols.
The Honest Tradeoffs
Pros and Cons
Pros
- Compact footprint for constrained installation areas
- 610 AirWatts, 118 CFM, and 119.7-in. lift
- Quiet 64 dBA published power-unit rating
- Reversible bagged or bagless Hybrid Gore collection
- Standard 120-volt residential architecture
- Dual side intakes can simplify replacement piping
- Documented motor, board, bag, and filter references
- Five-year domestic motor/electrical parts and one-year labor coverage
Cons
- Intended for compact homes, not large networks
- Power unit is not a complete hose-and-tool system
- Long retractable hoses require professional sizing
- Bagless emptying involves more dust contact
- Dedicated grounded 120 V / 15 A circuit required
- Not identified as a HEPA-certified power unit
- Physical specifications vary across manufacturer documents
- Dry household use only; commercial warranty is limited
Buying, Installation, and Ownership
Frequently Asked Questions
Open the guide, then select a question.
FAQs: BEAM 205 buying, fitment, and ownership guide
What size home is the BEAM 205 designed for?
BEAM recommends apartments, condos, and small houses up to approximately 2,500 square feet.
Is the 2,500-square-foot rating guaranteed?
No. Pipe length, elbows, elevation, leakage, inlets, hose, filtration, and tools determine actual performance.
Is the BEAM 205 good for pet hair?
Yes, with a compatible carpet powerhead and pet-appropriate upholstery and hard-floor tools.
Can it clean both hardwood and carpet?
Yes—use a non-marring brush for hard floors and a compatible powered nozzle for carpet.
Does the power unit include a hose or powerhead?
Not automatically. Confirm the live bundle; hose, tools, inlets, piping, and labor are normally separate.
What does “Hybrid Gore” mean?
It means disposable-bag or bagless collection through the permanent Gore filter—not a hybrid motor.
Can I use the BEAM 205 with a disposable bag?
Yes. It ships with a bag installed; replace it with the correct genuine BEAM bag when full.
Can I run the BEAM 205 bagless?
Yes. Convert it as instructed, keep the permanent filter installed, and perform seasonal cleaning.
Which collection mode is better for allergy-conscious households?
Bagged use usually reduces dust handling during disposal. This is not medical advice or a HEPA claim.
Is the BEAM 205 a HEPA vacuum?
BEAM identifies a permanent Gore filter but does not identify ABEAM205A as HEPA-certified.
How loud is the BEAM 205?
BEAM publishes 64 dBA; mounting location and construction affect perceived noise.
What electrical circuit does it need?
A dedicated grounded 120 V/15 A circuit with an outlet within three feet; no extension or adapter.
Can it replace an older BEAM or another central-vacuum brand?
Possibly. Verify pipe orientation, controls, voltage, dimensions, exhaust, hose, and required capacity.
Can it use my existing wall tubing and inlets?
Often, but inspect for correct pipe size, sound joints, leaks, clogs, inlet seals, and compatible controls.
Does it work with Hide-A-Hose or Retraflex?
Potentially. Because retractable hoses add length and resistance, size the complete route before choosing the 205.
How often should the bag, canister, and filter be serviced?
Replace a full bag. In bagless use, empty the canister and clean the permanent filter at least seasonally.
Can it pick up water, hot ash, or construction dust?
No. Use it only for ordinary dry household debris.
What warranty applies to the BEAM 205?
Domestic terms list five-year motor/electrical parts, one-year labor, and limited lifetime canister/body coverage. Conditions apply.
Should I repair my present system before replacing it?
Yes. Diagnose clogs, leaks, inlets, hose, controls, bag/filter, board, and motor before deciding.
When should I move up to a BEAM 345, 475, or 495?
Move up when home size, pipe resistance, long hoses, floor plan, future expansion, or usage exceeds the 205's verified fit.
Continue Your Research
Explore More
Is the BEAM 205 right for your home and piping?
Tell an Ace Vacuums specialist about your property size, longest pipe and hose run, inlet count, floors, pets, existing model, 120-volt circuit, and available wall space. We will help compare repair, replacement, BEAM alternatives, and Hide-A-Hose or Retraflex options before you buy.
Compact 120 V • Hybrid Gore • 64 dBA • Model ABEAM205A
Compact central-vacuum power for apartments, condos, and small homes.
The BEAM 205 Hybrid delivers 610 AirWatts, 118 CFM, and 119.7 inches of water lift in a narrow power unit designed for spaces up to approximately 2,500 square feet. Choose disposable-bag convenience or bagless collection through the permanent Gore filter.
610 AirWatts 118 CFM airflow 119.7-in. water lift 64 dBA Bagged or bagless Approx. 2,500 sq. ft. Call a Central Vacuum Expert: 703-997-9292 Compare BEAM Power Units
At a Glance
Quick Summary
Choose the BEAM 205 when a compact 120-volt central-vacuum power unit matches a straightforward apartment, condo, townhome, or small-house pipe network. It is BEAM's space-conscious Hybrid Gore option—not a large-home or commercial unit.
610 AWBalanced small-home powerPublished power-unit rating.
64 dBAQuiet published ratingPublished manufacturer sound figure.
HybridTwo collection choicesDisposable bag or bagless Gore filtration.
120 VCompact single motor4.7-in. thru-flow motor; 12.8 A maximum.
Fast decision: BEAM recommends approximately 2,500 square feet. Treat that as a planning guide: pipe length, elbows, elevation, leakage, inlets, hose length, filtration condition, and attachments determine real-world fit.Power Unit, Filtration, and System Role
Product Overview
ABEAM205A is the motor-and-collection unit at the center of a built-in vacuum system. Its single 4.7-inch, one-stage thru-flow motor publishes 610 AirWatts, 118 CFM, and 119.7 inches of water lift while drawing up to 12.8 amps at 120 volts.
“Hybrid” describes collection—not motor technology. Owners may use a genuine disposable BEAM bag for contained disposal or remove the bag and collect debris in the receptacle while the permanent self-cleaning GORE filter remains installed. Bagless use still requires seasonal receptacle and filter care.
The unit connects to compatible wall piping, low-voltage control wire, inlets, and a separately selected hose-and-tool set. The power unit creates airflow and suction; the carpet nozzle, hard-floor brush, hose, and system design determine surface contact and pickup.
What's Included
| Item | Status | Buyer guidance |
|---|---|---|
| ABEAM205A power unit | Included | Compact 120 V motor-and-collection module. |
| Disposable collection bag | Factory-installed | Use the correct genuine three-notch BEAM replacement bag. |
| Permanent Gore filter | Built in | TDFILTGORE11 supports bagless conversion and remains installed. |
| Mounting/intake components | Verify live carton | Documentation shows a wall plate, coupling, clamps, intake cap, and alternate adapter. |
| Muffler or extra fittings | Verify live carton | Do not assume every service part shown in an exploded diagram is packed with the retail unit. |
| Hose, powerhead, and tools | Separate unless bundled | Choose attachments for carpet, hardwood, pets, stairs, and controls. |
| Inlets, PVC, wire, and labor | Separate | Required for a new system or substantial retrofit. |
Professional Buying Guidance
Expert Recommendation
Our experts recommend the BEAM 205 for a simple, appropriately sized pipe network where compact dimensions, a familiar 120-volt supply, quiet operation, and bagged-or-bagless flexibility matter more than large-home reserve.
Choose the BEAM 205
Your apartment, condo, townhome, or small house has compatible piping and stays within a professionally verified small-home design.
Consider the BEAM 345
Your house approaches 4,000 square feet or needs more airflow, a two-stage bypass motor, and a longer parts warranty.
Size beyond the 205
The network has long runs, many elbows, elevation changes, multiple retractable hoses, future expansion, or frequent heavy use.
For replacement work, diagnose the hose, pipe, inlet seals, low-voltage controls, bag/filter, and motor first. A clog or leak can imitate a weak power unit. Ace Vacuums evaluates the installed system in the home before recommending repair, replacement, or an upgrade.
Homes and Cleaning Priorities
Best For
Apartments, condos, and small homes
BEAM recommends the 205 for compact residences up to approximately 2,500 square feet.
Limited utility-wall space
The narrow body suits installations where a larger-diameter BEAM unit is impractical, subject to service clearances.
Pet owners
Pair it with an electric or turbine carpet head plus upholstery and hard-floor tools selected for pet debris.
Allergy-conscious households
Central piping moves contacted debris away from rooms; bagged disposal can reduce dust handling.
Hardwood, tile, LVP, and mixed floors
Use a non-marring floor brush and add a compatible powered nozzle for carpet.
Quiet living-area cleaning
The published 64 dBA figure and remote placement can reduce noise beside the cleaner.
Simple replacement projects
Dual intake options can help align with existing piping after dimensions, controls, voltage, and airflow needs are checked.
Flexible maintenance preferences
Choose sealed bag disposal or accept the hands-on cleaning required in bagless mode.
Balanced Buying Advice
Not Ideal For
- Large luxury homes or expansive estates: The official recommendation is approximately 2,500 square feet.
- Long, restrictive networks: Extended pipe, numerous bends, elevation, and leakage may justify a larger model.
- Automatic retractable-hose assumptions: A long Hide-A-Hose or Retraflex route adds resistance and requires sizing.
- Heavy commercial use: BEAM publishes separate 90-day commercial warranty terms.
- Wet or construction pickup: It is for ordinary dry household debris—not liquid, hot ash, or drywall dust.
- Homes without built-in piping: This is not a portable plug-in vacuum.
- High-pile carpet without a powerhead: The power unit does not agitate carpet by itself.
- Buyers requiring documented HEPA certification: BEAM identifies Gore filtration but not this unit as HEPA-certified.
- Zero-contact bagless maintenance: Bagless users must empty the canister and clean the filter.
- Buyers expecting a complete cleaning kit: Hose, tools, inlets, piping, and labor are separate unless listed.
Feature-to-Benefit Guide
Key Features
| Feature | What it means | Why it matters |
|---|---|---|
| 610 AirWatts | BEAM's published model rating. | Balanced power for a correctly designed small-home network. |
| 118 CFM airflow | Published maximum airflow. | Supports debris transport through appropriately sized piping. |
| 119.7-in. water lift | Published sealed-suction rating. | Indicates resistance-handling ability; it is not a hose-end guarantee. |
| 64 dBA | Manufacturer's published sound figure. | A quiet published rating, with results dependent on placement. |
| 120 V / 12.8 A maximum | North American electrical specification. | Requires a dedicated grounded 15-amp circuit. |
| 4.7-in. thru-flow motor | One 4.7-in., single-stage thru-flow motor. | Compact, residential architecture suited to regular small-home cleaning. |
| Hybrid Gore collection | Reversible bagged or bagless operation. | Choose contained disposal or reusable collection. |
| 5.3-gal. compatible bag | Specified capacity for the genuine three-notch BEAM bag. | Change when full; actual frequency varies with use. |
| Approx. 3.7-gal. canister | Current lineup's bagless receptacle figure. | Compact capacity; manufacturer literature has varied. |
| Dual side intakes | Use the side that best matches the pipe approach; cap the other. | Can simplify a compatible replacement layout. |
| Serviceable carbon brushes | No motor lubrication; authorized inspection is recommended. | Supports repair-first ownership rather than automatic replacement. |
Why This Compact Model Matters
What Makes This Model Stand Out
Compact BEAM footprint
A narrow body for small residences and constrained installation areas.
True collection choice
Switch between genuine disposable bags and bagless Gore filtration.
Quiet published rating
BEAM publishes 64 dBA, with remote placement reducing nearby cleaning noise.
Repairable system path
Motor, board, bags, filter, and installation components have documented service references.
Compact without vague claims
The BEAM 205 is not marketed as BEAM's strongest or longest-run model. Its advantage is proportion: 610 AirWatts and 118 CFM in a compact Hybrid Gore unit for smaller layouts.
It also avoids forcing one disposal method. Bagged use favors contained maintenance; bagless use avoids replacement bags but requires direct canister and filter care.
Remember: The hose and attachment kit—not the power unit alone—determine carpet agitation, hardwood contact, stair reach, and pet-hair pickup.Model and Brand-Level Decisions
Product Comparisons
BEAM 205 vs. BEAM 275
Both publish 610 AW, 118 CFM, 119.7-in. lift, 64 dBA, and 12.8 A. The 205 provides Hybrid Gore bagged/bagless collection; the shorter 275 uses a top-access bag-and-filter design.
BEAM 205 vs. BEAM 345
The 345 steps up to 655 AW, 142 CFM, a two-stage 5.7-in. motor, about 4,000-sq.-ft. guidance, and 10-year parts coverage. The 205 has a published 64 dBA rating and draws less current; BEAM has not published a 345 sound figure.
BEAM 205 vs. Cana-Vac 50
They publish nearly identical airflow, lift, amperage, and sound. The compact Cana-Vac 50 is bag-and-filter only; BEAM 205 adds reversible Hybrid Gore collection.
BEAM 205 vs. MD Flo-Master CV300
MD publishes 650 AW, 130.2 CFM, 143.1-in. lift, a 3,000-sq.-ft. guide, and closed-bag filtration. BEAM favors hybrid flexibility and a lower 12.8-amp maximum.
BEAM 205 vs. VACUFLO FC300
Both carry 2,500-sq.-ft. guidance. BEAM publishes higher AW, CFM, and lift; FC300 draws less current and uses filtered-cyclonic collection with a replaceable cartridge.
BEAM 205 vs. a portable vacuum
The BEAM keeps its motor and collected debris away from the cleaner, but requires permanent piping, inlets, a hose/tool kit, mounting space, and installation.
Manufacturer test methods can differ. AirWatts, CFM, and water lift measure different performance characteristics; compare the complete installation rather than ranking one number.
Natural-Language Buying Answers
Questions Buyers Commonly Ask
Is the BEAM 205 good for pet hair?
Yes, when paired with a suitable carpet powerhead plus upholstery and hard-floor tools.
Is it good for allergy-conscious homes?
Central piping removes contacted debris from rooms; bagged disposal can reduce dust handling. This is not a HEPA certification.
Is the BEAM 205 worth buying?
Yes for a verified small-home system. A larger BEAM is better value when pipe resistance or future plans exceed its scope.
Is it quiet enough for an apartment?
BEAM publishes 64 dBA. Placement, walls, exhaust, and building rules affect perceived noise.
Will it work with Hide-A-Hose or Retraflex?
Potentially, but BEAM does not specifically position the 205 for long retractable hoses. Size the complete route first.
Which homes benefit most?
Apartments, condos, townhomes, and small houses with simple, leak-free central-vacuum piping.
Verified Manufacturer Data
Technical Specifications
| Brand | BEAM |
|---|---|
| Model | 205 Hybrid |
| Model number / SKU / MPN | ABEAM205A |
| Product type | Compact residential central vacuum power unit |
| Manufacturer's approximate coverage | Up to approximately 2,500 sq. ft. / 232 m²; layout-dependent |
| AirWatts | 610 AW |
| Maximum airflow | 118 CFM / 201 m³/h |
| Water lift | 119.7 in. H2O |
| Sound level | Published manufacturer figure: 64 dBA; installation acoustics vary |
| Voltage / maximum amperage | 120 V / 12.8 A |
| Required branch circuit | Dedicated grounded 120 V / 15 A circuit; outlet within 3 ft.; no extension cord or adapter |
| Control connection | Low-voltage wall-inlet activation; verify wiring and inlet compatibility |
| Motor | One 4.7-in. / 120-mm Domel thru-flow motor; one turbine stage |
| Motor service reference | 463.3.606-2 / TMTFD600 |
| Filtration | Hybrid Gore; convertible bagged or bagless operation |
| Compatible bag | Genuine three-notch BEAM bag; 5.3 gal. / 20 L. Model documentation lists TDSAC93N as the three-pack reference. |
| Permanent filter | TDFILTGORE11 self-cleaning Gore filter; approximately 11 in. |
| Bagless canister capacity | Current lineup: 3.7 US gal. / 14.2 L; an earlier model sheet lists 4.1 gal. Verify current production if exact volume matters. |
| Published physical specifications | Technical sheets: 31.25 in. high × 11.9 in. diameter; 25 lb. Current web page lists 31.3 × 11.1 in. and 19.4 lb. Confirm installation-critical dimensions. |
| Intake layout | Left and right air intakes; cap the unused side |
| Exterior exhaust | Not required by BEAM; evaluate site conditions and local requirements |
| Maintenance access | Allow documented clearance around and below the unit for the receptacle, bag, and filter |
| Motor care | No lubrication; BEAM recommends authorized inspection every 5–6 years |
| Domestic motor/electrical parts warranty | 5 years, subject to manufacturer terms |
| Domestic labor warranty | 1 year, subject to manufacturer terms; transportation and service-call costs are excluded, and the dealer may charge for in-home warranty service |
| Canister/body coverage | Limited lifetime for the original owner at the original installation, subject to full terms |
| Commercial-use warranty | Separate 90-day parts and labor terms in the current manual |
| Intended use | Ordinary dry household debris; no liquids, hot ash, flammables, or drywall dust |
| Manufacturing location | Designed and manufactured in Blainville, Quebec, Canada |
Published electrical and airflow figures are consistent; manufacturer documents differ on canister capacity, physical measurements, and some unit labels or conversions. Verify the rating label, carton, clearances, and written warranty before installation.
Who Receives the Most Value
Ideal Buyers
The condo or townhome owner
You already have compatible piping and need proportionate 120-volt power.
The small-home replacement shopper
You want pipe, controls, voltage, dimensions, and inlet orientation checked first.
The space-conscious buyer
You need a narrow power unit with service clearance for bottom access.
The bagged-maintenance household
You prefer contained disposal and genuine replacement bags.
The flexible-filtration owner
You may choose bagless use and accept seasonal filter cleaning.
The service-supported buyer
You value in-home diagnosis, repair, installation, and parts support.
Local Expertise Before and After the Sale
Why Buy from Ace Vacuums
Ace Vacuums is an authorized BEAM dealer with central-vacuum specialists who match the 205 to the complete property—not simply to a square-foot number.
In-home diagnosis first
Technicians evaluate piping, inlets, controls, hose, filtration, and the existing power unit together before recommending replacement.
Repair, replace, or redesign
Compare clog or leak repair, motor/electrical service, compact replacement, new installation, and professionally sized Hide-A-Hose or Retraflex options.
Parts and authorized support
Access BEAM bags, filters, hoses, powerheads, inlets, warranty guidance, and certified technicians. Same-day repair on parts availability.
Before ordering: Call 703-997-9292 with the old model label, installation photos, pipe side, outlet and breaker details, hose length, inlet count, and longest run. This reduces wrong-unit and wrong-fit risk.Shop Nationwide or Arrange Local Service
Available Online & In-Store
Use the live purchase panel above for current price, stock, shipping, and bundle contents. Before a DMV installation or replacement, share the property size, pipe and hose lengths, inlet count, old model, electrical information, and mounting-area photos.
Ace Vacuums Fairfax
11110 Main StFairfax, VA 22030
BEAM guidance, genuine parts, warranty support, and in-home central-vacuum service coordination for Fairfax, Northern Virginia, Washington DC, and nearby Maryland—with free and easy parking.
Call Fairfax Real-Time Traffic & Directions Store DetailsAce Vacuums Leesburg
300 Fort Evans Rd NE, Suite 104Leesburg, VA 20176
BEAM guidance, genuine parts, warranty support, and in-home service coordination for Loudoun County, Ashburn, Sterling, Leesburg, and surrounding areas—with free and easy parking.
Call Leesburg Real-Time Traffic & Directions Store DetailsAt-a-Glance Alternatives
Comparison Table
| Model | Electrical / motor | AirWatts | CFM / lift | Sound | Collection | Published fit |
|---|---|---|---|---|---|---|
| BEAM 205 | 120 V; 12.8 A; one 4.7-in. 1-stage thru-flow | 610 AW | 118 CFM / 119.7 in. | 64 dBA | Hybrid Gore; 5.3-gal. bag or bagless | Approx. 2,500 sq. ft.; compact residences |
| BEAM 275 | 120 V; 12.8 A; one 4.7-in. 1-stage thru-flow | 610 AW | 118 CFM / 119.7 in. | 64 dBA | 4.2-gal. bag and flat filter; top access | Apartments, studios, small houses |
| BEAM 345 | 120 V; 15.8 A; one 5.7-in. 2-stage bypass | 655 AW | 142 CFM / 115.6 in. | Pending | Hybrid Gore; 5.3-gal. bag or bagless | Approx. 4,000 sq. ft.; houses |
| Cana-Vac 50 | 120 V; 12.8 A; one 1-stage thru-flow | 606 AW | 118 CFM / 119.7 in. | 64 dB | 3.6-gal. bag and permanent filter | Condo to mid-size, weekly residential use |
| MD Flo-Master CV300 | 120 V; 15 A; one 5.7-in. 2-stage thru-flow | 650 AW | 130.2 CFM / 143.1 in. | 64 dB | 5-gal. closed bag | Up to 3,000 sq. ft. |
| VACUFLO FC300 | 120 V; 11.2 A max | 422 AW | 115 CFM / 106 in. | 73.7 dBA | Filtered cyclonic; 4-gal. canister | Up to 2,500 sq. ft. |
Published sound, coverage, and performance figures may use different test methods. VACUFLO states its sound readings are taken at six feet using an ASTM draft method; the cited BEAM, Cana-Vac, and MD pages do not establish identical protocols.
The Honest Tradeoffs
Pros and Cons
Pros
- Compact footprint for constrained installation areas
- 610 AirWatts, 118 CFM, and 119.7-in. lift
- Quiet 64 dBA published power-unit rating
- Reversible bagged or bagless Hybrid Gore collection
- Standard 120-volt residential architecture
- Dual side intakes can simplify replacement piping
- Documented motor, board, bag, and filter references
- Five-year domestic motor/electrical parts and one-year labor coverage
Cons
- Intended for compact homes, not large networks
- Power unit is not a complete hose-and-tool system
- Long retractable hoses require professional sizing
- Bagless emptying involves more dust contact
- Dedicated grounded 120 V / 15 A circuit required
- Not identified as a HEPA-certified power unit
- Physical specifications vary across manufacturer documents
- Dry household use only; commercial warranty is limited
Buying, Installation, and Ownership
Frequently Asked Questions
Open the guide, then select a question.
FAQs: BEAM 205 buying, fitment, and ownership guide
What size home is the BEAM 205 designed for?
BEAM recommends apartments, condos, and small houses up to approximately 2,500 square feet.
Is the 2,500-square-foot rating guaranteed?
No. Pipe length, elbows, elevation, leakage, inlets, hose, filtration, and tools determine actual performance.
Is the BEAM 205 good for pet hair?
Yes, with a compatible carpet powerhead and pet-appropriate upholstery and hard-floor tools.
Can it clean both hardwood and carpet?
Yes—use a non-marring brush for hard floors and a compatible powered nozzle for carpet.
Does the power unit include a hose or powerhead?
Not automatically. Confirm the live bundle; hose, tools, inlets, piping, and labor are normally separate.
What does “Hybrid Gore” mean?
It means disposable-bag or bagless collection through the permanent Gore filter—not a hybrid motor.
Can I use the BEAM 205 with a disposable bag?
Yes. It ships with a bag installed; replace it with the correct genuine BEAM bag when full.
Can I run the BEAM 205 bagless?
Yes. Convert it as instructed, keep the permanent filter installed, and perform seasonal cleaning.
Which collection mode is better for allergy-conscious households?
Bagged use usually reduces dust handling during disposal. This is not medical advice or a HEPA claim.
Is the BEAM 205 a HEPA vacuum?
BEAM identifies a permanent Gore filter but does not identify ABEAM205A as HEPA-certified.
How loud is the BEAM 205?
BEAM publishes 64 dBA; mounting location and construction affect perceived noise.
What electrical circuit does it need?
A dedicated grounded 120 V/15 A circuit with an outlet within three feet; no extension or adapter.
Can it replace an older BEAM or another central-vacuum brand?
Possibly. Verify pipe orientation, controls, voltage, dimensions, exhaust, hose, and required capacity.
Can it use my existing wall tubing and inlets?
Often, but inspect for correct pipe size, sound joints, leaks, clogs, inlet seals, and compatible controls.
Does it work with Hide-A-Hose or Retraflex?
Potentially. Because retractable hoses add length and resistance, size the complete route before choosing the 205.
How often should the bag, canister, and filter be serviced?
Replace a full bag. In bagless use, empty the canister and clean the permanent filter at least seasonally.
Can it pick up water, hot ash, or construction dust?
No. Use it only for ordinary dry household debris.
What warranty applies to the BEAM 205?
Domestic terms list five-year motor/electrical parts, one-year labor, and limited lifetime canister/body coverage. Conditions apply.
Should I repair my present system before replacing it?
Yes. Diagnose clogs, leaks, inlets, hose, controls, bag/filter, board, and motor before deciding.
When should I move up to a BEAM 345, 475, or 495?
Move up when home size, pipe resistance, long hoses, floor plan, future expansion, or usage exceeds the 205's verified fit.
Continue Your Research
Explore More
BEAM Central Vacuum Power Units BEAM Hose & Attachment Kits BEAM Bags & Filters Compare the BEAM 345 Compare the BEAM 475 Compare the BEAM 495 Hide-A-Hose & Central Vacuum Installation In-Home Central Vacuum Repair Central Vacuum Service & Upgrades Fairfax & Leesburg StoresIs the BEAM 205 right for your home and piping?
Tell an Ace Vacuums specialist about your property size, longest pipe and hose run, inlet count, floors, pets, existing model, 120-volt circuit, and available wall space. We will help compare repair, replacement, BEAM alternatives, and Hide-A-Hose or Retraflex options before you buy.
Call 703-997-9292 Shop BEAM Power UnitsVisit Our Showrooms
Check real-time traffic and travel time from your location in VA, DC, or MD.
📍 AceVacuums Fairfax (DMV Hub)
Address: 11110 Main St, Fairfax, VA 22030
Landmark: Opposite Havertys Furniture Store
Best for: Bethesda, Potomac, Arlington, NW Washington D.C.
📍 AceVacuums Leesburg
Address: 300 Fort Evans Rd NE, Suite 104, Leesburg, VA 20176
Landmark: Next to Home Depot in Leesburg
Best for: Ashburn, Sterling, Frederick MD, Loudoun County
Clear Shipping Standards • Return Guidance • Refund Timing
Shipping, Return & Refund Policy
AceVacuums wants customers to understand shipping expectations, return requirements, and refund timing clearly before placing an order. This page explains how order processing, shipping, return authorization, exchanges, damaged-item reporting, and refunds are generally handled.
Our goal is to keep policy information easy to read, professionally structured, and fair to both the customer and the condition standards required for product resale and support.
Quick Access
How to Use This Policy Page
This page is designed as a single policy center for customers who want a clearer summary of shipping, return, and refund expectations before ordering from AceVacuums.
Product category, item condition, packaging completeness, reporting speed, carrier timing, and whether a product is opened, used, installed, or special-order can all affect the final policy outcome.
Shipping Policy
AceVacuums aims to process and ship eligible in-stock orders as quickly as possible so customers are not left waiting unnecessarily for common vacuum products, parts, bags, filters, or accessories. The live page currently presents this as a shipping-and-return page, so this combined format preserves that structure in a cleaner layout. :contentReference[oaicite:0]{index=0}
Order processing
Eligible in-stock orders placed before the daily business-day cutoff are generally processed the same day. Orders placed after the cutoff, on weekends, or on holidays are generally processed on the next business day.
Shipping timing can vary
Final shipping and delivery timing may be affected by carrier performance, weather, inventory confirmation, order verification, holidays, or whether the item is special-order or temporarily unavailable.
Tracking and delivery
Once an order ships, delivery timing is generally controlled by the carrier. Customers should monitor tracking updates and inspect packages promptly after arrival.
Return Policy
AceVacuums wants customers to understand return expectations clearly before placing an order. Returns are reviewed based on timing, item condition, product category, and whether the merchandise remains complete and resale-ready.
Return authorization is required
All returns must be requested and approved by AceVacuums before the item is sent back. Unauthorized returns may be refused.
Standard return window
Eligible items should generally be reported for return within 30 days of delivery unless another condition is stated on the product page, invoice, or at the time of purchase.
Condition matters
Original packaging, manuals, accessories, cleanliness, and overall condition affect whether a return can be accepted and on what terms.
Opened or used items: Opened, installed, assembled, or used products may be subject to inspection, reduced refund eligibility, restocking fees, exchange limits, or denial depending on category and condition.
Non-Returnable or Final-Sale Items
Certain products may be non-returnable or final sale depending on category, condition, installation status, or product-specific rules.
Damaged, Defective, Incorrect, or Missing Items
If an order arrives damaged, defective, incomplete, or incorrect, contact AceVacuums as soon as possible after delivery. The current live policy page already combines shipping and return expectations, so this section clarifies the issue-reporting path customers most often need. :contentReference[oaicite:1]{index=1}
What customers should do
- Inspect the shipment promptly
- Keep all original packaging
- Take clear photos if damage is visible
- Provide the order number and issue summary
Why prompt reporting matters
Problems reported quickly are easier to document and investigate. Delayed reporting can reduce available resolution options depending on the issue and the carrier timeline.
Refund Policy
Refunds are issued after inspection
Refunds are generally issued only after the returned item is received, inspected, and approved by AceVacuums.
Possible deductions
Depending on the circumstances, original shipping charges, return shipping costs, or restocking fees may be non-refundable or deducted where permitted and appropriate.
Refund timing
If approved, refunds are generally issued back to the original payment method. Timing may vary based on inspection completion and payment-provider processing.
Exchanges
Eligible exchange requests may be approved based on item condition, replacement availability, return reason, and whether the replacement is the same item or a different product.
Return Shipping Costs
Unless the return is due to an approved seller error or an approved damaged/defective item claim, the customer is generally responsible for return shipping costs.
Store vs Online Orders
In-store purchases may be subject to different procedures than online orders. Customers should follow the instructions on their receipt, invoice, or from AceVacuums staff when applicable.
Shipping, Return & Refund FAQs
Helpful Policy & Support Links
Need Help Before Ordering or Returning an Item?
If you have a shipping, return, refund, warranty, or product-support question, contact AceVacuums before you take the next step. In many cases, clearer guidance early can prevent delays and confusion later.
The DMV’s Trusted Vacuum Service Authority
For 25+ years, Ace Vacuums has filled the gap left by big-box retailers. We provide the expert repairs, warranty support, and genuine OEM parts that Amazon and Walmart simply don't offer. From free estimates to same-day service, we are your local alternative for professional home care solutions.
Expert Repairs
- • Vacuum Belt & Roller Repair
- • Motor Service & Replacement
- • Suction Loss & Clog Removal
- • HEPA Filter & Bag Replacement
- • Central Vacuum Installation
- • Central Vacuum Repair
- • Free Repair Estimates
Authorized Center
- • Miele & SEBO Warranty
- • Dyson & Riccar Specialists
- • Shark, Bissell & Hoover
- • Kirby & Oreck Rebuilds
- • MD & Beam Central Vac
- • Austin Air & Blueair
- • Simplicity & Electrolux
Northern Virginia
Regional Reach
Conveniently serving Washington D.C. and Maryland (Montgomery & Prince George's Counties). Our showrooms are just 20 minutes from DC and 10 minutes from Tysons Corner.
Hablamos Español — Service in English & Spanish.
Serving Zip Codes: 20147, 20176, 22030, 22031, 20151, 20190, 22102, 22314, 20110, 20148 & surrounding areas. All repairs performed by certified technicians using genuine parts.
