High sealed suction for demanding whole-home systems.
The BEAM 495 Hybrid is a large-capacity central vacuum power unit built around 625 AirWatts, 116 CFM airflow, and a high 161.5-inch water-lift rating. It gives homeowners a reversible choice between a disposable 5.3-gallon bag and bagless collection through BEAM's permanent self-cleaning Gore filter.
625 AirWatts161.5 in. H2O water lift116 CFM airflow65 dBA published ratingBagged or baglessApprox. 12,000 sq. ft.

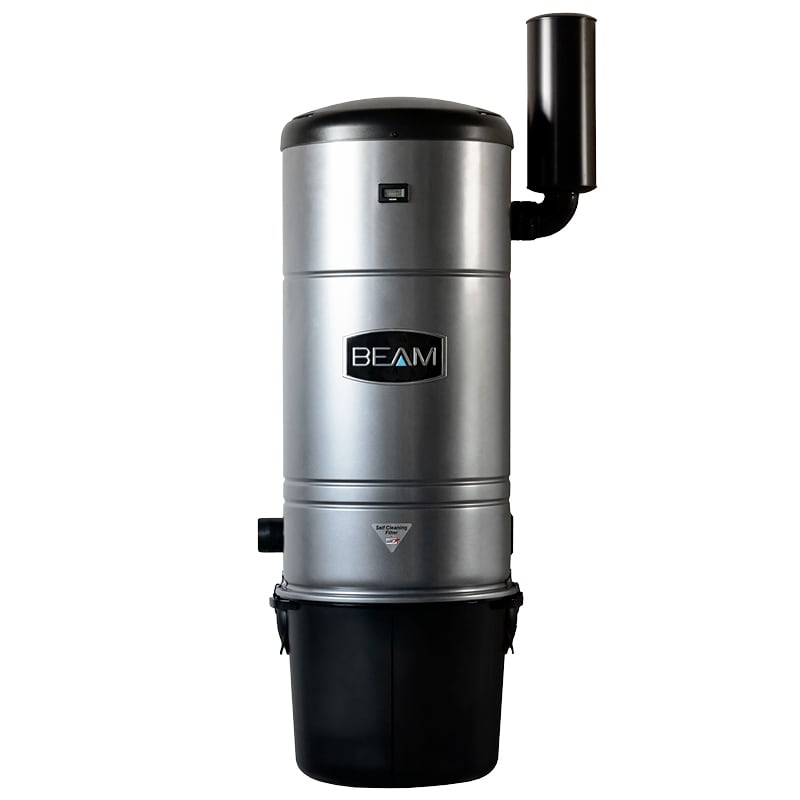

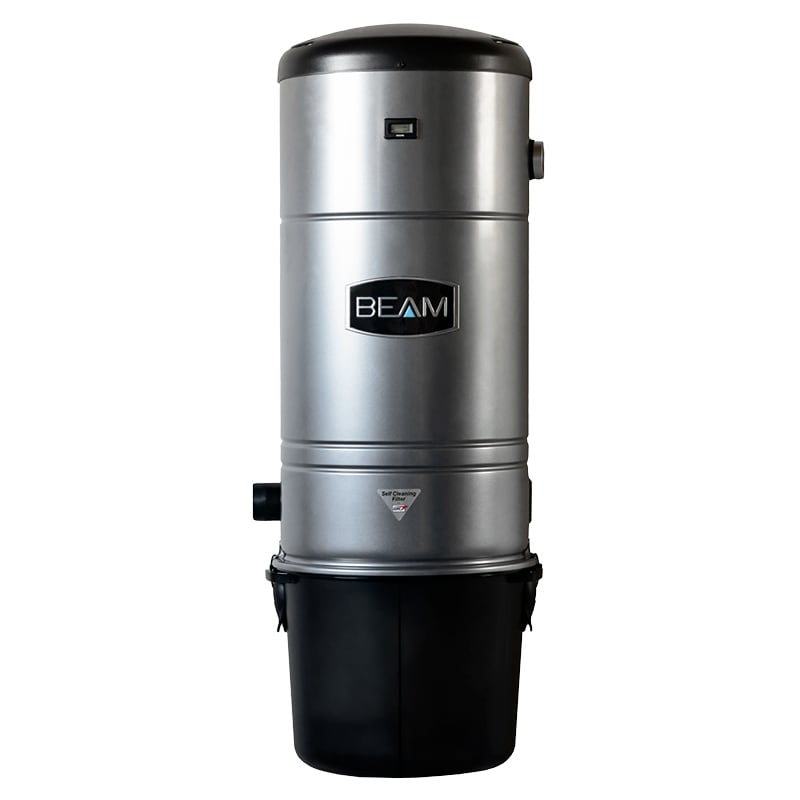

BEAM 495 Hybrid Central Vacuum Power Unit • Model ABEAM495A
At a Glance
Quick Summary
Choose the BEAM 495 when a 120-volt whole-home system needs strong sealed suction, substantial debris capacity, a published quiet rating, and the freedom to clean with or without disposable bags.
161.5 in.Water lift
High sealed suction for demanding layouts.
116 CFMAirflow
Moves normal dry debris through sealed piping.
HybridCollection choice
Use a disposable bag or the permanent Gore filter.
120 VSingle-motor platform
One 6.6-inch bypass motor; 14.5 amps maximum.
Fast decision: The 495 is an especially strong candidate for a large house, an older BEAM replacement, or a properly designed Retraflex/Hide-A-Hose-style system. Final sizing should consider total pipe length, elbows, inlet count, hose length, elevation, and the cleaning tools—not square footage alone.
Power Unit, Filtration, and System Role
Product Overview
The BEAM 495 Hybrid, model ABEAM495A, is the stationary motor-and-collection center of a built-in system. Tubing carries dry debris from wall inlets to a power unit normally mounted in a garage, basement, or ventilated utility area. BEAM recommends it for houses up to approximately 12,000 square feet and specifically positions it for Retraflex retractable hoses.
Its 116 CFM airflow is paired with 161.5 inches of water lift, emphasizing resistance-handling and sealed suction. The 625-AirWatt figure should not size a home by itself; compare all three measures with the actual pipe network.
“Hybrid” describes collection—not the motor. This unit has one 6.6-inch bypass motor with two turbine stages. It can run with a heavy-duty electrostatic disposable bag, or the bag adapter can be removed so debris collects in the lower receptacle while the permanent Gore filter protects the motor. The conversion is reversible.
What's Included
Core BEAM 495 items and components that are normally separate
Recommended for piping, electrical, exhaust, or retractable-hose work.
Power-unit-only warning: Ordering ABEAM495A does not automatically create a complete cleaning system. Confirm the hose style, wall-inlet type, electric powerhead needs, pipe connection, exhaust route, low-voltage controls, and dedicated electrical circuit before checkout.
Professional Buying Guidance
Expert Recommendation
The BEAM 495 is the right starting point when the system needs high water lift on standard North American 120-volt power and the owner values both bagged convenience and bagless flexibility.
Choose the BEAM 495
Your home has a demanding pipe layout, longer hose, multiple levels, or retractable-hose plan, and 120-volt service is preferred.
Consider the BEAM 475
Your design favors higher published airflow, the house is within its approximate 10,000-square-foot recommendation, and 144.9-inch water lift is sufficient.
Consider the BEAM 3600 or 4500
A very large or unusually extensive network justifies dual motors and 240-volt planning. These are not casual plug-in substitutes for a 120-volt unit.
For an existing system, do not select solely from the badge on the old canister. A weak inlet can come from a split hose, clogged line, leaking inlet seal, low-voltage problem, dirty collection system, worn motor, or poor pipe design. An in-home airflow diagnosis can prevent an unnecessary power-unit purchase and identify whether the 495 will deliver the intended result.
Homes and Cleaning Priorities
Best For
Pet owners
Pair the central suction with an electric carpet powerhead and a dedicated hard-floor tool.
Allergy-conscious households
Debris travels away from living rooms; bagged collection and outdoor exhaust can improve separation.
Large and multi-level homes
BEAM recommends approximately 12,000 square feet, subject to the actual pipe network.
Hardwood, tile, LVP, and mixed floors
Match a non-marring floor brush and electric carpet head to each surface.
Carpeted homes
A compatible electric hose and powerhead add the agitation that the power unit itself cannot provide.
Luxury homes and custom renovations
Plan wall inlets, VacPan, garage coverage, and Hide-A-Hose or Retraflex convenience by zone.
Quiet-cleaning priorities
The unit is rated at 65 dBA and normally operates away from occupied rooms.
Maintenance-choice buyers
Choose a 5.3-gallon disposable bag or convert to the receptacle and permanent filter.
Balanced Buying Advice
Not Ideal For
Homes without built-in tubing: A new system requires inlets, PVC, wiring, power, and installation labor.
Renters or small apartments: Permanent infrastructure and this large unit may be impractical.
Wet pickup: The owner manual specifies dry household use only. It is not a wet/dry vacuum.
Construction dust or ash: Fine abrasive dust and hot debris can damage the system or create danger.
Buyers expecting a complete hose kit: ABEAM495A is power-unit-only unless the live option states otherwise.
Small layouts: A smaller correctly sized unit may be more economical.
Tight mounting areas: The 40.1-inch unit needs access around and below it.
240-volt dual-motor plans: Compare BEAM 3600 or 4500.
Honest sizing note: “Up to 12,000 sq. ft.” is a manufacturer approximation, not a promise that every 12,000-square-foot installation will perform identically. Pipe geometry and leakage can matter more than the floor-area number.
Feature-to-Benefit Guide
Key Features
Key features and owner benefits of the BEAM 495 Hybrid
Feature
What it means
Why it matters
625 AirWatts
Combines airflow and vacuum at one operating point.
Useful for same-source comparison, not stand-alone sizing.
161.5 in. H2O water lift
High maximum sealed suction.
Supports restrictive piping and longer hoses.
116 CFM airflow
Published air movement.
Carries dry debris through sealed piping.
Single 6.6-in. bypass motor
One two-stage motor with separate cooling air.
Hybrid does not mean dual motor.
Hybrid collection
Reversible bagged or bagless use.
Choose cleaner bag disposal or reusable collection.
Self-cleaning Gore filter
Weighted movement releases dust after shutdown.
Supports the bagless configuration.
5.3-gal. disposable bag
Large bagged capacity.
Fewer changes than a small portable bin.
65 dBA sound rating
Published at power-unit level.
Useful for placement comparisons.
120 V, 14.5 A maximum
North American specification.
Requires a dedicated grounded 15-amp circuit.
Usage timer
Tracks operating time.
Supports service and warranty decisions.
Left or right intake routing
Installer caps the unused opening.
Adapts to more pipe locations.
Thermal/circuit protection
Interrupts operation under a fault.
Repeated trips still require diagnosis.
Retraflex positioning
BEAM recommends 495 for retractable hose.
Supports modern hose storage when sized correctly.
Serviceable motor
No lubrication; carbon brushes wear.
BEAM recommends inspection every five to six years.
Why This Performance Profile Matters
What Makes This Model Stand Out
High water lift on 120 V
The 161.5-inch rating is the defining specification. It gives the 495 more published sealed suction than the current BEAM 475 while avoiding a 240-volt dual-motor installation.
Real filtration choice
Hybrid collection lets the owner prioritize cleaner bag disposal or avoid recurring bags. It is a reversible mechanical configuration, not marketing shorthand for two motors.
Retractable-hose suitability
BEAM calls the 495 a preferred match for Retraflex. Ace Vacuums can also evaluate Hide-A-Hose-style layouts, hose length, inlet placement, and retraction performance.
Large-home serviceability
The motor, circuit board, bag, permanent filter, canister, inlet assembly, wall bracket, and muffler have documented replacement references.
BEAM hybrid-platform cutaway shown for filtration and collection context
Most important distinction: The power unit creates suction and collects debris; the hose and attachment kit determine how well the system agitates carpet, glides across hardwood, reaches stairs, and handles pet hair. Build the complete system—not just the canister—around the home.
Model and Brand-Level Decisions
Product Comparisons
BEAM 495 vs. BEAM 475
495 has higher water lift: 161.5 versus 144.9 inches. The 475 has more airflow and AirWatts: 135.8 CFM/659 AW versus 116 CFM/625 AW. Both are 120-volt Hybrid Gore units; BEAM estimates 12,000 square feet for 495 and 10,000 for 475.
BEAM 495 vs. Serenity SC398 #000346
The archived Serenity model published 680 AW, 125 CFM, 135-inch water lift, and 12,000 square feet. The 495 trades lower airflow/AirWatts for higher water lift and a lower published sound figure. Verify replacement fit; other SC398 versions differ.
BEAM 495 vs. BEAM 3600
495 is single-motor 120 V. The dual-motor 3600 uses 240 V and publishes 1,046 AW/230 CFM for extensive networks. Electrical supply and piping should decide.
BEAM 495 vs. Cana-Vac Signature 790
Both publish 65 dBA on 120 V. Cana-Vac publishes 135.8 CFM/659 AW; BEAM publishes higher water lift—161.5 versus 144.9 inches. Compare filtration and local support too.
BEAM 495 vs. MD Central Vacuum
MD SilentMaster emphasizes closed bags, metal construction, and Hide-A-Hose. BEAM emphasizes Hybrid Gore collection and high water lift. Compare an exact MD model.
BEAM 495 vs. VacuFlo
VacuFlo has filtered, bagged, and true-cyclonic families. Compare an exact model's voltage, filtration, performance, sound method, and hose system with 495's 65 dBA rating.
Performance numbers are most useful when sourced from the same manufacturer and test method. Water lift, CFM, and AirWatts describe different aspects of performance and should not be ranked as though they were the same unit.
Natural-Language Buying Answers
Questions Buyers Commonly Ask
Is the BEAM 495 good for pet hair?
Yes—with an electric carpet powerhead and a suitable hard-floor tool.
Is the BEAM 495 good for allergies?
It transports debris away from rooms. Bagged disposal and outdoor exhaust can improve separation.
Is the BEAM 495 worth buying?
Yes for a correctly sized large-home or retractable-hose system; not when a smaller unit already fits.
Is it a quiet central vacuum?
BEAM publishes 65 dBA. Remote motor placement often reduces occupied-room noise.
Is it quieter than VacuFlo?
Compare 65 dBA with the exact VacuFlo model under a similar test; brand-wide claims are unreliable.
Which homes benefit most?
Large, multi-level, pet, allergy-conscious, and Retraflex or Hide-A-Hose projects.
Verified Manufacturer Data
Technical Specifications
Technical specifications for BEAM 495 model ABEAM495A
Brand
BEAM
Model
495 Hybrid
Model number / SKU / MPN
ABEAM495A
Product type
Residential central vacuum power unit
Manufacturer's approximate coverage
Up to 12,000 sq. ft. / 1,115 m²; layout-dependent
AirWatts
625 AW
Airflow
116 CFM / 197 m³/h
Water lift
161.5 in. H2O / 4,102 mm H2O
Voltage / frequency
120 V / 60 Hz
Maximum amperage
14.5 A
Recommended branch circuit
Dedicated, grounded 15 A circuit; outlet within 3 ft. of unit; no extension cord
Control connection
24 V DC low-voltage wall-inlet activation
Motor
One 6.6-in. bypass motor; two turbine stages
Published sound level
65 dBA
Filtration
Hybrid Gore; convertible bagged or bagless operation
Compatible bag reference
TDSAC93N heavy-duty electrostatic 3-notch bag; 5.3 gal. / 20 L
Permanent filter reference
TDFILTGORE14 self-cleaning Gore filter
Height
40.1 in. / 102 cm
Maintenance access
Lower dirt receptacle with two latches; allow documented clearance around and below unit
Motor service guidance
No lubrication required; manufacturer recommends authorized inspection every 5–6 years
Domestic parts warranty
Motor and electrical components: 10 years or 750 hours of use, whichever occurs first, subject to manufacturer terms
Domestic labor warranty
1 year, subject to manufacturer terms
Canister/body coverage
Limited lifetime coverage for material or manufacturing defects while the original owner retains the unit at its original installation, subject to full terms
Intended use
Household dry pickup only
Manufacturing location
Designed and manufactured in Blainville, Quebec, Canada
Specifications are manufacturer-published for ABEAM495A. Product design, carton contents, and terms can change; verify the rating label and current written warranty before installation.
Who Receives the Most Value
Ideal Buyers
The large-home planner
You want a high-water-lift 120-volt power unit and will size it against real pipe length rather than a square-foot headline alone.
The BEAM replacement owner
You have an older BEAM system and want current parts references, hybrid filtration, documented service access, and professional fit confirmation.
The retractable-hose buyer
You are planning Retraflex or Hide-A-Hose-style convenience and need enough system reserve for the selected hose length and route.
The bag-preference household
You prefer contained dust disposal and the capacity of a 5.3-gallon heavy-duty electrostatic bag.
The bagless-preference household
You are comfortable emptying the lower receptacle and maintaining the permanent filter at least seasonally as use requires.
The service-supported homeowner
You value an authorized dealer that can diagnose piping, inlets, controls, hose, tools, motor, and replacement fit in the home.
Local Expertise Before and After the Sale
Why Buy from Ace Vacuums
Ace Vacuums is an authorized BEAM dealer with central-vacuum specialists who can match the 495 to the complete system—not simply sell a canister by square footage.
In-home diagnosis first
Ten out of ten central-vacuum diagnosis, repair, and replacement calls are handled in the home because piping, inlets, controls, hoses, and the power unit must be tested together.
Repair, replace, or install
Get a free estimate and diagnosis, then compare repair, motor service, power-unit replacement, retrofit installation, or a new whole-home layout with clear scope.
Parts and authorized support
Access BEAM bags, filters, hoses, powerheads, inlets, connection parts, warranty guidance, and certified technicians. Same-day repair on parts availability.
Before ordering: Call 703-997-9292 with the old model label, photos of both pipe connections, outlet/circuit information, hose type, inlet count, and approximate longest run. This reduces wrong-unit and wrong-installation risk.
Shop Nationwide or Arrange Local Service
Available Online & In-Store
Use the live purchase panel above for current price, stock, shipping, and exact bundle contents. For DMV installation, replacement, or in-home diagnosis, call Ace Vacuums before visiting so the right central-vacuum specialist can review the project.
Ace Vacuums Fairfax
11110 Main St Fairfax, VA 22030
BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Fairfax, Northern Virginia, Washington DC, and nearby Maryland—with free and easy parking.
300 Fort Evans Rd NE, Suite 104 Leesburg, VA 20176
BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Loudoun County, Ashburn, Sterling, Leesburg, and surrounding areas—with free and easy parking.
Hybrid Gore; airflow-oriented 120-V alternative, approx. 10,000 sq. ft.
BEAM Serenity SC398 #000346 (archived)
120 V; bypass motor
680 AW
125 CFM
135 in.
78 dBA
Hybrid Gore; legacy 12,000-sq.-ft. reference requiring fit verification
BEAM 3600
240 V; two 5.7-in. 2-stage motors
1,046 AW
230 CFM
128 in.
Not currently published
Hybrid Gore; extensive networks and multiple-inlet planning
Cana-Vac Signature 790
120 V; single-motor platform
659 AW
135.8 CFM
144.9 in.
65 dBA
High-efficiency HEPA filtration; mid-to-large-home alternative
Manufacturer figures can use different equipment and methods. An archived model is shown only for replacement context. Confirm current model availability, electrical requirements, dimensions, pipe connection, and warranty before ordering.
The Honest Tradeoffs
Pros and Cons
Pros
High 161.5-inch water-lift rating
Standard North American 120-volt architecture
Reversible bagged or bagless operation
Large 5.3-gallon disposable bag
Permanent self-cleaning Gore filtration path
Published 65 dBA power-unit sound level
Manufacturer recommendation up to approximately 12,000 sq. ft.
Specifically positioned for Retraflex retractable hose
Documented service parts and usage timer
Strong domestic warranty structure, subject to terms
Cons
Power unit is not a complete hose-and-tool system
Professional sizing and installation may be needed
Lower published airflow and AirWatts than BEAM 475
Bagless emptying exposes the user to more dust than sealed bag disposal
Requires a dedicated grounded circuit and permanent wall space
Large 40.1-inch height plus maintenance clearance
Dry household use only—no liquids or construction debris
Square-foot rating cannot account for every pipe layout
Not the dual-motor choice for engineered 240-volt systems
Buying, Installation, and Ownership
Frequently Asked Questions
Open the master FAQ guide, then select a question. These answers separate verified specifications from system-dependent installation advice.
FAQs: BEAM 495 buying, fitment, and ownership guide
What is the official model number for the BEAM 495 Hybrid?
The North American 120-volt model number is ABEAM495A. Match it to the carton and rating label.
What does “Hybrid” mean on the BEAM 495?
It means bagged or bagless collection through the permanent Gore filter—not two motors.
How powerful is the BEAM 495?
BEAM publishes 625 AirWatts, 116 CFM, and 161.5 inches of water lift—the key figure for restrictive pipes or long hoses.
How large a home can the BEAM 495 serve?
BEAM estimates up to 12,000 square feet. Pipe length, elbows, leaks, hose, and elevation still matter.
Is the BEAM 495 good for pet hair?
Yes. Pair it with an electric carpet powerhead and the proper hard-floor brush.
Is the BEAM 495 suitable for allergy sufferers?
It moves debris away from rooms. Choose bagged disposal and assess outdoor exhaust; do not call its Gore filter HEPA.
Is the BEAM 495 good for hardwood floors?
Yes, with a non-marring hard-floor brush approved for the flooring.
Can the BEAM 495 clean carpet?
Yes. Select a compatible electric hose and height-appropriate powerhead for deeper cleaning.
Does the BEAM 495 work with Retraflex or Hide-A-Hose?
BEAM recommends it for Retraflex. Verify any Hide-A-Hose-style layout by hose length, piping, and attachments.
Is the BEAM 495 quieter than a portable vacuum?
Its 65 dBA motor normally runs away from living areas, but perceived sound varies by installation.
Is the BEAM 495 quieter than VacuFlo?
Compare 65 dBA with an exact VacuFlo model under a similar test. Brand-wide claims are unreliable.
What electrical circuit does the BEAM 495 require?
A dedicated grounded 120 V/15 A circuit, outlet within three feet, and no extension cord.
Can I replace an older BEAM SC398 with the BEAM 495?
Possibly—not automatically. Identify the exact SC398 version, then confirm mounting, connections, circuit, hose, and airflow.
Does the BEAM 495 include a hose and powerhead?
Not in a power-unit-only listing. Those items are separate unless the live bundle says otherwise.
Is the BEAM 495 right for your piping and hose system?
Tell an Ace Vacuums specialist about your home size, longest pipe run, inlet count, hose length, floors, pets, current model, and electrical service. We will help you compare repair, replacement, BEAM alternatives, and Hide-A-Hose or Retraflex options before you buy.
High sealed suction for demanding whole-home systems.
The BEAM 495 Hybrid is a large-capacity central vacuum power unit built around 625 AirWatts, 116 CFM airflow, and a high 161.5-inch water-lift rating. It gives homeowners a reversible choice between a disposable 5.3-gallon bag and bagless collection through BEAM's permanent self-cleaning Gore filter.
Choose the BEAM 495 when a 120-volt whole-home system needs strong sealed suction, substantial debris capacity, a published quiet rating, and the freedom to clean with or without disposable bags.
161.5 in.Water lift
High sealed suction for demanding layouts.
116 CFMAirflow
Moves normal dry debris through sealed piping.
HybridCollection choice
Use a disposable bag or the permanent Gore filter.
120 VSingle-motor platform
One 6.6-inch bypass motor; 14.5 amps maximum.
Fast decision: The 495 is an especially strong candidate for a large house, an older BEAM replacement, or a properly designed Retraflex/Hide-A-Hose-style system. Final sizing should consider total pipe length, elbows, inlet count, hose length, elevation, and the cleaning tools—not square footage alone.
Power Unit, Filtration, and System Role
Product Overview
The BEAM 495 Hybrid, model ABEAM495A, is the stationary motor-and-collection center of a built-in system. Tubing carries dry debris from wall inlets to a power unit normally mounted in a garage, basement, or ventilated utility area. BEAM recommends it for houses up to approximately 12,000 square feet and specifically positions it for Retraflex retractable hoses.
Its 116 CFM airflow is paired with 161.5 inches of water lift, emphasizing resistance-handling and sealed suction. The 625-AirWatt figure should not size a home by itself; compare all three measures with the actual pipe network.
“Hybrid” describes collection—not the motor. This unit has one 6.6-inch bypass motor with two turbine stages. It can run with a heavy-duty electrostatic disposable bag, or the bag adapter can be removed so debris collects in the lower receptacle while the permanent Gore filter protects the motor. The conversion is reversible.
What's Included
Core BEAM 495 items and components that are normally separate
Recommended for piping, electrical, exhaust, or retractable-hose work.
Power-unit-only warning: Ordering ABEAM495A does not automatically create a complete cleaning system. Confirm the hose style, wall-inlet type, electric powerhead needs, pipe connection, exhaust route, low-voltage controls, and dedicated electrical circuit before checkout.
Professional Buying Guidance
Expert Recommendation
The BEAM 495 is the right starting point when the system needs high water lift on standard North American 120-volt power and the owner values both bagged convenience and bagless flexibility.
Choose the BEAM 495
Your home has a demanding pipe layout, longer hose, multiple levels, or retractable-hose plan, and 120-volt service is preferred.
Consider the BEAM 475
Your design favors higher published airflow, the house is within its approximate 10,000-square-foot recommendation, and 144.9-inch water lift is sufficient.
Consider the BEAM 3600 or 4500
A very large or unusually extensive network justifies dual motors and 240-volt planning. These are not casual plug-in substitutes for a 120-volt unit.
For an existing system, do not select solely from the badge on the old canister. A weak inlet can come from a split hose, clogged line, leaking inlet seal, low-voltage problem, dirty collection system, worn motor, or poor pipe design. An in-home airflow diagnosis can prevent an unnecessary power-unit purchase and identify whether the 495 will deliver the intended result.
Homes and Cleaning Priorities
Best For
Pet owners
Pair the central suction with an electric carpet powerhead and a dedicated hard-floor tool.
Allergy-conscious households
Debris travels away from living rooms; bagged collection and outdoor exhaust can improve separation.
Large and multi-level homes
BEAM recommends approximately 12,000 square feet, subject to the actual pipe network.
Hardwood, tile, LVP, and mixed floors
Match a non-marring floor brush and electric carpet head to each surface.
Carpeted homes
A compatible electric hose and powerhead add the agitation that the power unit itself cannot provide.
Luxury homes and custom renovations
Plan wall inlets, VacPan, garage coverage, and Hide-A-Hose or Retraflex convenience by zone.
Quiet-cleaning priorities
The unit is rated at 65 dBA and normally operates away from occupied rooms.
Maintenance-choice buyers
Choose a 5.3-gallon disposable bag or convert to the receptacle and permanent filter.
Balanced Buying Advice
Not Ideal For
Homes without built-in tubing: A new system requires inlets, PVC, wiring, power, and installation labor.
Renters or small apartments: Permanent infrastructure and this large unit may be impractical.
Wet pickup: The owner manual specifies dry household use only. It is not a wet/dry vacuum.
Construction dust or ash: Fine abrasive dust and hot debris can damage the system or create danger.
Buyers expecting a complete hose kit: ABEAM495A is power-unit-only unless the live option states otherwise.
Small layouts: A smaller correctly sized unit may be more economical.
Tight mounting areas: The 40.1-inch unit needs access around and below it.
240-volt dual-motor plans: Compare BEAM 3600 or 4500.
Honest sizing note: “Up to 12,000 sq. ft.” is a manufacturer approximation, not a promise that every 12,000-square-foot installation will perform identically. Pipe geometry and leakage can matter more than the floor-area number.
Feature-to-Benefit Guide
Key Features
Key features and owner benefits of the BEAM 495 Hybrid
Feature
What it means
Why it matters
625 AirWatts
Combines airflow and vacuum at one operating point.
Useful for same-source comparison, not stand-alone sizing.
161.5 in. H2O water lift
High maximum sealed suction.
Supports restrictive piping and longer hoses.
116 CFM airflow
Published air movement.
Carries dry debris through sealed piping.
Single 6.6-in. bypass motor
One two-stage motor with separate cooling air.
Hybrid does not mean dual motor.
Hybrid collection
Reversible bagged or bagless use.
Choose cleaner bag disposal or reusable collection.
Self-cleaning Gore filter
Weighted movement releases dust after shutdown.
Supports the bagless configuration.
5.3-gal. disposable bag
Large bagged capacity.
Fewer changes than a small portable bin.
65 dBA sound rating
Published at power-unit level.
Useful for placement comparisons.
120 V, 14.5 A maximum
North American specification.
Requires a dedicated grounded 15-amp circuit.
Usage timer
Tracks operating time.
Supports service and warranty decisions.
Left or right intake routing
Installer caps the unused opening.
Adapts to more pipe locations.
Thermal/circuit protection
Interrupts operation under a fault.
Repeated trips still require diagnosis.
Retraflex positioning
BEAM recommends 495 for retractable hose.
Supports modern hose storage when sized correctly.
Serviceable motor
No lubrication; carbon brushes wear.
BEAM recommends inspection every five to six years.
Why This Performance Profile Matters
What Makes This Model Stand Out
High water lift on 120 V
The 161.5-inch rating is the defining specification. It gives the 495 more published sealed suction than the current BEAM 475 while avoiding a 240-volt dual-motor installation.
Real filtration choice
Hybrid collection lets the owner prioritize cleaner bag disposal or avoid recurring bags. It is a reversible mechanical configuration, not marketing shorthand for two motors.
Retractable-hose suitability
BEAM calls the 495 a preferred match for Retraflex. Ace Vacuums can also evaluate Hide-A-Hose-style layouts, hose length, inlet placement, and retraction performance.
Large-home serviceability
The motor, circuit board, bag, permanent filter, canister, inlet assembly, wall bracket, and muffler have documented replacement references.
BEAM hybrid-platform cutaway shown for filtration and collection contextMost important distinction: The power unit creates suction and collects debris; the hose and attachment kit determine how well the system agitates carpet, glides across hardwood, reaches stairs, and handles pet hair. Build the complete system—not just the canister—around the home.
Model and Brand-Level Decisions
Product Comparisons
BEAM 495 vs. BEAM 475
495 has higher water lift: 161.5 versus 144.9 inches. The 475 has more airflow and AirWatts: 135.8 CFM/659 AW versus 116 CFM/625 AW. Both are 120-volt Hybrid Gore units; BEAM estimates 12,000 square feet for 495 and 10,000 for 475.
BEAM 495 vs. Serenity SC398 #000346
The archived Serenity model published 680 AW, 125 CFM, 135-inch water lift, and 12,000 square feet. The 495 trades lower airflow/AirWatts for higher water lift and a lower published sound figure. Verify replacement fit; other SC398 versions differ.
BEAM 495 vs. BEAM 3600
495 is single-motor 120 V. The dual-motor 3600 uses 240 V and publishes 1,046 AW/230 CFM for extensive networks. Electrical supply and piping should decide.
BEAM 495 vs. Cana-Vac Signature 790
Both publish 65 dBA on 120 V. Cana-Vac publishes 135.8 CFM/659 AW; BEAM publishes higher water lift—161.5 versus 144.9 inches. Compare filtration and local support too.
BEAM 495 vs. MD Central Vacuum
MD SilentMaster emphasizes closed bags, metal construction, and Hide-A-Hose. BEAM emphasizes Hybrid Gore collection and high water lift. Compare an exact MD model.
BEAM 495 vs. VacuFlo
VacuFlo has filtered, bagged, and true-cyclonic families. Compare an exact model's voltage, filtration, performance, sound method, and hose system with 495's 65 dBA rating.
Performance numbers are most useful when sourced from the same manufacturer and test method. Water lift, CFM, and AirWatts describe different aspects of performance and should not be ranked as though they were the same unit.
Natural-Language Buying Answers
Questions Buyers Commonly Ask
Is the BEAM 495 good for pet hair?
Yes—with an electric carpet powerhead and a suitable hard-floor tool.
Is the BEAM 495 good for allergies?
It transports debris away from rooms. Bagged disposal and outdoor exhaust can improve separation.
Is the BEAM 495 worth buying?
Yes for a correctly sized large-home or retractable-hose system; not when a smaller unit already fits.
Is it a quiet central vacuum?
BEAM publishes 65 dBA. Remote motor placement often reduces occupied-room noise.
Is it quieter than VacuFlo?
Compare 65 dBA with the exact VacuFlo model under a similar test; brand-wide claims are unreliable.
Which homes benefit most?
Large, multi-level, pet, allergy-conscious, and Retraflex or Hide-A-Hose projects.
Verified Manufacturer Data
Technical Specifications
Technical specifications for BEAM 495 model ABEAM495A
Brand
BEAM
Model
495 Hybrid
Model number / SKU / MPN
ABEAM495A
Product type
Residential central vacuum power unit
Manufacturer's approximate coverage
Up to 12,000 sq. ft. / 1,115 m²; layout-dependent
AirWatts
625 AW
Airflow
116 CFM / 197 m³/h
Water lift
161.5 in. H2O / 4,102 mm H2O
Voltage / frequency
120 V / 60 Hz
Maximum amperage
14.5 A
Recommended branch circuit
Dedicated, grounded 15 A circuit; outlet within 3 ft. of unit; no extension cord
Control connection
24 V DC low-voltage wall-inlet activation
Motor
One 6.6-in. bypass motor; two turbine stages
Published sound level
65 dBA
Filtration
Hybrid Gore; convertible bagged or bagless operation
Compatible bag reference
TDSAC93N heavy-duty electrostatic 3-notch bag; 5.3 gal. / 20 L
Permanent filter reference
TDFILTGORE14 self-cleaning Gore filter
Height
40.1 in. / 102 cm
Maintenance access
Lower dirt receptacle with two latches; allow documented clearance around and below unit
Motor service guidance
No lubrication required; manufacturer recommends authorized inspection every 5–6 years
Domestic parts warranty
Motor and electrical components: 10 years or 750 hours of use, whichever occurs first, subject to manufacturer terms
Domestic labor warranty
1 year, subject to manufacturer terms
Canister/body coverage
Limited lifetime coverage for material or manufacturing defects while the original owner retains the unit at its original installation, subject to full terms
Intended use
Household dry pickup only
Manufacturing location
Designed and manufactured in Blainville, Quebec, Canada
Specifications are manufacturer-published for ABEAM495A. Product design, carton contents, and terms can change; verify the rating label and current written warranty before installation.
Who Receives the Most Value
Ideal Buyers
The large-home planner
You want a high-water-lift 120-volt power unit and will size it against real pipe length rather than a square-foot headline alone.
The BEAM replacement owner
You have an older BEAM system and want current parts references, hybrid filtration, documented service access, and professional fit confirmation.
The retractable-hose buyer
You are planning Retraflex or Hide-A-Hose-style convenience and need enough system reserve for the selected hose length and route.
The bag-preference household
You prefer contained dust disposal and the capacity of a 5.3-gallon heavy-duty electrostatic bag.
The bagless-preference household
You are comfortable emptying the lower receptacle and maintaining the permanent filter at least seasonally as use requires.
The service-supported homeowner
You value an authorized dealer that can diagnose piping, inlets, controls, hose, tools, motor, and replacement fit in the home.
Local Expertise Before and After the Sale
Why Buy from Ace Vacuums
Ace Vacuums is an authorized BEAM dealer with central-vacuum specialists who can match the 495 to the complete system—not simply sell a canister by square footage.
In-home diagnosis first
Ten out of ten central-vacuum diagnosis, repair, and replacement calls are handled in the home because piping, inlets, controls, hoses, and the power unit must be tested together.
Repair, replace, or install
Get a free estimate and diagnosis, then compare repair, motor service, power-unit replacement, retrofit installation, or a new whole-home layout with clear scope.
Parts and authorized support
Access BEAM bags, filters, hoses, powerheads, inlets, connection parts, warranty guidance, and certified technicians. Same-day repair on parts availability.
Before ordering: Call 703-997-9292 with the old model label, photos of both pipe connections, outlet/circuit information, hose type, inlet count, and approximate longest run. This reduces wrong-unit and wrong-installation risk.
Shop Nationwide or Arrange Local Service
Available Online & In-Store
Use the live purchase panel above for current price, stock, shipping, and exact bundle contents. For DMV installation, replacement, or in-home diagnosis, call Ace Vacuums before visiting so the right central-vacuum specialist can review the project.
Ace Vacuums Fairfax
11110 Main St Fairfax, VA 22030
BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Fairfax, Northern Virginia, Washington DC, and nearby Maryland—with free and easy parking.
300 Fort Evans Rd NE, Suite 104 Leesburg, VA 20176
BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Loudoun County, Ashburn, Sterling, Leesburg, and surrounding areas—with free and easy parking.
Hybrid Gore; airflow-oriented 120-V alternative, approx. 10,000 sq. ft.
BEAM Serenity SC398 #000346 (archived)
120 V; bypass motor
680 AW
125 CFM
135 in.
78 dBA
Hybrid Gore; legacy 12,000-sq.-ft. reference requiring fit verification
BEAM 3600
240 V; two 5.7-in. 2-stage motors
1,046 AW
230 CFM
128 in.
Not currently published
Hybrid Gore; extensive networks and multiple-inlet planning
Cana-Vac Signature 790
120 V; single-motor platform
659 AW
135.8 CFM
144.9 in.
65 dBA
High-efficiency HEPA filtration; mid-to-large-home alternative
Manufacturer figures can use different equipment and methods. An archived model is shown only for replacement context. Confirm current model availability, electrical requirements, dimensions, pipe connection, and warranty before ordering.
The Honest Tradeoffs
Pros and Cons
Pros
High 161.5-inch water-lift rating
Standard North American 120-volt architecture
Reversible bagged or bagless operation
Large 5.3-gallon disposable bag
Permanent self-cleaning Gore filtration path
Published 65 dBA power-unit sound level
Manufacturer recommendation up to approximately 12,000 sq. ft.
Specifically positioned for Retraflex retractable hose
Documented service parts and usage timer
Strong domestic warranty structure, subject to terms
Cons
Power unit is not a complete hose-and-tool system
Professional sizing and installation may be needed
Lower published airflow and AirWatts than BEAM 475
Bagless emptying exposes the user to more dust than sealed bag disposal
Requires a dedicated grounded circuit and permanent wall space
Large 40.1-inch height plus maintenance clearance
Dry household use only—no liquids or construction debris
Square-foot rating cannot account for every pipe layout
Not the dual-motor choice for engineered 240-volt systems
Buying, Installation, and Ownership
Frequently Asked Questions
Open the master FAQ guide, then select a question. These answers separate verified specifications from system-dependent installation advice.
FAQs: BEAM 495 buying, fitment, and ownership guideWhat is the official model number for the BEAM 495 Hybrid?
The North American 120-volt model number is ABEAM495A. Match it to the carton and rating label.
What does “Hybrid” mean on the BEAM 495?
It means bagged or bagless collection through the permanent Gore filter—not two motors.
How powerful is the BEAM 495?
BEAM publishes 625 AirWatts, 116 CFM, and 161.5 inches of water lift—the key figure for restrictive pipes or long hoses.
How large a home can the BEAM 495 serve?
BEAM estimates up to 12,000 square feet. Pipe length, elbows, leaks, hose, and elevation still matter.
Is the BEAM 495 good for pet hair?
Yes. Pair it with an electric carpet powerhead and the proper hard-floor brush.
Is the BEAM 495 suitable for allergy sufferers?
It moves debris away from rooms. Choose bagged disposal and assess outdoor exhaust; do not call its Gore filter HEPA.
Is the BEAM 495 good for hardwood floors?
Yes, with a non-marring hard-floor brush approved for the flooring.
Can the BEAM 495 clean carpet?
Yes. Select a compatible electric hose and height-appropriate powerhead for deeper cleaning.
Does the BEAM 495 work with Retraflex or Hide-A-Hose?
BEAM recommends it for Retraflex. Verify any Hide-A-Hose-style layout by hose length, piping, and attachments.
Is the BEAM 495 quieter than a portable vacuum?
Its 65 dBA motor normally runs away from living areas, but perceived sound varies by installation.
Is the BEAM 495 quieter than VacuFlo?
Compare 65 dBA with an exact VacuFlo model under a similar test. Brand-wide claims are unreliable.
What electrical circuit does the BEAM 495 require?
A dedicated grounded 120 V/15 A circuit, outlet within three feet, and no extension cord.
Can I replace an older BEAM SC398 with the BEAM 495?
Possibly—not automatically. Identify the exact SC398 version, then confirm mounting, connections, circuit, hose, and airflow.
Does the BEAM 495 include a hose and powerhead?
Not in a power-unit-only listing. Those items are separate unless the live bundle says otherwise.
Is the BEAM 495 right for your piping and hose system?
Tell an Ace Vacuums specialist about your home size, longest pipe run, inlet count, hose length, floors, pets, current model, and electrical service. We will help you compare repair, replacement, BEAM alternatives, and Hide-A-Hose or Retraflex options before you buy.
Address: 300 Fort Evans Rd NE, Suite 104, Leesburg, VA 20176 Landmark: Next to Home Depot in Leesburg Best for: Ashburn, Sterling, Frederick MD, Loudoun County
In-stock merchandise generally ships from our Leesburg, Virginia location within 3–5 business days. Processing time is separate from carrier transit time and is not a guaranteed delivery date. Weekends and holidays can affect timing. Special-order, backordered or unavailable items may take longer; contact us to confirm timing before purchase when a deadline matters.
Shipping options and charges are shown at checkout. After dispatch, follow the carrier's tracking updates. Weather, carrier delays, order verification and inventory confirmation may affect delivery. Inspect packages promptly and retain packaging if there is damage or an incorrect or missing item.
Returns and refunds
Eligible unused items have a 30-calendar-day return request window for refunds or exchanges, measured from delivery or in-store purchase. Return authorization is required. Final-sale exclusions, the 15% restocking fee for change-of-mind returns and shipping responsibilities are explained in our Return and Refund Policy. That policy is the governing source for return eligibility and fees.
Updated September 27, 2026. Request a return for an eligible unused item within 30 calendar days of delivery (or purchase for items collected in store). Eligible returns may be refunded to the original payment method or exchanged, subject to availability. The same 30-day request window applies to both refunds and exchanges; there is no separate seven-day or 15-day refund deadline.
Eligibility and authorization
Items must be unused, clean, complete and in their original packaging with all accessories, manuals and proof of purchase. Contact sales@acevacuums.com or 703-997-9292 before sending anything back. Include your order number, item and reason for return. We will confirm eligibility, charges and return instructions. Unapproved or cash-on-delivery returns are not accepted.
Fees and shipping
For an approved change-of-mind return, a 15% restocking fee applies to the returned merchandise price. Original shipping charges are not refundable and the customer pays return shipping. These charges do not apply to an approved return caused by our shipping error or a damaged/defective item claim. Contact us first so we can arrange the appropriate remedy and shipping instructions. Do not assume a prepaid label is included.
Final-sale and excluded items
Air purifiers; discounted, clearance, trade-in, holiday-sale and price-matched purchases; gift cards; custom or special-order products; electrical parts; used or installed items; opened cleaning solutions; and used bags, filters, belts or other consumables are not eligible for change-of-mind returns. Other items clearly marked final sale at purchase are also excluded. An opened box alone does not disqualify an otherwise eligible unused, complete item, but consumables and cleaning solutions must remain unopened.
Damaged, defective, incorrect or missing items; recalls
Inspect your order promptly and contact us as soon as you discover a problem, with your order number and photos where helpful. Keep the packaging. Change-of-mind exclusions and deadlines do not remove applicable defect, warranty, recall or statutory rights. Warranty coverage requires evaluation under the manufacturer's terms; dealer status does not guarantee free repair. Recalled products must follow the manufacturer's recall process.
Refund timing and exchanges
After we receive and inspect the return, we will notify you of approval or the reason it cannot be accepted. Approved refunds are issued to the original payment method within 10 business days of approval; your bank may take additional time to post them. Contact us if more than 15 business days have passed since approval. Exchanges require authorization and replacement availability; any price difference and applicable charges will be explained before processing.
Applicable rights and earlier purchases
This policy applies to online and in-store purchases. We will honor more favorable written return terms provided with an earlier purchase. Applicable consumer rights remain unaffected. Where the European Union 14-day cancellation right applies, customers may cancel or return eligible orders within 14 days of receipt, subject to applicable legal exceptions, without giving a reason.
Recommended BEAM Products
Build your cleaning setup with model-matched supplies and useful accessories. Kit choices are alternatives; check what is already included before ordering.
Check your system and connections
For bags and filters, match the full Beam model and production version. For tools, check the hose handle shape, diameter, wand and electrical connection. Suction-only hoses cannot power corded electric brushes. Complete kits may already contain the tools you need.
25 maintenance sheets for routine central-vacuum hose and pipe care. Follow the label and system instructions; not a repair for a blocked or damaged system.
Current Beam 205 / 345 / 360 models use the 11-inch filter; 398 / 475 / 495 / 3600 / 4500 use the 14-inch filter. TDSAC93BM bags follow the listed compatible model path. Short TDSAC92BM bags are for the 275 path; #4462 bags are a separate configuration. Confirm older units and production versions before ordering. Check Beam’s official fit guide
The DMV’s Trusted Vacuum Service Authority
For 25+ years, Ace Vacuums has filled the gap left by big-box retailers. We provide the expert repairs, warranty support, and genuine OEM parts that Amazon and Walmart simply don't offer. From free estimates to same-day service, we are your local alternative for professional home care solutions.
Prince William: Woodbridge, Manassas, Gainesville, Bristow.
Arlington: Rosslyn, Crystal City, Ballston.
Regional Reach
Conveniently serving Washington D.C. and Maryland (Montgomery & Prince George's Counties). Our showrooms are just 20 minutes from DC and 10 minutes from Tysons Corner.
Hablamos Español — Service in English & Spanish.
Serving Zip Codes: 20147, 20176, 22030, 22031, 20151, 20190, 22102, 22314, 20110, 20148 & surrounding areas. All repairs performed by certified technicians using genuine parts.
