High-lift hybrid power for long runs, large homes, and retractable hoses.
The BEAM 475 Hybrid combines 659 AirWatts, 135.8 CFM, 144.9 inches of water lift, a two-turbine 6.6-inch bypass motor, and reversible bagged or bagless collection. BEAM recommends it for properly designed houses up to approximately 10,000 square feet.
659 AirWatts144.9-in. water liftUp to approx. 10,000 sq. ft.Bagged or bagless6.6-in. bypass motor10 years / 750 hours motor-electrical coverage
BEAM 475 Hybrid • High-lift residential power unit • Model ABEAM475A
At a Glance
Quick Summary
Choose the BEAM 475 when a large home, long pipe network, heavy everyday dry debris, or retractable hose calls for strong sealed suction—with the flexibility of disposable-bag or direct-canister collection.
659 AWHigh air power
BEAM's published rating for the exact ABEAM475A.
144.9 in.Strong sealed suction
Extra water-lift headroom for restrictive layouts.
HybridTwo collection choices
Run it with the compatible bag or convert it for bagless collection.
10,000 ft²Manufacturer guideline
Approximate maximum; system design still determines fit.
Fast decision: Select the 475 when sealed-suction reserve matters more than choosing the smallest enclosure. Confirm pipe length, farthest inlet, vertical rise, elbows, hose length, filtration preference, mounting clearance, and electrical setup before replacement.
The Power Unit at the Center of the System
Product Overview

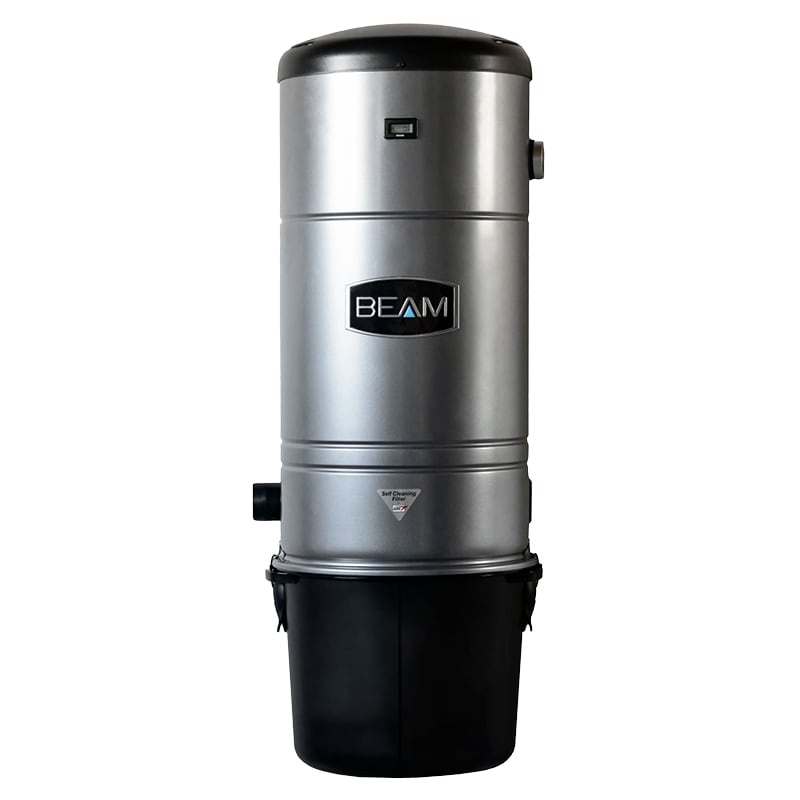

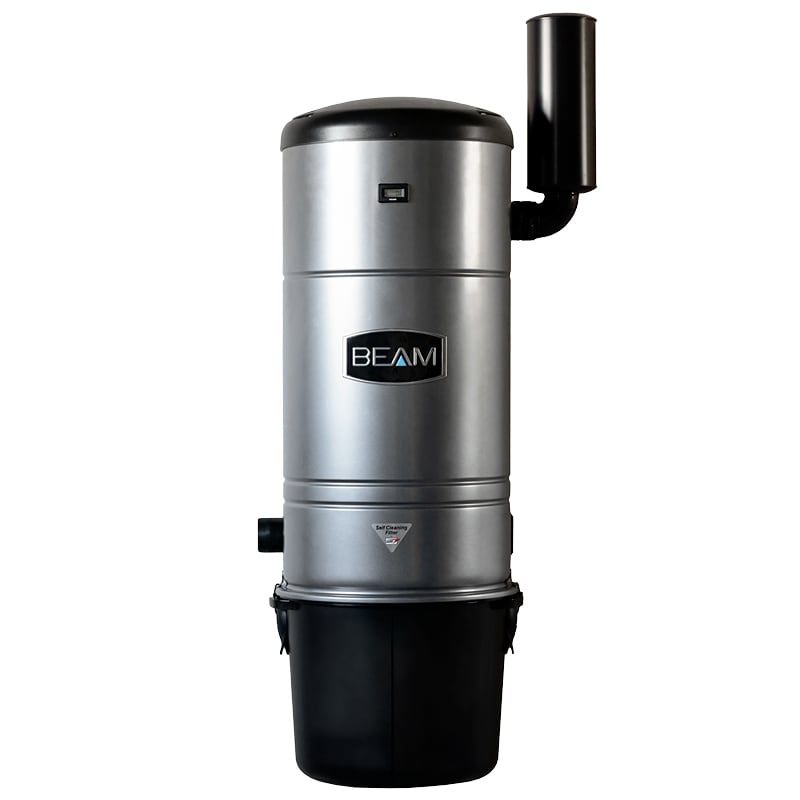

The BEAM 475 mounts in a garage, basement, or utility area. Its 40.1 × 14.1-inch chassis houses a 6.6-inch bypass motor while keeping motor noise and debris remote.

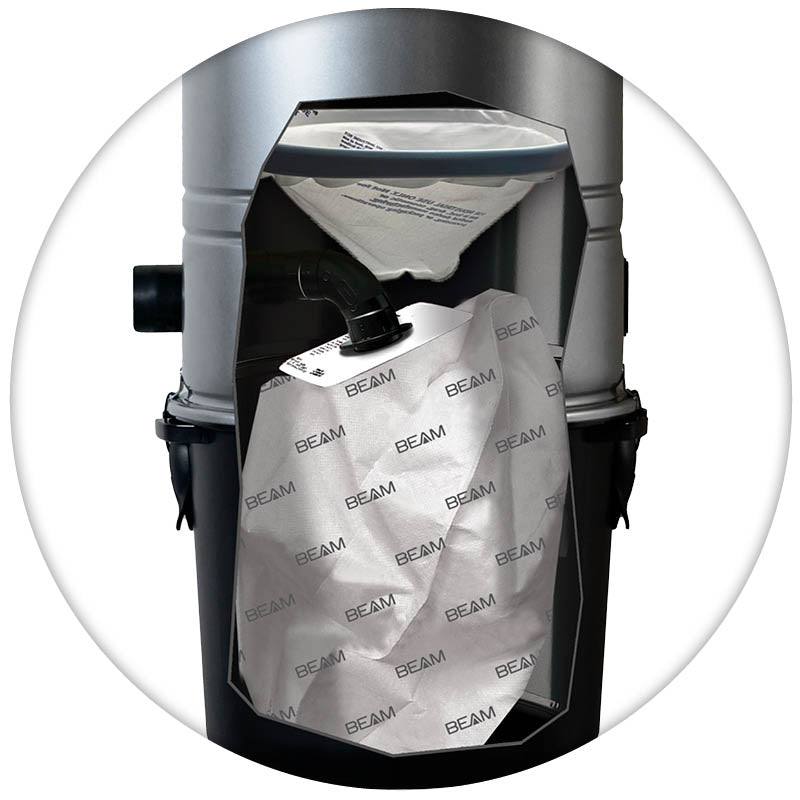

Hybrid GORE construction offers two paths: contained disposal in a 5.3-gallon bag or direct collection in a 5.9-gallon canister. Bagless use requires filter care, and conversion is reversible.
An hour meter tracks use. This listing is the power unit; hose convenience, carpet agitation, pet-hair pickup, and floor protection depend on the network and attachments.
Larger 14.1-inch-diameter body with bottom canister and integrated hour meter
What's Included with the Power Unit
Manufacturer-documented components supplied with BEAM 475 model ABEAM475A
Component
Documented detail
Purpose
BEAM 475 power unit
ABEAM475A with integrated hour meter
Motor, control board, body, and removable collection canister.

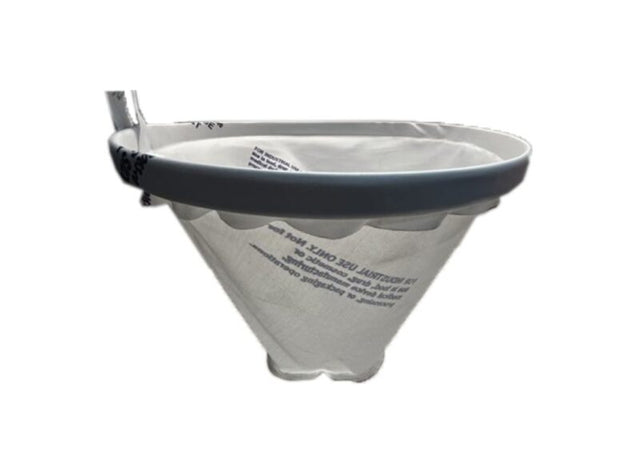

Permanent filter
14-in. GORE filter; TDFILTGORE14
Supports hybrid filtration and remains installed in the unit.
Initial disposable bag
One bag installed; individual BOM code TDSACN93. Replacement pack: TDSAC93N
Allows contained bagged collection from initial setup.
Wall mounting support
Galvanized BEAM bracket / mounting plate
Secures the larger power unit while preserving service access.
Muffler and connection pieces
Complete muffler assembly plus intake fittings
Completes the exhaust and pipe connection as directed.
Manufacturer documentation
Current instructions supplied or available online
Covers safe use, maintenance, warranty, and hybrid conversion.

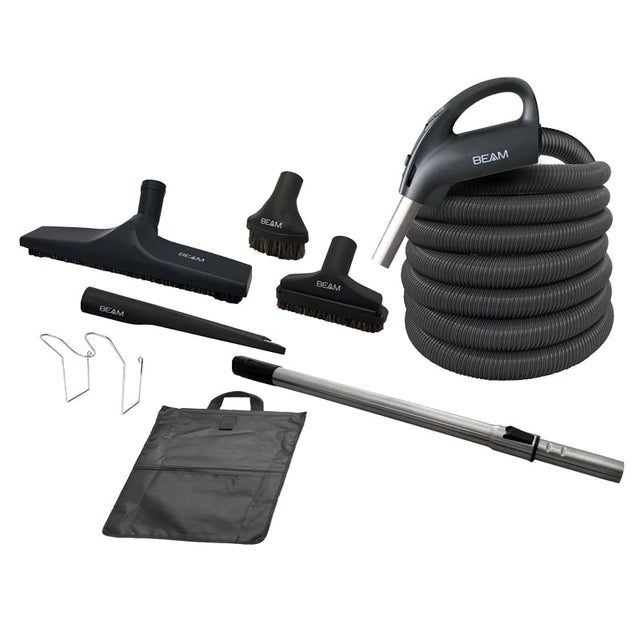

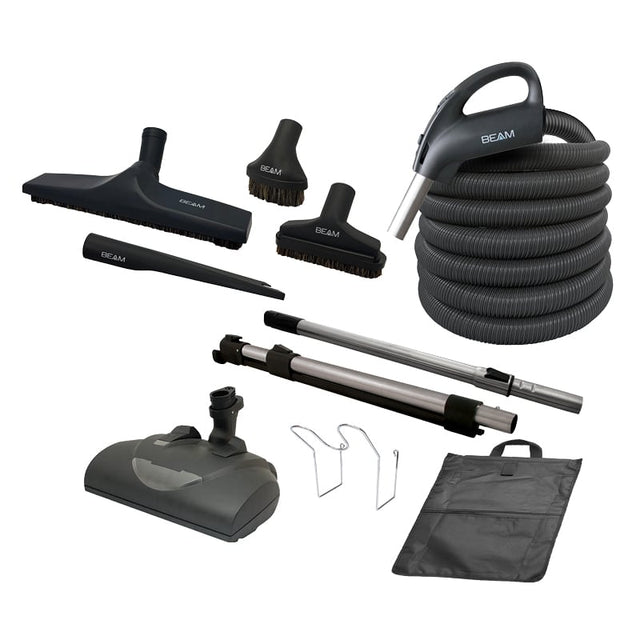

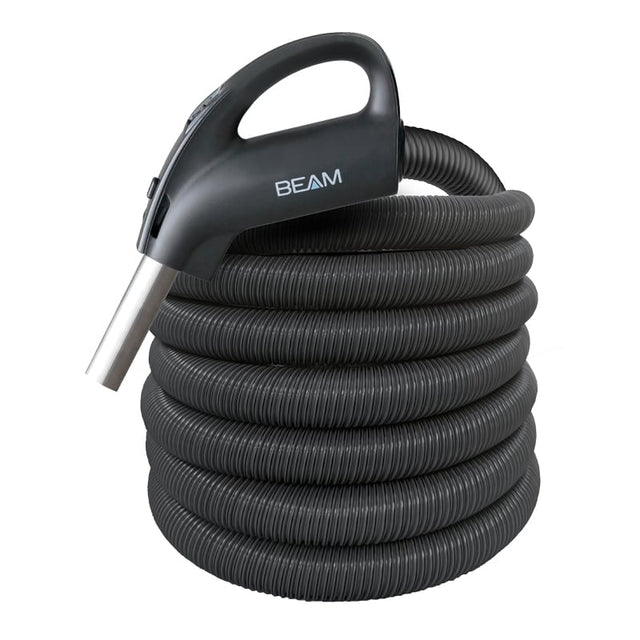

Not a complete cleaning kit: Hose, handle, wand, electric powerhead, floor tools, inlets, tubing, wiring, Hide-A-Hose/Retraflex parts, and labor are separate unless the purchase panel identifies a package. Confirm current box contents before ordering.
Professional Sizing Guidance
Expert Recommendation
Treat the BEAM 475 as a high-lift residential power unit for demanding networks—not as a universal replacement selected from square footage or AirWatts alone.
Choose the 475
You have long runs, meaningful vertical rise, substantial carpet, heavy dry debris, or a correctly planned retractable hose that benefits from 144.9 inches of water lift.
Choose the 345
Your system is smaller and efficient, mounting width is limited, and 115.6-inch lift with slightly higher maximum airflow is a better-value match.
Compare the 495
You need still more sealed-suction margin or the larger-home recommendation. Compare the complete motor curve and pipe plan rather than choosing by model number.
A larger unit is not automatically better: excessive capacity adds cost and size without fixing a clogged, leaking, or poorly designed network. Pair carpet and pet hair with a suitable electric powerhead, hard floors with a surface-approved brush, and allergy-conscious ownership with the more contained bagged disposal path.
Homes and Cleaning Priorities
Best For
Large and luxury homes
The 10,000-square-foot guideline and high lift suit expansive, multi-level, or restrictive layouts after professional sizing.
Pet owners and carpeted homes
The unit transports hair and heavy dry debris; a compatible electric powerhead supplies carpet agitation.
Hardwood and mixed floors
Use surface-approved tools for wood, tile, LVP, rugs, carpet, and stairs.
Allergy-conscious households
Remote collection and disposable bags reduce contact with debris during emptying; no medical result is promised.
Hide-A-Hose or Retraflex plans
BEAM positions the 475 for retractable hoses, subject to layout-specific sizing.
Quiet cleaning in living areas
The motor stays remote, though BEAM publishes no numeric ABEAM475A dBA value.
Balanced Buying Advice
Not Ideal For
Small systems or tight mounting areas
A smaller BEAM may fit better; the 40.1 × 14.1-inch body needs ample service clearance.
Homes without central-vac infrastructure
It needs tubing, inlets, low-voltage controls, mounting space, and a suitable grounded 120-volt supply.
Wet or construction cleanup
It is for dry household matter—not water, ash, cement, plaster, or drywall dust.
Buyers expecting everything in one box
The bare ABEAM475A is not a hose-and-powerhead package. Choose or reuse compatible system components only after confirming fit.
Unverified commercial or multi-user use
Domestic warranty terms do not carry over unchanged to commercial duty cycles.
Buyers requiring numeric sound or HEPA claims
The 475 dBA figure is unpublished, and its GORE filter is not labeled HEPA-certified.
Verified Model Highlights
Key Features
Key features and buyer benefits of the BEAM 475 Hybrid central vacuum
Feature
Verified detail
Why it matters
Hybrid collection
Bagged or bagless; reversible configuration
Select cleaner sealed disposal or direct canister collection.
Air power
659 AirWatts
Manufacturer power rating for the exact ABEAM475A; installed results still depend on the system.
Maximum airflow
135.8 CFM
Moves everyday dry debris through a correctly designed network.
Maximum water lift
144.9 in. H2O / 3,680 mm
Strong sealed-suction potential for restrictive runs; this is not the same operating point as maximum CFM.
Motor
One 6.6-in. bypass motor; two turbines
Provides the high-lift performance that distinguishes the 475.
Integrated hour meter
Tracks power-unit operating time
Supports maintenance awareness and the model's hour-limited parts coverage.
Hybrid GORE filtration
Permanent 14-in. self-cleaning filter
Supports bagged or bagless use; seasonal attention is still required in bagless mode.
Collection capacities
5.3-gal. bag / 5.9-gal. canister
Provides generous collection capacity for large-home cleaning.
Large-format body
40.1 in. high × 14.1 in. diameter
Allows the larger motor and canister while requiring suitable service clearance.
Residential warranty
10 years or 750 operating hours motor/electrical components; 1 year labor
Coverage applies to qualifying domestic use under current BEAM terms.
High Lift, Hybrid Flexibility, Measurable Usage
What Makes This Model Stand Out
The 475 combines 144.9 inches of water lift with 135.8 CFM airflow. That balance makes it especially relevant when long tubing, vertical rise, many fittings, or a retractable hose creates resistance. The 10,000-square-foot recommendation is useful, but the pipe network—not floor area alone—determines whether that performance is appropriate.
BEAM itself positions this model for carpet, heavier dry debris, and Retraflex retractable-hose installations. An integrated hour meter records operating time, helping the owner and technician monitor maintenance and the 750-hour limit attached to parts coverage.
Hybrid operation remains reversible, and the larger 5.9-gallon bagless canister gives more collection room than the 345. Service references are identifiable: TDSAC93N bags, TDFILTGORE14 filter, FM24832702 Ametek motor assembly, and ELECIR901V circuit board.
Important filtration distinction: BEAM describes its self-cleaning filter as 98% efficient at 0.3 microns. It does not identify the ABEAM475A filter as HEPA-certified, so this page does not make that claim.
Model-to-Model Buying Decisions
Product Comparisons
BEAM 475 vs BEAM 345
The 345 offers 142 CFM; the 475 increases lift from 115.6 to 144.9 inches and enlarges the canister. Choose by system restriction.
BEAM 475 vs BEAM 495
The 475 favors more airflow; the 495 trades airflow for 161.5-inch lift and larger-home guidance. Pipe design decides.
BEAM 475 vs Cana-Vac Signature 790
Published power matches exactly. Cana-Vac emphasizes HEPA filtration and longer labor coverage; BEAM offers larger capacities, self-cleaning GORE filtration, and an hour meter.
BEAM 475 vs MD AirMaster A700tv
Both are hybrid units for 10,000-square-foot systems. MD publishes slightly more airflow and 62 dB; BEAM publishes higher lift and adds usage tracking.
BEAM 475 vs VACUFLO DB8000
The bag-only DB8000 publishes more power and 12,000-square-foot guidance. BEAM adds bagless flexibility and retractable-hose positioning; 475 sound remains unpublished.
BEAM 475 vs Riccar RCU-H7
Riccar offers hybrid HEPA-media compatibility but publishes no AW, CFM, lift, or dBA. BEAM provides exact performance and larger-home guidance.
AirWatts, maximum airflow, sealed suction, coverage, and sound are not one universal score; test methods can differ.
Direct Answers to Conversational Searches
Questions Buyers Commonly Ask
Is the BEAM 475 good for pet hair?
Yes, when correctly sized and paired with a carpet-appropriate electric powerhead.
Is the BEAM 475 worth buying?
Yes for a demanding system needing high lift and hybrid collection; it may be excessive for a small layout.
Is it quieter than VACUFLO?
No verified ranking is possible because BEAM has not published the 475's dBA value.
Which homes benefit most?
Large, multi-level, carpeted, or retractable-hose homes with restrictive networks.
Is it good for hardwood floors?
Yes, with a soft-bristle or surface-approved floor brush.
Is it good for allergy-conscious buyers?
Bagged use contains debris during disposal, but BEAM does not advertise the GORE filter as HEPA-certified.
Can it replace my old BEAM or NuTone?
Often. Verify pipe, exhaust, mounting, controls, power, hose compatibility, and system condition.
Can I use it with Hide-A-Hose?
Yes when sized for hose length, farthest run, vertical rise, and total restriction.
Exact ABEAM475A Data
Technical Specifications
Technical specifications for BEAM 475 Hybrid central vacuum model ABEAM475A
Specification
BEAM 475 detail
Brand / model
BEAM 475 Hybrid
Model / SKU / MPN
ABEAM475A
Product type
Residential central vacuum power unit
Approximate coverage
Up to 10,000 sq. ft. / 929 m², subject to installed-system design
Air power
659 AirWatts
Maximum airflow
135.8 CFM / 231 m³/h
Maximum water lift
144.9 in. H2O / 3,680 mm H2O
Voltage
120 V
Maximum current
14.1 A
Motor configuration
One 6.6-in. / 168-mm Ametek bypass motor; two turbines
Motor reference
Ametek 122483-27; service reference FM24832702 / technical-sheet code TM248327 BP
Usage tracking
Integrated operating-hour meter
Filtration
Hybrid GORE; disposable-bag or bagless configuration
Permanent filter
TDFILTGORE14; 14 in.
Compatible bag
Current model sheet: TDSAC93N
Bag capacity
5.3 U.S. gal. / 20 L
Bagless canister capacity
5.9 U.S. gal. / 22.2 L
Height
40.1 in. / 102 cm
Diameter
14.1 in. / 35.8 cm
Weight
35 lb / 15.9 kg
Published sound level
Not yet published; BEAM currently states “coming soon”
Domestic warranty
10 years or 750 operating hours motor/electrical components / 1 year labor, subject to current terms
Origin
Designed and manufactured in Blainville, Quebec, Canada
Installation note: Follow the unit label, current BEAM instructions, local code, and the model-specific ABEAM475A sheet. Confirm revisions against the unit supplied.
Who Receives the Most Value
Ideal Buyers
The replacement buyer
You own an aging BEAM, Electrolux, NuTone, Cana-Vac, MD, Riccar, VacuMaid, or VACUFLO system and want a professional compatibility check before changing the power unit.
The large-home owner
Your expansive or multi-level layout benefits from strong water lift and a larger canister.
The retractable-hose planner
You are designing Hide-A-Hose or Retraflex around verified hose length, farthest run, rise, and restriction.
The pet and carpet household
You will combine high-lift whole-home performance with a suitable electric carpet powerhead.
The hybrid-maintenance buyer
You want contained bagged disposal with the option to convert to bagless use later.
The custom-home or renovation planner
You are coordinating inlets, tubing, electrical work, floor tools, and power-unit placement as one system.
The service-first owner
You value parts matching, in-home diagnosis, installation guidance, and repair-versus-replace advice after the sale.
Local Expertise Before and After the Sale
Why Buy from Ace Vacuums
The 475 must work with the home around it. Ace Vacuums evaluates pipe restriction, farthest inlet, retractable-hose length, floor tools, 40.1-inch unit height plus service clearances, filtration preference, and electrical conditions—not just a square-footage label.
Repair-first, in-home diagnosis
Diagnose, repair, or replace in the home, where the unit, tubing, inlets, hose, powerhead, controls, and leaks can be tested together.
Installation and Hide-A-Hose help
Get DMV guidance for long runs, retractable hoses, inlet placement, mounting clearance, new systems, retrofits, and replacement sizing.
Parts and service support
Access certified technicians, free estimates and diagnosis, large parts inventory, warranty guidance, and repair-versus-replace help. Same-day repair on parts availability.
Before you order: Call 703-997-9292 with the old unit's model label, a full installation photo, home size, farthest inlet, hose length, and any weak-suction or breaker symptoms.
Shop Online or Visit Locally
Available Online & In-Store
Use the live purchase panel above for current price, availability, and shipping eligibility. Call before ordering or visiting to confirm ABEAM475A, box contents, compatible bags and filters, and whether your project needs only a power unit or a complete system plan.
Ace Vacuums Fairfax
11110 Main St Fairfax, VA 22030
Central vacuum sales, parts matching, repair coordination, replacement planning, and installation guidance with free and easy parking.
Comparison of BEAM 475 with BEAM 345, BEAM 360, BEAM 495, Cana-Vac Signature 790, MD AirMaster A700tv, VACUFLO DB8000, and Riccar RCU-H7 central vacuum power units
Manufacturer maximums are not a substitute for sizing. Test methods differ, and piping, rise, hose length, leaks, filtration, and tools affect results.
The Honest Tradeoffs
Pros and Cons
Pros
Reversible bagged or bagless operation
High 144.9-inch published water lift
Strong 659-AirWatt / 135.8-CFM power profile
Two-turbine 6.6-inch Ametek bypass motor
Large-home and retractable-hose positioning
Integrated operating-hour meter
Permanent 14-inch self-cleaning GORE filter
5.3-gallon bag and 5.9-gallon canister capacities
Motor and debris collection located away from living areas
Identified genuine bag, filter, motor, and circuit-board references
10 years or 750 hours domestic parts coverage, subject to terms
Suitable for new systems, replacements, and properly sized upgrades
Cons
Requires central-vacuum tubing, inlets, controls, and mounting space
Larger and heavier than the BEAM 345
Maximum airflow is slightly lower than the BEAM 345
Hose, powerhead, floor tools, and installation are not part of the bare power-unit listing
Bagged mode creates a recurring supply cost
Bagless emptying exposes the owner to more collected dust
Bagless use still requires seasonal filter and canister care
Can be unnecessary for a small or simple pipe network
No manufacturer-published numeric dBA rating yet
One-year labor coverage is shorter than parts coverage
Dry household debris only—not wet pickup or fine construction dust
The 14.1-amp maximum and electrical setup should be checked before purchase
Buying, Installation, and Ownership
Frequently Asked Questions
Open the guide, then select a question. Answers distinguish published specifications from installation judgment.
FAQs
How large a home can the BEAM 475 serve?
BEAM recommends up to approximately 10,000 square feet. This is a sizing guideline, not a guarantee.
Why does the 475 have lower CFM but higher water lift than the 345?
Airflow and sealed suction measure different points on a motor curve. The 345 publishes 142 CFM; the 475 publishes 135.8 CFM but much higher 144.9-inch water lift for restrictive systems.
Is the BEAM 475 good for pet hair and carpet?
Yes, when properly sized and paired with a carpet-appropriate electric powerhead.
Will it clean hardwood and mixed floors?
Yes. Use a surface-approved bare-floor brush for finished hard floors and a suitable electric powerhead for carpet and compatible rugs.
Is it a good choice for allergy-conscious households?
Bagged use contains debris during disposal and keeps collection remote. BEAM does not identify the GORE filter as HEPA-certified.
Can the BEAM 475 run bagged or bagless?
Yes. It is supplied for bagged use and can be reversibly converted to direct-canister collection according to the current BEAM manual.
Should I use the 475 bagged or bagless?
Choose bagged for cleaner disposal. Choose bagless to avoid recurring bags if you accept canister and filter care.
Which bag and filter fit ABEAM475A?
The model-specific sheet lists TDSAC93N bags and the 14-inch TDFILTGORE14 permanent filter. Match supplies to the model and serial label before ordering.
What does the integrated hour meter do?
It records power-unit operating time, supporting maintenance planning and awareness of the 750-operating-hour limit attached to the parts warranty.
What maintenance is required in bagless mode?
Disconnect power, empty the canister, and follow BEAM's seasonal permanent-filter care procedure. Usage, pets, and debris volume can require more frequent attention.
Does the bare unit include a hose and powerhead?
No. Confirm whether you need a hose, wand, powerhead, brushes, inlets, tubing, wiring, or installation materials.
Can it replace an older BEAM, NuTone, Electrolux, or another brand?
Often. Verify piping, exhaust, clearance, voltage, control wiring, hose compatibility, leaks, and clogs.
Can the BEAM 475 be retrofitted into an existing home?
Yes. BEAM states that most existing homes can be retrofitted. Routing through a garage, basement, attic, crawlspace, or closets depends on construction and planning.
Is the 475 suitable for Hide-A-Hose or Retraflex?
Yes when correctly sized. BEAM specifically promotes the model for Retraflex, but retractable-hose length, farthest run, rise, elbows, and inlet plan remain important.
Does the BEAM 475 require outside venting?
BEAM's standard instructions do not require exterior venting. Follow current guidance for the muffler, location, clearance, and any optional exterior exhaust.
What electrical connection does the BEAM 475 require?
It lists 120 volts and 14.1 maximum amps. Use a dedicated grounded circuit, no extension cord, and follow local code.
How quiet is the BEAM 475?
The remote motor reduces noise in occupied rooms, but BEAM lists the exact dBA value as “coming soon.” A numeric claim or cross-brand ranking would be misleading.
Can it pick up water, ash, or construction dust?
No. Use it for ordinary dry household matter—not wet surfaces, liquids, burning debris, hot ash, cement, plaster, or drywall dust.
What warranty applies to the BEAM 475?
Domestic use gets 10 years or 750 operating hours on motor/electrical components, plus one-year labor. Separate limited-lifetime body/canister terms apply.
Does your system need the BEAM 475's lift—or is it more unit than your home needs?
Tell an Ace Vacuums specialist your home size, current model, pipe layout, farthest inlet, vertical rise, hose length, floors, pets, filtration preference, and symptoms. We will compare repair, the 345, 360, 475, 495, and appropriate alternatives before you buy.
High-lift hybrid power for long runs, large homes, and retractable hoses.
The BEAM 475 Hybrid combines 659 AirWatts, 135.8 CFM, 144.9 inches of water lift, a two-turbine 6.6-inch bypass motor, and reversible bagged or bagless collection. BEAM recommends it for properly designed houses up to approximately 10,000 square feet.
659 AirWatts144.9-in. water liftUp to approx. 10,000 sq. ft.Bagged or bagless6.6-in. bypass motor10 years / 750 hours motor-electrical coverageCall a Central Vacuum Expert: 703-997-9292Compare BEAM Power UnitsBEAM 475 Hybrid • High-lift residential power unit • Model ABEAM475A
At a Glance
Quick Summary
Choose the BEAM 475 when a large home, long pipe network, heavy everyday dry debris, or retractable hose calls for strong sealed suction—with the flexibility of disposable-bag or direct-canister collection.
659 AWHigh air power
BEAM's published rating for the exact ABEAM475A.
144.9 in.Strong sealed suction
Extra water-lift headroom for restrictive layouts.
HybridTwo collection choices
Run it with the compatible bag or convert it for bagless collection.
10,000 ft²Manufacturer guideline
Approximate maximum; system design still determines fit.
Fast decision: Select the 475 when sealed-suction reserve matters more than choosing the smallest enclosure. Confirm pipe length, farthest inlet, vertical rise, elbows, hose length, filtration preference, mounting clearance, and electrical setup before replacement.
The Power Unit at the Center of the System
Product Overview
The BEAM 475 mounts in a garage, basement, or utility area. Its 40.1 × 14.1-inch chassis houses a 6.6-inch bypass motor while keeping motor noise and debris remote.
Hybrid GORE construction offers two paths: contained disposal in a 5.3-gallon bag or direct collection in a 5.9-gallon canister. Bagless use requires filter care, and conversion is reversible.
An hour meter tracks use. This listing is the power unit; hose convenience, carpet agitation, pet-hair pickup, and floor protection depend on the network and attachments.
Larger 14.1-inch-diameter body with bottom canister and integrated hour meter
What's Included with the Power Unit
Manufacturer-documented components supplied with BEAM 475 model ABEAM475A
Component
Documented detail
Purpose
BEAM 475 power unit
ABEAM475A with integrated hour meter
Motor, control board, body, and removable collection canister.
Permanent filter
14-in. GORE filter; TDFILTGORE14
Supports hybrid filtration and remains installed in the unit.
Initial disposable bag
One bag installed; individual BOM code TDSACN93. Replacement pack: TDSAC93N
Allows contained bagged collection from initial setup.
Wall mounting support
Galvanized BEAM bracket / mounting plate
Secures the larger power unit while preserving service access.
Muffler and connection pieces
Complete muffler assembly plus intake fittings
Completes the exhaust and pipe connection as directed.
Manufacturer documentation
Current instructions supplied or available online
Covers safe use, maintenance, warranty, and hybrid conversion.
Not a complete cleaning kit: Hose, handle, wand, electric powerhead, floor tools, inlets, tubing, wiring, Hide-A-Hose/Retraflex parts, and labor are separate unless the purchase panel identifies a package. Confirm current box contents before ordering.
Professional Sizing Guidance
Expert Recommendation
Treat the BEAM 475 as a high-lift residential power unit for demanding networks—not as a universal replacement selected from square footage or AirWatts alone.
Choose the 475
You have long runs, meaningful vertical rise, substantial carpet, heavy dry debris, or a correctly planned retractable hose that benefits from 144.9 inches of water lift.
Choose the 345
Your system is smaller and efficient, mounting width is limited, and 115.6-inch lift with slightly higher maximum airflow is a better-value match.
Compare the 495
You need still more sealed-suction margin or the larger-home recommendation. Compare the complete motor curve and pipe plan rather than choosing by model number.
A larger unit is not automatically better: excessive capacity adds cost and size without fixing a clogged, leaking, or poorly designed network. Pair carpet and pet hair with a suitable electric powerhead, hard floors with a surface-approved brush, and allergy-conscious ownership with the more contained bagged disposal path.
Homes and Cleaning Priorities
Best For
Large and luxury homes
The 10,000-square-foot guideline and high lift suit expansive, multi-level, or restrictive layouts after professional sizing.
Pet owners and carpeted homes
The unit transports hair and heavy dry debris; a compatible electric powerhead supplies carpet agitation.
Hardwood and mixed floors
Use surface-approved tools for wood, tile, LVP, rugs, carpet, and stairs.
Allergy-conscious households
Remote collection and disposable bags reduce contact with debris during emptying; no medical result is promised.
Hide-A-Hose or Retraflex plans
BEAM positions the 475 for retractable hoses, subject to layout-specific sizing.
Quiet cleaning in living areas
The motor stays remote, though BEAM publishes no numeric ABEAM475A dBA value.
Balanced Buying Advice
Not Ideal For
Small systems or tight mounting areas
A smaller BEAM may fit better; the 40.1 × 14.1-inch body needs ample service clearance.
Homes without central-vac infrastructure
It needs tubing, inlets, low-voltage controls, mounting space, and a suitable grounded 120-volt supply.
Wet or construction cleanup
It is for dry household matter—not water, ash, cement, plaster, or drywall dust.
Buyers expecting everything in one box
The bare ABEAM475A is not a hose-and-powerhead package. Choose or reuse compatible system components only after confirming fit.
Unverified commercial or multi-user use
Domestic warranty terms do not carry over unchanged to commercial duty cycles.
Buyers requiring numeric sound or HEPA claims
The 475 dBA figure is unpublished, and its GORE filter is not labeled HEPA-certified.
Verified Model Highlights
Key Features
Key features and buyer benefits of the BEAM 475 Hybrid central vacuum
Feature
Verified detail
Why it matters
Hybrid collection
Bagged or bagless; reversible configuration
Select cleaner sealed disposal or direct canister collection.
Air power
659 AirWatts
Manufacturer power rating for the exact ABEAM475A; installed results still depend on the system.
Maximum airflow
135.8 CFM
Moves everyday dry debris through a correctly designed network.
Maximum water lift
144.9 in. H2O / 3,680 mm
Strong sealed-suction potential for restrictive runs; this is not the same operating point as maximum CFM.
Motor
One 6.6-in. bypass motor; two turbines
Provides the high-lift performance that distinguishes the 475.
Integrated hour meter
Tracks power-unit operating time
Supports maintenance awareness and the model's hour-limited parts coverage.
Hybrid GORE filtration
Permanent 14-in. self-cleaning filter
Supports bagged or bagless use; seasonal attention is still required in bagless mode.
Collection capacities
5.3-gal. bag / 5.9-gal. canister
Provides generous collection capacity for large-home cleaning.
Large-format body
40.1 in. high × 14.1 in. diameter
Allows the larger motor and canister while requiring suitable service clearance.
Residential warranty
10 years or 750 operating hours motor/electrical components; 1 year labor
Coverage applies to qualifying domestic use under current BEAM terms.
High Lift, Hybrid Flexibility, Measurable Usage
What Makes This Model Stand Out
The 475 combines 144.9 inches of water lift with 135.8 CFM airflow. That balance makes it especially relevant when long tubing, vertical rise, many fittings, or a retractable hose creates resistance. The 10,000-square-foot recommendation is useful, but the pipe network—not floor area alone—determines whether that performance is appropriate.
BEAM itself positions this model for carpet, heavier dry debris, and Retraflex retractable-hose installations. An integrated hour meter records operating time, helping the owner and technician monitor maintenance and the 750-hour limit attached to parts coverage.
Hybrid operation remains reversible, and the larger 5.9-gallon bagless canister gives more collection room than the 345. Service references are identifiable: TDSAC93N bags, TDFILTGORE14 filter, FM24832702 Ametek motor assembly, and ELECIR901V circuit board.
Important filtration distinction: BEAM describes its self-cleaning filter as 98% efficient at 0.3 microns. It does not identify the ABEAM475A filter as HEPA-certified, so this page does not make that claim.
Model-to-Model Buying Decisions
Product Comparisons
BEAM 475 vs BEAM 345
The 345 offers 142 CFM; the 475 increases lift from 115.6 to 144.9 inches and enlarges the canister. Choose by system restriction.
BEAM 475 vs BEAM 495
The 475 favors more airflow; the 495 trades airflow for 161.5-inch lift and larger-home guidance. Pipe design decides.
BEAM 475 vs Cana-Vac Signature 790
Published power matches exactly. Cana-Vac emphasizes HEPA filtration and longer labor coverage; BEAM offers larger capacities, self-cleaning GORE filtration, and an hour meter.
BEAM 475 vs MD AirMaster A700tv
Both are hybrid units for 10,000-square-foot systems. MD publishes slightly more airflow and 62 dB; BEAM publishes higher lift and adds usage tracking.
BEAM 475 vs VACUFLO DB8000
The bag-only DB8000 publishes more power and 12,000-square-foot guidance. BEAM adds bagless flexibility and retractable-hose positioning; 475 sound remains unpublished.
BEAM 475 vs Riccar RCU-H7
Riccar offers hybrid HEPA-media compatibility but publishes no AW, CFM, lift, or dBA. BEAM provides exact performance and larger-home guidance.
AirWatts, maximum airflow, sealed suction, coverage, and sound are not one universal score; test methods can differ.
Direct Answers to Conversational Searches
Questions Buyers Commonly Ask
Is the BEAM 475 good for pet hair?
Yes, when correctly sized and paired with a carpet-appropriate electric powerhead.
Is the BEAM 475 worth buying?
Yes for a demanding system needing high lift and hybrid collection; it may be excessive for a small layout.
Is it quieter than VACUFLO?
No verified ranking is possible because BEAM has not published the 475's dBA value.
Which homes benefit most?
Large, multi-level, carpeted, or retractable-hose homes with restrictive networks.
Is it good for hardwood floors?
Yes, with a soft-bristle or surface-approved floor brush.
Is it good for allergy-conscious buyers?
Bagged use contains debris during disposal, but BEAM does not advertise the GORE filter as HEPA-certified.
Can it replace my old BEAM or NuTone?
Often. Verify pipe, exhaust, mounting, controls, power, hose compatibility, and system condition.
Can I use it with Hide-A-Hose?
Yes when sized for hose length, farthest run, vertical rise, and total restriction.
Exact ABEAM475A Data
Technical Specifications
Technical specifications for BEAM 475 Hybrid central vacuum model ABEAM475A
Specification
BEAM 475 detail
Brand / model
BEAM 475 Hybrid
Model / SKU / MPN
ABEAM475A
Product type
Residential central vacuum power unit
Approximate coverage
Up to 10,000 sq. ft. / 929 m², subject to installed-system design
Air power
659 AirWatts
Maximum airflow
135.8 CFM / 231 m³/h
Maximum water lift
144.9 in. H2O / 3,680 mm H2O
Voltage
120 V
Maximum current
14.1 A
Motor configuration
One 6.6-in. / 168-mm Ametek bypass motor; two turbines
Motor reference
Ametek 122483-27; service reference FM24832702 / technical-sheet code TM248327 BP
Usage tracking
Integrated operating-hour meter
Filtration
Hybrid GORE; disposable-bag or bagless configuration
Permanent filter
TDFILTGORE14; 14 in.
Compatible bag
Current model sheet: TDSAC93N
Bag capacity
5.3 U.S. gal. / 20 L
Bagless canister capacity
5.9 U.S. gal. / 22.2 L
Height
40.1 in. / 102 cm
Diameter
14.1 in. / 35.8 cm
Weight
35 lb / 15.9 kg
Published sound level
Not yet published; BEAM currently states “coming soon”
Domestic warranty
10 years or 750 operating hours motor/electrical components / 1 year labor, subject to current terms
Origin
Designed and manufactured in Blainville, Quebec, Canada
Installation note: Follow the unit label, current BEAM instructions, local code, and the model-specific ABEAM475A sheet. Confirm revisions against the unit supplied.
Who Receives the Most Value
Ideal Buyers
The replacement buyer
You own an aging BEAM, Electrolux, NuTone, Cana-Vac, MD, Riccar, VacuMaid, or VACUFLO system and want a professional compatibility check before changing the power unit.
The large-home owner
Your expansive or multi-level layout benefits from strong water lift and a larger canister.
The retractable-hose planner
You are designing Hide-A-Hose or Retraflex around verified hose length, farthest run, rise, and restriction.
The pet and carpet household
You will combine high-lift whole-home performance with a suitable electric carpet powerhead.
The hybrid-maintenance buyer
You want contained bagged disposal with the option to convert to bagless use later.
The custom-home or renovation planner
You are coordinating inlets, tubing, electrical work, floor tools, and power-unit placement as one system.
The service-first owner
You value parts matching, in-home diagnosis, installation guidance, and repair-versus-replace advice after the sale.
Local Expertise Before and After the Sale
Why Buy from Ace Vacuums
The 475 must work with the home around it. Ace Vacuums evaluates pipe restriction, farthest inlet, retractable-hose length, floor tools, 40.1-inch unit height plus service clearances, filtration preference, and electrical conditions—not just a square-footage label.
Repair-first, in-home diagnosis
Diagnose, repair, or replace in the home, where the unit, tubing, inlets, hose, powerhead, controls, and leaks can be tested together.
Installation and Hide-A-Hose help
Get DMV guidance for long runs, retractable hoses, inlet placement, mounting clearance, new systems, retrofits, and replacement sizing.
Parts and service support
Access certified technicians, free estimates and diagnosis, large parts inventory, warranty guidance, and repair-versus-replace help. Same-day repair on parts availability.
Before you order: Call 703-997-9292 with the old unit's model label, a full installation photo, home size, farthest inlet, hose length, and any weak-suction or breaker symptoms.
Shop Online or Visit Locally
Available Online & In-Store
Use the live purchase panel above for current price, availability, and shipping eligibility. Call before ordering or visiting to confirm ABEAM475A, box contents, compatible bags and filters, and whether your project needs only a power unit or a complete system plan.
Ace Vacuums Fairfax
11110 Main St Fairfax, VA 22030
Central vacuum sales, parts matching, repair coordination, replacement planning, and installation guidance with free and easy parking.
Comparison of BEAM 475 with BEAM 345, BEAM 360, BEAM 495, Cana-Vac Signature 790, MD AirMaster A700tv, VACUFLO DB8000, and Riccar RCU-H7 central vacuum power units
Manufacturer maximums are not a substitute for sizing. Test methods differ, and piping, rise, hose length, leaks, filtration, and tools affect results.
The Honest Tradeoffs
Pros and Cons
Pros
Reversible bagged or bagless operation
High 144.9-inch published water lift
Strong 659-AirWatt / 135.8-CFM power profile
Two-turbine 6.6-inch Ametek bypass motor
Large-home and retractable-hose positioning
Integrated operating-hour meter
Permanent 14-inch self-cleaning GORE filter
5.3-gallon bag and 5.9-gallon canister capacities
Motor and debris collection located away from living areas
Identified genuine bag, filter, motor, and circuit-board references
10 years or 750 hours domestic parts coverage, subject to terms
Suitable for new systems, replacements, and properly sized upgrades
Cons
Requires central-vacuum tubing, inlets, controls, and mounting space
Larger and heavier than the BEAM 345
Maximum airflow is slightly lower than the BEAM 345
Hose, powerhead, floor tools, and installation are not part of the bare power-unit listing
Bagged mode creates a recurring supply cost
Bagless emptying exposes the owner to more collected dust
Bagless use still requires seasonal filter and canister care
Can be unnecessary for a small or simple pipe network
No manufacturer-published numeric dBA rating yet
One-year labor coverage is shorter than parts coverage
Dry household debris only—not wet pickup or fine construction dust
The 14.1-amp maximum and electrical setup should be checked before purchase
Buying, Installation, and Ownership
Frequently Asked Questions
Open the guide, then select a question. Answers distinguish published specifications from installation judgment.
FAQsHow large a home can the BEAM 475 serve?
BEAM recommends up to approximately 10,000 square feet. This is a sizing guideline, not a guarantee.
Why does the 475 have lower CFM but higher water lift than the 345?
Airflow and sealed suction measure different points on a motor curve. The 345 publishes 142 CFM; the 475 publishes 135.8 CFM but much higher 144.9-inch water lift for restrictive systems.
Is the BEAM 475 good for pet hair and carpet?
Yes, when properly sized and paired with a carpet-appropriate electric powerhead.
Will it clean hardwood and mixed floors?
Yes. Use a surface-approved bare-floor brush for finished hard floors and a suitable electric powerhead for carpet and compatible rugs.
Is it a good choice for allergy-conscious households?
Bagged use contains debris during disposal and keeps collection remote. BEAM does not identify the GORE filter as HEPA-certified.
Can the BEAM 475 run bagged or bagless?
Yes. It is supplied for bagged use and can be reversibly converted to direct-canister collection according to the current BEAM manual.
Should I use the 475 bagged or bagless?
Choose bagged for cleaner disposal. Choose bagless to avoid recurring bags if you accept canister and filter care.
Which bag and filter fit ABEAM475A?
The model-specific sheet lists TDSAC93N bags and the 14-inch TDFILTGORE14 permanent filter. Match supplies to the model and serial label before ordering.
What does the integrated hour meter do?
It records power-unit operating time, supporting maintenance planning and awareness of the 750-operating-hour limit attached to the parts warranty.
What maintenance is required in bagless mode?
Disconnect power, empty the canister, and follow BEAM's seasonal permanent-filter care procedure. Usage, pets, and debris volume can require more frequent attention.
Does the bare unit include a hose and powerhead?
No. Confirm whether you need a hose, wand, powerhead, brushes, inlets, tubing, wiring, or installation materials.
Can it replace an older BEAM, NuTone, Electrolux, or another brand?
Often. Verify piping, exhaust, clearance, voltage, control wiring, hose compatibility, leaks, and clogs.
Can the BEAM 475 be retrofitted into an existing home?
Yes. BEAM states that most existing homes can be retrofitted. Routing through a garage, basement, attic, crawlspace, or closets depends on construction and planning.
Is the 475 suitable for Hide-A-Hose or Retraflex?
Yes when correctly sized. BEAM specifically promotes the model for Retraflex, but retractable-hose length, farthest run, rise, elbows, and inlet plan remain important.
Does the BEAM 475 require outside venting?
BEAM's standard instructions do not require exterior venting. Follow current guidance for the muffler, location, clearance, and any optional exterior exhaust.
What electrical connection does the BEAM 475 require?
It lists 120 volts and 14.1 maximum amps. Use a dedicated grounded circuit, no extension cord, and follow local code.
How quiet is the BEAM 475?
The remote motor reduces noise in occupied rooms, but BEAM lists the exact dBA value as “coming soon.” A numeric claim or cross-brand ranking would be misleading.
Can it pick up water, ash, or construction dust?
No. Use it for ordinary dry household matter—not wet surfaces, liquids, burning debris, hot ash, cement, plaster, or drywall dust.
What warranty applies to the BEAM 475?
Domestic use gets 10 years or 750 operating hours on motor/electrical components, plus one-year labor. Separate limited-lifetime body/canister terms apply.
Does your system need the BEAM 475's lift—or is it more unit than your home needs?
Tell an Ace Vacuums specialist your home size, current model, pipe layout, farthest inlet, vertical rise, hose length, floors, pets, filtration preference, and symptoms. We will compare repair, the 345, 360, 475, 495, and appropriate alternatives before you buy.
Address: 300 Fort Evans Rd NE, Suite 104, Leesburg, VA 20176 Landmark: Next to Home Depot in Leesburg Best for: Ashburn, Sterling, Frederick MD, Loudoun County
In-stock merchandise generally ships from our Leesburg, Virginia location within 3–5 business days. Processing time is separate from carrier transit time and is not a guaranteed delivery date. Weekends and holidays can affect timing. Special-order, backordered or unavailable items may take longer; contact us to confirm timing before purchase when a deadline matters.
Shipping options and charges are shown at checkout. After dispatch, follow the carrier's tracking updates. Weather, carrier delays, order verification and inventory confirmation may affect delivery. Inspect packages promptly and retain packaging if there is damage or an incorrect or missing item.
Returns and refunds
Eligible unused items have a 30-calendar-day return request window for refunds or exchanges, measured from delivery or in-store purchase. Return authorization is required. Final-sale exclusions, the 15% restocking fee for change-of-mind returns and shipping responsibilities are explained in our Return and Refund Policy. That policy is the governing source for return eligibility and fees.
Updated September 27, 2026. Request a return for an eligible unused item within 30 calendar days of delivery (or purchase for items collected in store). Eligible returns may be refunded to the original payment method or exchanged, subject to availability. The same 30-day request window applies to both refunds and exchanges; there is no separate seven-day or 15-day refund deadline.
Eligibility and authorization
Items must be unused, clean, complete and in their original packaging with all accessories, manuals and proof of purchase. Contact sales@acevacuums.com or 703-997-9292 before sending anything back. Include your order number, item and reason for return. We will confirm eligibility, charges and return instructions. Unapproved or cash-on-delivery returns are not accepted.
Fees and shipping
For an approved change-of-mind return, a 15% restocking fee applies to the returned merchandise price. Original shipping charges are not refundable and the customer pays return shipping. These charges do not apply to an approved return caused by our shipping error or a damaged/defective item claim. Contact us first so we can arrange the appropriate remedy and shipping instructions. Do not assume a prepaid label is included.
Final-sale and excluded items
Air purifiers; discounted, clearance, trade-in, holiday-sale and price-matched purchases; gift cards; custom or special-order products; electrical parts; used or installed items; opened cleaning solutions; and used bags, filters, belts or other consumables are not eligible for change-of-mind returns. Other items clearly marked final sale at purchase are also excluded. An opened box alone does not disqualify an otherwise eligible unused, complete item, but consumables and cleaning solutions must remain unopened.
Damaged, defective, incorrect or missing items; recalls
Inspect your order promptly and contact us as soon as you discover a problem, with your order number and photos where helpful. Keep the packaging. Change-of-mind exclusions and deadlines do not remove applicable defect, warranty, recall or statutory rights. Warranty coverage requires evaluation under the manufacturer's terms; dealer status does not guarantee free repair. Recalled products must follow the manufacturer's recall process.
Refund timing and exchanges
After we receive and inspect the return, we will notify you of approval or the reason it cannot be accepted. Approved refunds are issued to the original payment method within 10 business days of approval; your bank may take additional time to post them. Contact us if more than 15 business days have passed since approval. Exchanges require authorization and replacement availability; any price difference and applicable charges will be explained before processing.
Applicable rights and earlier purchases
This policy applies to online and in-store purchases. We will honor more favorable written return terms provided with an earlier purchase. Applicable consumer rights remain unaffected. Where the European Union 14-day cancellation right applies, customers may cancel or return eligible orders within 14 days of receipt, subject to applicable legal exceptions, without giving a reason.
Recommended BEAM Products
Build your cleaning setup with model-matched supplies and useful accessories. Kit choices are alternatives; check what is already included before ordering.
Check your system and connections
For bags and filters, match the full Beam model and production version. For tools, check the hose handle shape, diameter, wand and electrical connection. Suction-only hoses cannot power corded electric brushes. Complete kits may already contain the tools you need.
25 maintenance sheets for routine central-vacuum hose and pipe care. Follow the label and system instructions; not a repair for a blocked or damaged system.
Current Beam 205 / 345 / 360 models use the 11-inch filter; 398 / 475 / 495 / 3600 / 4500 use the 14-inch filter. TDSAC93BM bags follow the listed compatible model path. Short TDSAC92BM bags are for the 275 path; #4462 bags are a separate configuration. Confirm older units and production versions before ordering. Check Beam’s official fit guide
The DMV’s Trusted Vacuum Service Authority
For 25+ years, Ace Vacuums has filled the gap left by big-box retailers. We provide the expert repairs, warranty support, and genuine OEM parts that Amazon and Walmart simply don't offer. From free estimates to same-day service, we are your local alternative for professional home care solutions.
Prince William: Woodbridge, Manassas, Gainesville, Bristow.
Arlington: Rosslyn, Crystal City, Ballston.
Regional Reach
Conveniently serving Washington D.C. and Maryland (Montgomery & Prince George's Counties). Our showrooms are just 20 minutes from DC and 10 minutes from Tysons Corner.
Hablamos Español — Service in English & Spanish.
Serving Zip Codes: 20147, 20176, 22030, 22031, 20151, 20190, 22102, 22314, 20110, 20148 & surrounding areas. All repairs performed by certified technicians using genuine parts.
