Beam 4500 Hybrid Central Vacuum Power Unit #ABEAM4500A
BEAM

Beam 4500 Hybrid Central Vacuum Power Unit #ABEAM4500A

★★★★★ 4.9 (1000+ Google Reviews)
→ Leave us a Google Review
→ Write a Product Review
Available: In Stock
$2,249.00
  • Order within

Dual Motor • Hybrid Gore • 240 V • Model ABEAM4500A

Flagship capacity for very large and demanding central-vacuum networks.

The 1,354-AirWatt BEAM 4500 Hybrid uses two 6.6-inch bypass motors. An installer configures them in series for sealed suction or parallel for airflow in long-hose, extensive-pipe, and Retraflex systems.

1,354 AirWatts Dual 6.6-in. motors Series or parallel installation 240 V / 14.6 A maximum Bagged or bagless Approx. 20,000 sq. ft.
Call a Central Vacuum Expert: 703-997-9292 Compare BEAM Power Units

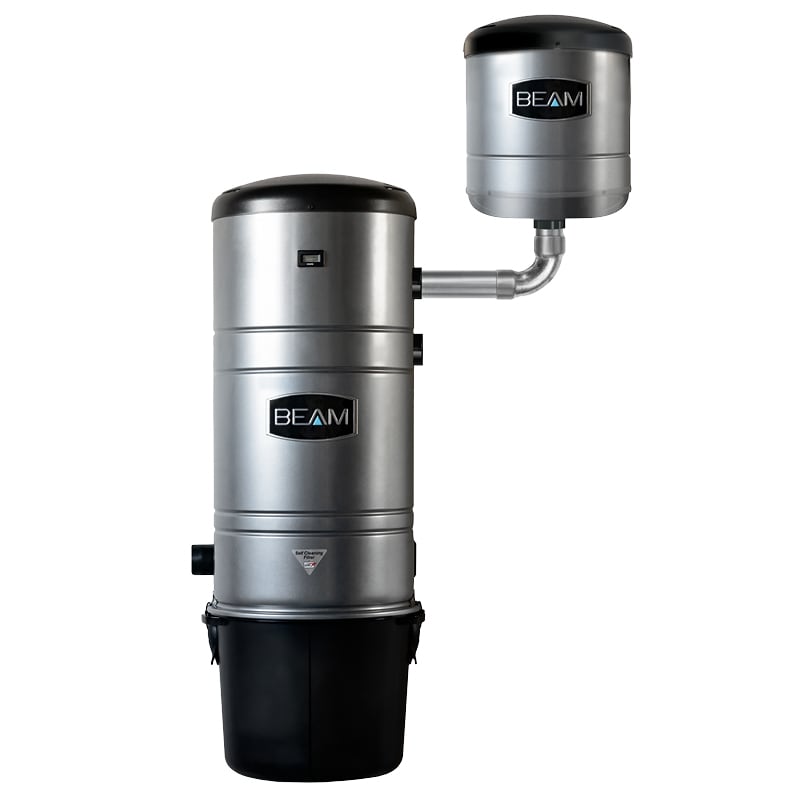

BEAM 4500 Hybrid two-module central vacuum power unit model ABEAM4500A
BEAM 4500 Hybrid main collector and separate booster motor head • ABEAM4500A

At a Glance

Quick Summary

Choose the BEAM 4500 when an estate, very large residence, or unusually extensive built-in network genuinely needs dual-motor reserve. It is a specialist 240-volt system—not a routine upgrade for an average home.

254 in.Series water lift

Maximum sealed-suction configuration.

273.4 CFMParallel airflow

Maximum published airflow configuration.

HybridCollection choice

Use a disposable bag or the permanent Gore filter.

240 VDual-motor platform

Two 6.6-inch bypass motors; 14.6 amps maximum.

Fast decision: BEAM recommends approximately 20,000 square feet, but that is a planning guide. Evaluate the pipe route, elevation, leakage, inlets, hose, and tools before ordering.

Power Unit, Filtration, and System Role

Product Overview

ABEAM4500A combines a main collector and booster head, each with a 6.6-inch, two-stage bypass motor. An installer fixes the series or parallel layout; it is not user-switchable and operates one inlet at a time.

BEAM publishes 1,354 AirWatts. Series performance is 136.7 CFM, 254-in. lift, and 72 dBA; parallel performance is 273.4 CFM, 149.2-in. lift, and 70 dBA. The pipe plan determines which profile fits.

“Hybrid” means a 5.3-gallon bag or bagless Gore filtration. Manufacturer sources conflict on a 5.5- versus 5.9-gallon receptacle; confirm current production if exact capacity matters.

What's Included

Core BEAM 4500 items and components that are normally separate
Item Status What the buyer should know
Main collector/power unit Included 240 V module with one 6.6-inch bypass motor, bag/filter, timer, and receptacle.
Booster motor head Included Separate 240 V module with the second 6.6-inch bypass motor.
Disposable collection bag Factory-installed Model documents list TDSAC93N; BEAM's current bag finder points 4500 owners to TDSAC93BM. Confirm the live replacement reference.
Permanent Gore filter Built in Supports reversible bagless use; reference TDFILTGORE14.
Mounting/interconnection parts Verify live carton Confirm all mounting, pipe, cord, muffler, adapter, seal, and clamp components.
Hose, tools, and powerhead Separate unless bundled Match the kit to floors and controls.
Inlets, PVC, fittings, and wire Separate Required for a new built-in network.
Professional installation Separate service Recommended for piping, electrical, exhaust, or retractable-hose work.
Power-unit-only warning: Hose, powerhead, tools, inlets, new PVC, electrical work, and labor are not automatically included. Confirm carton contents, pipe plan, 240-volt circuit, controls, exhaust, and mounting space.

Professional Buying Guidance

Expert Recommendation

Shortlist the BEAM 4500 for an estate, complex network, long retractable hose, or 240-volt replacement only when pipe calculations justify it.

Choose the BEAM 4500

The network is unusually long or restrictive and supports a two-module 240-volt installation.

Consider the BEAM 3600

You need dual-motor 240-volt power but not the 4500's flagship sizing.

Consider the BEAM 495

A single 120-volt unit and approximately 12,000-square-foot guidance are sufficient.

For an existing system, diagnose the hose, pipe, inlets, controls, bag/filter, and motor first. Ace Vacuums evaluates the complete system in the home before recommending repair, replacement, or configuration.

Homes and Cleaning Priorities

Best For

Estates and very large homes

BEAM recommends approximately 20,000 square feet, subject to professional review of the actual network.

Long, complex piping

Series or parallel installation lets the designer prioritize sealed suction or airflow for the route.

Retraflex and retractable-hose projects

BEAM explicitly positions the 4500 for long hoses and traditional or Retraflex inlets; Ace can also assess Hide-A-Hose layouts.

Pet owners

Pair the power unit with an electric carpet powerhead, upholstery tool, and dedicated hard-floor brush.

Allergy-conscious households

Debris is transported away from occupied rooms. Bagged disposal can reduce dust handling, while properly planned outdoor exhaust can reduce fine-particle recirculation.

Hardwood, tile, LVP, and mixed floors

Use a non-marring hard-floor brush and a separately selected electric carpet head where needed.

Luxury homes and custom construction

Coordinate inlets, VacPan locations, garage coverage, electrical service, exhaust, and retractable hoses before walls close.

Quieter cleaning in living areas

The 70–72 dBA motors normally run away from occupied rooms, reducing the noise carried beside the person cleaning.

Balanced Buying Advice

Not Ideal For

  • Average-size homes: The two-module 4500 may be unnecessary when a properly sized BEAM 495 or smaller unit can serve the network.
  • Renters or apartments: Permanent piping, two wall-mounted modules, and 240-volt service are generally impractical.
  • Wet pickup: The owner manual specifies dry household use only. It is not a wet/dry vacuum.
  • Construction dust or ash: Fine abrasive dust and hot debris can damage the system or create danger.
  • Enclosed closets or cabinets: BEAM states the 4500 cannot be installed in an enclosed space.
  • Sites without suitable power: It requires a dedicated grounded 240 V/15 A circuit and nearby outlet.
  • Buyers expecting the quietest motor room: BEAM publishes 72 dBA in series and 70 dBA in parallel.
  • Buyers expecting domestic warranty for business use: The manual lists separate, much shorter commercial coverage.
  • Buyers expecting a complete kit: Hose, floor tools, electric powerhead, pipe network, and labor are separate unless the live bundle says otherwise.
Honest sizing note: A 20,000-sq.-ft. rating is not automatically better. The 4500 adds cost, 240-volt power, a second module, and installation complexity; diagnose a repairable system first.

Feature-to-Benefit Guide

Key Features

Key features and owner benefits of the BEAM 4500 Hybrid
Feature What it means Why it matters
1,354 AirWatts BEAM's published model rating. Signals a top-end performance class, but does not replace system calculations.
Dual 6.6-in. bypass motors One two-stage motor in each module. Provides the foundation for two installer-selected performance profiles.
Series configuration 136.7 CFM, 254-in. water lift, 72 dBA. Prioritizes sealed suction for restrictive or long routes.
Parallel configuration 273.4 CFM, 149.2-in. water lift, 70 dBA. Prioritizes airflow for an extensive network.
Hybrid collection Reversible bagged or bagless use. Choose cleaner bag disposal or reusable collection.
Self-cleaning Gore filter Weighted movement releases dust after shutdown. Supports the bagless configuration.
5.3-gal. bag / bagless canister Sources conflict on 5.5 versus 5.9 gal. Two collection choices; verify exact current capacity.
240 V, 14.6 A maximum North American electrical specification. Requires a dedicated grounded 15-amp circuit and correct local electrical work.
Two-module layout Main unit plus separate booster motor head. Mounting space, ventilation, piping, and service access must be planned together.
Usage timer Tracks operating time. Supports service and warranty decisions.
Thermal/circuit protection Interrupts operation under a fault. Repeated trips still require diagnosis.
Traditional or Retraflex inlets BEAM names both installation types. Supports large custom projects with correctly designed hose routes.
Serviceable motor No lubrication; carbon brushes wear. BEAM recommends inspection every five to six years.

Why This Performance Profile Matters

What Makes This Model Stand Out

Two performance profiles

Series publishes 254-in. lift; parallel publishes 273.4 CFM. An installer selects the fixed configuration.

Estate-scale recommendation

BEAM's 20,000-sq.-ft. guidance places 4500 above current 475, 495, and 3600 models.

Collection choice

Hybrid Gore means reversible bagged or bagless collection—not hybrid motor technology.

Retractable-hose suitability

BEAM names long hoses and Retraflex; Ace can assess Retraflex or Hide-A-Hose-style layouts.

Series vs. parallel—what changes?

Series: 136.7 CFM, 254-in. lift, and 72 dBA emphasize sealed suction.

Parallel: 273.4 CFM, 149.2-in. lift, and 70 dBA emphasize airflow.

Unchanged: 1,354-AirWatt model rating, 240 V, Hybrid Gore collection, and one-inlet-at-a-time operation.

Important: The unit creates suction and collects debris; the hose and attachment kit determine carpet agitation, hardwood contact, stair reach, and pet-hair pickup.

Model and Brand-Level Decisions

Product Comparisons

BEAM 4500 vs. BEAM 3600

Both are dual-motor 240 V units. The 3600 publishes 1,046 AW, 230 CFM, 128-in. lift, and 12,000-sq.-ft. guidance. The 4500 adds larger motors, 1,354 AW, 20,000-sq.-ft. guidance, and configuration choice.

BEAM 4500 vs. BEAM 495

The single-motor 120 V 495 publishes 625 AW, 116 CFM, 161.5-in. lift, 65 dBA, and 12,000-sq.-ft. guidance. It better fits many conventional large homes; 4500 targets exceptional networks.

BEAM 4500 vs. Cana-Vac Signature 790

The 120 V single-motor 790 publishes 659 AW, 135.8 CFM, 144.9-in. lift, and 65 dB. It offers simpler electrical planning, not a direct 4500 equivalent.

BEAM 4500 vs. MD SilentMaster S900r2

Both are 240 V, dual-motor, 20,000-sq.-ft. models. MD publishes 866 AW, 190 CFM, 136.4-in. lift, 64 dB, and an 8-gal. closed bag; BEAM offers configurable performance and Hybrid Gore collection.

BEAM 4500 vs. VACUFLO DB10Max

The 240 V DB10Max publishes 1,163 AW, 220 CFM, 154-in. lift, 77 dBA, and 22,000-sq.-ft. guidance. BEAM instead offers high-lift series or high-airflow parallel configuration.

BEAM 4500 vs. a portable vacuum

The central unit stays away from the cleaner, but requires permanent piping, inlets, hose/tools, mounting space, and 240-volt power.

Test methods can differ. Water lift, CFM, and AirWatts measure different performance aspects.

Natural-Language Buying Answers

Questions Buyers Commonly Ask

Is the BEAM 4500 good for pet hair?

Yes when paired with an electric carpet powerhead and pet-appropriate upholstery and hard-floor tools.

Is the BEAM 4500 good for allergies?

It moves contacted debris away from rooms. Bagged disposal can reduce dust handling, while properly planned exterior exhaust can reduce fine-particle recirculation.

Is the BEAM 4500 worth buying?

Yes for a verified estate-scale network. A 495 or 3600 may deliver better value otherwise.

Is this a quiet central vacuum?

The motors are remote from rooms, but the unit rates 72 dBA in series or 70 dBA in parallel.

Is it quieter than VACUFLO?

That depends on the exact VACUFLO model and test method. Compare model-level figures instead of making a brand-wide claim.

Which homes benefit most?

Very large estates, long or complex pipe networks, and professionally designed Retraflex or Hide-A-Hose-style projects.

Verified Manufacturer Data

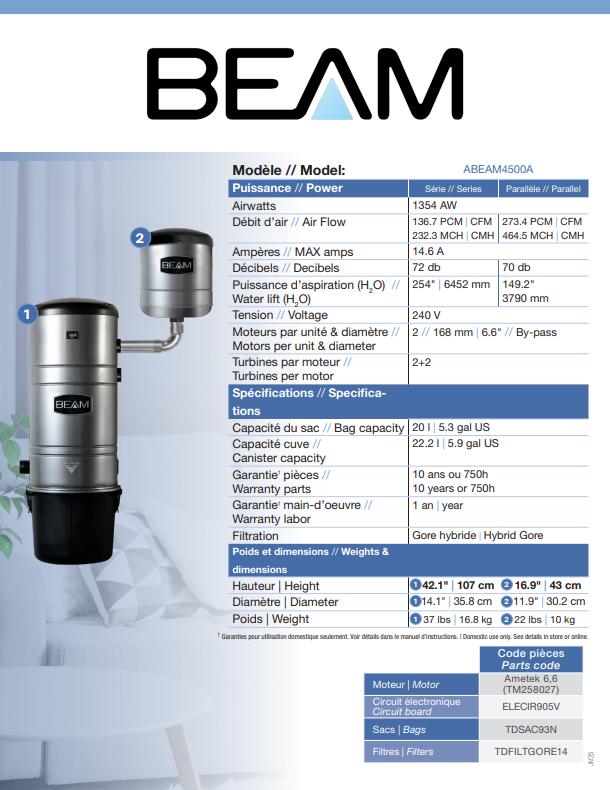

Technical Specifications

Technical specifications for BEAM 4500 model ABEAM4500A
Brand BEAM
Model 4500 Hybrid
Model number / SKU / MPN ABEAM4500A
Product type Two-module residential central vacuum power unit
Manufacturer's approximate coverage Approximately 20,000 sq. ft. / 1,858 m²; layout-dependent
AirWatts 1,354 AW model rating
Series performance 136.7 CFM / 232.3 m³/h; 254 in. / 6,452 mm H2O; 72 dBA
Parallel performance 273.4 CFM / 464.5 m³/h; 149.2 in. / 3,790 mm H2O; 70 dBA
Voltage 240 V
Maximum amperage 14.6 A
Required branch circuit Dedicated, grounded 240 V / 15 A circuit; outlet within 3 ft. of unit; no extension cord
Control connection Low-voltage wall-inlet activation; verify existing wiring and inlet compatibility
Motors Two 6.6-in. Ametek bypass motors; two turbine stages per motor
Motor references Main FM25802702; booster FM25802701
Filtration Hybrid Gore; convertible bagged or bagless operation
Compatible bag reference Model technical documents: TDSAC93N, 5.3 gal. / 20 L; current BEAM bag finder: TDSAC93BM. Confirm the live replacement part before ordering.
Permanent filter reference TDFILTGORE14 self-cleaning Gore filter
Bagless canister capacity Current BEAM page: 5.5 US gal.; dedicated technical sheet: 5.9 US gal. / 22.2 L. Verify current production.
Main module 42.1 in. high. Current BEAM page: 13.4-in. diameter / 33.5 lb; technical sheets: 14.1-in. diameter / 37 lb. Confirm current production and installation clearance.
Booster module 16.9 in. high × 11.9 in. diameter; 22 lb
Installation configuration Professionally plumbed in series or parallel; fixed during installation
Installation restriction BEAM states the 4500 cannot be installed in an enclosed space
Maintenance access Lower dirt receptacle with two latches; allow documented clearance around and below unit
Motor service guidance No lubrication required; manufacturer recommends authorized inspection every 5–6 years
Domestic parts warranty Motor and electrical components: 10 years or 750 hours of use, whichever occurs first, subject to manufacturer terms
Domestic labor warranty 1 year, subject to manufacturer terms
Canister/body coverage Limited lifetime coverage for material or manufacturing defects while the original owner retains the unit at its original installation, subject to full terms
Domestic intended use Everyday dry household pickup; no liquids, hot ash, flammables, or abrasive construction dust
Commercial-use warranty Separate 90-day parts and labor terms in the current manual; do not assume domestic coverage
Manufacturing location Designed and manufactured in Blainville, Quebec, Canada

Specifications are manufacturer-published for ABEAM4500A. Product design, carton contents, and terms can change; verify the rating label and current written warranty before installation.

Who Receives the Most Value

Ideal Buyers

The estate homeowner

Your long piping, many inlets, or elevation changes justify verified flagship sizing.

The custom builder

You can coordinate module space, ventilation, 240 V, exhaust, piping, and service access.

The retractable-hose planner

You need professional review of Retraflex or Hide-A-Hose length, resistance, and retraction.

The replacement owner

Your existing 240-volt dual-motor system needs pipe, controls, space, and exhaust confirmation.

The filtration-choice household

You prefer contained bag disposal or accept seasonal bagless filter maintenance.

The service-supported buyer

You want in-home testing of piping, inlets, controls, hose, tools, and motors.

Local Expertise Before and After the Sale

Why Buy from Ace Vacuums

Ace Vacuums is an authorized BEAM dealer with central-vacuum specialists who match the 4500 to the complete property—not simply sell the biggest canister by square footage.

In-home diagnosis first

Central-vacuum diagnosis, repair, and replacement decisions are handled in the home because piping, inlets, controls, hoses, and both power-unit modules must be evaluated together.

Repair, replace, or engineer the upgrade

Compare clog or leak repair, motor/electrical service, power-unit replacement, Retraflex or Hide-A-Hose retrofit, and new-system installation with a clear scope.

Parts and authorized support

Access BEAM bags, filters, hoses, powerheads, inlets, connection parts, warranty guidance, and certified technicians. Same-day repair on parts availability.

Before ordering: Call 703-997-9292 with the old model label, photos of the unit and installation space, pipe connections, outlet and breaker information, hose type and length, inlet count, and approximate longest run. This reduces wrong-unit, wrong-voltage, and wrong-configuration risk.

Shop Nationwide or Arrange Local Service

Available Online & In-Store

Use the live purchase panel above for current price, stock, shipping, and exact bundle contents. Before a DMV installation or replacement, call with the property size, longest pipe and hose run, number and type of inlets, existing model, electrical panel information, and photos of the proposed ventilated mounting area.

Ace Vacuums Fairfax

11110 Main St
Fairfax, VA 22030

BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Fairfax, Northern Virginia, Washington DC, and nearby Maryland—with free and easy parking.

Call Fairfax Real-Time Traffic & Directions Store Details

Ace Vacuums Leesburg

300 Fort Evans Rd NE, Suite 104
Leesburg, VA 20176

BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Loudoun County, Ashburn, Sterling, Leesburg, and surrounding areas—with free and easy parking.

Call Leesburg Real-Time Traffic & Directions Store Details

At-a-Glance Alternatives

Comparison Table

Comparison of BEAM 4500, BEAM 3600, BEAM 495, Cana-Vac Signature 790, MD SilentMaster S900r2, and VACUFLO DB10Max
Model Voltage / motor AirWatts Airflow Water lift Sound Collection / best fit
BEAM 4500 240 V; two 6.6-in. 2-stage bypass motors 1,354 AW Series: 136.7 CFM
Parallel: 273.4 CFM		 Series: 254 in.
Parallel: 149.2 in.		 Series: 72 dBA
Parallel: 70 dBA		 Hybrid Gore; approx. 20,000 sq. ft.; extreme residential networks
BEAM 3600 240 V; two 5.7-in. 2-stage motors 1,046 AW 230 CFM 128 in. Not currently published Hybrid Gore; approx. 12,000 sq. ft.; proportionate dual-motor alternative
BEAM 495 120 V; one 6.6-in. 2-stage bypass motor 625 AW 116 CFM 161.5 in. 65 dBA Hybrid Gore; approx. 12,000 sq. ft.; simpler large-home installation
Cana-Vac Signature 790 120 V; single-motor platform 659 AW 135.8 CFM 144.9 in. 65 dB Hybrid bag/filter choice; conventional mid-to-large-home alternative
MD SilentMaster S900r2 240 V; two 5.7-in. 3-stage bypass motors 866 AW 190 CFM 136.4 in. 64 dB 8-gal. closed bag; 20,000-sq.-ft. premium alternative
VACUFLO DB10Max 240 V; dual-motor platform 1,163 AW 220 CFM 154 in. 77 dBA 6-gal. bag and filter; published 22,000-sq.-ft. coverage

Manufacturer sound, performance, and coverage figures may use different methods and should not be treated as laboratory-equivalent. Compare exact models, filtration preference, electrical supply, hose plan, pipe resistance, service access, warranty, and local support before ordering.

The Honest Tradeoffs

Pros and Cons

Pros

  • Exceptional 254-inch series water-lift rating
  • Very high 273.4-CFM parallel airflow rating
  • Two 6.6-inch bypass motors and 1,354 AirWatts
  • Installer-selected series or parallel configuration
  • Reversible bagged or bagless operation
  • Large 5.3-gallon disposable bag
  • Permanent self-cleaning Gore filtration path
  • Manufacturer recommendation around 20,000 sq. ft.
  • Specifically positioned for Retraflex retractable hose
  • Strong domestic warranty structure, subject to terms

Cons

  • Power unit is not a complete hose-and-tool system
  • Professional sizing and configuration are strongly recommended
  • Requires a dedicated grounded 240 V / 15 A circuit
  • Two modules require more wall space and connection planning
  • Cannot be installed in an enclosed space
  • Published motor-room sound is 70–72 dBA
  • Unnecessary capacity and cost for many conventional homes
  • Bagless emptying exposes the user to more dust than sealed bag disposal
  • Dry household use only—no liquids or construction debris
  • Square-foot rating cannot account for every pipe layout

Buying, Installation, and Ownership

Frequently Asked Questions

Open the guide, then select a question.

FAQs: BEAM 4500 buying, fitment, and ownership guide
What does “Hybrid” mean on the BEAM 4500?

It means disposable-bag or bagless collection through the permanent Gore filter—not a hybrid motor.

Is this listing a complete central-vacuum system?

No. Hose, powerhead, tools, inlets, new piping, electrical work, and installation labor are separate unless the live bundle states otherwise.

How large a home can the BEAM 4500 serve?

BEAM recommends approximately 20,000 square feet, but piping, elevation, leaks, hose length, and inlet layout determine the real fit.

Why does the BEAM 4500 have series and parallel configurations?

Professional plumbing in series favors sealed suction; parallel favors airflow. The installation is fixed, not hose-switchable, and operates one inlet at a time.

What are the BEAM 4500 series specifications?

136.7 CFM, 254-in. water lift, 72 dBA, and a 1,354-AirWatt model rating.

What are the BEAM 4500 parallel specifications?

273.4 CFM, 149.2-in. water lift, and 70 dBA. BEAM publishes no separate parallel AirWatt figure.

Does the BEAM 4500 require 240-volt power?

Yes: dedicated grounded 240 V/15 A service, an outlet within three feet, and no extension cord.

Can the BEAM 4500 be installed in a closet?

No enclosed closet or cabinet. Follow BEAM's ventilation, clearance, and service-access instructions.

Does the BEAM 4500 work with Retraflex or Hide-A-Hose?

BEAM names Retraflex. Ace can assess Hide-A-Hose-style hose length, piping, attachments, and retraction needs.

Is the BEAM 4500 good for pet hair?

Yes, when paired with a suitable electric carpet powerhead and pet, upholstery, and hard-floor tools.

Is the BEAM 4500 suitable for allergy-conscious homes?

It moves contacted debris away from rooms. Bagged disposal can reduce dust handling, while correctly planned exterior exhaust can reduce fine-particle recirculation.

Can the BEAM 4500 clean hardwood and carpet?

Yes—with a non-marring floor brush for hardwood and a compatible electric hose and powerhead for carpet.

Is the BEAM 4500 quieter than a portable vacuum or VACUFLO?

Living-area cleaning is quieter because the motors are remote. Compare 70–72 dBA at the unit with an exact VACUFLO model and test method.

Can the BEAM 4500 replace my older BEAM, NuTone, MD, or VACUFLO unit?

Possibly. Verify piping, two-module space, 240 V, exhaust, controls, hose compatibility, and configuration first.

Should I repair my current central vacuum or install a BEAM 4500?

Diagnose clogs, leaks, inlets, hose, bag/filter, relay, board, and motors first. Ace can compare repair with replacement in your home.

Which bag and filter fit the BEAM 4500?

Model documents list the TDSAC93N 5.3-gallon bag and TDFILTGORE14 filter, while BEAM's current bag finder points 4500 owners to TDSAC93BM. Confirm the live bag reference before ordering.

What maintenance does the BEAM 4500 require?

Change a full bag; in bagless use, empty and clean at least seasonally. BEAM recommends inspection every five to six years.

Can the BEAM 4500 pick up water, hot ash, or construction dust?

No—use it for ordinary dry household debris only.

What warranty comes with the BEAM 4500?

Domestic terms list 10 years or 750 hours on motor/electrical parts, one-year labor, and limited lifetime canister/body coverage. Terms apply.

Where can I buy, install, or service the BEAM 4500?

Order online or call Ace Vacuums at 703-997-9292 for DMV in-home diagnosis, repair, replacement, and installation.

Continue Your Research

Explore More

Shop BEAM Central Vacuums Compare Central Vacuum Systems Compare BEAM 475 Compare BEAM 495 BEAM Bags & Filters BEAM Attachment Kits All BEAM Products & Parts Hide-A-Hose & Central Vacuum Installation In-Home Central Vacuum Repair Central Vacuum Service & Upgrades Fairfax & Leesburg Stores

Is the BEAM 4500 right for your piping and hose system?

Tell an Ace Vacuums specialist about your property size, longest pipe and hose run, inlet count, floors, pets, current model, 240-volt service, and available wall space. We will help compare repair, replacement, BEAM alternatives, series or parallel installation, and Hide-A-Hose or Retraflex options before you buy.

Call 703-997-9292 Shop BEAM Power Units

Dual Motor • Hybrid Gore • 240 V • Model ABEAM4500A

Flagship capacity for very large and demanding central-vacuum networks.

The 1,354-AirWatt BEAM 4500 Hybrid uses two 6.6-inch bypass motors. An installer configures them in series for sealed suction or parallel for airflow in long-hose, extensive-pipe, and Retraflex systems.

1,354 AirWatts Dual 6.6-in. motors Series or parallel installation 240 V / 14.6 A maximum Bagged or bagless Approx. 20,000 sq. ft. Call a Central Vacuum Expert: 703-997-9292 Compare BEAM Power Units
BEAM 4500 Hybrid two-module central vacuum power unit model ABEAM4500A
BEAM 4500 Hybrid main collector and separate booster motor head • ABEAM4500A

At a Glance

Quick Summary

Choose the BEAM 4500 when an estate, very large residence, or unusually extensive built-in network genuinely needs dual-motor reserve. It is a specialist 240-volt system—not a routine upgrade for an average home.

254 in.Series water lift

Maximum sealed-suction configuration.

 273.4 CFMParallel airflow

Maximum published airflow configuration.

 HybridCollection choice

Use a disposable bag or the permanent Gore filter.

 240 VDual-motor platform

Two 6.6-inch bypass motors; 14.6 amps maximum.

 Fast decision: BEAM recommends approximately 20,000 square feet, but that is a planning guide. Evaluate the pipe route, elevation, leakage, inlets, hose, and tools before ordering.

Power Unit, Filtration, and System Role

Product Overview

ABEAM4500A combines a main collector and booster head, each with a 6.6-inch, two-stage bypass motor. An installer fixes the series or parallel layout; it is not user-switchable and operates one inlet at a time.

BEAM publishes 1,354 AirWatts. Series performance is 136.7 CFM, 254-in. lift, and 72 dBA; parallel performance is 273.4 CFM, 149.2-in. lift, and 70 dBA. The pipe plan determines which profile fits.

“Hybrid” means a 5.3-gallon bag or bagless Gore filtration. Manufacturer sources conflict on a 5.5- versus 5.9-gallon receptacle; confirm current production if exact capacity matters.

What's Included

Core BEAM 4500 items and components that are normally separate
Item Status What the buyer should know
Main collector/power unit Included 240 V module with one 6.6-inch bypass motor, bag/filter, timer, and receptacle.
Booster motor head Included Separate 240 V module with the second 6.6-inch bypass motor.
Disposable collection bag Factory-installed Model documents list TDSAC93N; BEAM's current bag finder points 4500 owners to TDSAC93BM. Confirm the live replacement reference.
Permanent Gore filter Built in Supports reversible bagless use; reference TDFILTGORE14.
Mounting/interconnection parts Verify live carton Confirm all mounting, pipe, cord, muffler, adapter, seal, and clamp components.
Hose, tools, and powerhead Separate unless bundled Match the kit to floors and controls.
Inlets, PVC, fittings, and wire Separate Required for a new built-in network.
Professional installation Separate service Recommended for piping, electrical, exhaust, or retractable-hose work.
Power-unit-only warning: Hose, powerhead, tools, inlets, new PVC, electrical work, and labor are not automatically included. Confirm carton contents, pipe plan, 240-volt circuit, controls, exhaust, and mounting space.

Professional Buying Guidance

Expert Recommendation

Shortlist the BEAM 4500 for an estate, complex network, long retractable hose, or 240-volt replacement only when pipe calculations justify it.

Choose the BEAM 4500

The network is unusually long or restrictive and supports a two-module 240-volt installation.

Consider the BEAM 3600

You need dual-motor 240-volt power but not the 4500's flagship sizing.

Consider the BEAM 495

A single 120-volt unit and approximately 12,000-square-foot guidance are sufficient.

For an existing system, diagnose the hose, pipe, inlets, controls, bag/filter, and motor first. Ace Vacuums evaluates the complete system in the home before recommending repair, replacement, or configuration.

Homes and Cleaning Priorities

Best For

Estates and very large homes

BEAM recommends approximately 20,000 square feet, subject to professional review of the actual network.

Long, complex piping

Series or parallel installation lets the designer prioritize sealed suction or airflow for the route.

Retraflex and retractable-hose projects

BEAM explicitly positions the 4500 for long hoses and traditional or Retraflex inlets; Ace can also assess Hide-A-Hose layouts.

Pet owners

Pair the power unit with an electric carpet powerhead, upholstery tool, and dedicated hard-floor brush.

Allergy-conscious households

Debris is transported away from occupied rooms. Bagged disposal can reduce dust handling, while properly planned outdoor exhaust can reduce fine-particle recirculation.

Hardwood, tile, LVP, and mixed floors

Use a non-marring hard-floor brush and a separately selected electric carpet head where needed.

Luxury homes and custom construction

Coordinate inlets, VacPan locations, garage coverage, electrical service, exhaust, and retractable hoses before walls close.

Quieter cleaning in living areas

The 70–72 dBA motors normally run away from occupied rooms, reducing the noise carried beside the person cleaning.

Balanced Buying Advice

Not Ideal For

  • Average-size homes: The two-module 4500 may be unnecessary when a properly sized BEAM 495 or smaller unit can serve the network.
  • Renters or apartments: Permanent piping, two wall-mounted modules, and 240-volt service are generally impractical.
  • Wet pickup: The owner manual specifies dry household use only. It is not a wet/dry vacuum.
  • Construction dust or ash: Fine abrasive dust and hot debris can damage the system or create danger.
  • Enclosed closets or cabinets: BEAM states the 4500 cannot be installed in an enclosed space.
  • Sites without suitable power: It requires a dedicated grounded 240 V/15 A circuit and nearby outlet.
  • Buyers expecting the quietest motor room: BEAM publishes 72 dBA in series and 70 dBA in parallel.
  • Buyers expecting domestic warranty for business use: The manual lists separate, much shorter commercial coverage.
  • Buyers expecting a complete kit: Hose, floor tools, electric powerhead, pipe network, and labor are separate unless the live bundle says otherwise.
 Honest sizing note: A 20,000-sq.-ft. rating is not automatically better. The 4500 adds cost, 240-volt power, a second module, and installation complexity; diagnose a repairable system first.

Feature-to-Benefit Guide

Key Features

Key features and owner benefits of the BEAM 4500 Hybrid
Feature What it means Why it matters
1,354 AirWatts BEAM's published model rating. Signals a top-end performance class, but does not replace system calculations.
Dual 6.6-in. bypass motors One two-stage motor in each module. Provides the foundation for two installer-selected performance profiles.
Series configuration 136.7 CFM, 254-in. water lift, 72 dBA. Prioritizes sealed suction for restrictive or long routes.
Parallel configuration 273.4 CFM, 149.2-in. water lift, 70 dBA. Prioritizes airflow for an extensive network.
Hybrid collection Reversible bagged or bagless use. Choose cleaner bag disposal or reusable collection.
Self-cleaning Gore filter Weighted movement releases dust after shutdown. Supports the bagless configuration.
5.3-gal. bag / bagless canister Sources conflict on 5.5 versus 5.9 gal. Two collection choices; verify exact current capacity.
240 V, 14.6 A maximum North American electrical specification. Requires a dedicated grounded 15-amp circuit and correct local electrical work.
Two-module layout Main unit plus separate booster motor head. Mounting space, ventilation, piping, and service access must be planned together.
Usage timer Tracks operating time. Supports service and warranty decisions.
Thermal/circuit protection Interrupts operation under a fault. Repeated trips still require diagnosis.
Traditional or Retraflex inlets BEAM names both installation types. Supports large custom projects with correctly designed hose routes.
Serviceable motor No lubrication; carbon brushes wear. BEAM recommends inspection every five to six years.

Why This Performance Profile Matters

What Makes This Model Stand Out

Two performance profiles

Series publishes 254-in. lift; parallel publishes 273.4 CFM. An installer selects the fixed configuration.

Estate-scale recommendation

BEAM's 20,000-sq.-ft. guidance places 4500 above current 475, 495, and 3600 models.

Collection choice

Hybrid Gore means reversible bagged or bagless collection—not hybrid motor technology.

Retractable-hose suitability

BEAM names long hoses and Retraflex; Ace can assess Retraflex or Hide-A-Hose-style layouts.

Series vs. parallel—what changes?

Series: 136.7 CFM, 254-in. lift, and 72 dBA emphasize sealed suction.

Parallel: 273.4 CFM, 149.2-in. lift, and 70 dBA emphasize airflow.

Unchanged: 1,354-AirWatt model rating, 240 V, Hybrid Gore collection, and one-inlet-at-a-time operation.

 Important: The unit creates suction and collects debris; the hose and attachment kit determine carpet agitation, hardwood contact, stair reach, and pet-hair pickup.

Model and Brand-Level Decisions

Product Comparisons

BEAM 4500 vs. BEAM 3600

Both are dual-motor 240 V units. The 3600 publishes 1,046 AW, 230 CFM, 128-in. lift, and 12,000-sq.-ft. guidance. The 4500 adds larger motors, 1,354 AW, 20,000-sq.-ft. guidance, and configuration choice.

BEAM 4500 vs. BEAM 495

The single-motor 120 V 495 publishes 625 AW, 116 CFM, 161.5-in. lift, 65 dBA, and 12,000-sq.-ft. guidance. It better fits many conventional large homes; 4500 targets exceptional networks.

BEAM 4500 vs. Cana-Vac Signature 790

The 120 V single-motor 790 publishes 659 AW, 135.8 CFM, 144.9-in. lift, and 65 dB. It offers simpler electrical planning, not a direct 4500 equivalent.

BEAM 4500 vs. MD SilentMaster S900r2

Both are 240 V, dual-motor, 20,000-sq.-ft. models. MD publishes 866 AW, 190 CFM, 136.4-in. lift, 64 dB, and an 8-gal. closed bag; BEAM offers configurable performance and Hybrid Gore collection.

BEAM 4500 vs. VACUFLO DB10Max

The 240 V DB10Max publishes 1,163 AW, 220 CFM, 154-in. lift, 77 dBA, and 22,000-sq.-ft. guidance. BEAM instead offers high-lift series or high-airflow parallel configuration.

BEAM 4500 vs. a portable vacuum

The central unit stays away from the cleaner, but requires permanent piping, inlets, hose/tools, mounting space, and 240-volt power.

Test methods can differ. Water lift, CFM, and AirWatts measure different performance aspects.

Natural-Language Buying Answers

Questions Buyers Commonly Ask

Is the BEAM 4500 good for pet hair?

Yes when paired with an electric carpet powerhead and pet-appropriate upholstery and hard-floor tools.

Is the BEAM 4500 good for allergies?

It moves contacted debris away from rooms. Bagged disposal can reduce dust handling, while properly planned exterior exhaust can reduce fine-particle recirculation.

Is the BEAM 4500 worth buying?

Yes for a verified estate-scale network. A 495 or 3600 may deliver better value otherwise.

Is this a quiet central vacuum?

The motors are remote from rooms, but the unit rates 72 dBA in series or 70 dBA in parallel.

Is it quieter than VACUFLO?

That depends on the exact VACUFLO model and test method. Compare model-level figures instead of making a brand-wide claim.

Which homes benefit most?

Very large estates, long or complex pipe networks, and professionally designed Retraflex or Hide-A-Hose-style projects.

Verified Manufacturer Data

Technical Specifications

Technical specifications for BEAM 4500 model ABEAM4500A
Brand BEAM
Model 4500 Hybrid
Model number / SKU / MPN ABEAM4500A
Product type Two-module residential central vacuum power unit
Manufacturer's approximate coverage Approximately 20,000 sq. ft. / 1,858 m²; layout-dependent
AirWatts 1,354 AW model rating
Series performance 136.7 CFM / 232.3 m³/h; 254 in. / 6,452 mm H2O; 72 dBA
Parallel performance 273.4 CFM / 464.5 m³/h; 149.2 in. / 3,790 mm H2O; 70 dBA
Voltage 240 V
Maximum amperage 14.6 A
Required branch circuit Dedicated, grounded 240 V / 15 A circuit; outlet within 3 ft. of unit; no extension cord
Control connection Low-voltage wall-inlet activation; verify existing wiring and inlet compatibility
Motors Two 6.6-in. Ametek bypass motors; two turbine stages per motor
Motor references Main FM25802702; booster FM25802701
Filtration Hybrid Gore; convertible bagged or bagless operation
Compatible bag reference Model technical documents: TDSAC93N, 5.3 gal. / 20 L; current BEAM bag finder: TDSAC93BM. Confirm the live replacement part before ordering.
Permanent filter reference TDFILTGORE14 self-cleaning Gore filter
Bagless canister capacity Current BEAM page: 5.5 US gal.; dedicated technical sheet: 5.9 US gal. / 22.2 L. Verify current production.
Main module 42.1 in. high. Current BEAM page: 13.4-in. diameter / 33.5 lb; technical sheets: 14.1-in. diameter / 37 lb. Confirm current production and installation clearance.
Booster module 16.9 in. high × 11.9 in. diameter; 22 lb
Installation configuration Professionally plumbed in series or parallel; fixed during installation
Installation restriction BEAM states the 4500 cannot be installed in an enclosed space
Maintenance access Lower dirt receptacle with two latches; allow documented clearance around and below unit
Motor service guidance No lubrication required; manufacturer recommends authorized inspection every 5–6 years
Domestic parts warranty Motor and electrical components: 10 years or 750 hours of use, whichever occurs first, subject to manufacturer terms
Domestic labor warranty 1 year, subject to manufacturer terms
Canister/body coverage Limited lifetime coverage for material or manufacturing defects while the original owner retains the unit at its original installation, subject to full terms
Domestic intended use Everyday dry household pickup; no liquids, hot ash, flammables, or abrasive construction dust
Commercial-use warranty Separate 90-day parts and labor terms in the current manual; do not assume domestic coverage
Manufacturing location Designed and manufactured in Blainville, Quebec, Canada

Specifications are manufacturer-published for ABEAM4500A. Product design, carton contents, and terms can change; verify the rating label and current written warranty before installation.

Who Receives the Most Value

Ideal Buyers

The estate homeowner

Your long piping, many inlets, or elevation changes justify verified flagship sizing.

The custom builder

You can coordinate module space, ventilation, 240 V, exhaust, piping, and service access.

The retractable-hose planner

You need professional review of Retraflex or Hide-A-Hose length, resistance, and retraction.

The replacement owner

Your existing 240-volt dual-motor system needs pipe, controls, space, and exhaust confirmation.

The filtration-choice household

You prefer contained bag disposal or accept seasonal bagless filter maintenance.

The service-supported buyer

You want in-home testing of piping, inlets, controls, hose, tools, and motors.

Local Expertise Before and After the Sale

Why Buy from Ace Vacuums

Ace Vacuums is an authorized BEAM dealer with central-vacuum specialists who match the 4500 to the complete property—not simply sell the biggest canister by square footage.

In-home diagnosis first

Central-vacuum diagnosis, repair, and replacement decisions are handled in the home because piping, inlets, controls, hoses, and both power-unit modules must be evaluated together.

Repair, replace, or engineer the upgrade

Compare clog or leak repair, motor/electrical service, power-unit replacement, Retraflex or Hide-A-Hose retrofit, and new-system installation with a clear scope.

Parts and authorized support

Access BEAM bags, filters, hoses, powerheads, inlets, connection parts, warranty guidance, and certified technicians. Same-day repair on parts availability.

 Before ordering: Call 703-997-9292 with the old model label, photos of the unit and installation space, pipe connections, outlet and breaker information, hose type and length, inlet count, and approximate longest run. This reduces wrong-unit, wrong-voltage, and wrong-configuration risk.

Shop Nationwide or Arrange Local Service

Available Online & In-Store

Use the live purchase panel above for current price, stock, shipping, and exact bundle contents. Before a DMV installation or replacement, call with the property size, longest pipe and hose run, number and type of inlets, existing model, electrical panel information, and photos of the proposed ventilated mounting area.

Ace Vacuums Fairfax

11110 Main St
Fairfax, VA 22030

BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Fairfax, Northern Virginia, Washington DC, and nearby Maryland—with free and easy parking.

Call Fairfax Real-Time Traffic & Directions Store Details

Ace Vacuums Leesburg

300 Fort Evans Rd NE, Suite 104
Leesburg, VA 20176

BEAM product guidance, central-vacuum parts, warranty support, and in-home service coordination for Loudoun County, Ashburn, Sterling, Leesburg, and surrounding areas—with free and easy parking.

Call Leesburg Real-Time Traffic & Directions Store Details

At-a-Glance Alternatives

Comparison Table

Comparison of BEAM 4500, BEAM 3600, BEAM 495, Cana-Vac Signature 790, MD SilentMaster S900r2, and VACUFLO DB10Max
Model Voltage / motor AirWatts Airflow Water lift Sound Collection / best fit
BEAM 4500 240 V; two 6.6-in. 2-stage bypass motors 1,354 AW Series: 136.7 CFM
Parallel: 273.4 CFM		 Series: 254 in.
Parallel: 149.2 in.		 Series: 72 dBA
Parallel: 70 dBA		 Hybrid Gore; approx. 20,000 sq. ft.; extreme residential networks
BEAM 3600 240 V; two 5.7-in. 2-stage motors 1,046 AW 230 CFM 128 in. Not currently published Hybrid Gore; approx. 12,000 sq. ft.; proportionate dual-motor alternative
BEAM 495 120 V; one 6.6-in. 2-stage bypass motor 625 AW 116 CFM 161.5 in. 65 dBA Hybrid Gore; approx. 12,000 sq. ft.; simpler large-home installation
Cana-Vac Signature 790 120 V; single-motor platform 659 AW 135.8 CFM 144.9 in. 65 dB Hybrid bag/filter choice; conventional mid-to-large-home alternative
MD SilentMaster S900r2 240 V; two 5.7-in. 3-stage bypass motors 866 AW 190 CFM 136.4 in. 64 dB 8-gal. closed bag; 20,000-sq.-ft. premium alternative
VACUFLO DB10Max 240 V; dual-motor platform 1,163 AW 220 CFM 154 in. 77 dBA 6-gal. bag and filter; published 22,000-sq.-ft. coverage

Manufacturer sound, performance, and coverage figures may use different methods and should not be treated as laboratory-equivalent. Compare exact models, filtration preference, electrical supply, hose plan, pipe resistance, service access, warranty, and local support before ordering.

The Honest Tradeoffs

Pros and Cons

Pros

  • Exceptional 254-inch series water-lift rating
  • Very high 273.4-CFM parallel airflow rating
  • Two 6.6-inch bypass motors and 1,354 AirWatts
  • Installer-selected series or parallel configuration
  • Reversible bagged or bagless operation
  • Large 5.3-gallon disposable bag
  • Permanent self-cleaning Gore filtration path
  • Manufacturer recommendation around 20,000 sq. ft.
  • Specifically positioned for Retraflex retractable hose
  • Strong domestic warranty structure, subject to terms

Cons

  • Power unit is not a complete hose-and-tool system
  • Professional sizing and configuration are strongly recommended
  • Requires a dedicated grounded 240 V / 15 A circuit
  • Two modules require more wall space and connection planning
  • Cannot be installed in an enclosed space
  • Published motor-room sound is 70–72 dBA
  • Unnecessary capacity and cost for many conventional homes
  • Bagless emptying exposes the user to more dust than sealed bag disposal
  • Dry household use only—no liquids or construction debris
  • Square-foot rating cannot account for every pipe layout

Buying, Installation, and Ownership

Frequently Asked Questions

Open the guide, then select a question.

FAQs: BEAM 4500 buying, fitment, and ownership guide
What does “Hybrid” mean on the BEAM 4500?

It means disposable-bag or bagless collection through the permanent Gore filter—not a hybrid motor.
Is this listing a complete central-vacuum system?

No. Hose, powerhead, tools, inlets, new piping, electrical work, and installation labor are separate unless the live bundle states otherwise.
How large a home can the BEAM 4500 serve?

BEAM recommends approximately 20,000 square feet, but piping, elevation, leaks, hose length, and inlet layout determine the real fit.
Why does the BEAM 4500 have series and parallel configurations?

Professional plumbing in series favors sealed suction; parallel favors airflow. The installation is fixed, not hose-switchable, and operates one inlet at a time.
What are the BEAM 4500 series specifications?

136.7 CFM, 254-in. water lift, 72 dBA, and a 1,354-AirWatt model rating.
What are the BEAM 4500 parallel specifications?

273.4 CFM, 149.2-in. water lift, and 70 dBA. BEAM publishes no separate parallel AirWatt figure.
Does the BEAM 4500 require 240-volt power?

Yes: dedicated grounded 240 V/15 A service, an outlet within three feet, and no extension cord.
Can the BEAM 4500 be installed in a closet?

No enclosed closet or cabinet. Follow BEAM's ventilation, clearance, and service-access instructions.
Does the BEAM 4500 work with Retraflex or Hide-A-Hose?

BEAM names Retraflex. Ace can assess Hide-A-Hose-style hose length, piping, attachments, and retraction needs.
Is the BEAM 4500 good for pet hair?

Yes, when paired with a suitable electric carpet powerhead and pet, upholstery, and hard-floor tools.
Is the BEAM 4500 suitable for allergy-conscious homes?

It moves contacted debris away from rooms. Bagged disposal can reduce dust handling, while correctly planned exterior exhaust can reduce fine-particle recirculation.
Can the BEAM 4500 clean hardwood and carpet?

Yes—with a non-marring floor brush for hardwood and a compatible electric hose and powerhead for carpet.
Is the BEAM 4500 quieter than a portable vacuum or VACUFLO?

Living-area cleaning is quieter because the motors are remote. Compare 70–72 dBA at the unit with an exact VACUFLO model and test method.
Can the BEAM 4500 replace my older BEAM, NuTone, MD, or VACUFLO unit?

Possibly. Verify piping, two-module space, 240 V, exhaust, controls, hose compatibility, and configuration first.
Should I repair my current central vacuum or install a BEAM 4500?

Diagnose clogs, leaks, inlets, hose, bag/filter, relay, board, and motors first. Ace can compare repair with replacement in your home.
Which bag and filter fit the BEAM 4500?

Model documents list the TDSAC93N 5.3-gallon bag and TDFILTGORE14 filter, while BEAM's current bag finder points 4500 owners to TDSAC93BM. Confirm the live bag reference before ordering.
What maintenance does the BEAM 4500 require?

Change a full bag; in bagless use, empty and clean at least seasonally. BEAM recommends inspection every five to six years.
Can the BEAM 4500 pick up water, hot ash, or construction dust?

No—use it for ordinary dry household debris only.
What warranty comes with the BEAM 4500?

Domestic terms list 10 years or 750 hours on motor/electrical parts, one-year labor, and limited lifetime canister/body coverage. Terms apply.
Where can I buy, install, or service the BEAM 4500?

Order online or call Ace Vacuums at 703-997-9292 for DMV in-home diagnosis, repair, replacement, and installation.

Continue Your Research

Explore More

Shop BEAM Central Vacuums Compare Central Vacuum Systems Compare BEAM 475 Compare BEAM 495 BEAM Bags & Filters BEAM Attachment Kits All BEAM Products & Parts Hide-A-Hose & Central Vacuum Installation In-Home Central Vacuum Repair Central Vacuum Service & Upgrades Fairfax & Leesburg Stores

Is the BEAM 4500 right for your piping and hose system?

Tell an Ace Vacuums specialist about your property size, longest pipe and hose run, inlet count, floors, pets, current model, 240-volt service, and available wall space. We will help compare repair, replacement, BEAM alternatives, series or parallel installation, and Hide-A-Hose or Retraflex options before you buy.

 Call 703-997-9292 Shop BEAM Power Units

Visit Our Showrooms

Check real-time traffic and travel time from your location in VA, DC, or MD.

📍 AceVacuums Fairfax (DMV Hub)

Address: 11110 Main St, Fairfax, VA 22030
Landmark: Opposite Havertys Furniture Store
Best for: Bethesda, Potomac, Arlington, NW Washington D.C.

Get Real-Time Traffic & Directions
Call Fairfax Store Details

📍 AceVacuums Leesburg

Address: 300 Fort Evans Rd NE, Suite 104, Leesburg, VA 20176
Landmark: Next to Home Depot in Leesburg
Best for: Ashburn, Sterling, Frederick MD, Loudoun County

Get Real-Time Traffic & Directions
Call Leesburg Store Details

Shipping, Return & Refund Policy

Shipping Policy

In-stock merchandise generally ships from our Leesburg, Virginia location within 3–5 business days. Processing time is separate from carrier transit time and is not a guaranteed delivery date. Weekends and holidays can affect timing. Special-order, backordered or unavailable items may take longer; contact us to confirm timing before purchase when a deadline matters.

Shipping options and charges are shown at checkout. After dispatch, follow the carrier's tracking updates. Weather, carrier delays, order verification and inventory confirmation may affect delivery. Inspect packages promptly and retain packaging if there is damage or an incorrect or missing item.

Returns and refunds

Eligible unused items have a 30-calendar-day return request window for refunds or exchanges, measured from delivery or in-store purchase. Return authorization is required. Final-sale exclusions, the 15% restocking fee for change-of-mind returns and shipping responsibilities are explained in our Return and Refund Policy. That policy is the governing source for return eligibility and fees.

For shipping or return help, email sales@acevacuums.com or call 703-997-9292.

30-Day Returns, Refunds and Exchanges

Updated September 27, 2026. Request a return for an eligible unused item within 30 calendar days of delivery (or purchase for items collected in store). Eligible returns may be refunded to the original payment method or exchanged, subject to availability. The same 30-day request window applies to both refunds and exchanges; there is no separate seven-day or 15-day refund deadline.

Eligibility and authorization

Items must be unused, clean, complete and in their original packaging with all accessories, manuals and proof of purchase. Contact sales@acevacuums.com or 703-997-9292 before sending anything back. Include your order number, item and reason for return. We will confirm eligibility, charges and return instructions. Unapproved or cash-on-delivery returns are not accepted.

Fees and shipping

For an approved change-of-mind return, a 15% restocking fee applies to the returned merchandise price. Original shipping charges are not refundable and the customer pays return shipping. These charges do not apply to an approved return caused by our shipping error or a damaged/defective item claim. Contact us first so we can arrange the appropriate remedy and shipping instructions. Do not assume a prepaid label is included.

Final-sale and excluded items

Air purifiers; discounted, clearance, trade-in, holiday-sale and price-matched purchases; gift cards; custom or special-order products; electrical parts; used or installed items; opened cleaning solutions; and used bags, filters, belts or other consumables are not eligible for change-of-mind returns. Other items clearly marked final sale at purchase are also excluded. An opened box alone does not disqualify an otherwise eligible unused, complete item, but consumables and cleaning solutions must remain unopened.

Damaged, defective, incorrect or missing items; recalls

Inspect your order promptly and contact us as soon as you discover a problem, with your order number and photos where helpful. Keep the packaging. Change-of-mind exclusions and deadlines do not remove applicable defect, warranty, recall or statutory rights. Warranty coverage requires evaluation under the manufacturer's terms; dealer status does not guarantee free repair. Recalled products must follow the manufacturer's recall process.

Refund timing and exchanges

After we receive and inspect the return, we will notify you of approval or the reason it cannot be accepted. Approved refunds are issued to the original payment method within 10 business days of approval; your bank may take additional time to post them. Contact us if more than 15 business days have passed since approval. Exchanges require authorization and replacement availability; any price difference and applicable charges will be explained before processing.

Applicable rights and earlier purchases

This policy applies to online and in-store purchases. We will honor more favorable written return terms provided with an earlier purchase. Applicable consumer rights remain unaffected. Where the European Union 14-day cancellation right applies, customers may cancel or return eligible orders within 14 days of receipt, subject to applicable legal exceptions, without giving a reason.

Recommended BEAM Products

Build your cleaning setup with model-matched supplies and useful accessories. Kit choices are alternatives; check what is already included before ordering.

Check your system and connections

For bags and filters, match the full Beam model and production version. For tools, check the hose handle shape, diameter, wand and electrical connection. Suction-only hoses cannot power corded electric brushes. Complete kits may already contain the tools you need.

Match your Beam bag or filter

Current Beam 205 / 345 / 360 models use the 11-inch filter; 398 / 475 / 495 / 3600 / 4500 use the 14-inch filter. TDSAC93BM bags follow the listed compatible model path. Short TDSAC92BM bags are for the 275 path; #4462 bags are a separate configuration. Confirm older units and production versions before ordering. Check Beam’s official fit guide

The DMV’s Trusted Vacuum Service Authority

For 25+ years, Ace Vacuums has filled the gap left by big-box retailers. We provide the expert repairs, warranty support, and genuine OEM parts that Amazon and Walmart simply don't offer. From free estimates to same-day service, we are your local alternative for professional home care solutions.

Expert Repairs

  • • Vacuum Belt & Roller Repair
  • • Motor Service & Replacement
  • • Suction Loss & Clog Removal
  • • HEPA Filter & Bag Replacement
  • • Central Vacuum Installation
  • • Central Vacuum Repair
  • • Free Repair Estimates

Authorized Center

  • • Miele & SEBO Warranty
  • • Dyson & Riccar Specialists
  • • Shark, Bissell & Hoover
  • • Kirby & Oreck Rebuilds
  • • MD & Beam Central Vac
  • • Austin Air & Blueair
  • • Simplicity & Electrolux

Northern Virginia

  • Fairfax: Alexandria, Burke, Reston, Vienna, Herndon, McLean.
  • Loudoun: Ashburn, Leesburg, Sterling, Purcellville, Aldie.
  • Prince William: Woodbridge, Manassas, Gainesville, Bristow.
  • Arlington: Rosslyn, Crystal City, Ballston.

Regional Reach

Conveniently serving Washington D.C. and Maryland (Montgomery & Prince George's Counties). Our showrooms are just 20 minutes from DC and 10 minutes from Tysons Corner.

Hablamos Español — Service in English & Spanish.

Serving Zip Codes: 20147, 20176, 22030, 22031, 20151, 20190, 22102, 22314, 20110, 20148 & surrounding areas. All repairs performed by certified technicians using genuine parts.
